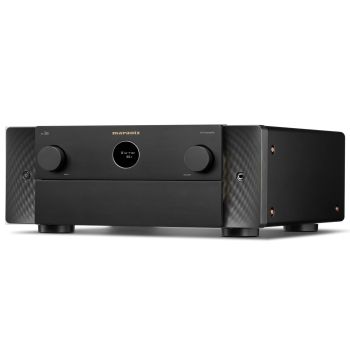

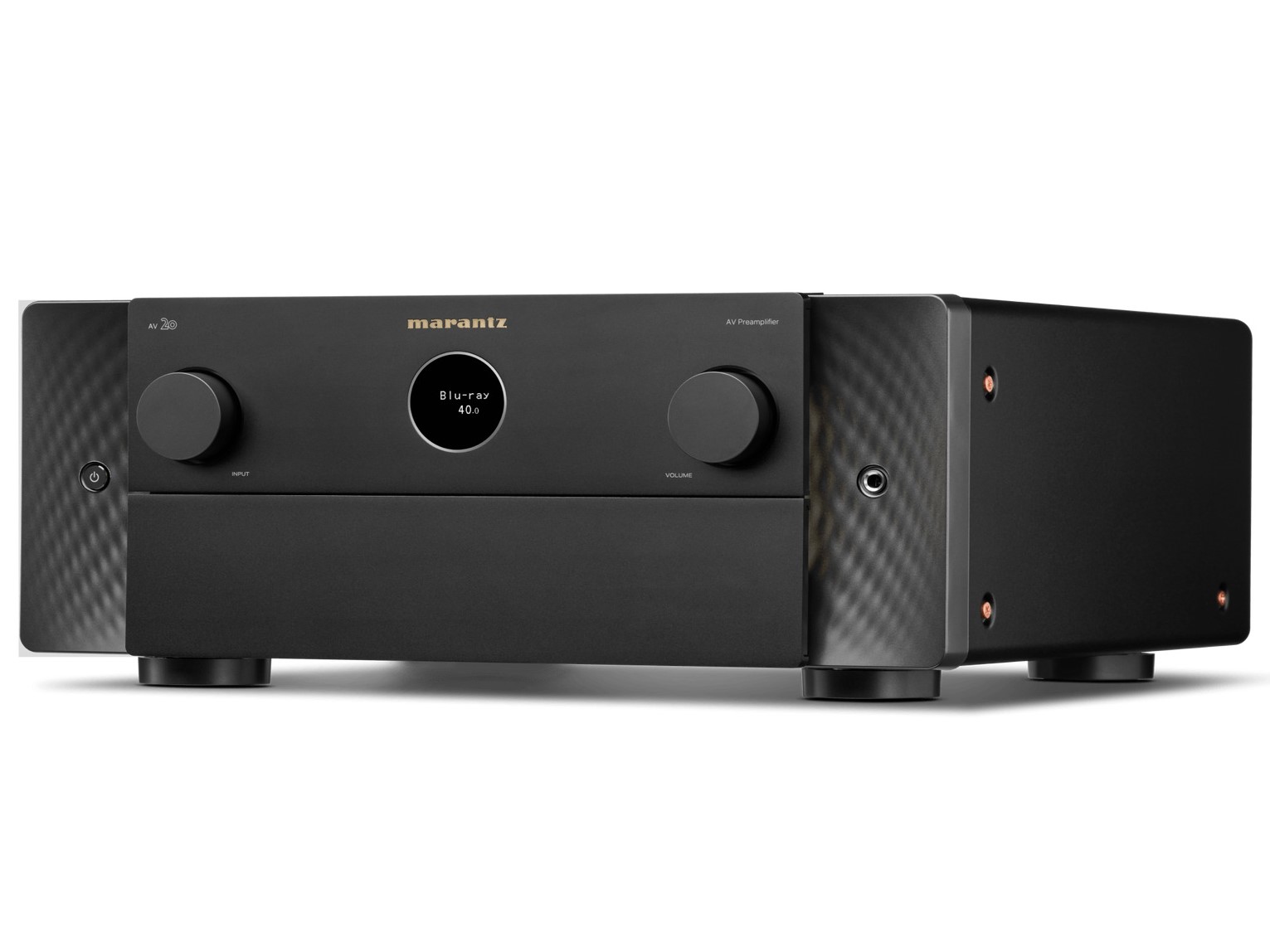

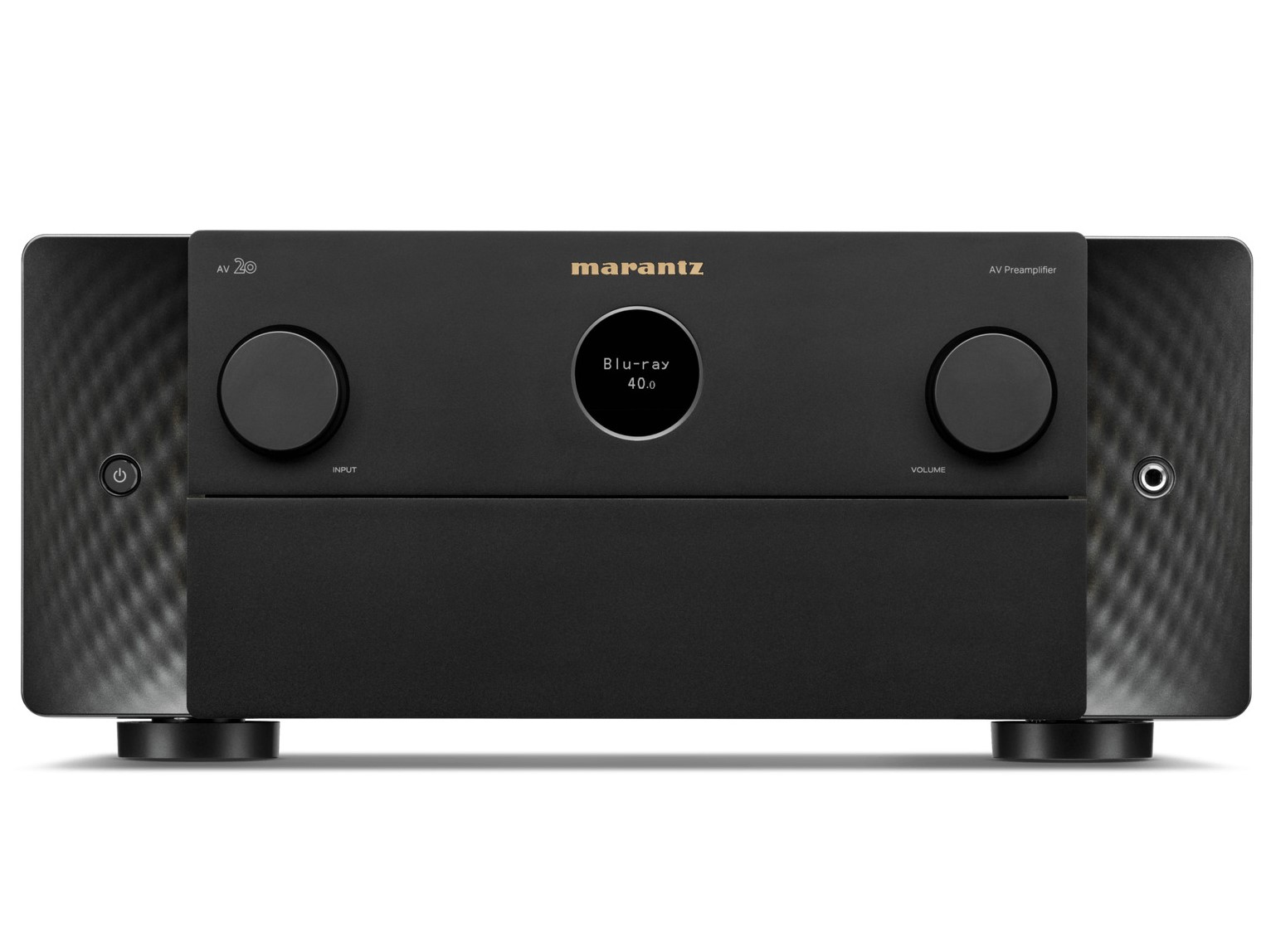

Ο Marantz AV-20 ειναι προενισχυτής AV home cinema 13.4 καναλιων. Υποστηριζει Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced, 8K Ultra HD. Διαθετει HEOS Built-In streaming.

Εγγυηση αντιπροσωπειας. Δυνατοτητα δοσεων.

AV 20 represents the highest measure of performance and capability for reference-level home theater systems. This reference 13.4 Channel Balanced AV Preamplifier features Marantz HDAM discrete circuitry, and boasts seven HDMI inputs, each of which is 8K UHD compatible.

Features

• Meticulously crafted with authentic materials
• 13.4 Channels
• 7 HDMI Inputs plus eARC
• 8K and Dolby Atmos
• 3D Audio
• HEOS Built-In
• FM/AM radio
• Audyssey
• IMAX
• Auro 3D
• Roon Ready

Specifications

• DTS DTS-HD, DTS:X, DTS:X Pro,
• DTS Virtual:X, DTS Neural:X (13ch)
• Dolby Dolby TrueHD, Dolby Atmos,
• Dolby Atmos Height Virtualization,
• Dolby Atmos Music, Dolby Surround
• IMAX IMAX Enhanced
• Auro 3D / 360 Reality Audio / MPEG H Yes / Yes / Yes
• Multichannel Stereo Yes
• Max Number of Processing (Pre-amp) Channels 13.4
• Copper-Plated Chassis / Toroidial Power Transformer Yes / Yes
• Current Feedback Topology / Hyper Dynamic Amplifier Modules (HDAM) Yes / Yes (SA3, monolithic)
• Pure Direct / Gold-Plated RCA Terminals Yes / Yes
• Clock Jitter Reducer Yes
• Dirac Live upgradability Yes
• Compressed Audio Enhancer: MDAX2 Yes
• Audyssey Dynamic EQ / Dynamic Volume / Audyssey LFC Yes / Yes / Yes
• Audyssey MultEQ XT32
• Wi-Fi / Bluetooth / Ethernet Yes / Yes / Yes
• HEOS Multi-Room and Streaming Yes
• Bluetooth Retransmit for Bluetooth Headphones Yes
• Apple HomePod Yes
• Lossy formats MP3, WMA, AAC
• Lossless formats FLAC, FLAC HD 192/24,
• ALAC, ALAC 192/24,
• WAV, WAV 192/24
• DSD Audio Streaming Yes (2.8/5.6MHz)
• Gapless Playback FLAC, ALAC, WAV, DSD
• TuneIn / AirPlay 2 / Spotify Yes / Yes / Yes
• Roon-Ready Yes
• Other Streaming Services* Amazon Music / TIDAL /
• Deezer / Napster / Soundcloud
• Compatible with Remote App for Smartphones Marantz AVR Remote
• Compatible with Remote App for Tablets Android / iOS / Amazon Kindle
• Total HDMI Inputs 7 (rear)
• HDCP2.3 Support Yes
• HDMI Outputs: Main / Zone 2 / 1
• HDMI Scaling 1080P/4K to 8K
• GUI Overlay on HDMI Yes
• HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB Yes / Yes
• 8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out 7 / 2 (up to 40Gbps)
• HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes
• Enhanced ARC Yes
• ALLM (Auto Low Latency Mode) Pass-Through for Gaming Yes
• Variable Refresh Rate / Quick Frame Transport Yes / Yes
• HDMI Pass-Though in Standby Mode Yes
• DSD Audio Capability Yes
• Auto LipSync Yes

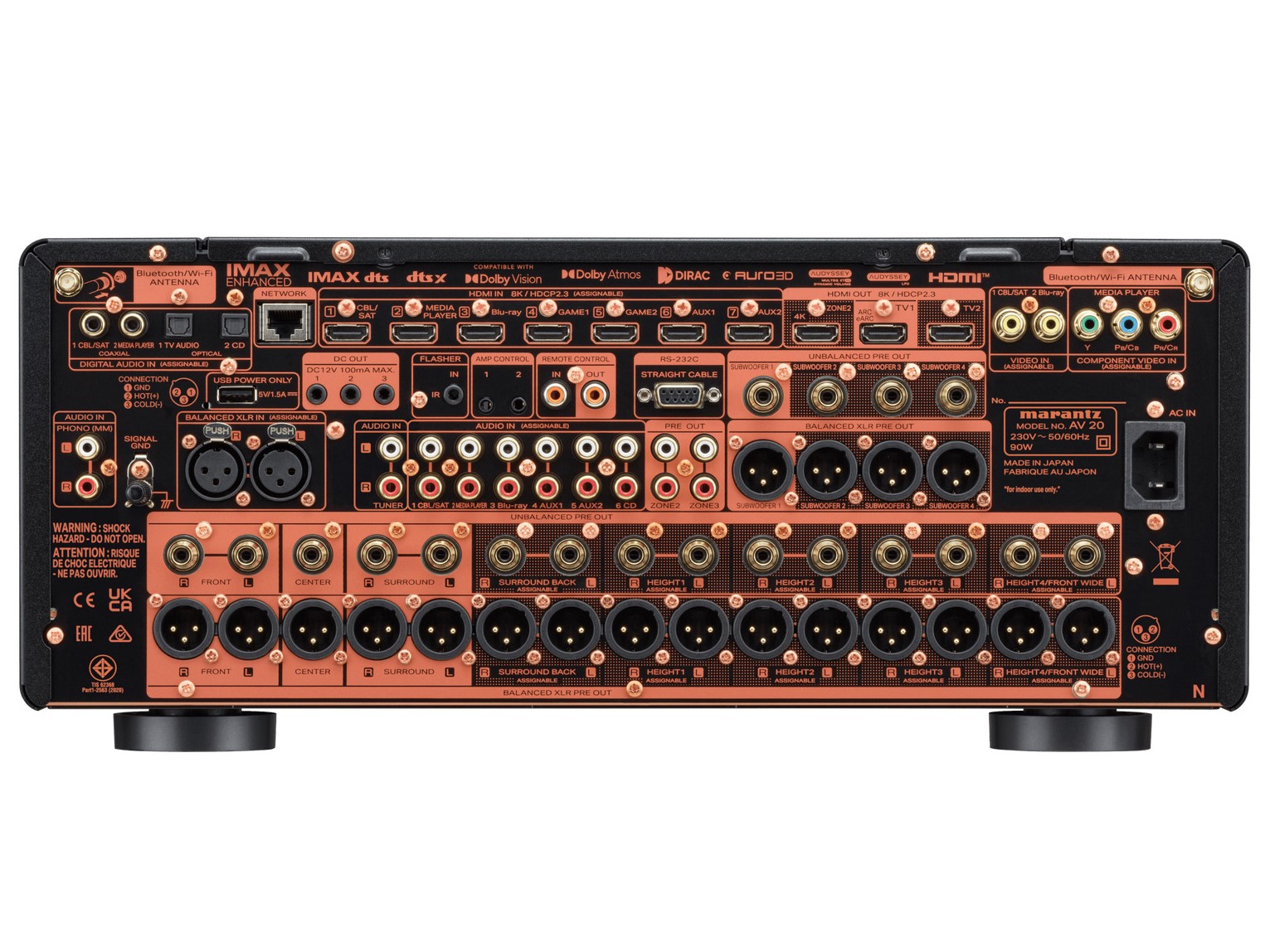

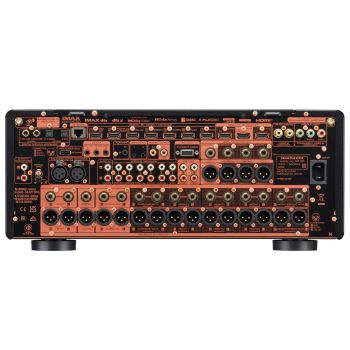

• Composite In / Out 2 / 0
• Component In / Out 1 / 0
• HDMI In / Out 7 / 3
• Multi-Room Video Out: Video / HDMI No / Yes
• Analogue In 6 (1x XLR)
• Phono (MM) In Yes
• Digital In: Optical / Coaxial 2 / 2
• Multi-Room Out: analog / digital 2 / 0
• Multichannel Pre-Amp Out Yes (15.4 RCA, 15.4 XLR)
• Subwoofer Out 4 (independent) RCA, XLR
• Speaker A / B assignable pre out
• Bi-amp drive assignable pre out
• Front USB Input / USB Audio Yes / Yes
• USB Power Supply (Rear) Yes
• AM/FM Tuner Yes
• HEOS Multi-Room Integrated Yes
• HEOS Link Compatibility: IR/ IP Yes / Yes
• Multi-Room Zones 3
• Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue Yes (2 ch) / Yes (2 ch) / Yes / Yes
• Zone Audio Output: Speaker / Pre-Out No / Yes
• Zone HDMI Output from HDMI Source Yes
• IP Control / RS232 Control / Web Control / App Control Yes / Yes / Yes / Yes
• IR Flasher In / Marantz Remote Bus Yes / Yes
• DC Trigger Output 3
• HDMI Diagnostics Yes
• Auto Speaker Setup by Microphone Audyssey MultEQ XT32
• Dirac Live (upgrade)

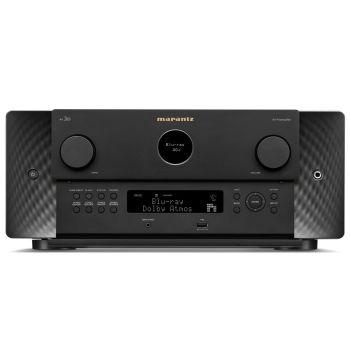

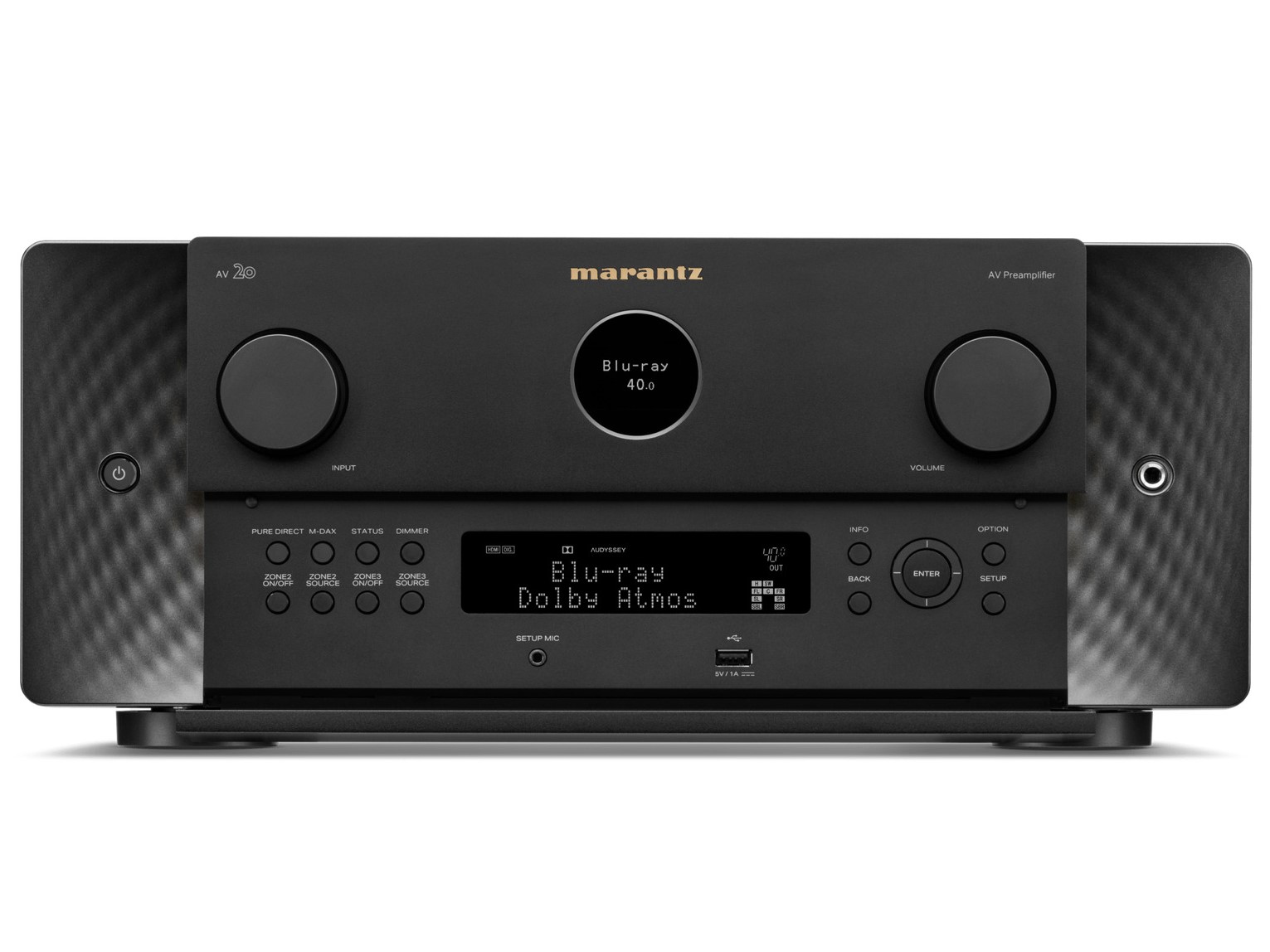

• Front Display 2-Line FLD, Port Hole OLED
• Graphic User Interface - GUI Modern HD GUI
• GUI Languages 3
• Setup Assistant / Smart Select Yes / Yes
• Firmware Update by Network / USB Yes / Yes
• Variable Cross Over / Optimized Bass Redirection / Bass Sync Yes / Yes / Yes
• Auto Power Off / Sleep Timer Yes / Yes
• Metal Front Panel Yes
• System Remote Control RC051SR
• Backlit Yes
• Power Consumption 90 W
• Standby Consumption 0.2 W
• CEC Standby Consumption in W 0.5 W
• Network Standby Consumption <2.0 W
• Maximum Dimensions
  • Antenna:Horizontal: (W × D × H) 44.2 × 45.7 × 19.1 cm
  • Antenna:Vertical: (W × D × H) 44.2 × 45.7 × 25.4 cm
  • W/o Antenna: (W × D × H) 44.2 × 43.7 × 19.1 cm
• Weight 15.0 kg
• What's in the box Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
