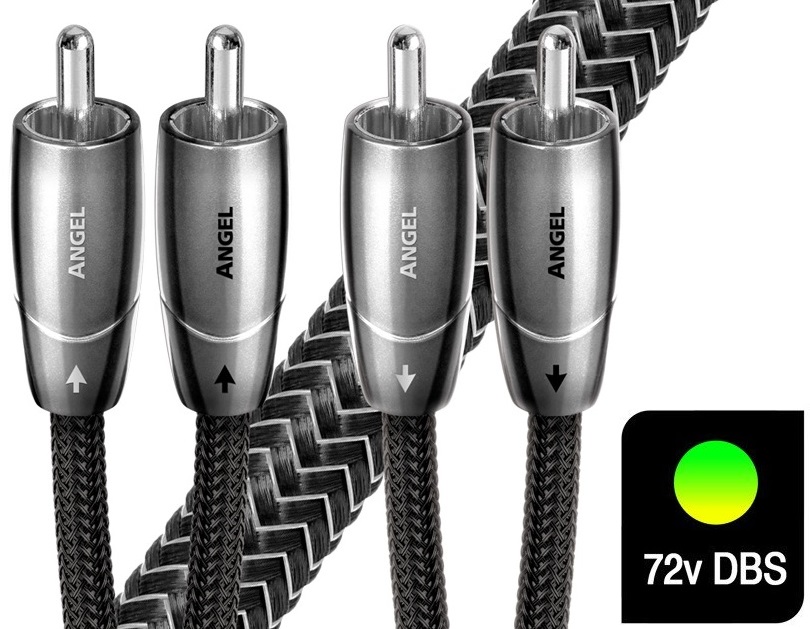

To AudioQuest Angel ειναι ενα καλωδιο interconnect (τεχνολογιας 72V DBS) τερματισμενο με βυσματα RCA.

Δυναται να παραγγελθει με οποιους ακροδεκτες ειναι επιθυμητοι (rca , xlr , mini jack 3.5mm, ipod 30pin , din) και με οποιοδηποτε συνδυασμο τους . Επισης δυναται να παραγγελθει και σε 1.5 , 2 , 3 , 5 , 8 , 12 , 16 , 20 μετρα η σε αλλο επιθυμητο μηκος.

• Metal: Solid Perfect-Surface Silver (PSS)
• Geometry: Asymmetrical Double-Balanced (Lower Impedance on Ground, Same Quality + & – Conductors)
• Dielectric: FEP Air-Tubes (FEP is a Fluoro-Polymer)
• Noise-Dissipation System: Carbon-Based 3-Layer Noise-Dissipation System (NDS)
• Jacket: Black/Silver Braid
• Terminations: Cold-Welded, Direct-Silver Plated Pure Red Copper

Note: All cables in our Bridges & Falls Series place their left and right channels in a single jacket, and feature our Asymmetrical Double-Balanced geometry with separate high-quality positive and negative conductors. This design allows for a thin, flexible, and uniquely versatile high-performance cable that can be terminated with a variety of today’s connections, including 3.5mm (male or female), DIN, and RCA. In Bridges & Falls, you’ll find better metals and more sophisticated technologies — including Air-Tube insulation, Dielectric-Bias System, and Noise-Dissipation System — at lower prices than ever before. Do keep in mind, however, that, by necessity, the plugs on Bridges & Falls cables are fairly close together. If the L and R inputs of your components are more than 3″ (7.6cm) apart, please consider models from our Rivers or Elements Series.

SOLID 100% PERFECT-SURFACE SILVER (PSS) CONDUCTORS: Perfect-Surface Technology applied to extreme-purity silver provides unprecedented clarity and dynamic contrast. Solid conductors prevent strand interaction, a major source of cable distortion. Extremely high-purity Perfect-Surface Silver minimizes distortion caused by the grain boundaries which exist within any metal conductor, nearly eliminating harshness and greatly increasing clarity compared to OFHC, OCC, 8N and other coppers.

FEP AIR-TUBE INSULATION (FEP is a Fluoro-Polymer): Any solid material adjacent to a conductor is actually part of an imperfect circuit. Wire insulation and circuit board materials all absorb energy (loss). Some of this energy is stored and then later released as distortion. All of Angel’s conductors use Air-Tube insulation because air absorbs next to no energy, and FEP is the best extrudable solid insulation and absorbs less energy than other materials. The FEP Air-Tubes used in Angel have almost nothing but air around the solid PSS conductors.

DIELECTRIC-BIAS SYSTEM (DBS, US Pat #s 7,126,055 & 7,872,195 B1): All insulation slows down the signal on the conductor inside. When insulation is unbiased, it slows down parts of the signal differently, a big problem for very time-sensitive multi-octave audio. AudioQuest’s DBS creates a strong, stable electrostatic field which saturates and polarizes (organizes) the molecules of the insulation. This minimizes both energy storage in the insulation and the multiple nonlinear time-delays that occur. Sound appears from a surprisingly black background with unexpected detail and dynamic contrast. The DBS battery packs will last for years. A test button and LED allow for the occasional battery check.

CARBON-BASED 3-LAYER NOISE-DISSIPATION SYSTEM (NDS): 100% shield coverage is easy. Preventing captured RF Interference from modulating the equipment’s ground reference requires AQ’s Noise-Dissipation System. Metal and Carbon-Loaded synthetics prevent most RFI from reaching the equipment’s ground plane.

ASYMMETRICAL DOUBLE-BALANCED GEOMETRY: Purpose designed for single-ended applications, Asymmetrical Double-Balanced Geometry offers a relatively lower impedance on the ground for a richer, and more dynamic experience. While many single-ended cable designs use a single path for both the ground and the shield, Double-Balanced designs separate the two for cleaner, quieter performance.

COLD-WELDED, DIRECT-SILVER PLATED PURE RED COPPER TERMINATIONS: This plug design allows for a connection devoid of solder, which is a common source of distortion. Because the ground shells are stamped instead of machined, the metal can be chosen for low distortion instead of machinability. Red Copper offers a cleaner, clearer sound over nickel-plated or OFHC metals commonly found in competing manufacturers’ plugs. Direct-Silver Plating offers one more important step toward greater clarity and doing no harm to the signal.
