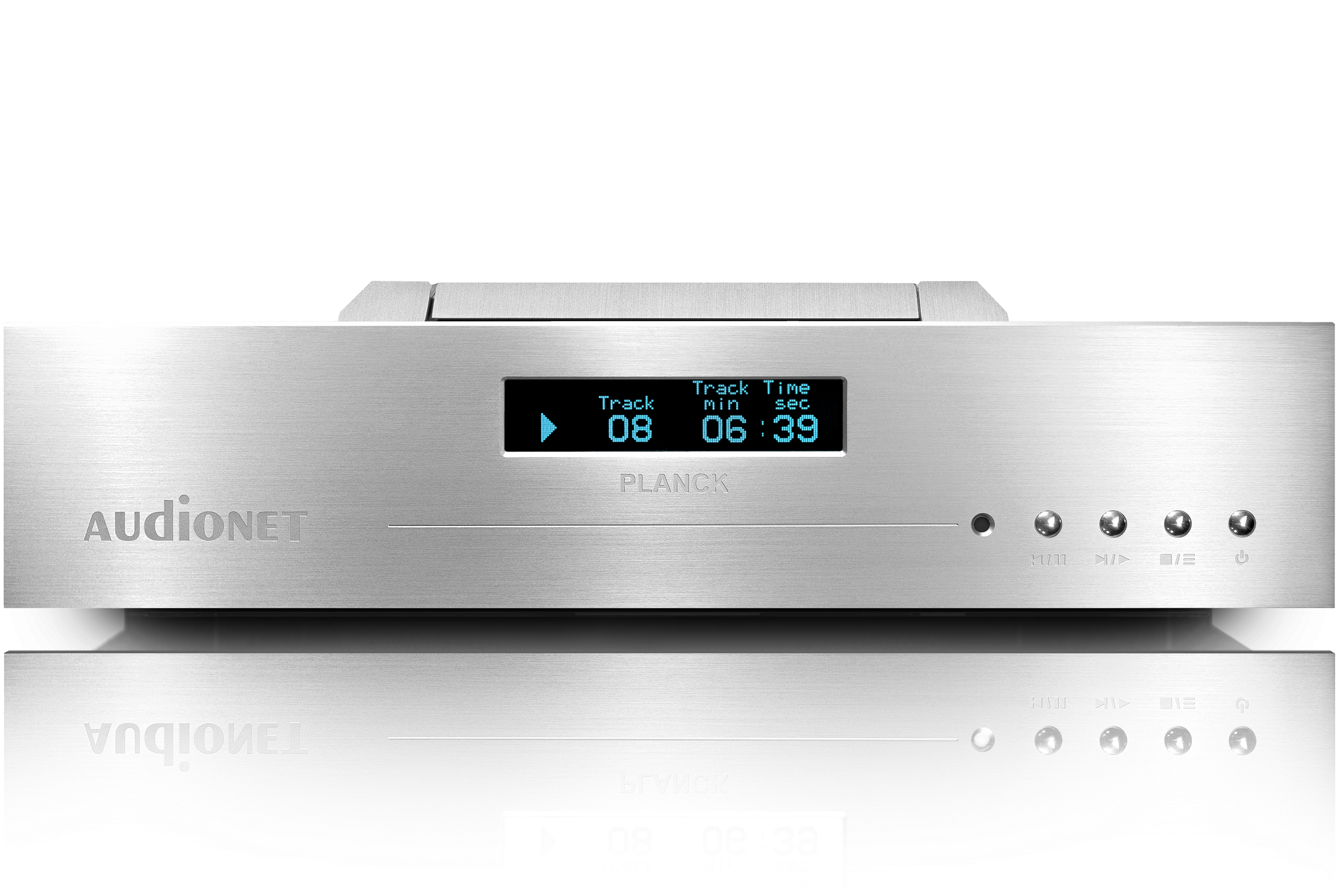

Audionet Planck2 silver blue

Το Audionet Planck2 ειναι cd player 192 kHz/24 bit. Tο ενσωματωμενο dac λειτουργει και αυτονομα. Εισοδοι DAC: 1x Digital Coaxial RCA In, 2x Optical In. Εξοδοι DAC: 2x Digital Coaxial Out, 1x AES/EBU και 1x Optical Out. Εξοδοι CD Player: 1x pair RCA, 1x pair XLR.

15740.00€

Διαθεσιμότητα: 4-10 ημέρες

ΔΩΡΕΑΝ ΑΠΟΣΤΟΛΗ ΣΕ ΟΛΗ ΤΗΝ ΕΛΛΑΔΑ

Το Audionet Planck2 ειναι cd player 192 kHz/24 bit. Tο ενσωματωμενο dac λειτουργει και αυτονομα. Εισοδοι DAC: 1x Digital Coaxial RCA In, 2x Optical In. Εξοδοι DAC: 2x Digital Coaxial Out, 1x AES/EBU και 1x Optical Out. Εξοδοι CD Player: 1x pair RCA, 1x pair XLR.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα ανταλλαγων και δοσεων.

The body construction completely made of non-ferro­magnetic materials combined with a massive slate board optimizes the resonance charac­teristics of PLANCK2. The new design with non-visible fixation screws and with a massive and solid aluminium cover pleases both eyes and ears alike.

Converting from digital to analog, newly developed discrete output modules with extremely fast, wide-band high-performance class A output drivers ensure the perfect sonic experience. The current-voltage converter comprises absolutely temperature stable and sonically neutral high-precision resistors.

Our high-precision clock generator eliminates the infamous jitter: PLANCK2 gets all music data at the right time and with its correct value. And the internal frequency compen­sation equipped with custom made mica capacitors of highest grade guarantees absolute precision in the analog domain.

Also, we gave the digital input section a completely new design. PLANCK2 uses the same outstanding USB Audio 2.0 technology as Audionet’s famous DNx machines:

  • USB Audio 2.0 support up to 192 kHz / 24 bits.
  • Asynchronous data connection and re-clocking ensuring a clean digital music signal.
  • The USB Audio circuitry is completely galvanically isolated from the rest of the PLANCK2. Therefore no harmful reactions apply from the PC and its “dirty” power supply.
  • Separate and user-selectable electrical and optical digital inputs (SPDIF) – also using DNx technology and up to 192 kHz / 24 bit for enhanced playback of other digital sources.

Features

  • Top loader, decoupling aluminium and slate body construction.
  • Massive aluminium body, resonance-optimized fixation with invisible screws and Teflon bedded massive disc drawer cover made of 10 mm aluminium.
  • Additional decoupling of the drive unit, PCBs and high precision clock generator by Audionet Aligned Resonance Technology.
  • Reference drive unit CD-PRO 8 on HQ aluminum chassis with carbon fibre turntable and cover.
  • Adaptive high precision puck and puck mounting made of POM, toroid Neodym magnet.
  • Completely separated power supplies for pickup and converter unit, digital and analog section.
  • Completely DC-coupled, no capacitor in the signal path.
  • Newly developed discrete output modules with extremely fast, wide-band high-performance Class A output drivers.
  • Current-Voltage converter with absolutely temperature stable and sound neutral high-precision resistors and with custom made mica capacitors of highest grade for internal frequency compensation.
  • D/A converter function with separate and user-selectable digital inputs: SPDIF electrical (Cinch) and optical (Toslink) as well as USB Audio 2.0 (USB type B socket).
  • All digital inputs up to 192 kHz / 24 bit.
  • Digital outputs SPDIF (electrical and optical) and AES/EBU output 44.1 KHz / 16 bit (for CD).
  • Disengageable digital outputs.
  • Remote power on/off via Audionet Link (optical cable).
  • Professional concept of operations.
  • Rhodium fuse.
  • Dedicated WATT/PLANCK Audionet metal remote control in matching color.

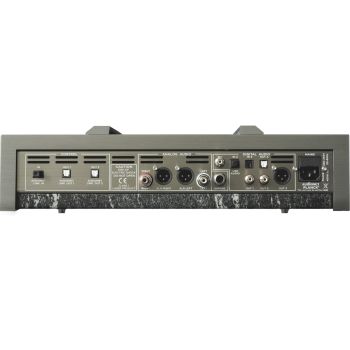

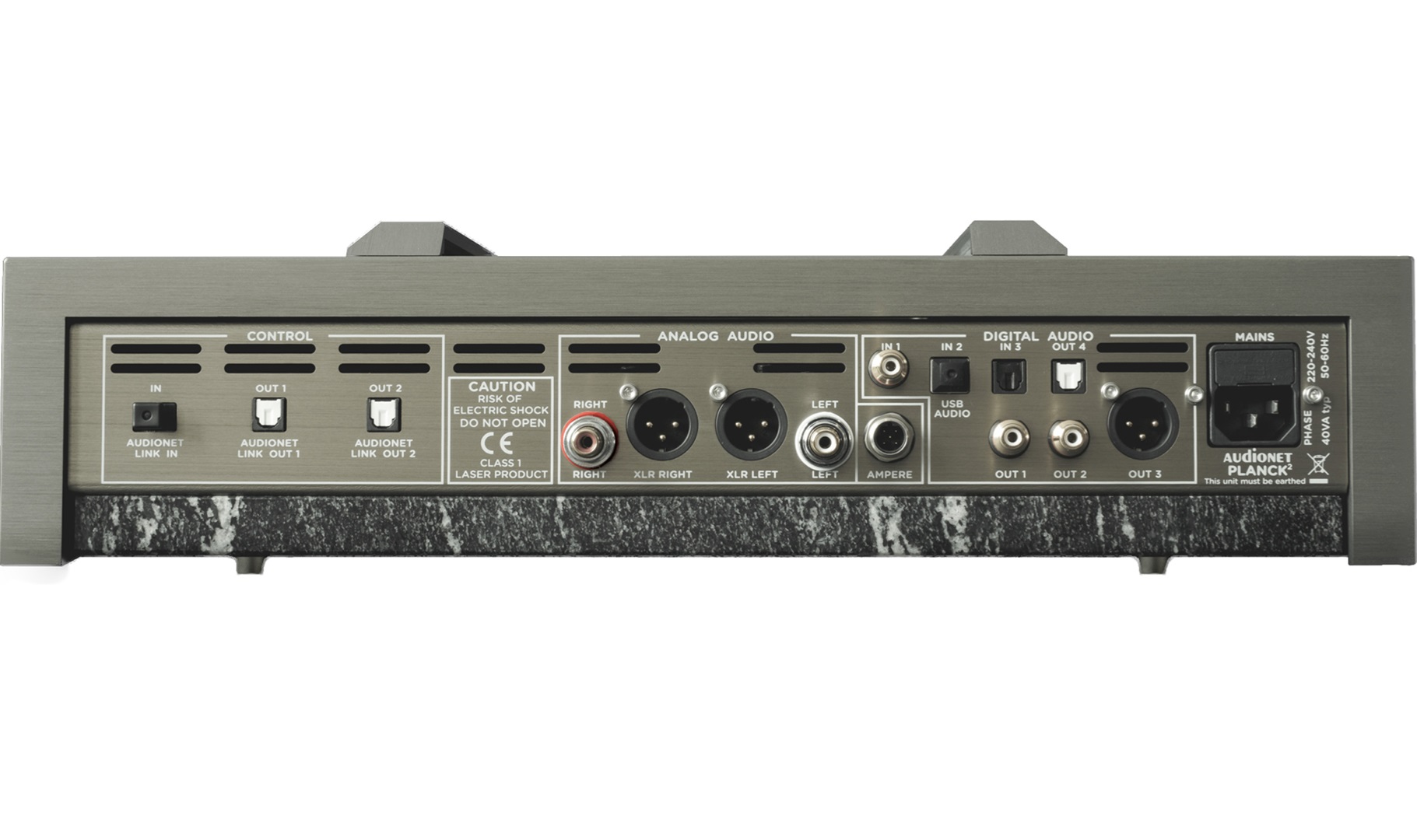

In- and Outputs

  • Digital audio inputs:
    • 1 USB Type B socket, USB Audio 2.0
    • 1 RCA, electrical digital (SPDIF)
    • 1 TosLink, optical digital (SPDIF)
  • Analog audio outputs:
    • 1 pair RCA analog (Furutech), gold plated, teflon insulated
    • 1 pair XLR analog, gold plated
  • Digital audio outputs (All digital outputs disengageable):
    • 2 RCA digital (SPDIF), gold plated, 600 mVss in 75 Ω
    • 1 AES/EBU digital, 110 Ω, gold plated
    • 1 SPDIF optical digital (TosLink)
  • External power supply AMPERE:
    • 5-pin input

Specifications

  • Laser system: Modified and customized CD-Pro 8 mechanism, HQ semiconductor laser by SANYO SF-HD850 OPU, 780 nm wave length.
  • Norms: CD / CD-R / CD-RW (finalized and non finalized discs). Disc sizes 80 and 120 mm, IEC 908 conform.
  • Stereo channels: 192 kHz / 24 bit, Dual-Mono-DAC, Multibit-Delta-Sigma method
  • Sample rate: 44.1 kHz
  • Audio bandwidth: 0 – 75,000 Hz (-3 dB) (reconstruction filter)
  • THD + N: <-109 dB (A-weighted) @ -6 dBFS
  • SNR: >111 dB
  • Channel separation: >134 dB @ 10 kHz
  • Output impedance analog: 33 Ω real
  • Output level analog:     3.5 VRMS
  • Power consumption: < 1 W Stand by, max. 40 W
  • Mains:     220..240 V or 110..120 V, 50..60 Hz
  • Dimensions: Width 430 mm, Height 120 mm, Depth 370 mm
  • Weight: 23 kg
