Ο Monitor Audio IA60-4 ειναι 4 καναλος πολυζωνικος ενισχυτης (multiroom amplifier), 4x60 wrms/8Ω ή 2x120 wrms/8Ω bridged. Υποστηριζει 70/100V ηχεια.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

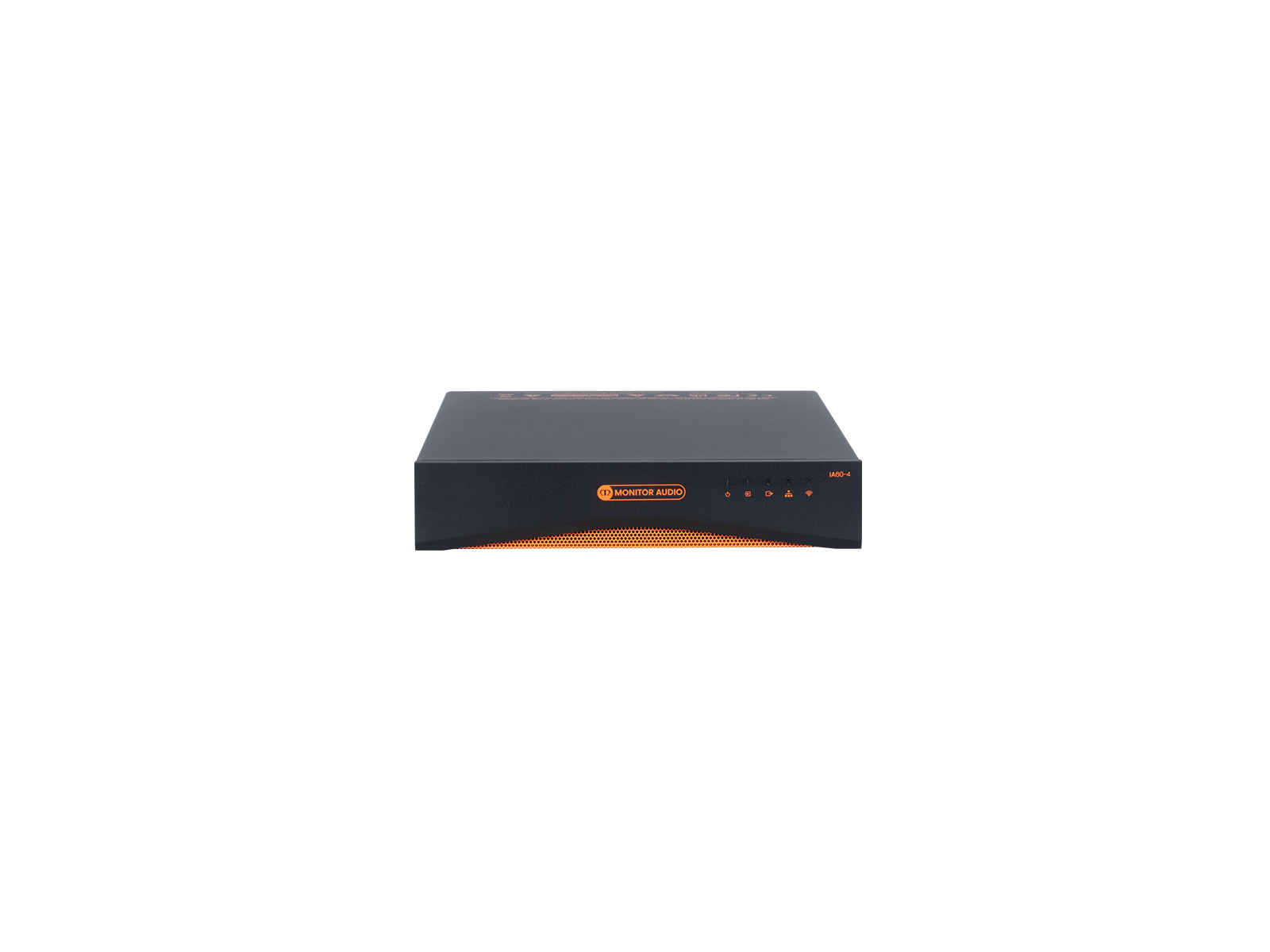

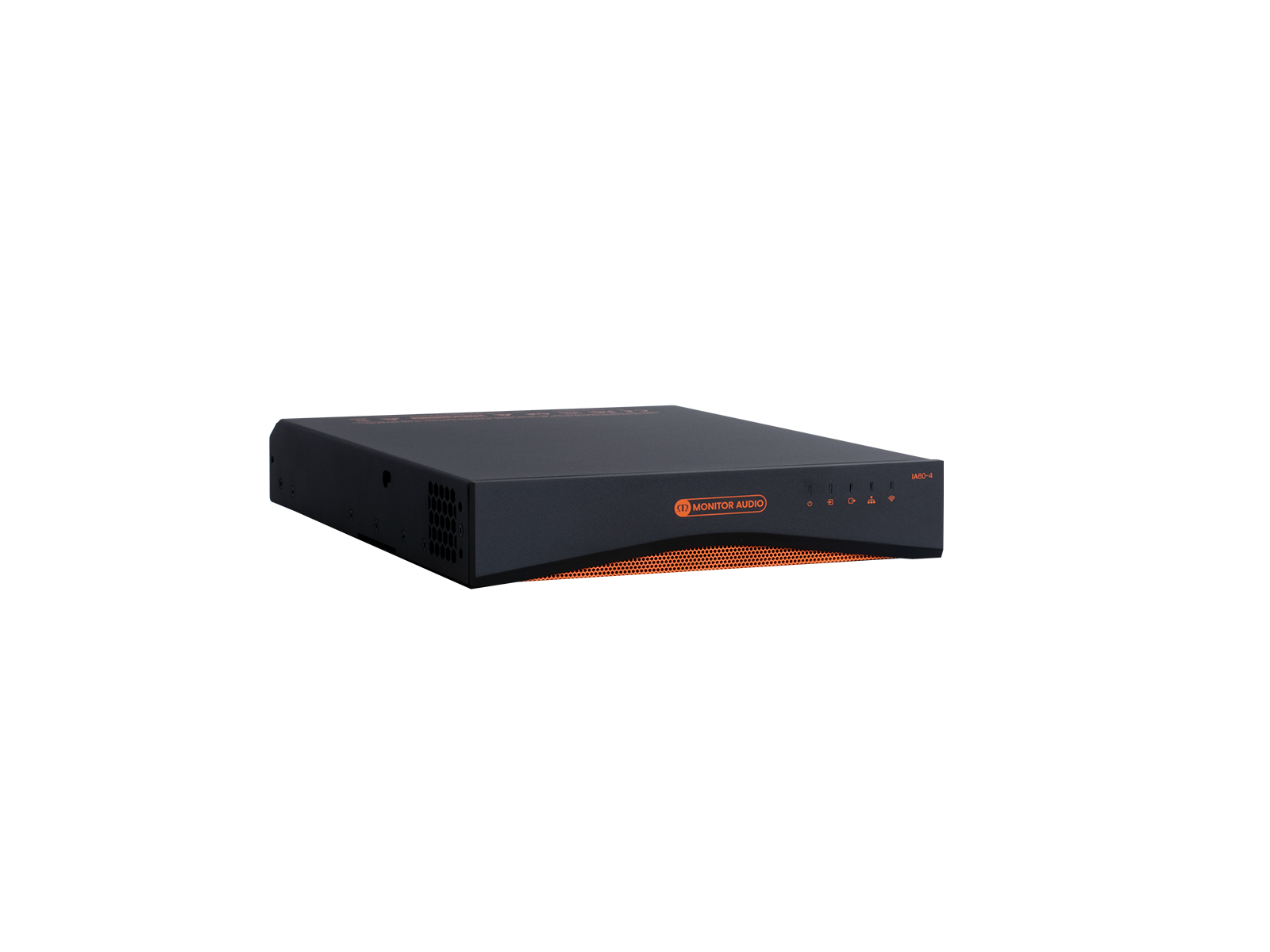

A highly compact, incredibly versatile four-channel custom installation amplifier, the IA60-4 can be configured to deliver four channels of 60 W or 2 channels at 125 W.

Description

Monitor Audio Installation Amplifiers are built to perform at the highest levels while taking up the least rack space. The IA60-4 may be entry-level, but it features full DSP matrix configuration and offers flexible power options: it can be configured to deliver four channels of 60W or 2 channels at 125 W or using power sharing it can deliver a single channel of 250 W with no loss of performance. All this from a rugged, 1U half-size space-saving design. The IA60-4 is ideal for two zone stereo applications, height channels within home theatre Atmos solutions or small garden systems.

Note: Rack and wall/desk installation kits sold separately.

Features

• 4 x 60 W/2 x 125 W
• Fully customisable DSP amplifier with web configurator

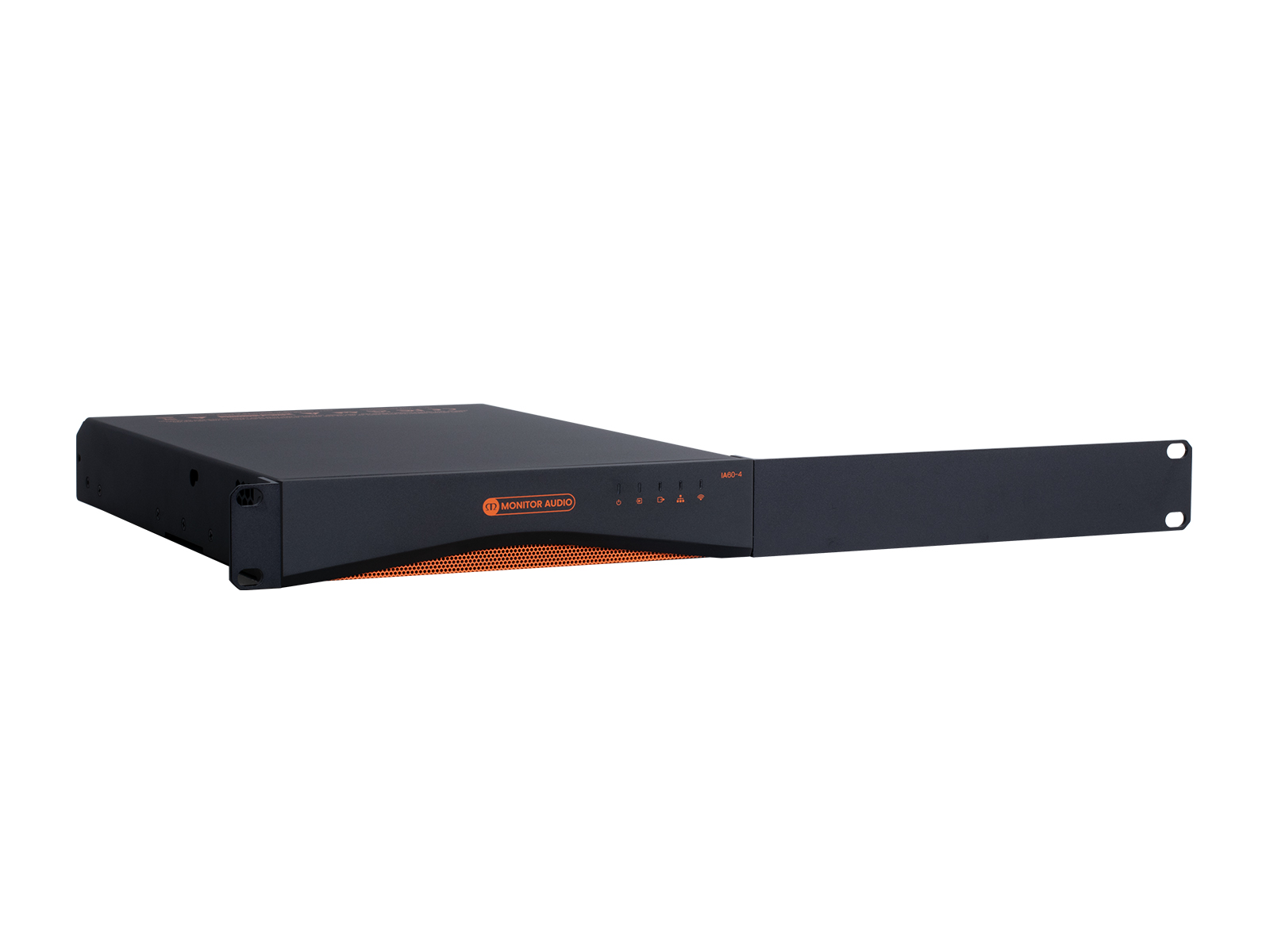

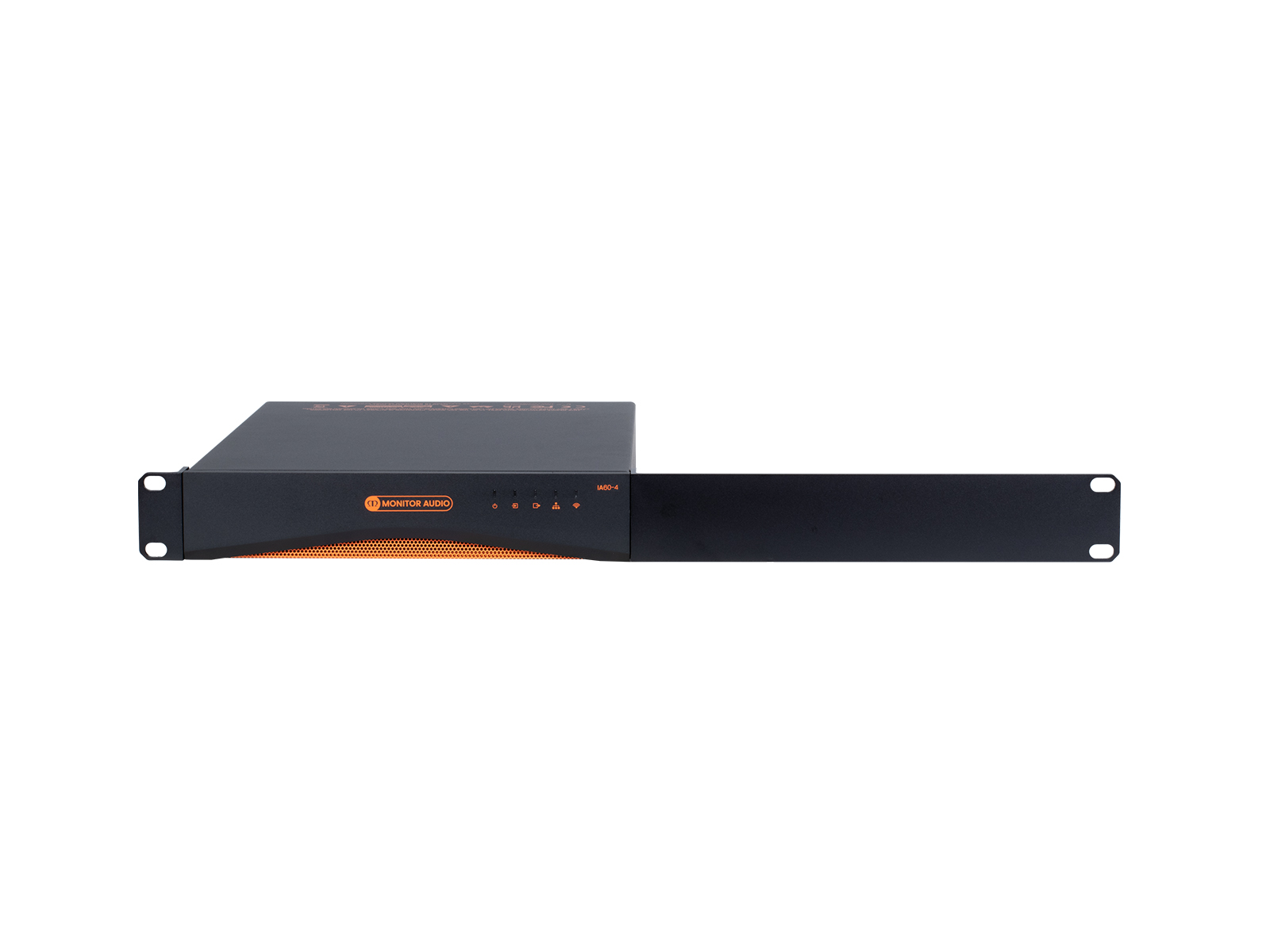

• Half width 1U rack format allows unique installation opportunities or high power density depending on how the product is mounted
• High performance Class D amplifiers ensure excellent power and sound delivery
• Power Sharing technology
• Supports 70/100V line level speakers
• Compatible with our Installation Amplifier Rack Kit and Wall/Desk Kit.

Specifications

• Channels 4
• Output Power @ 4 Ohms/8 Ohms 4 x 60W SE*
• Output Power @ 70/100V 2 x 125W BTL**
• Poweshare (up to) 1 x 250 W
• Power Consumption 75 W
• Thermal Output 256 BTU
• Polarity (Default) Non-inverting
• Dimensions 44 x 220 x 325 mm (13/4 x 811/16 x 115/8")
• Output Voltage 70Vp / 140Vpp (SE unloaded), 140Vp / 280 Vpp (BTL unloaded)
• Signal to Noise Ratio >106dB (A-weighted, 20 Hz – 20 kHz, 8 Ohm load)
• THD+N (typical) <0.05% (20 Hz – 20 kHz, 8 Ohm load, 3db below rated power)
• Frequency Response +0/-0.25dB 20Hz - 20kHz (8 Ohm load, 3dB below rated power)
• Protection Circuits Short circuit -, DC, Undervoltage -, Temperature – and Overload protection
• Power Supply Switch mode power supply with Power Factor Correction (PFC) and standby converter
• Operating Voltage/Frequency Universal Mains, 100 V – 240 V, 50 Hz – 60 Hz
• Standby Consumption <0.5 W
• Accessories Rack Mount Kit, Wall/desktop mount kit (sold seperatley)
• Power Ratings 1% THD @ 120Vac and 230Vac
• Cabinet Finish Black Anodised

* SE - Single Ended
** BTL - Bridge Tied Load
*** BTU - British Thermal Unit
