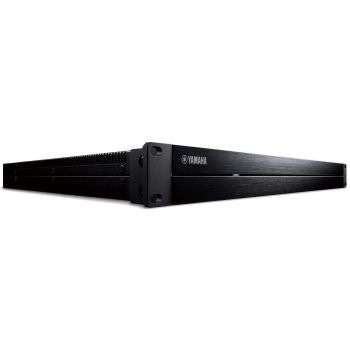

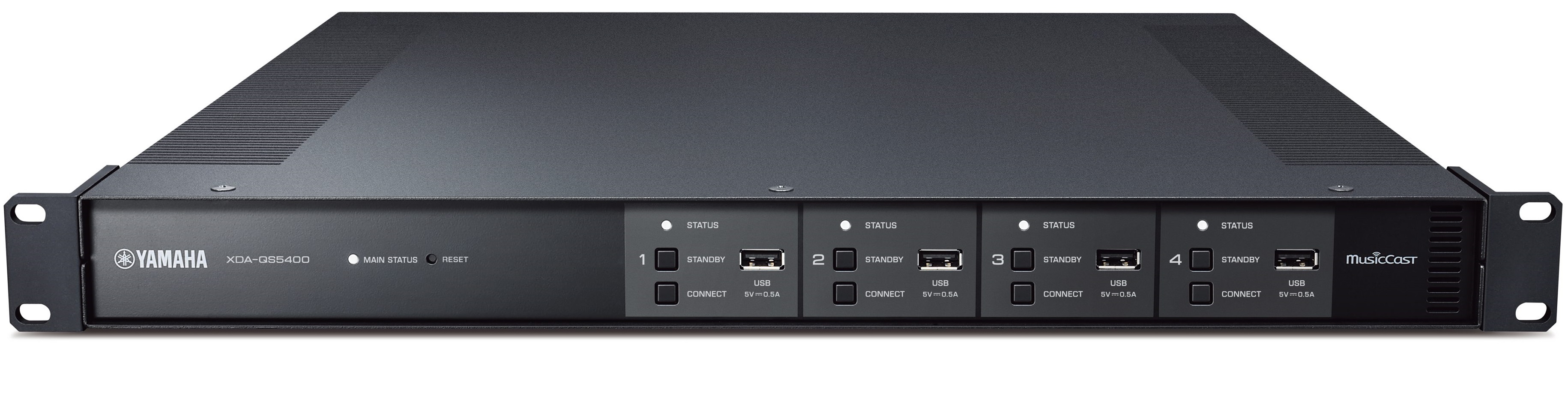

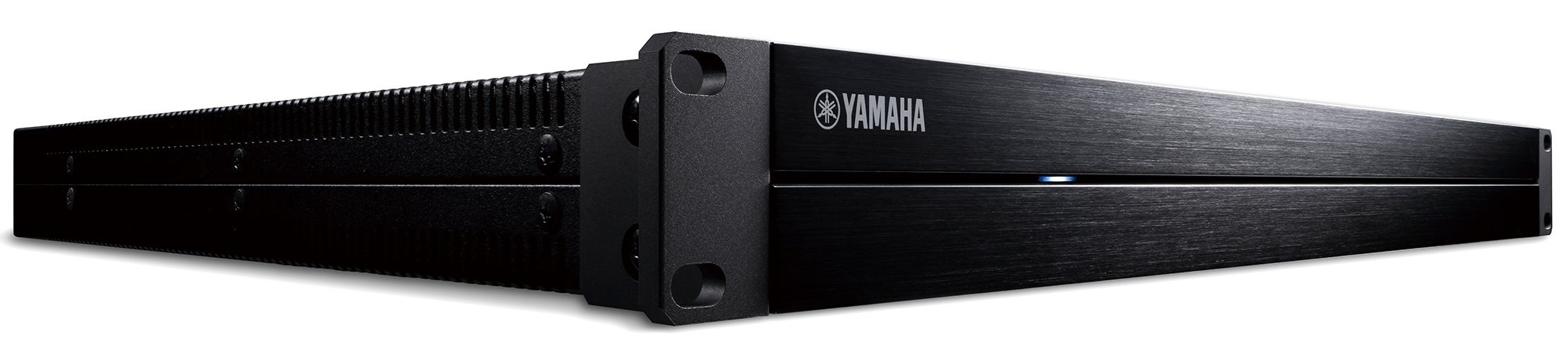

Yamaha XDA-QS5400RK - 8 καναλια
Ο Yamaha XDA-QS5400RK ειναι 8x50wrms δικτυακος εγκαταστατικος ενισχυτης.
Τιμή Καταλόγου: 2880.00€
2599.00€
2599.00€
Άμεση Διαθεσιμότητα
ΔΩΡΕΑΝ ΑΠΟΣΤΟΛΗ ΣΕ ΟΛΗ ΤΗΝ ΕΛΛΑΔΑ
Tags
MultiRoom Amp 8chΟ Yamaha XDA-QS5400RK ειναι 8x50wrms δικτυακος εγκαταστατικος ενισχυτης.
Specially designed for custom integration of whole home audio systems, the ?QS? (Quad Streamer) provides four zones of audio streaming and eight channels of high-performance audio amplification in an ultra-slim, 1U-high, rack-mountable enclosure. Expandable and extremely flexible, the QS works with the MusicCast multi-room audio system, allowing it to be linked with home theater AV receivers, sound bars and Hi-Fi gear in a wide variety of configurations.
- Designed for custom integration of a MusicCast multi-room audio system connected via Ethernet LAN in a rack or cabinet
- Streams four zones of audio per unit, expandable to 32 zones with simultaneous playback in linked groups of up to 20 zones each
- Eight channels of audiophile-grade Class D amplification assignable to any zone, bridgeable and 4-ohm capable, featuring a unique ground loop/hum-free circuit design
- Built-in Pandora?, Spotify Connect, SiriusXM Internet Radio, TIDAL, Deezer, Napster and more, plus access to music libraries and linked external sources
- Easy control via a free MusicCast app and 3rd-party control systems
- 1U high, rack-wide enclosure; removable rack ears and faceplate included
| Network Section | File Format | MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, WAV / FLAC / AIFF: up to 192 kHz / 24-bit |
|---|---|---|
| Ethernet | Yes (2 terminals) | |
| AirPlay | Yes | |
| Audio Specifications | Channel | 8 channel (2 channel x 4) |
| Minimum Speaker load Capability | 4 ohm | |
| BTL Connection | Yes | |

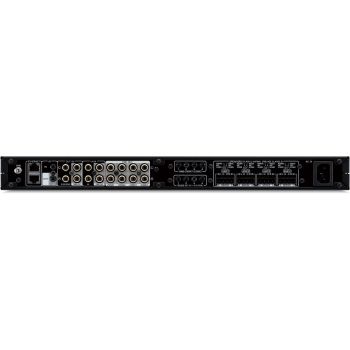

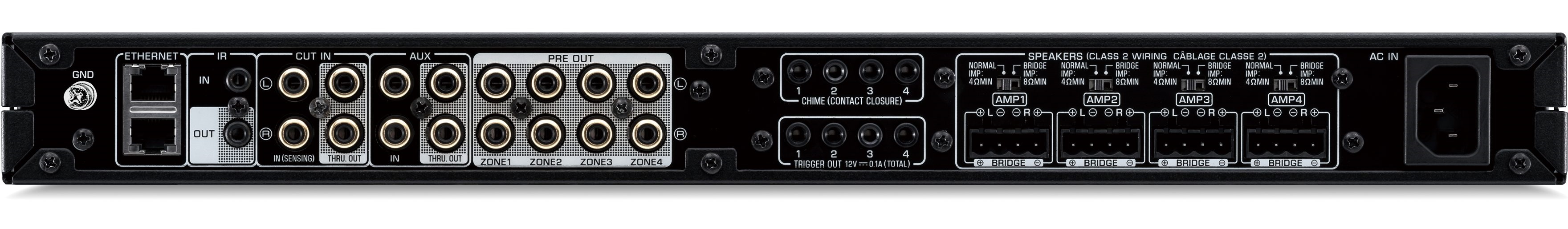

| Speaker Output Terminal | 4 (Euroblock) | |
| Preout Terminal | 4 | |
| Audio Input Terminal | RCA: 2 (CUT IN, AUX), USB: 4 | |
| Audio Output Terminal | RCA (2-ch through out): 2 (CUT IN, AUX) | |
| Trigger In / Out | 0 / 4 | |
| Remote In / Out | 1 / 1 | |
| Chime | 4 | |
| Rated Output Power (1 kHz, 0.9% THD, 2ch driven) | Normal (4 / 8 ohms): 90 / 50 W, Bridge (8 ohms): 100 W | |
| Rated Output Power (1 kHz, 0.9% THD, 1ch driven) | Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms):200 W | |
| Dynamic Power (20 Hz-20 kHz, 0.08% THD, 2ch driven, 20 ms burst) | Normal (4 / 8 ohms): 80 / 40 W, Bridge (8 ohms): 150 W | |
| Dynamic Power (1 kHz, 0.9% THD, 2ch driven, 20 ms burst) | Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms): 200 W | |
| Dynamic Power (1 kHz, 0.9% THD, All ch driven, 20 ms burst) | Normal (4 / 8 ohms): 80 / 50 W, Bridge (8 ohms):170 W | |
| Maximum Effective Output Power | [1-ch driven, 1 kHz, 10% THD] Normal (4 / 8 ohm): 130 / 65 W, Bridge (8 ohm): 260 W | |
| Total Harmonic Distortion | [SP OUT, 20 Hz-20 kHz, 25 W, 8 ohm] 0.04%, [PRE OUT, 20 Hz-20 kHz, 1 V] 0.005% | |
| Frequency Response | [1 kHz + 0 / -3 dB] PRE OUT NET / USB IN, AUX IN: 10 Hz-22 kHz, SP OUT NET / USB IN, AUX IN: 10 Hz-22 kHz | |
| Signal to Noise Ratio | [PRE OUT NET / USB IN] 114 dB, [PRE OUT AUX IN] 108 dB, [SP OUT NET / USB IN] 106 dB, [SP OUT AUX IN] 104 dB | |
| Rated Output Level / Output Impedance | [PRE OUT L / R, 1 kHz] 2.0 V / 470 ohm | |
| Maximum Output Level | [PRE OUT L / R, 0.9% THD] 4.0 V | |
| Maximum Input Signal | [PRE OUT L / R, 0.9% THD] 2.4 V | |
| Gain | [SP OUT 1 V Input] 25.8 dB | |
| Input Sensitivity | [1 W Power, 8 ohm] 150 mV, [MAX (50W) Power, 8 ohm] 1.0 V | |
| Web Setup | Yes | |
| Direct Mode | Yes | |
| Monaural Downmix | Yes (stereo playback or monaural downmix selectable) | |
| Compressed Music Enhancer | Yes | |
| Volume Adaptive EQ | Yes | |
| Volume Control | Support Terminals: PRE OUT / SP OUT, Range: Mute, -80 dB ~ 0 dB, Step: 0.5 dB | |
| EQ Characteristics | [Bass] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 350 Hz, [Mid] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 1.1 kHz, [Treble] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 3.5 kHz | |
| Bass Extension | Yes | |
| General | Power Consumption | 130 W, [All Zone On] No Signal Condition: 40 W, [All Zone Off] Chime On: 18.2 W, Cut In Power On Enable: 18.2 W |
| Standby Power Consumption | Network Standby Off: 0.2 W, Network Standby On(1 Zone): 3.2 W, Network Standby On(All Zone): 6.0 W | |
| Power Management (Auto Power Standby) | 5 / 20 min, 2 / 4 / 8 / 12 hours selectable | |
| Dimension (W ? H ? D) mm | [Table Top Mount with Adhesive Feet] 437 x 46 x 443 mm; 17-1/4? x 1-3/4? x 17-3/8?, [Table Top Mount with Adhesive Feet and Faceplate] 437 x 46 x 453 mm; 17-1/4? x 1-3/4? x 17-7/8?, [Rack Mount] 481 x 44 x 443 mm; 18-7/8? x 1-3/4? x 17-3/8?, [Rack Mount with Faceplate] 481 x 44 x 453 mm; 18-7/8? x 1-3/4? x 17-7/8? | |
| Weight | 6.3 kg |
