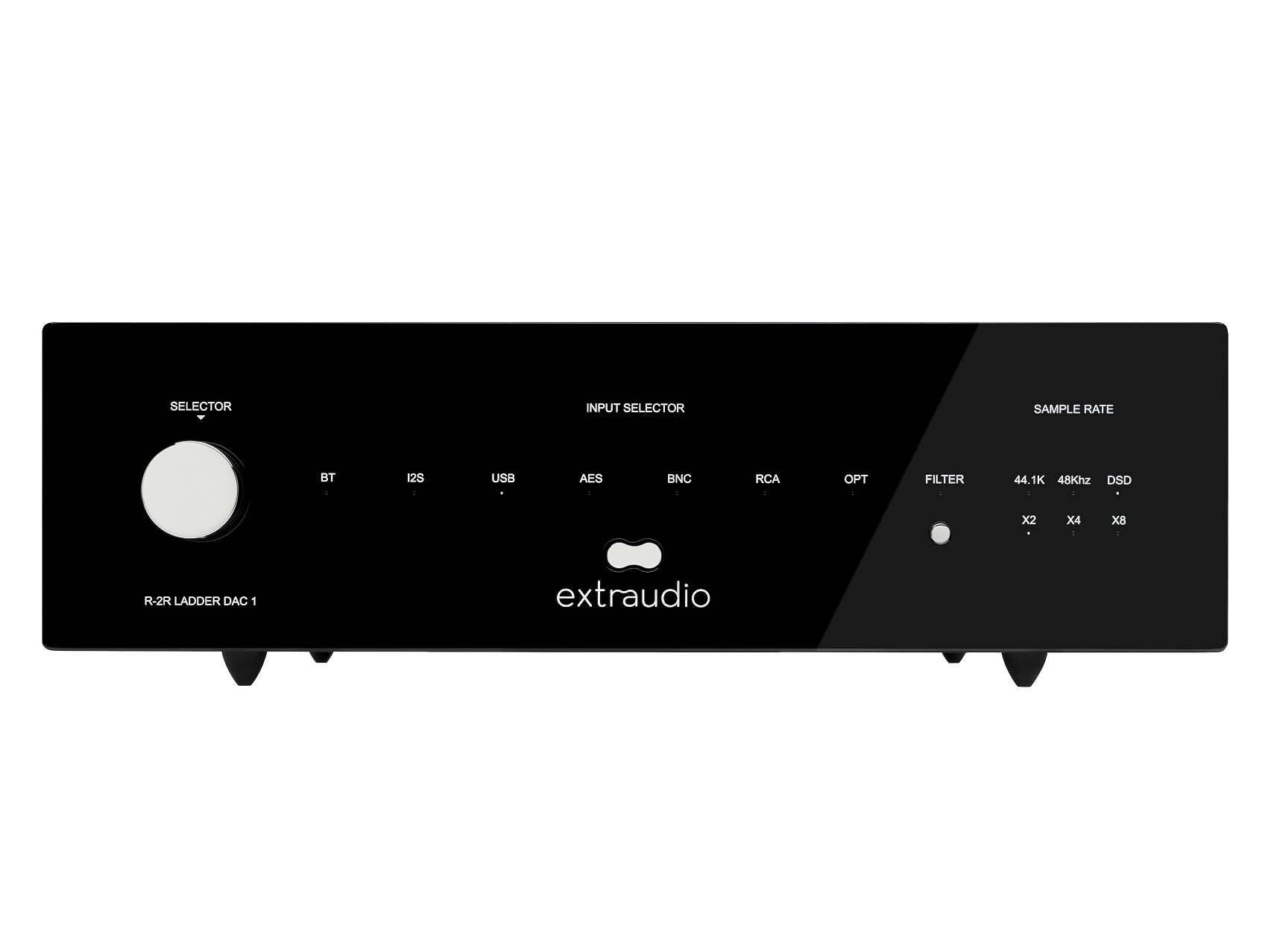

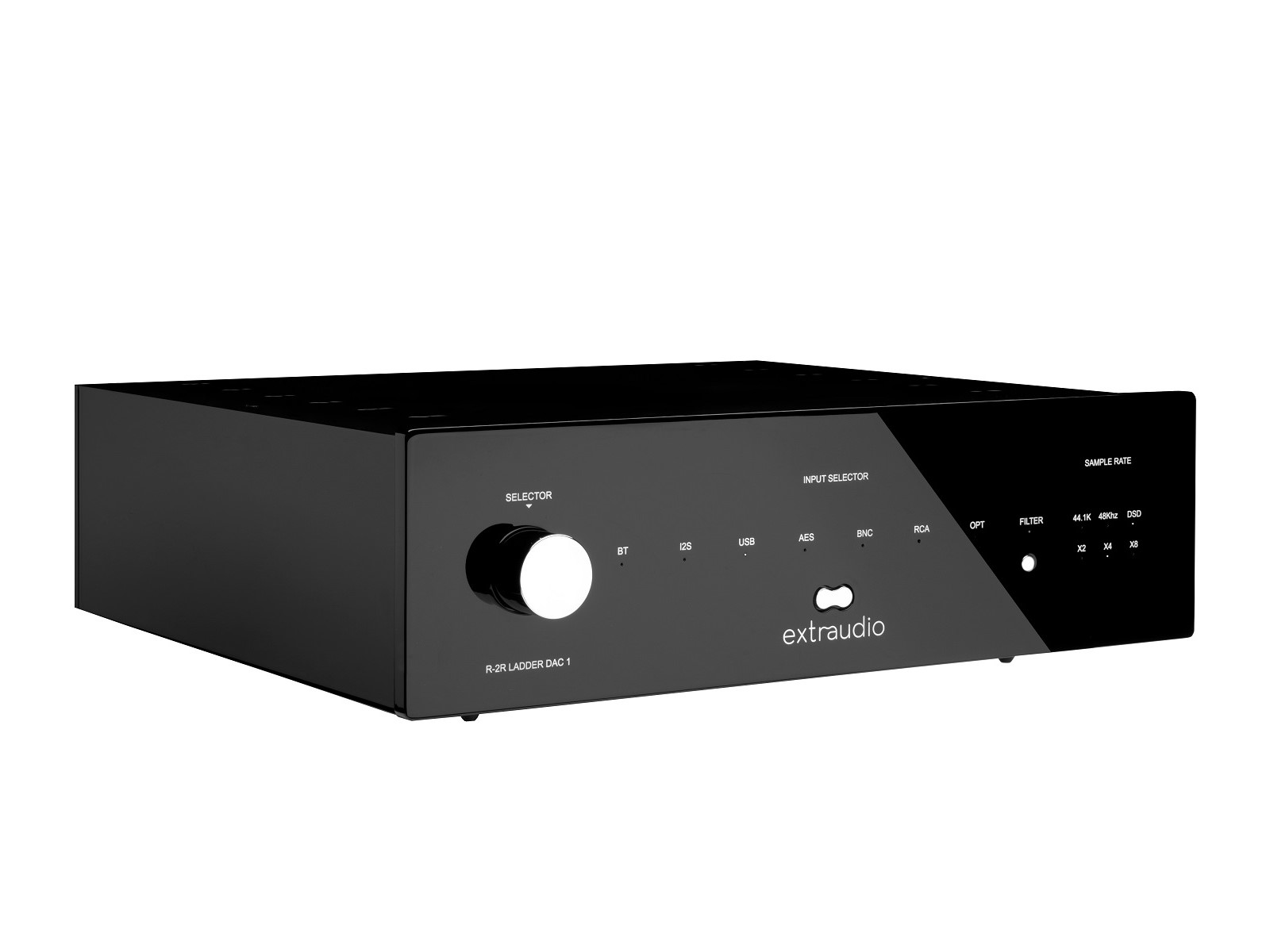

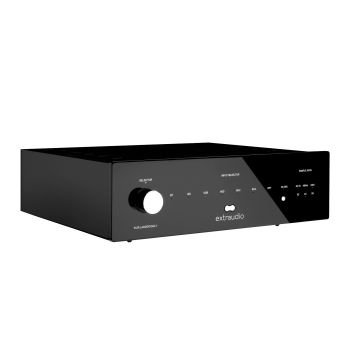

Το Extraudio DAC1 mkII Dual R-2R Ladder ειναι ενας ψηφιοαναλογικος μετατροπεας 32bit με δυνατοτητα διαχειρισης και DSD αρχειων 32bit 768kHz. Εισοδοι : 1x USB, 1x Coaxial, 1x Optical, 1x BNC και 1x AES/EBU. Outputs 1x pair RCA και 1x XLR. Δυνατοτητα ακροασης.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα ανταλλαγων, δοσεων.

R-2R Ladder ultra-high precision 32-bit depth DAC with FPGA “Extraudio System”, which produces an analog sound, full of nuances, without digital harshness, without any type of error.  Thanks to the depth of 28 to 32 bits, the resistance ladder is corrected through the second FPGA that is only responsible for converting and correcting the linearity of the four DAC modules. Then we have another ARM FPGA with the latest technology for the sample rate functions, selection of inputs and conditioning of digital signals, freeing the main FPGA from all this work, a unique sound is achieved and with very low voltage steps on the R-2R ladder, approximately each step is equivalent to a tiny jump of 0.04 Volts from MSB (Most Significant Bit) to LSB (Least Significant Bit), all this added to the R-2R resistor ladder of our DAC,s technology using about 600 pieces of 0.01% tolerance Vishay Foil Resistors ® of the highest quality, handmade soldered in Europe with temperature control, with high quality tin, make the sound even more exact, but very analog and musical, with a lot of texture and spatiality, very whole and without digital deficiencies in digital steps, the lower the step height, the higher the quality and smoothness in the digital conversion, that’s why we use a 32-bit depth.

Finally, we have a microcontroller that takes care of all the other control functions, to put it another way, there are 3 motors within the same product both in DAC1 and DAC2.

Features

• R-2R ladder ultra-high precision 32-bit depth DAC with FPGA “Software Extraudio Proprietary”.
• Modules R-2R resistor ladder of our DAC,s technology using about 600 pieces of 0.01% tolerance Vishay Foil Resistors®.
• Programmable Audio Oscillators.
• Modular concept.
• EMI and RF anti-interference AC Extraudio input filters.
• Proprietary dual and quad power supplies.
• Proprietary module with two I2S (RJ45 or HDMI) and Bluetooth inputs, LDAC, APTX-HD, APTX-LL.
• The proprietary remote control is optional.

Specifications

• Converted Type: Extraudio proprietary R-2R DAC topology.
• Frequency response: +/-0.1dB 5Hz to 180Khz
• S/N ratio at 20Khz Bandwith >132dB
• THD @ -1dB <0.004%
• Resistor precision 28bit 0.01%
• Clock Jitter RMS 0.3pS typical
• Supported Formats:
  • SPDIF: up to 24 bits / 192 Khz
  • USB/I2S: up to 24 bits / 384 / 768 Khz
  • DSD-DXD: up to DoP DSD64/DSD128/DSD256/DSD512
• Digital filters anti-aliasing Installed:
  • Red
  • Orange
  • Green
  • Off
• Compatible with online streaming services via bluetooth and USB: Spotify, Apple Music, Tidal, Qobuz, Amazon Music HD, Deezer, Pandora and others.
• Control: Select Input, optical rotary encoder (ALPS 18 steps)

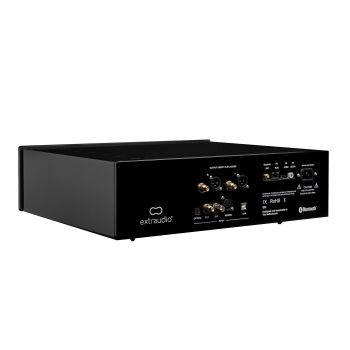

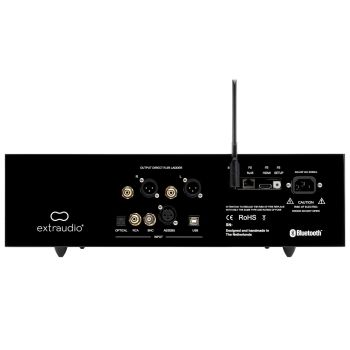

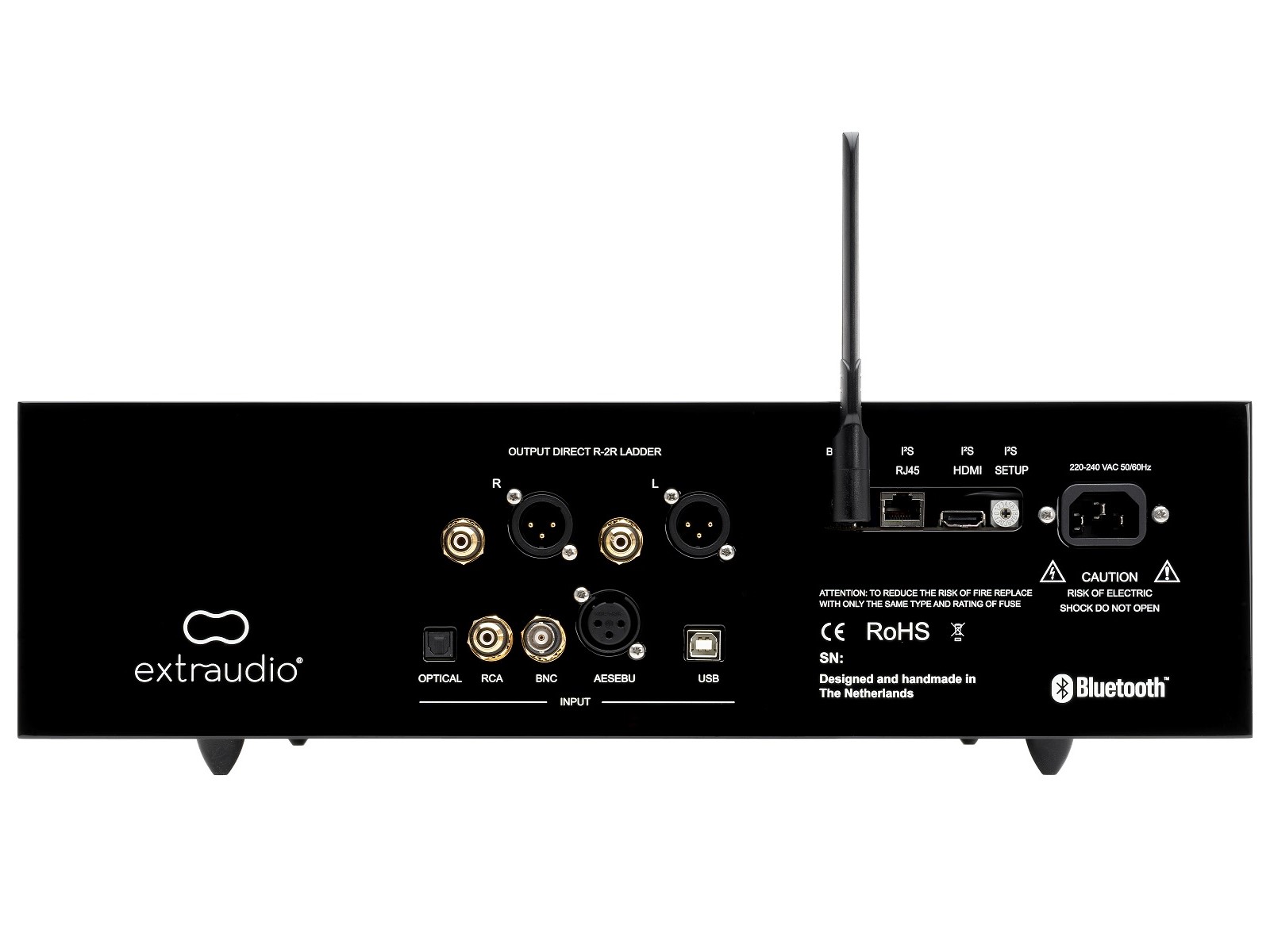

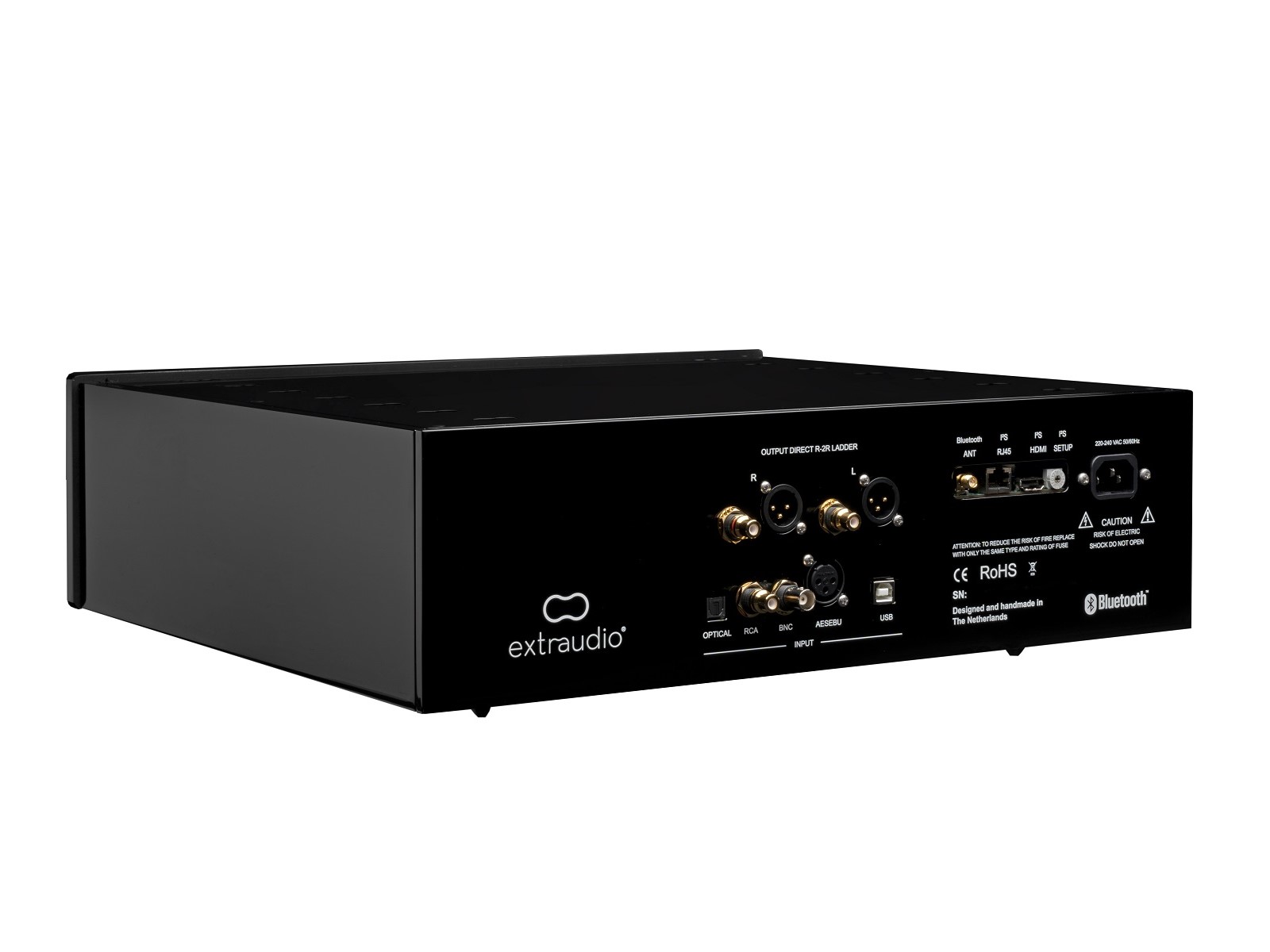

• Outputs:
  • RCA SE, Impedance: 50 Ohms, Audio level: 2,3V
  • XLR Balanced, Impedance: 3 Ohms, Audio level: 4,6V
• Digital Inputs, Galvanic Isolated:
  • 1 RCA SPDIF
  • 1 BNC SPDIF
  • 1 XLR AES EBU
  • 1 Optical
  • 1 Audio Class USB 2.0 / Type B, Isolated, Full/High Speed
• Power requirements: 115V or 230VAC 50/60Hz, 50W – 0.5W standby, Eco-design (ErP) & Energy
• Star compliant standby consumption of < 0.5W
• Safety approved and verified for EMC compliance
• Proprietary Extraudio AC input filters, EMI and RF anti-interference
• Dimensions: W x H x D 44 x 12 x 40 cm, Shipping  66 x 66 x 37 cm
• Weight: 14 kg, 16 kg Shipping
