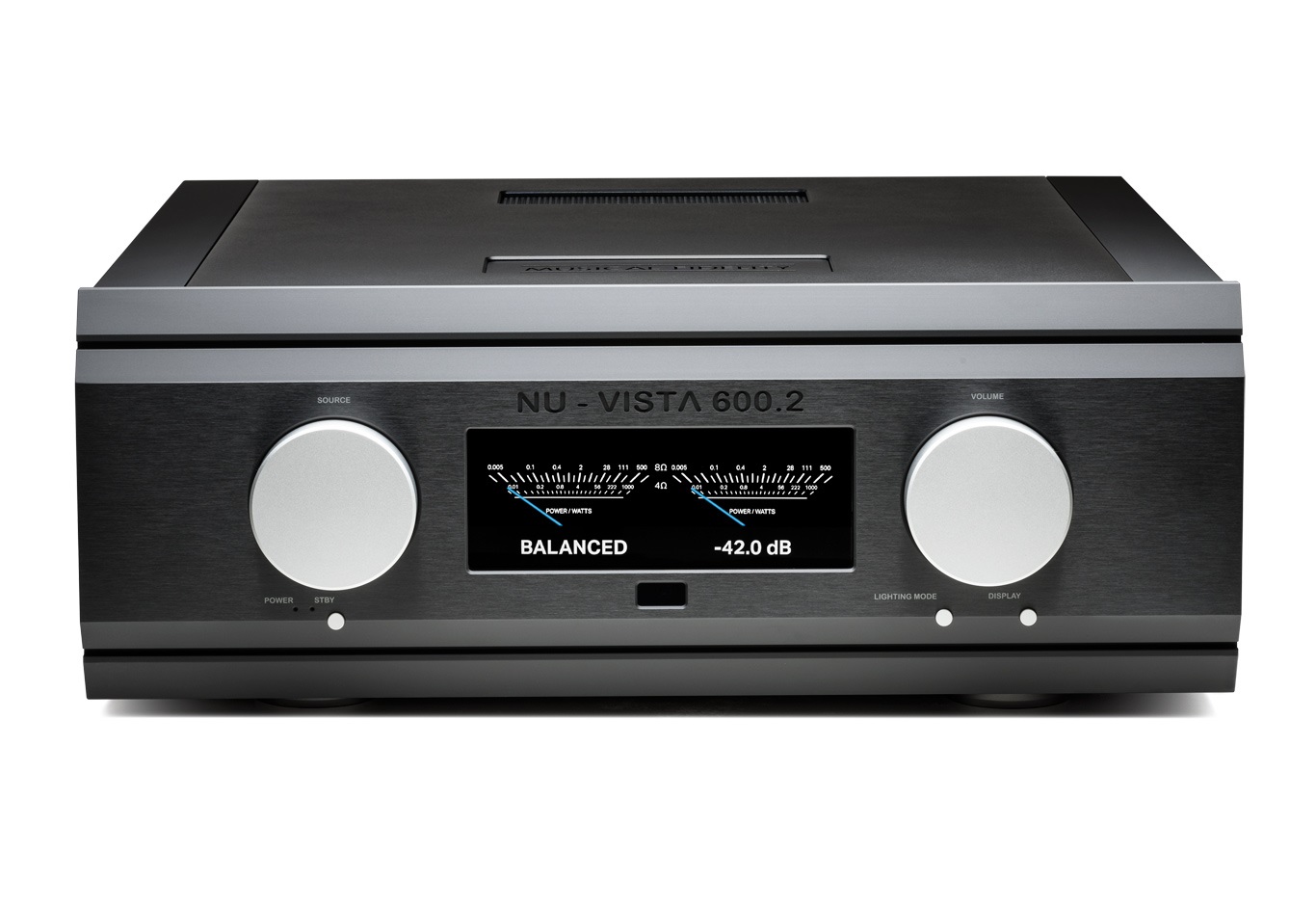

Ο Musical Fidelity Nu-Vista 600.2 ειναι δικαναλος τηλεχειριζομενος στερεοφωνικος ενισχυτης 2x160w at 8ohms.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Compared to the old Nu-Vista 600, the updated 600.2 now features the full TITAN power amp design including locally decoupled output stage. PCB layout has been drastically reworked and improved. Electrical components have been updated, the 600.2 now uses the same laser trimmed volume control like the 800.2 and the PSU-section has been greatly improved.

Specifications

• Output
  • Power: 160W into 8 ohms, 300W into 4 ohms, 500W peaks into 2 ohms
  • Voltage: 36 Volts RMS, 20Hz to 20 kHz; onset of clipping, 147 Volts peak to peak
  • Current: 50 Amps peak to peak
  • Damping factor: 100
  • Output devices: 2 pairs per channel
  • Gain: Preamp 4.3x (12.6dB) at maximum volume, Power Amp 34x (31dB)
• Line input
  • THD+N: < 0.005 % typical, 20Hz to 20 kHz
  • SNR: > 107dB ‘A’-weighted
  • Input impedance: 100 k Ohms
  • Frequency response: + 0, –0.1dB, 10Hz to 30 kHz

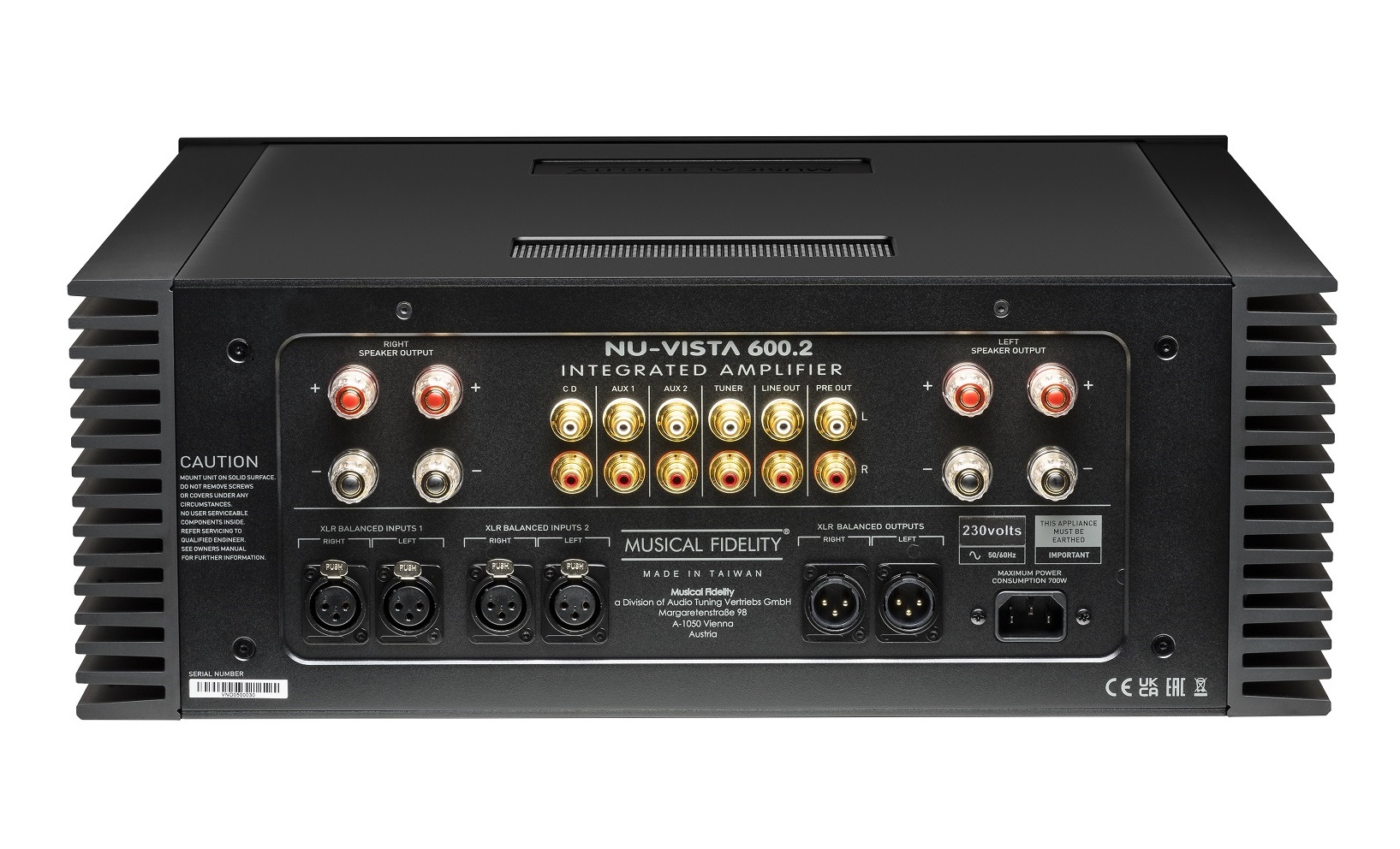

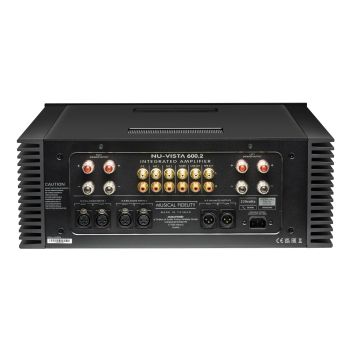

• Connections
  • Line level inputs: 4 pairs line level RCA connectors; 2 pairs line level balanced XLR connectors
  • Line level outputs: 1 pair line level RCA connectors, constant level LINE outputs; 1 pair line level RCA connectors, PREAMP outputs for e.g. biamping; 1 pair line level XLR connectors, PREAMP outputs for e.g. biamping
  • Speaker outputs: 2 pairs 4mm banana plug/binding posts
• Power requirement
  • Mains voltages: 115/230VAC 50/60Hz (factory pre-set); 100VAC 50/60Hz (alternative)
  • Consumption: <0.5W in standby mode (orange LED lit); 75W on and idle (blue LED lit); 600 Watts maximum
• General Information
  • Dimensions (WxHxD): 483 x 187 x 510 mm
  • Weight: 36 kg net / 44.3 kg boxed
