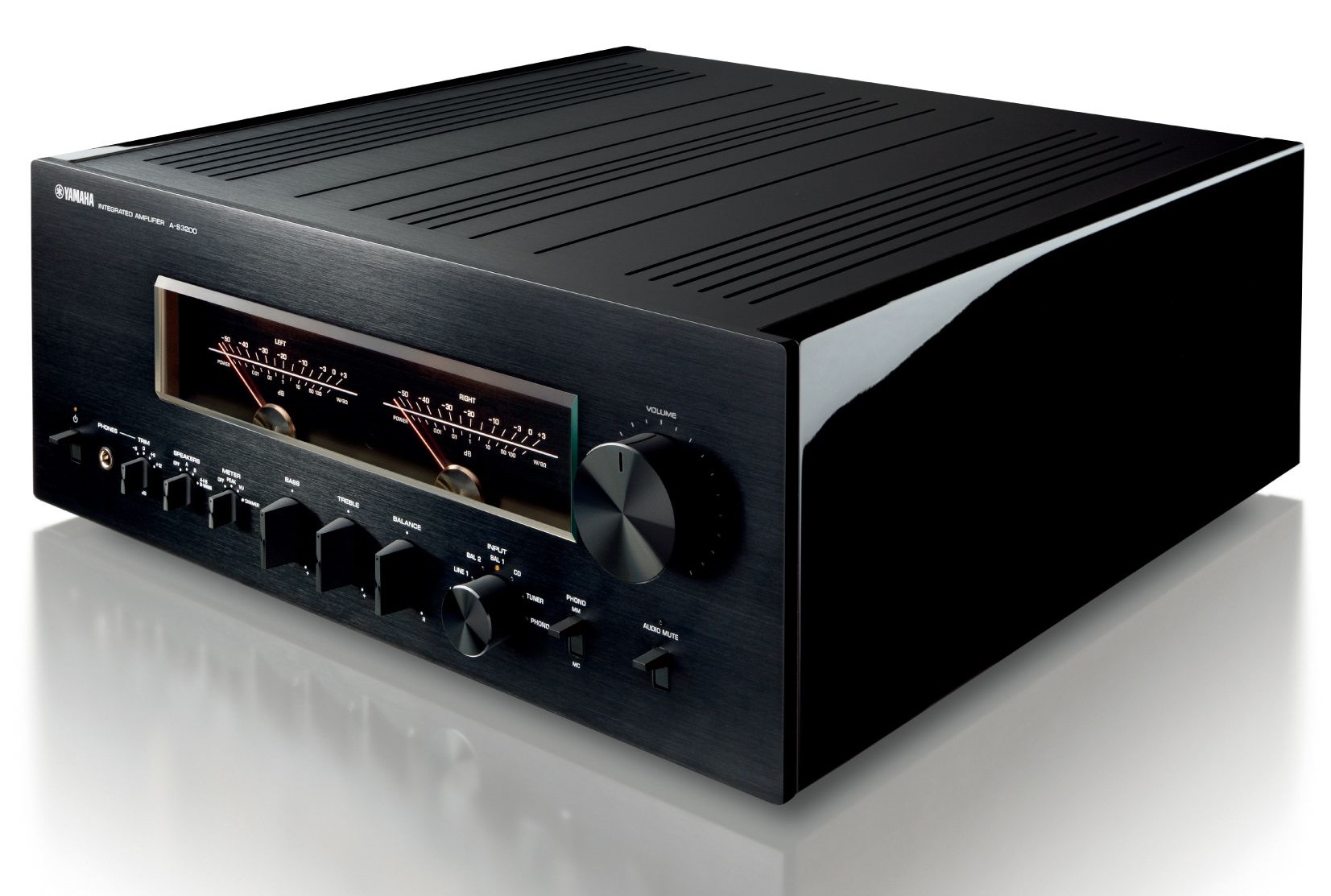

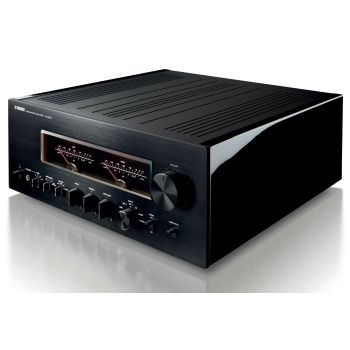

Ο Yamaha A-S3200 ειναι ενας δικαναλος ενισχυτης, ισχυος 2x90w στα 8 ohms.

Εγγυηση αντιπροσωπειας (Φ. Νακας) 2 χρονια. Δυνατοτητα δοσεων.

In the unyielding pursuit of innovation and musicality, Yamaha is proud to present its flagship integrated amplifier – the A-S3200. Meticulously designed from the ground up, the A-S3200 realizes the ambitions of the artist and establishes a new benchmark in high-fidelity audio.

Features

• Fully balanced circuitry to deliver impressively low signal-to-noise ratio and improved channel separation

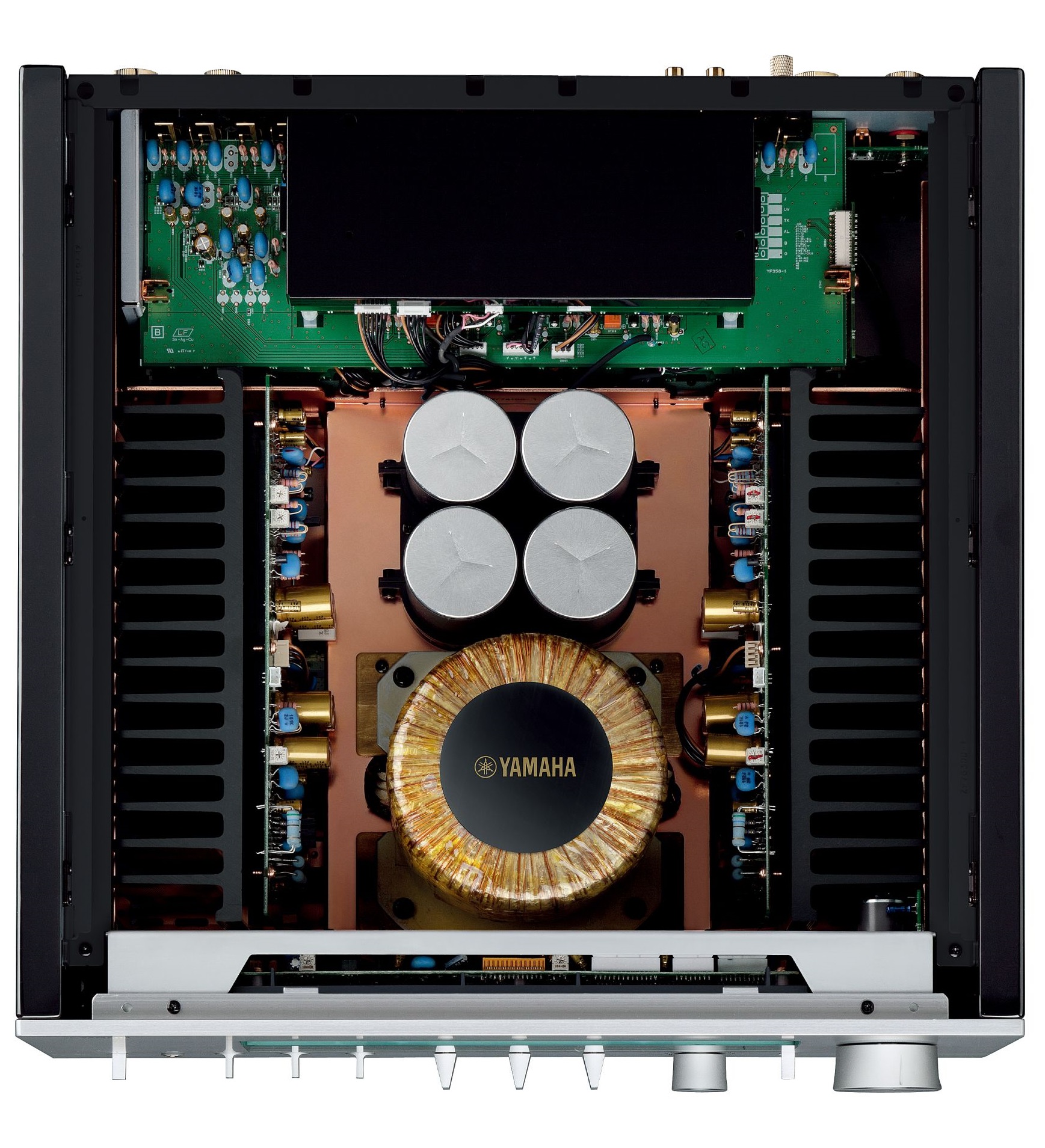

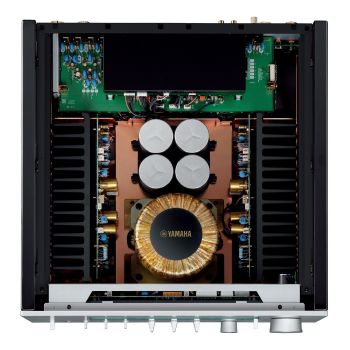

• Large toroidal transformer in the pursuit of pure musicality
• Mechanical Ground Concept maximizes rigidity and reduces unwanted vibration
• High-quality PPS capacitors for delivering an authentically musical sound

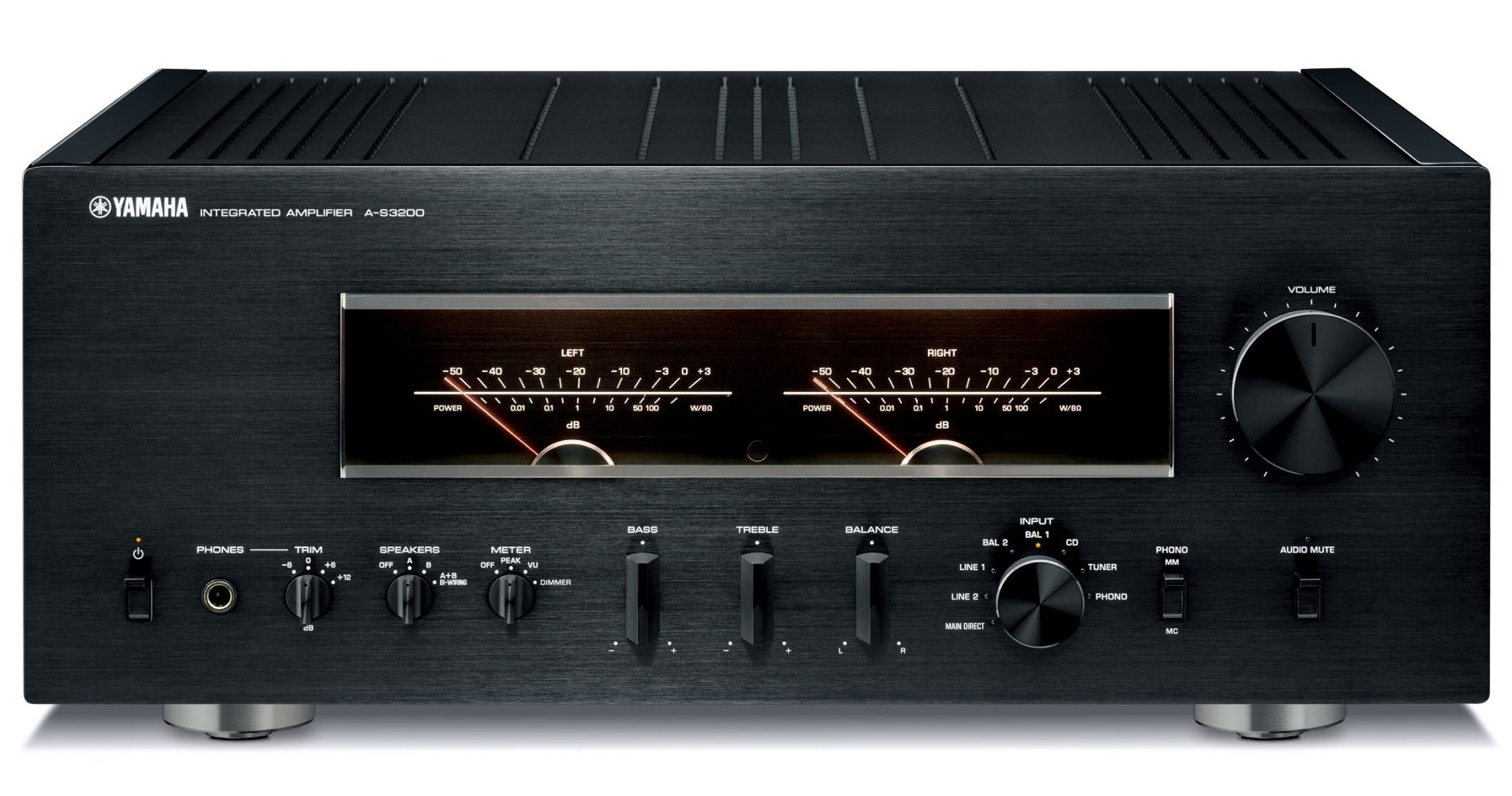

• Exquisite level meters visually present the dynamics and pulse of the music
• Obsessive, meticulous switch design
• Heavy-duty brass feet with spikes or scratch-resistant base

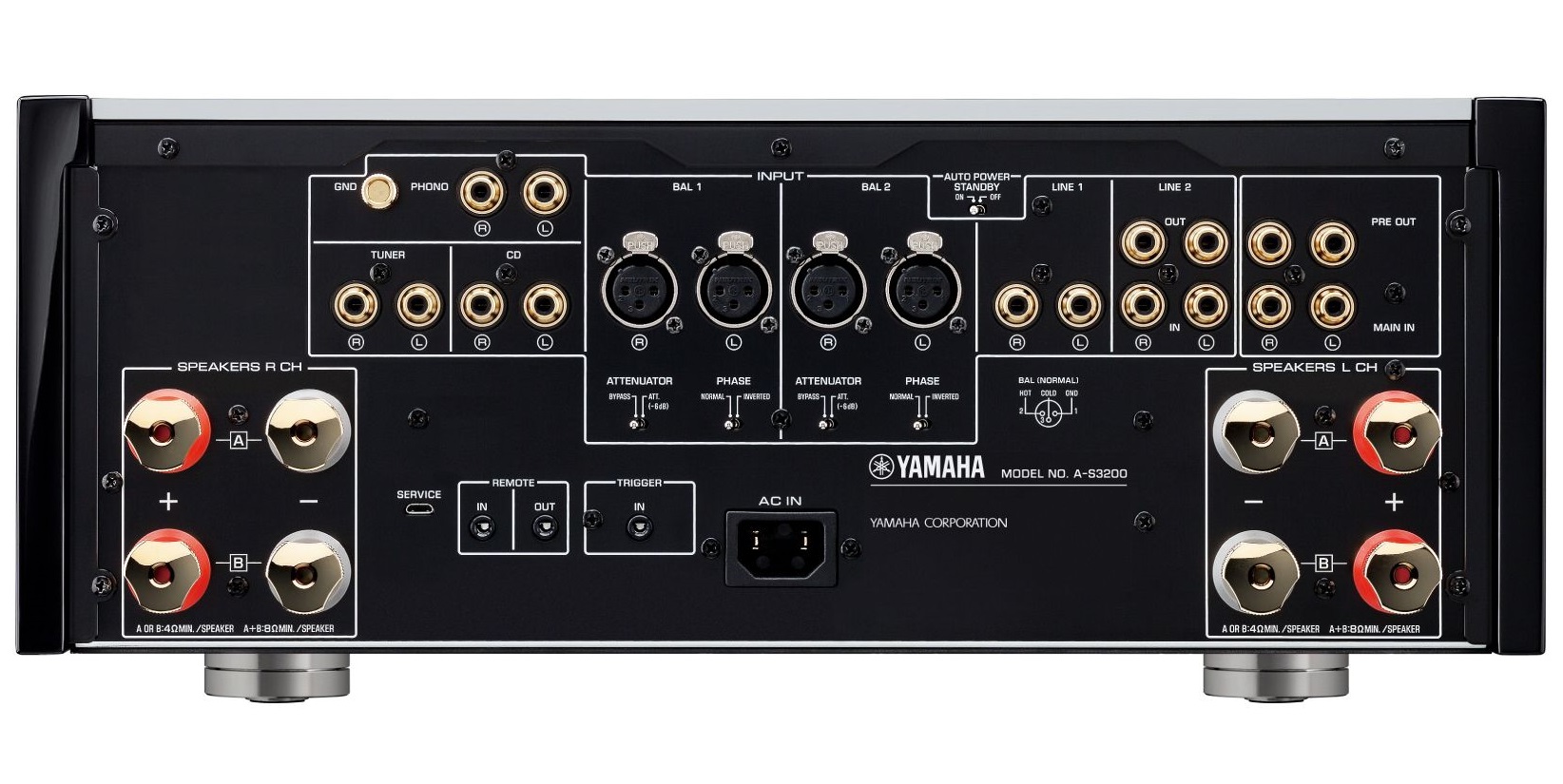

• Original speaker terminals cut from pure brass with highly secure connection

Specifications

• Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)     170 W + 170 W
• High Dynamic Power/Channel (8/6/4/2 ohms)     120/150/200/300 W
• Damping Factor      250 (1 kHz, 8 ohms)
• Frequency Response     +0 /-3 dB (5 Hz-100 kHz) , ?0 / -0.3 dB (20 Hz-20 kHz)
• RIAA Equalization Deviation     -0.5 dB (PHONO (MM/MC))
• Rated Output Power     [20 Hz-20 kHz, 0.07 %THD] 100 W ? 100 W (8 ohms), 150 W ? 150 W (4 ohms?
• Total Harmonic Distortion (20Hz to 20kHz)     [Input 0.5 V] PHONO MC→LINE2 OUT: 0.02 % (1.2 mVrms), PHONO→LINE2 OUT: 0.005 % (1.2 Vrms), CD, etc./BAL1,2 →SP OUT: 0.035 % (50 W/8 ohms)
• Signal-to-Noise Ratio     PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB, BAL1,2: 114 dB
• Input Sensitivity     [1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms, BAL1,2: 200 mVrms/100 kohms
• Transformer     623 VA (Toroidal)
• Dimensions (W x H x D)     435×180×464 mm
• Weight     24.7 kg
