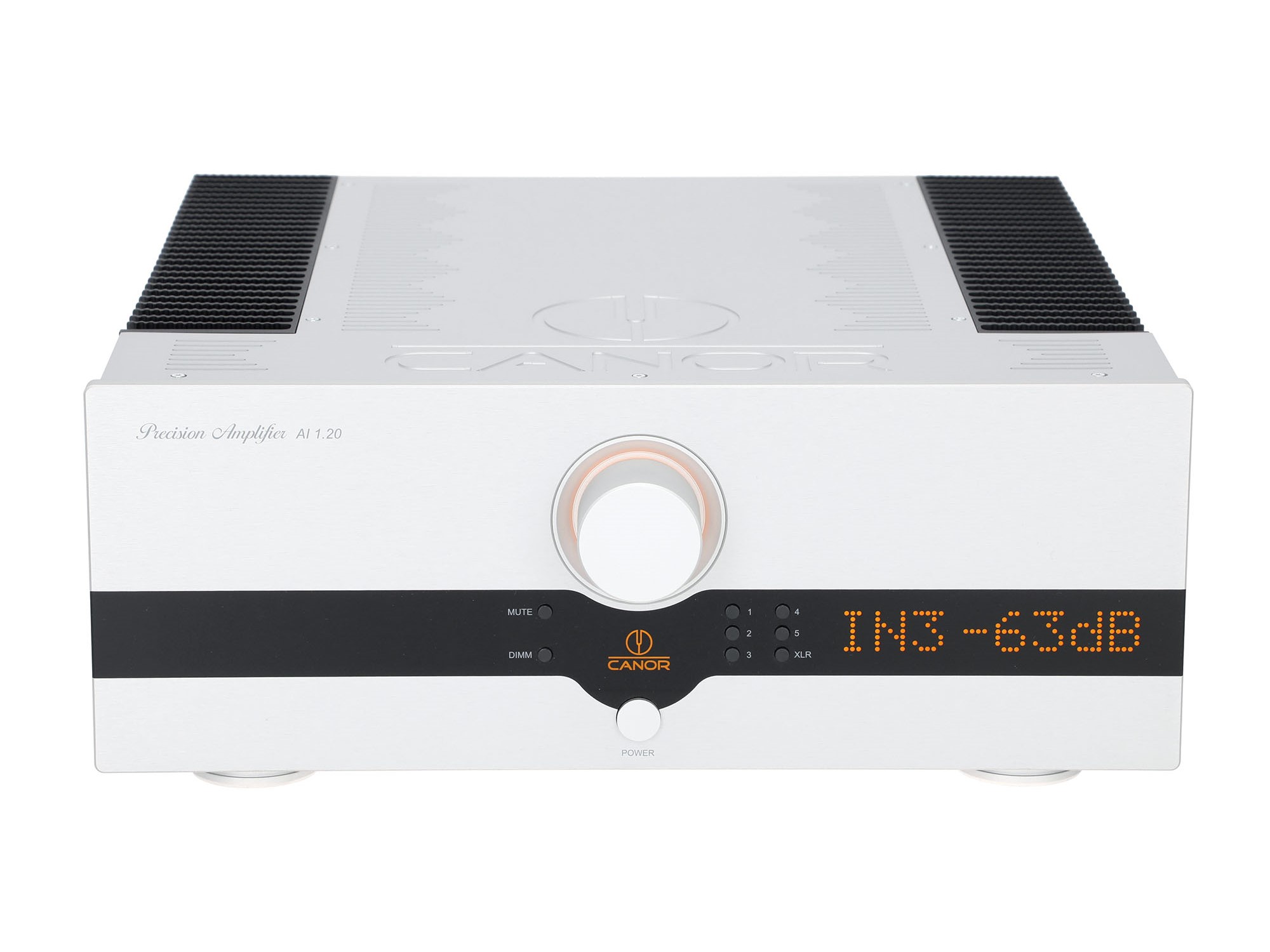

Ο Canor AI 1.20 ειναι ολοκληρωμενος ενισχυτης class-A με λυχνιες, ισχυος 2x30 watts/8Ω.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Features

• an integrated solid-state amplifier in pure class-A up to 50 W per channel
• a relay attenuator with two standalone blocks for each channel
• PCB’s utilize our premium CMT™ technology (CANOR® PCB Milling Technology), it is the way we mill printed circuit boards
• CMT™ technology originated in a long-standing endeavour to improve the sonic performance of our products
• power supply units with filtered out interfering signals from the mains supply
• interference-rejection and as small as possible leakage field ensure custom-wound toroidal transformers
• 264 000 uF of filtering capacitance simulates a nearly stabilized supply voltage
• an option of synchronous control enables the use of two amplifiers in a monoblock mode without the need of using an extra preamplifier and that is a Master/Slave mode with an output power of 100W per channel

Specifications

• Stereo output power 2 x 50 W / 4 Ω, 2 x 30 W / 8 Ω
• Gain 30 dB
• Frequency range 20 – 25 000 Hz -0,5 dB / 5 W
• Input impedance 30 kΩ

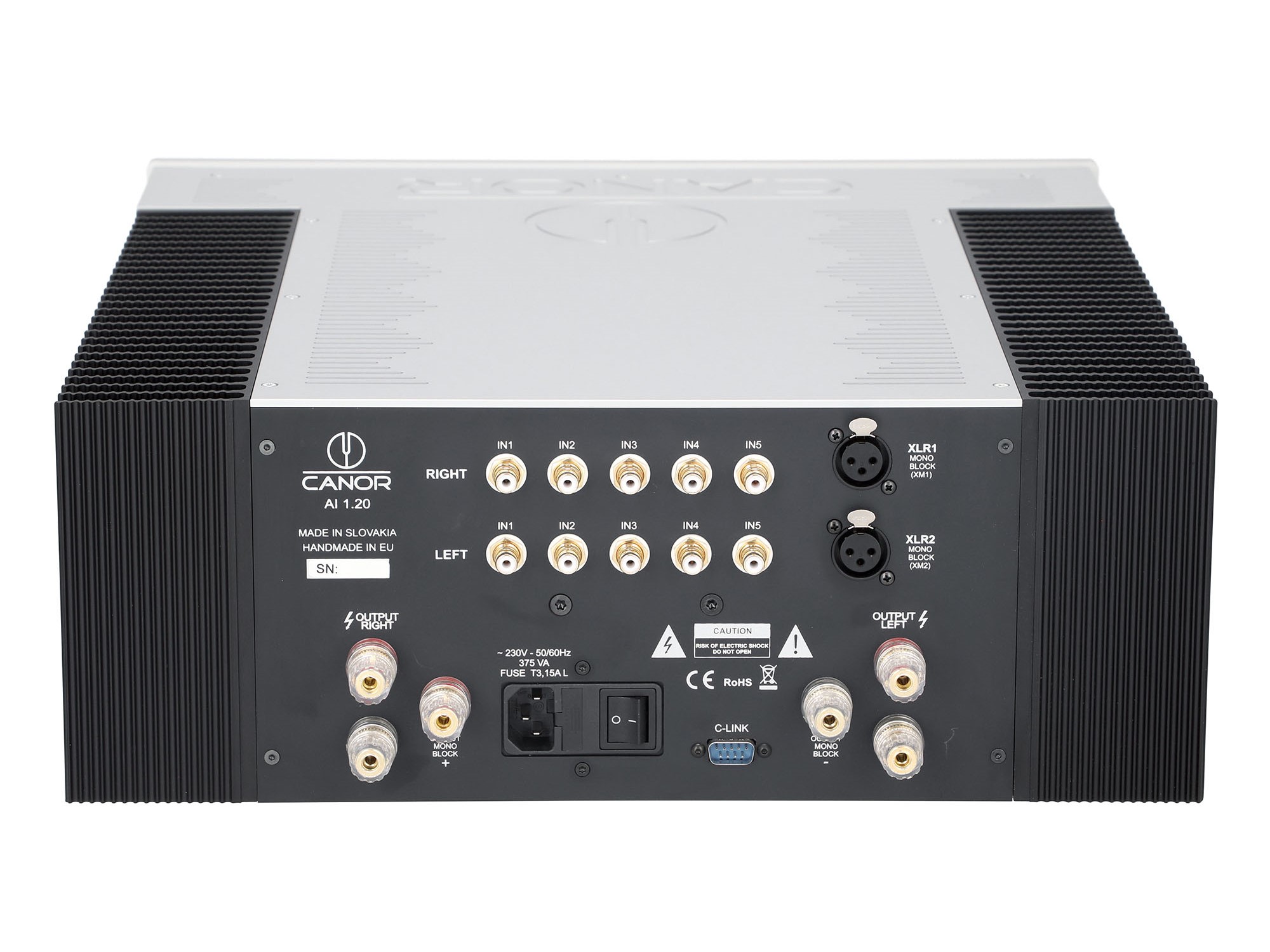

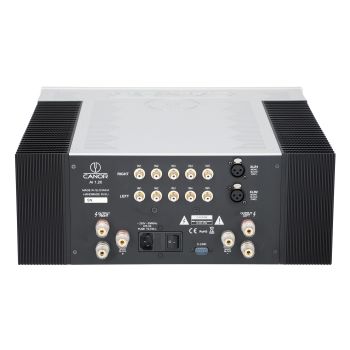

• Inputs 5 x RCA, 2 x XLR (XLR active only in monoblock connection)
• Total Harmonic Distortion <0,0009% / 1 kHz, 5 W
• Signal-to-noise ratio > 90 dB
• Signal-to-noise ratio monoblock > 100 dB
• Filtration capacity 132 000uF / 35V (per channel)
• Damping factor at 4 Ω load at the output 250 (based on measured output impedance)
• Damping factor at 8 Ω load at the output 500 (based on measured output impedance)
• Power 230 V / 50 Hz / 375 VA
• Dimensions (w x h x d)     435 x 170 x 485 mm
• Weight (net) 28 kg
