Ο Audionet SAM 20 SE ειναι δικαναλος ενισχυτης 2x110 wrms at 8Ω. Αποκριση συχνοτητων 0Hz – 500.000Hz. Τροφοδοσια υλοποιημενη με 120.000 μf. Damping Factor μεγαλυτερο απο 1000 στα 100Hz.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Features

• New MOSFET power transistors with extremely low series resistance for a higher and more detailed fidelity in transient response (as used in the new worldwide benchmark WATT).
• Extremely potent and acutely fast power supply, guaranteed by an encapsulated and cast-in 700 VA toroid transformer and new extremely low impedance and exceedingly fast audio-grade main capacitors with a 25% higher capacitance of 15,000 μF instead of 12,000 μF as before (total sum of 120,000 μF instead of 96,000 μF).
• Further optimized inner wiring, all signal cables are made of silver and gold providing highest resolution and finest details.
• New high grade mica capacitors in all places with crucial affect on sound. Their natural materials ensure a unique neutrality of sound.
• Engraved front panel and re-designed back panel.
• Dedicated SAM 20 SE Audionet metal remote control.
• Inbuilt Phono card with the following improvements:
  • New integrated OpAmps of highest grade with extremely low-noise and fast FET inputs.
  • Optimized mica capacitors throughout. Their natural materials ensure a unique neutrality of sound.

Special Features

• Strictly limited edition
• Audionet ULA-Technologie (Ultra Linear Amplifier)
• Completely DC-coupled, no capacitors in the signal path
• Encapsulated toroid transformer with 700 VA
• New audio-grade capacitors with 25% more filtering capacitance totalling 120,000 μF
• New MOSFETs
• New high grade mica capacitors in all places with crucial affect on sound
• Onwards optimized gold-doped, pure silver, solid core signal cabling
• Home cinema mode (bypass-mode) for easy home cinema integration
• Microprocessor with its own power supply controls, handles all functions
• Headphones output electronically switchable
• Remote activation of other Audionet components via Audionet Link (optical fiber)
• Included phono card with integrated OpAmps of highest quality and FET inputs as well as optimized mica capacitors
• Engraved front panel and new back panel
• Dedicated SAM 20 SE Audionet metal remote control

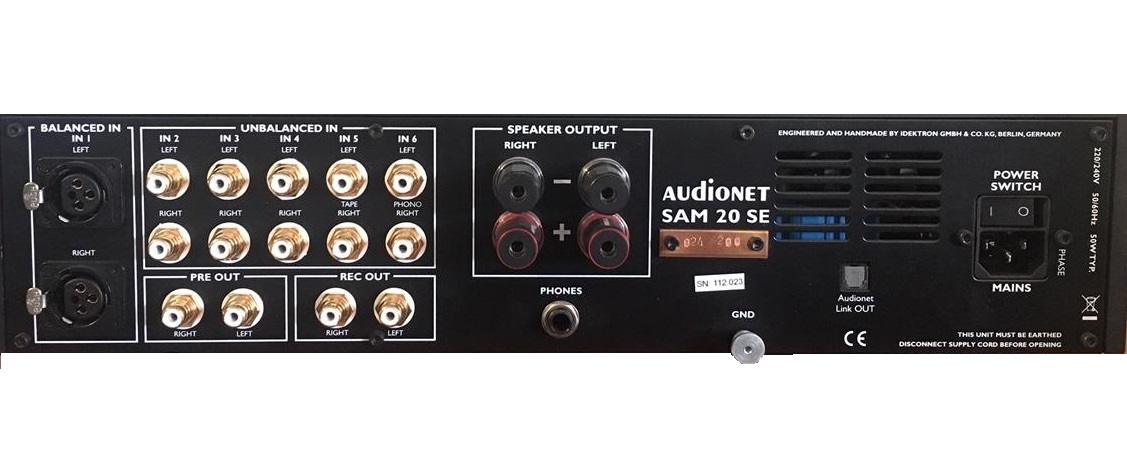

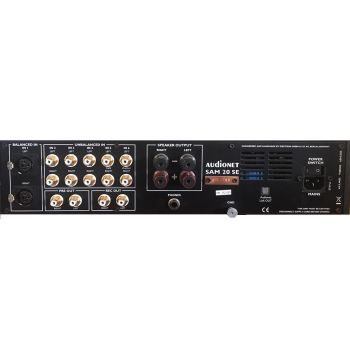

Inputs-outputs

• Audio inputs: 5 pair RCA line, gold-plated, teflon insulated, 1 pair XLR balanced, gold-plated
• Audio outputs: 1 pair RCA, gold-plated, teflon insulated (Pre-Out), 1 pair RCA, gold-plated, teflon insulated (Rec-Out), 6,3 mm jack plug for headphone (switchable)
• Loudspeaker outputs: 2 pair Furutech Rhodium 4mm-jacks
• Remote activation: 1 Audionet Link (out), optical

Specifications

• Output: 110 Watt into 8 Ω, 200 Watt into 4 Ω
• Filtering capacity: 120,000 μF
• Damping Factor: > 1,000 at 100 Hz
• Frequency Response: 0 – 500,000 Hz (-3 dB)
• Harmonic Spectrum: k2 typ. -101 dB, @1kHz, 25 W/4 Ω, k3 typ. -106 dB, @1kHz, 25 W/4 Ω
• THD + N: < -100 dB @1kHz, 25 W/4 Ω
• SNR: > 103 dB (A-weighted)
• Channel Separation: > 93 dB @ 1 kHz
• Input Impedance: Line-input: 10 kΩ, 150 pF, XLR-input: 3 kΩ, 170 pF
• Mains connection: 220..240 V / 50..60 Hz or 110..120 V / 50..60 Hz
• Power Consumption: < 1 W stand-by, max. 700 W
• Dimensions: width 430 mm, height 110 mm, depth 360 mm
• Weight: 15 kg
