Ο Audionet WATT ειναι δικαναλος ενισχυτης 2x167 wrms at 8Ω. Αποκριση συχνοτητων 0,3Hz - 650.000Hz. Τροφοδοσια υλοποιημενη με 200.000 μf. Damping Factor μεγαλυτερο απο 1000 στα 100Hz.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Features

• Massive aluminium body and resonance-optimized fixation with invisible screws.
• Magneti­cally and capactively optimized circuit and device design, shortest signal paths.
• Double-mono design for maximum channel separation.
• Electronic volume control with high audio grade components.
• Non-disen­gageable DC servo, no sound degrading capa­citors or coils in the signal path.
• ULA technology (Ultra Linear Amplifier).
• Separated power supply for control and analog sections.
• Two separated power supplies for driver stage and power stage of amplifiers.
• One encapsulated 50 VA toroid transformer with separated windings for input and driver stage.
• Two encapsulated 700 VA toroid transformers for the power stage.
• Total capacitance more than 200.000 µF.
• Consequent double-mono design of phono module for MM and MC pickups, setup by user menu.
• Internal wiring with gold-doped pure silver cables.
• Rhodium speaker terminals by Furutech.
• Rhodium fuse.
• By-pass mode for integration into home cinema systems.
• Microprocessor with separate power supply – controls and monitors all functions and informs the user via dimmable display.
• 2 Audionet Link outputs to control further Audionet devices remotely.
• Switchable headphones output driven by power stage.
• Dedicated WATT/PLANCK Audionet metal remote control in matching color.

Special Features

• Double mono setup of input, volume control and power amplifier section as well as power supply.
• Separate power supply for digital and analog sections.
• Non-disen­gageable DC servo, no capacitors in the signal path.
• By-Pass function (e.g. for integration into home cinema systems).
• Audionet Link output for remote control of other Audionet components.
• Switchable headphones output.
• Dedicated WATT/PLANCK Audionet metal remote control in matching color (included).

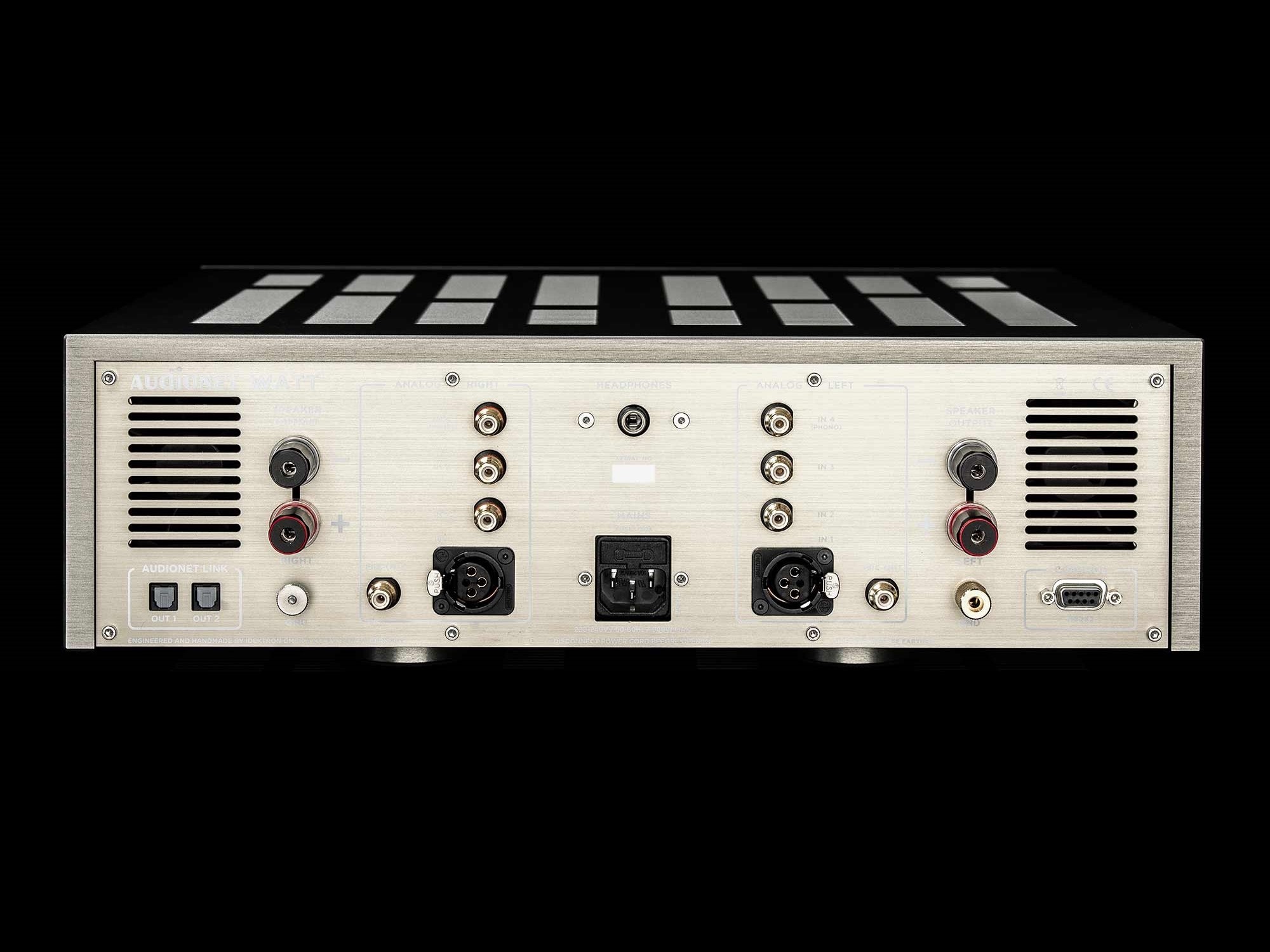

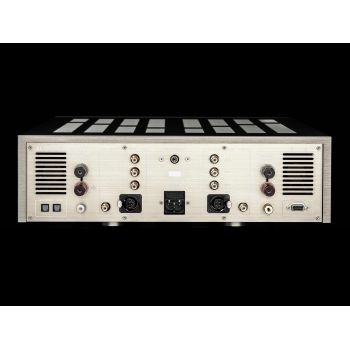

Inputs-outputs

• Inputs:
  • 3 pairs RCA line, gold plated, Teflon insulted
  • 1 pair XLR balanced, gold plated (Neutrik)
• Outputs:
  • 2 pair Furutech 4 mm-jacks, Rhodium
  • 1 pair RCA, gold-plated, Teflon insulated (Pre Out)
  • 2 Audionet Link, optical (Toslink)
  • 1 headphones socket (6.3 mm, stereo)

Specifications

• Output power: 2 x 167 W into 8 Ω, 2 x 284 W into 4 Ω, 2 x 443 W into 2 Ω
• Frequency response: 0.3 – 650,000 Hz (-3 dB)
• Damping factor: typ. 1,000 at 100 Hz
• Harmonic distortion: k2 typ. -101 dB,, k3 typ. -107 dB, @1 kHz, 25 W / 4 Ω
• THD + N: < -98 dB @1 kHz, 100 W / 4 Ω
• SNR: > 106 dB (A-weighted)
• Channel separation: > 103 dB @ 1 kHz
• Filtering capacitance: 200,000 µF
• Input impedance: Line input 50 kΩ, XLR input 7 kΩ
• Power consumption: < 1 W Stand by, typ. 900 W
• Dimensions: Width 430 mm, Height 130 mm, Depth 450 mm
• Weight: 25 kg
