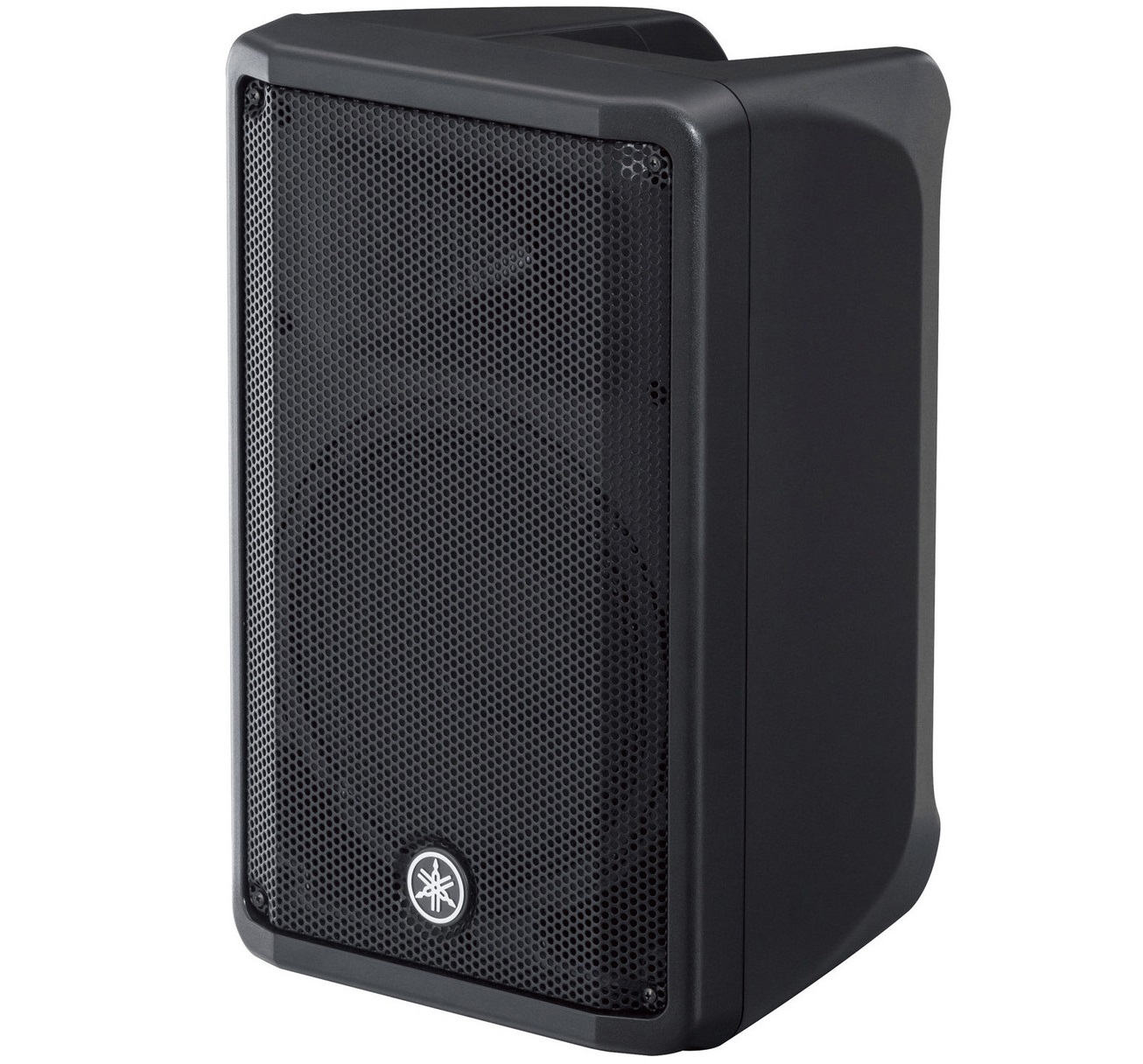

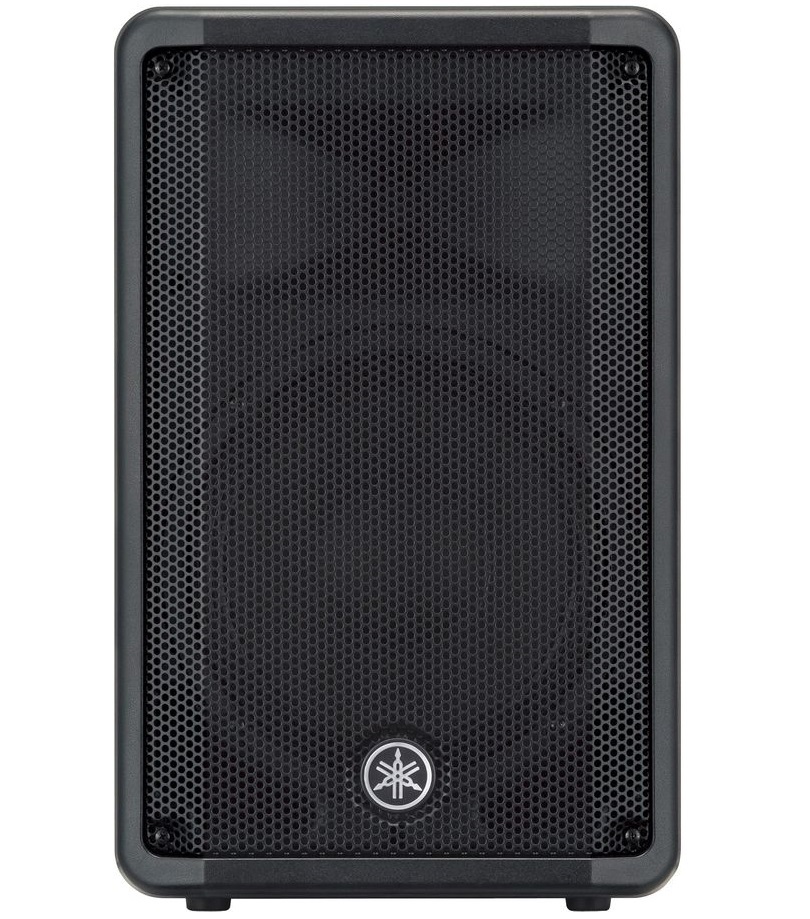

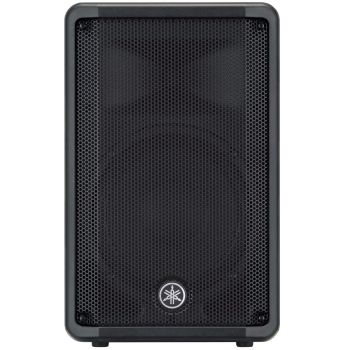

Yamaha CBR-10 passive speaker

Το Yamaha CBR10 ειναι επαγγελματικο ηχειο , πλαστικης καμπινας, 2 δρομων, με woofer 10 ιντσων και κορνα 1 ιντσας. Ευαισθησια 94db, αντοχη 700 watts. Η τιμη αφορα 1 τεμαχιο.

Τιμή Καταλόγου: 453.00€
398.00€

Διαθεσιμότητα: 1-3 ημέρες

ΔΩΡΕΑΝ ΑΠΟΣΤΟΛΗ ΣΕ ΟΛΗ ΤΗΝ ΕΛΛΑΔΑ

Το Yamaha CBR 10 ειναι επαγγελματικο ηχειο , πλαστικης καμπινας, 2 δρομων, με woofer 10 ιντσων και κορνα 1 ιντσας. Ευαισθησια 94db, αντοχη 700 watts.

Η τιμη αφορα 1 τεμαχιο.

The CBR Series is a new lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker designand acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind.Combining a meticulous materials selection process, thorough customization of the audio components, and a fresh, innovativeapproach to speaker design, our engineering team's primary focus was to deliver high-power, high-definition sound in a highlyportable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.- Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound- HF Protection Function and Highly Responsive LF Unit for Reliable Performance at Any Output Level- Rugged, Highly Portable Enclosure Design- Simple Connectivity- Versatility for a Variety of Applications




General specifications
Speaker type

CBR-10

2-way Speaker, Bass-reflex Type

CBR-12

2-way Speaker, Bass-reflex Type

CBR-15

2-way Speaker, Bass-reflex Type

Frequency range (-10dB) 50 Hz - 20 kHz 48 Hz - 20 kHz 46 Hz - 20 kHz
Nominal coverage H 90° 90° 90°
V 60° 60° 60°
Components LF 10" Cone, 2" Voice Coil (Ferrite Magnet) 12" Cone, 2" Voice Coil (Ferrite Magnet) 15" Cone, 2.5" Voice Coil (Ferrite Magnet)
HF 1" Voice Coil, Compression Driver (Ferrite Magnet) 1.4" Voice Coil, Compression Driver (Ferrite Magnet) 1.4" Voice Coil, Compression Driver (Ferrite Magnet)
Crossover 2.8 kHz 2.1 kHz 2.0 kHz
Power rating NOISE 175W 175W 250W
PGM 350W 350W 500W
PEAK 700W 700W 1000W
Nominal impedance
SPL Sensitivity (1W; 1m on axis) 94dB SPL 96dB SPL 96dB SPL
Peak (Calculated) 123 dB SPL 125 dB SPL 126 dB SPL

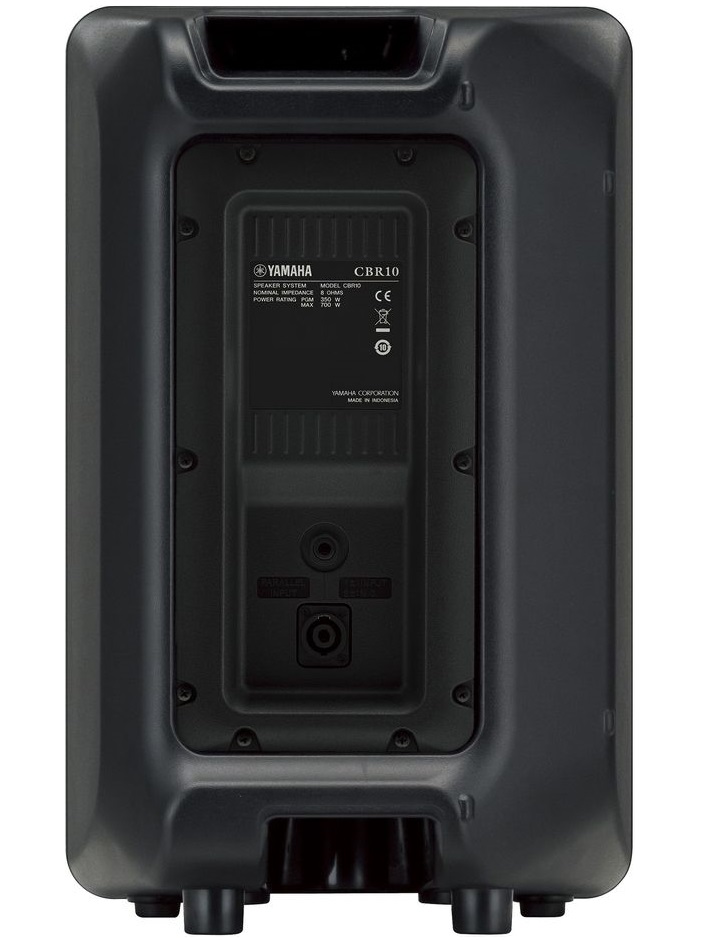

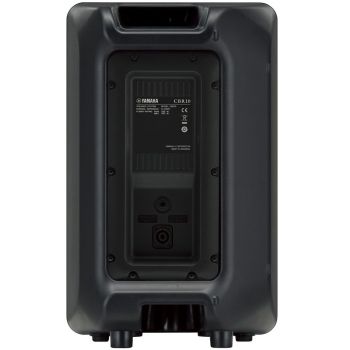

I/O connectors 1/4" Phone x 1, speakON NL4MP x 1 1/4" Phone x 1, speakON NL4MP x 1 1/4" Phone x 1, speakON NL4MP x 1
Cabinet material Plastic Plastic Plastic
Finish Black Black Black
Handle Top x 1 Side x 2 Side x 2
Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts) Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts) Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
Pole socket Φ35 mm?Bottom x 1 Φ35 mm?Bottom x 1 Φ35 mm?Bottom x 1
Dimensions W 308mm (12.1") 376mm (14.8") 455mm (17.9")
H 493mm (19.4") 601mm (23.7") 700mm (27.6")
D 289mm (11.4") 348mm (13.7") 378mm (14.9")
Net weight 9.4 kg (20.7 lbs) 13.9 kg (30.6 lbs) 17.7 kg (39.0 lbs)
