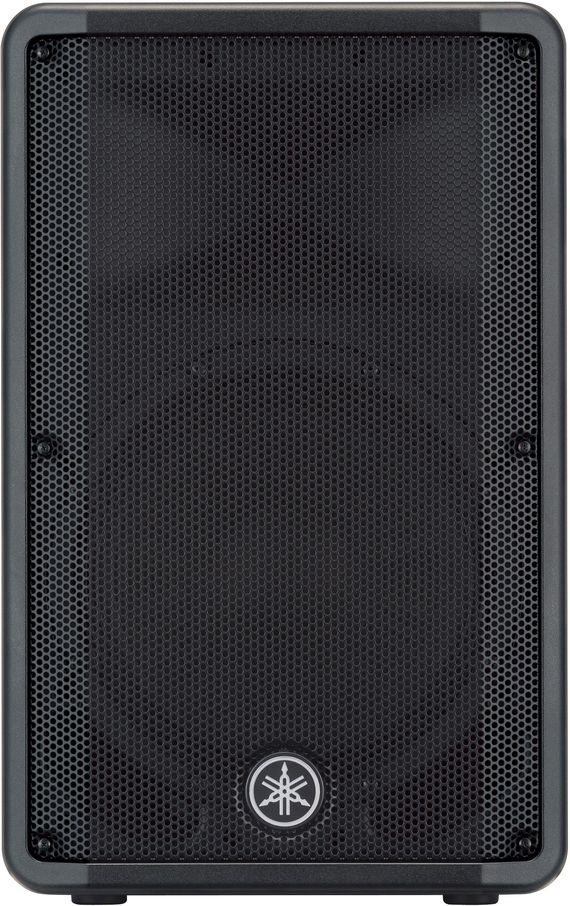

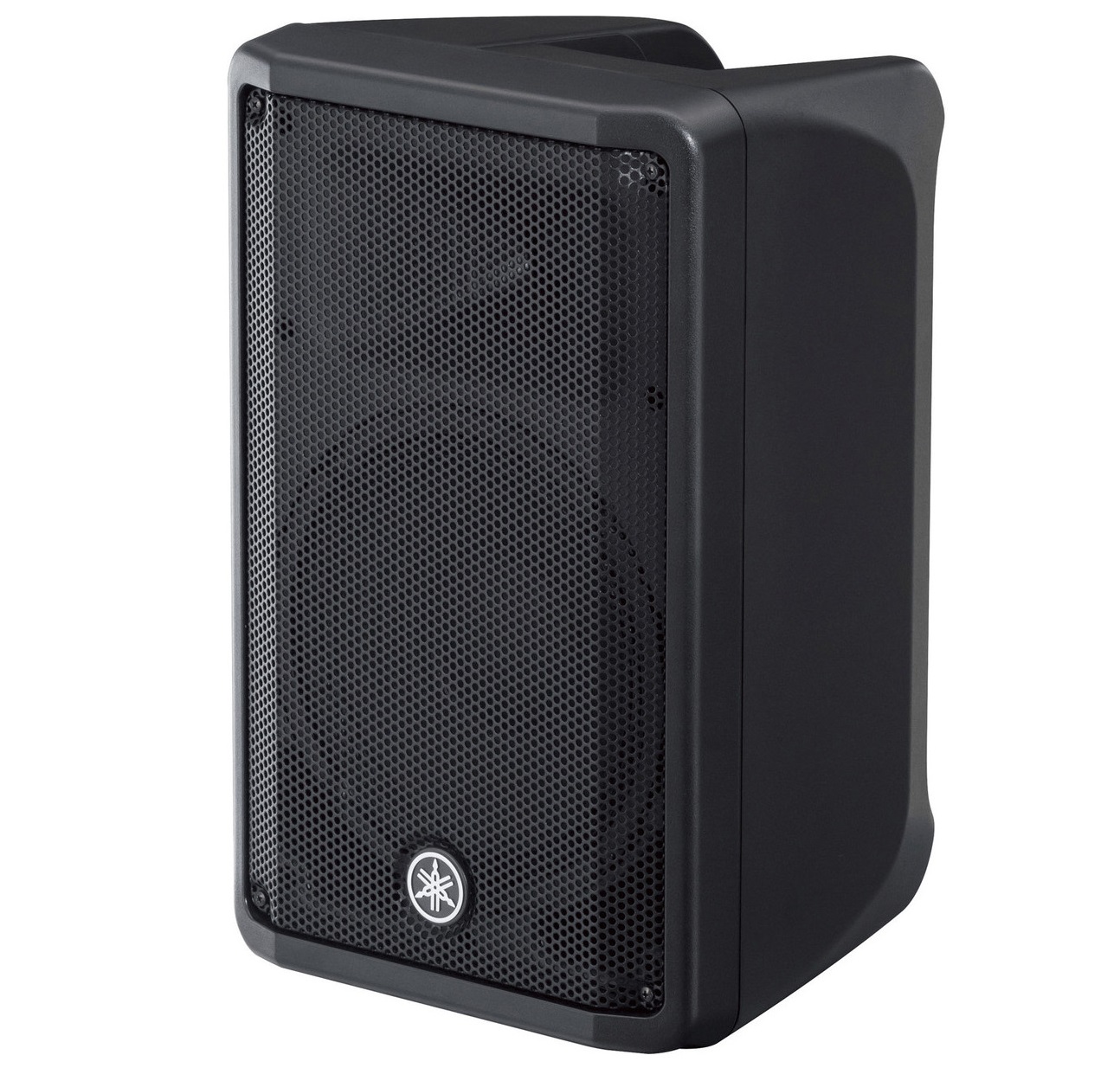

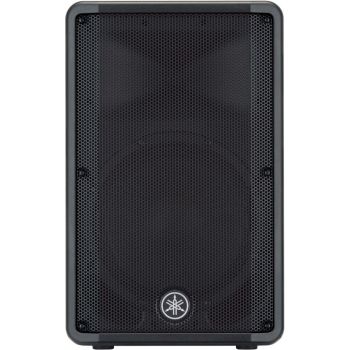

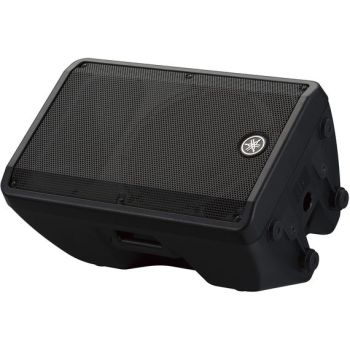

Το Yamaha CBR 12 ειναι επαγγελματικο ηχειο , πλαστικης καμπινας, 2 δρομων, με woofer 12 ιντσων και κορνα 1 ιντσας. Ευαισθησια 96db, αντοχη 700 watts.
Η τιμη αφορα 1 τεμαχιο.

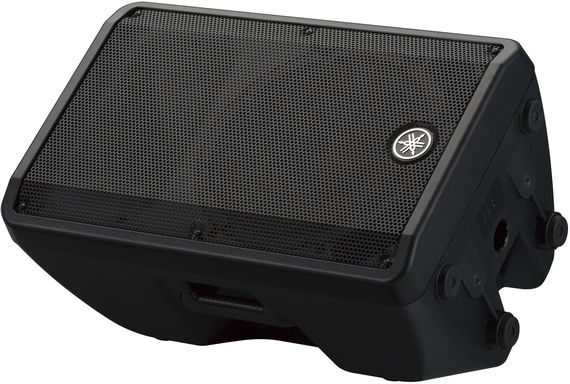

The CBR Series is a new lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker designand acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind.Combining a meticulous materials selection process, thorough customization of the audio components, and a fresh, innovativeapproach to speaker design, our engineering team's primary focus was to deliver high-power, high-definition sound in a highlyportable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.- Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound- HF Protection Function and Highly Responsive LF Unit for Reliable Performance at Any Output Level- Rugged, Highly Portable Enclosure Design- Simple Connectivity- Versatility for a Variety of Applications
General specifications | ||||
---|---|---|---|---|
Speaker type |
CBR-10 2-way Speaker, Bass-reflex Type |
CBR-12 2-way Speaker, Bass-reflex Type |
CBR-15 2-way Speaker, Bass-reflex Type |
|
Frequency range (-10dB) | 50 Hz - 20 kHz | 48 Hz - 20 kHz | 46 Hz - 20 kHz | |
Nominal coverage | H | 90° | 90° | 90° |
V | 60° | 60° | 60° | |
Components | LF | 10" Cone, 2" Voice Coil (Ferrite Magnet) | 12" Cone, 2" Voice Coil (Ferrite Magnet) | 15" Cone, 2.5" Voice Coil (Ferrite Magnet) |
HF | 1" Voice Coil, Compression Driver (Ferrite Magnet) | 1.4" Voice Coil, Compression Driver (Ferrite Magnet) | 1.4" Voice Coil, Compression Driver (Ferrite Magnet) | |
Crossover | 2.8 kHz | 2.1 kHz | 2.0 kHz | |
Power rating | NOISE | 175W | 175W | 250W |
PGM | 350W | 350W | 500W | |
PEAK | 700W | 700W | 1000W | |
Nominal impedance | 8Ω | 8Ω | 8Ω | |
SPL | Sensitivity (1W; 1m on axis) | 94dB SPL | 96dB SPL | 96dB SPL |
Peak (Calculated) | 123 dB SPL | 125 dB SPL | 126 dB SPL | |

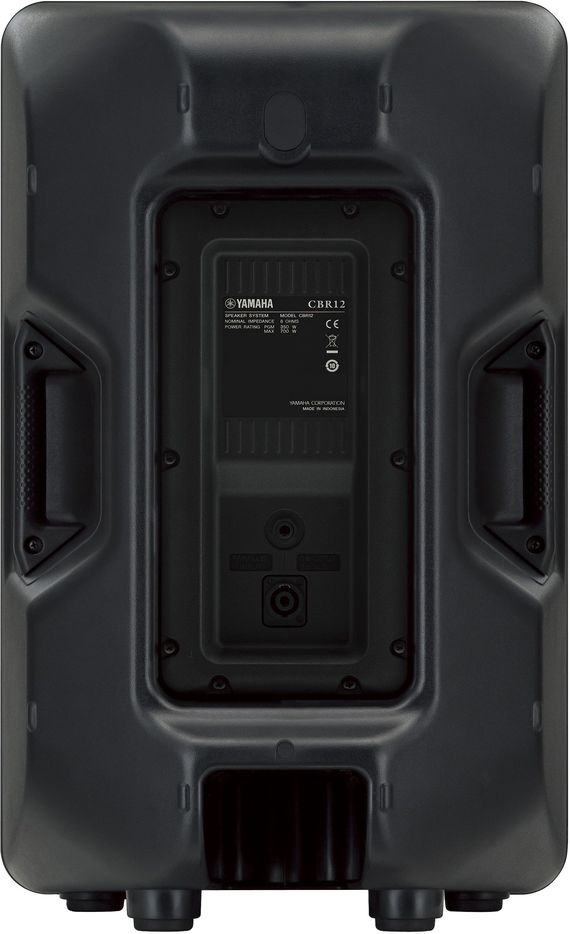

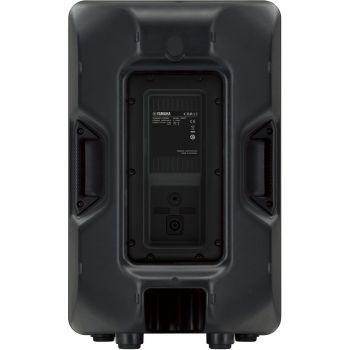

I/O connectors | 1/4" Phone x 1, speakON NL4MP x 1 | 1/4" Phone x 1, speakON NL4MP x 1 | 1/4" Phone x 1, speakON NL4MP x 1 | |
Cabinet material | Plastic | Plastic | Plastic | |
Finish | Black | Black | Black | |

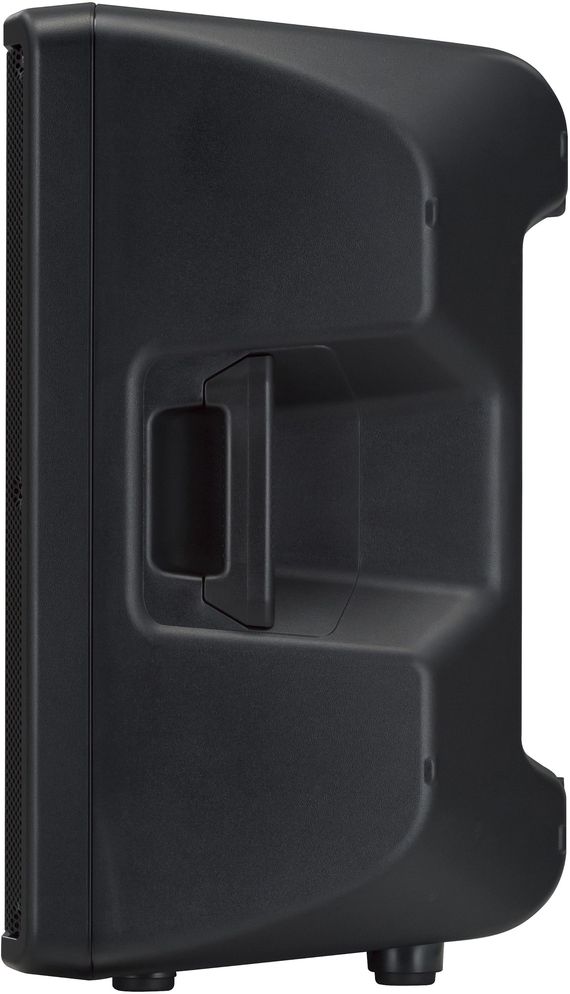

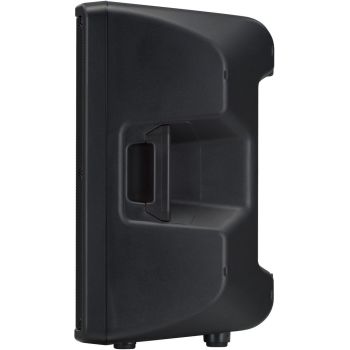

Handle | Top x 1 | Side x 2 | Side x 2 | |
Flying and mounting hardware | Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts) | Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts) | Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts) | |
Pole socket | Φ35 mm?Bottom x 1 | Φ35 mm?Bottom x 1 | Φ35 mm?Bottom x 1 | |
Dimensions | W | 308mm (12.1") | 376mm (14.8") | 455mm (17.9") |
H | 493mm (19.4") | 601mm (23.7") | 700mm (27.6") | |
D | 289mm (11.4") | 348mm (13.7") | 378mm (14.9") | |
Net weight | 9.4 kg (20.7 lbs) | 13.9 kg (30.6 lbs) | 17.7 kg (39.0 lbs) |
