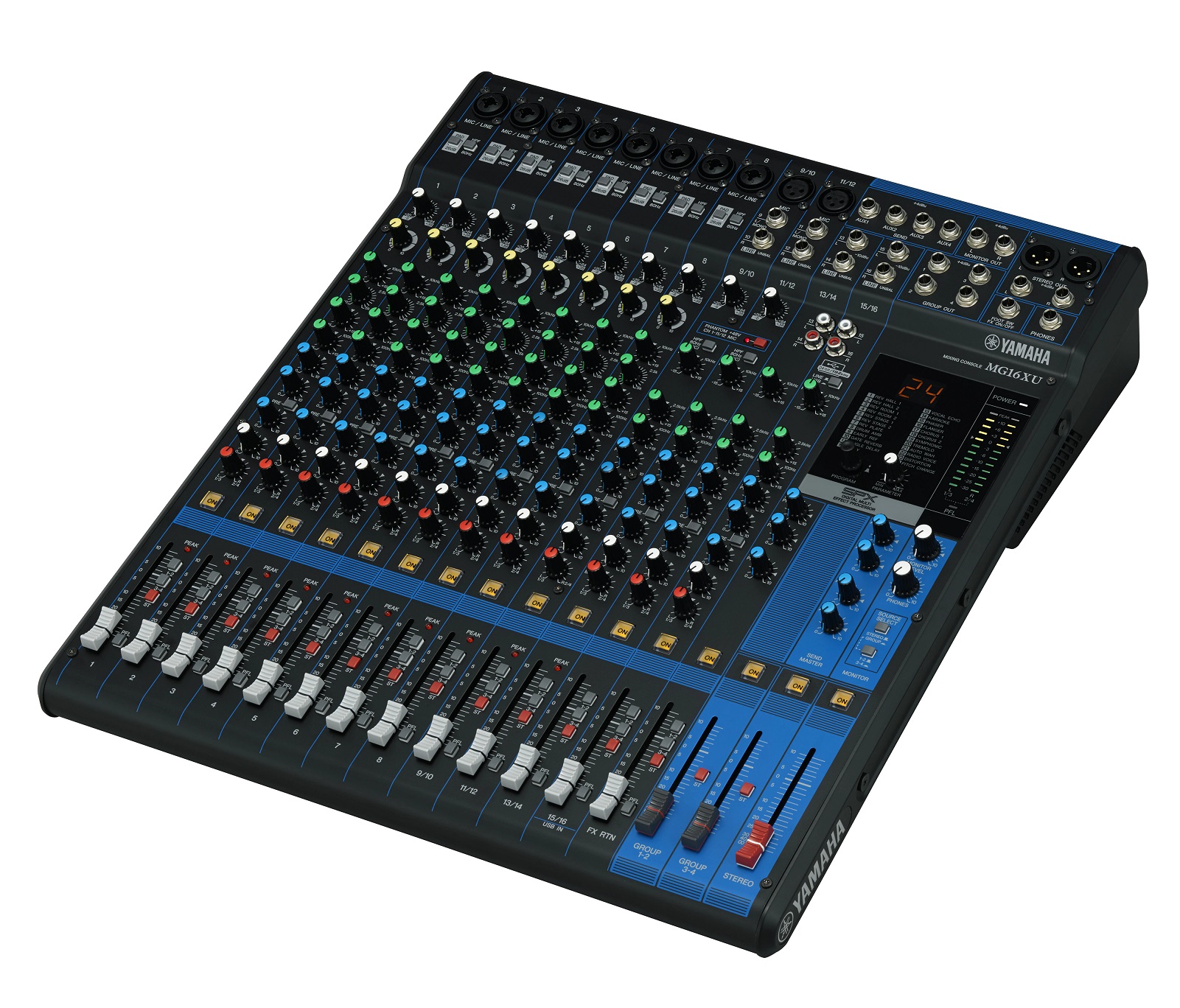

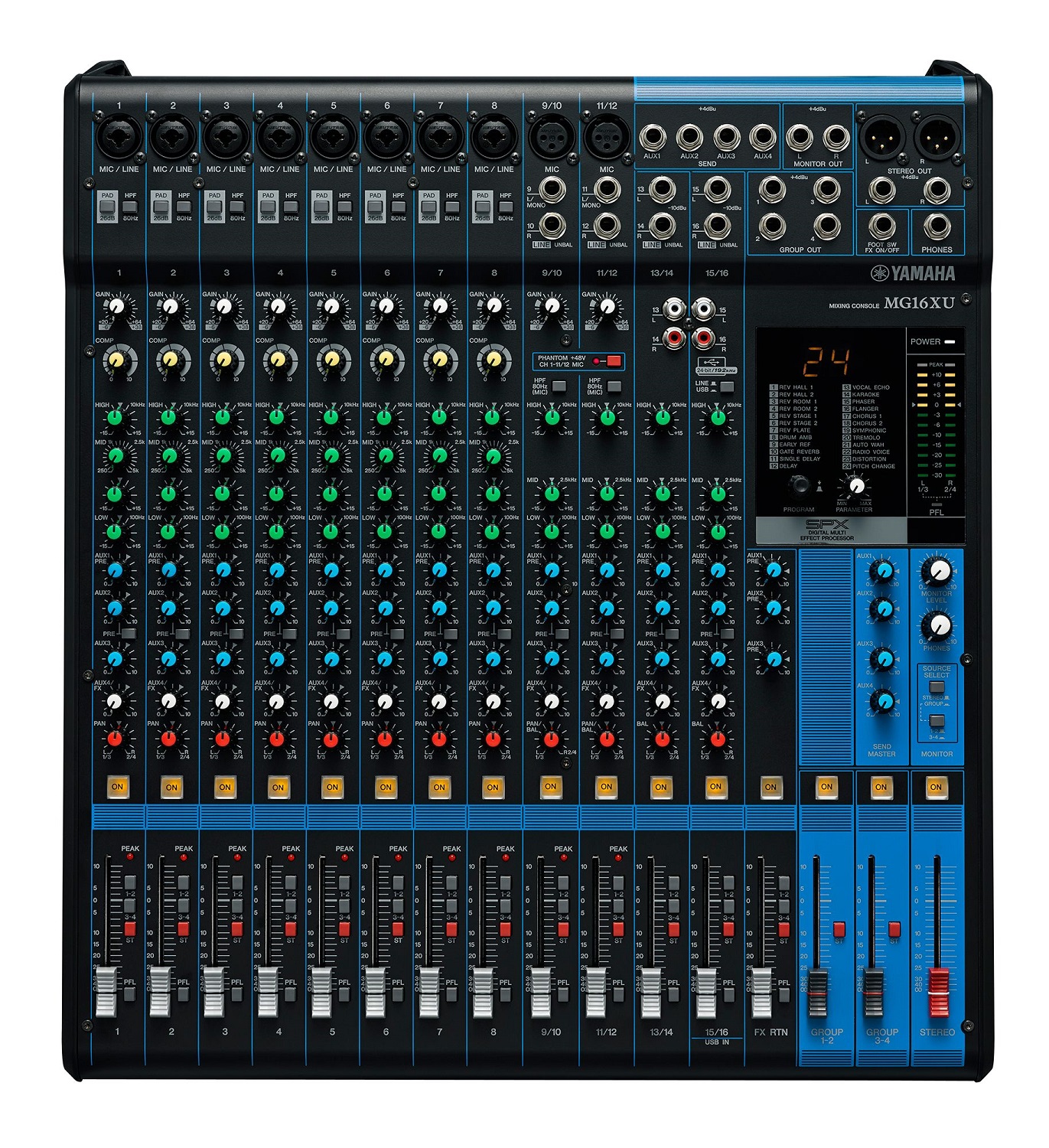

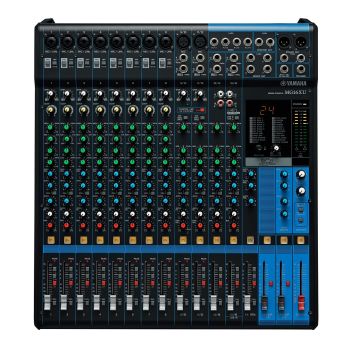

Η Yamaha MG-16 ειναι κονσόλα μίξης 16 καναλιών με είσοδοι 10 Mic / 16 Line (8 mono + 4 stereo), 4 Group Busses + 1 Stereo Bus, 4 AUX, D-PRE mic προενισχυτές με ανεστραμμένο κύκλωμα Darlington, XLR balanced έξοδοι, Compressor μονού ρυθμιστή, Διακόπτης PAD στις μονοφωνικές εισόδους, +48V phantom power, ενσωματωμένο τροφοδοτικό. Διαθετει εισοδο USB.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Features

• 16-Channel Mixing Console
• Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
• 4 GROUP Buses + 1 Stereo Bus
• 4 AUX (incl. FX)
• ?D-PRE? mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• High-grade effects: SPX with 24 programs
• 24-bit/192kHz 2in/2out USB Audio functions
• Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
• Includes Cubase Al DAW software download version
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Internal universal power supply for world-wide use
• Rack Mount Kit Included
• Metal chassis

Specifications

16-channel mixer

• channels 1-8:
  • mono mic/line inputs (XLR and 1/4" TRS)
  • switchable 26 dB pad
• channels 9/10 and 11/12:
  • mono mic and stereo line inputs (XLR and 1/4" TS)
• channels 13/14 and 15/16:
  • stereo line inputs (1/4" TS and RCA)
• all microphone inputs:
  • D-PRE Class A microphone preamps
  • phantom power (+48 volts)
  • switchable high-pass filter (80 Hz, 12 dB/octave)
• 3-band EQ on all channels (+/-15 dB)
  • chs 1-8: high: 10,000 Hz (shelving), mid: 250-5,000 Hz (peaking), low: 100 Hz (shelving)
  • chs 9-16: high: 10,000 Hz (shelving), mid: 2,500 Hz (peaking), low: 100 Hz (shelving)
• peak lights on chs 1-12

Special features

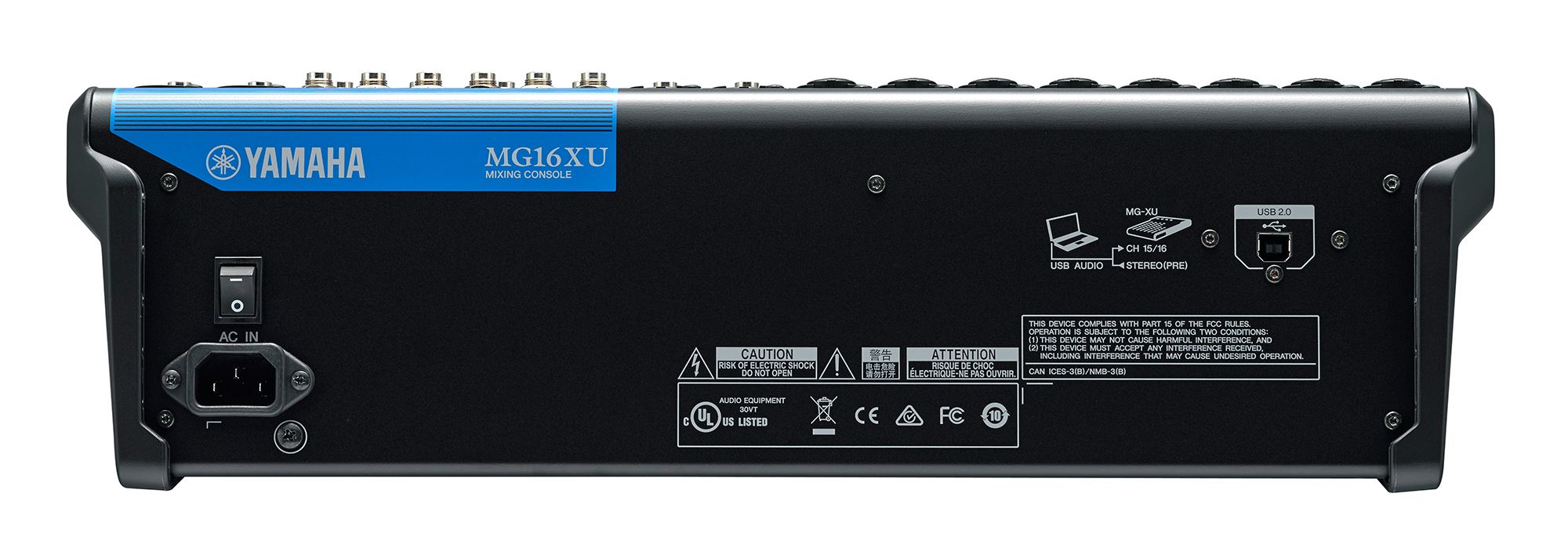

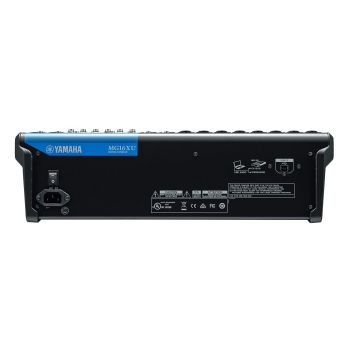

• 24-bit/192k Hz 2-in/2-out USB 2.0 audio interface
• works with select iOS devices via Apple? iPad? Camera Connection Kit ? Lightning to USB Camera Adapter (sold separately)
• Cubase AI4 digital audio workstation software (download version)
  • system requirements: 2 GB RAM and Mac OS X Version 10.7 or later, or Windows 7 or later
• onboard digital effects: 24 different programs
  • 10 reverbs
  • 4 delays
  • 3 chorusing
  • 7 others (including pitch change)
• dynamic compression available on chs 1-8 (single-knob control)
• 3 auxiliary buses: Aux 1: pre-fader, Aux 2: pre-/post-fader (switchable), Aux 3: post-fader
• effects/Aux 4 bus (post-fader) also allows you to use your own effects
• 4 subgroups (two stereo pairs) with direct outputs

General features

• LED output meter with peak indicator
• PFL (pre-fader listen) for metering and monitoring individual channels
• on/off, pan, and stereo/group assignment controls on each channel
• headphone and monitor outputs
• rack mount kit included
• metal chassis
• Dimensions(W?H?D): 444 mm x 130 mm x 500 mm
• Net Weight: 6.8 kg
