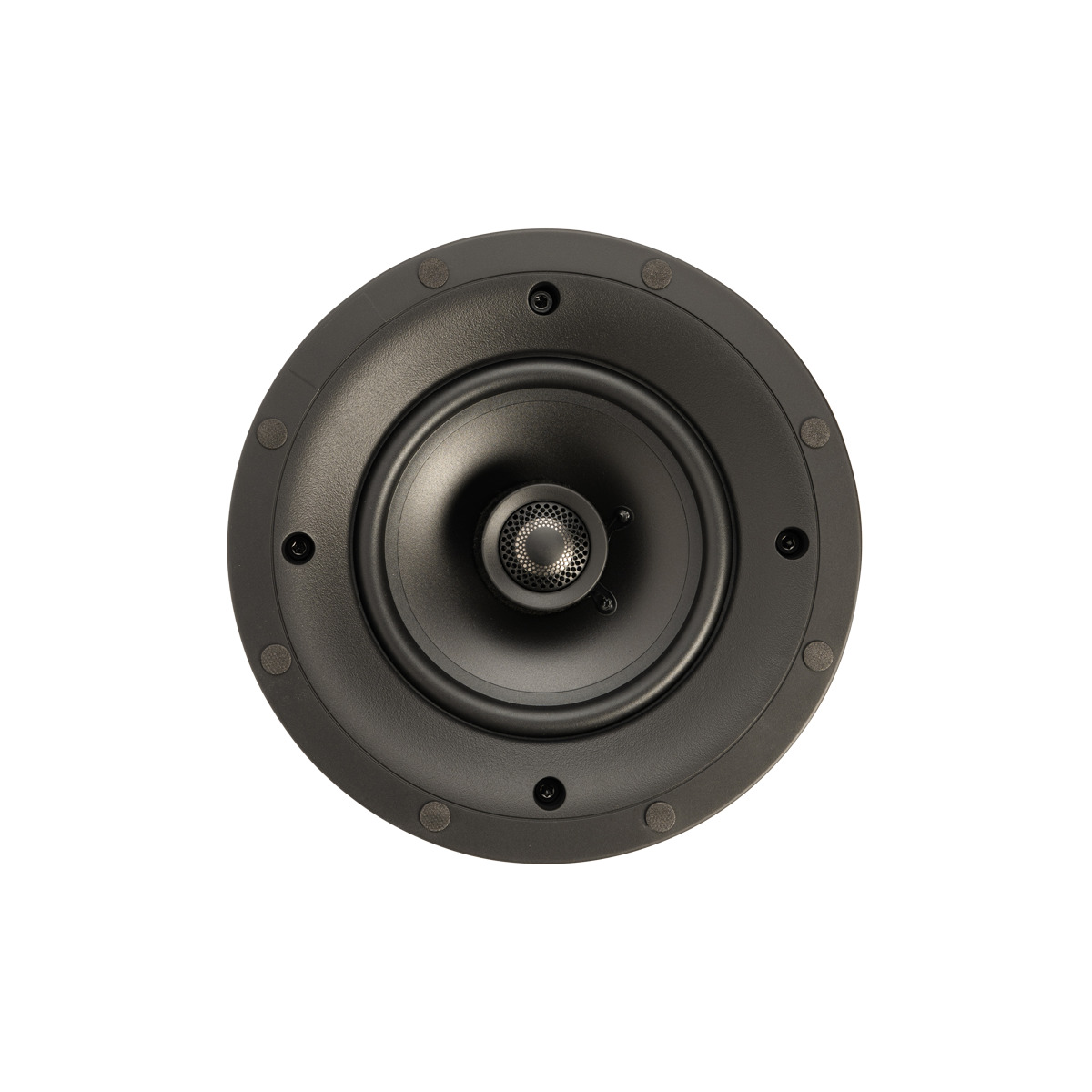

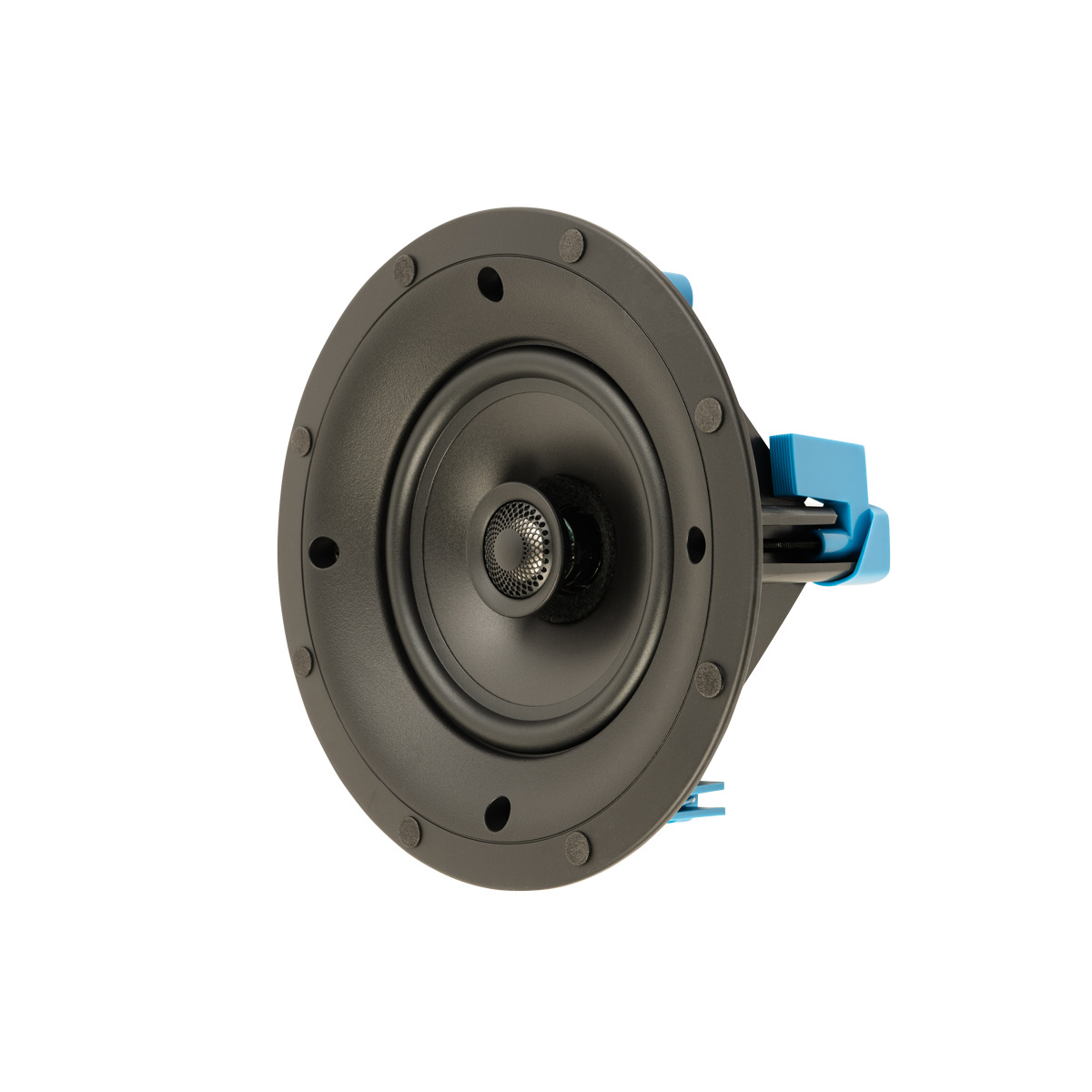

Το Paradigm CI Home H5-R V2 ειναι ενα ηχειο οροφης δυο δρομων (woofer 5.5 inches, tweeter τιτανιου 0.75"). Βαθος τοποθετησης 7 cm.
H τιμη αφορα 1 τεμαχιο.

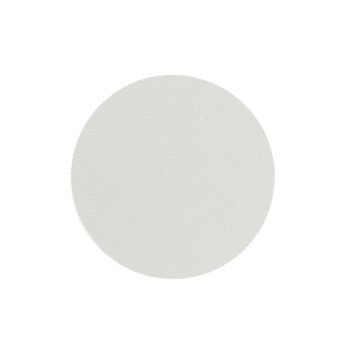

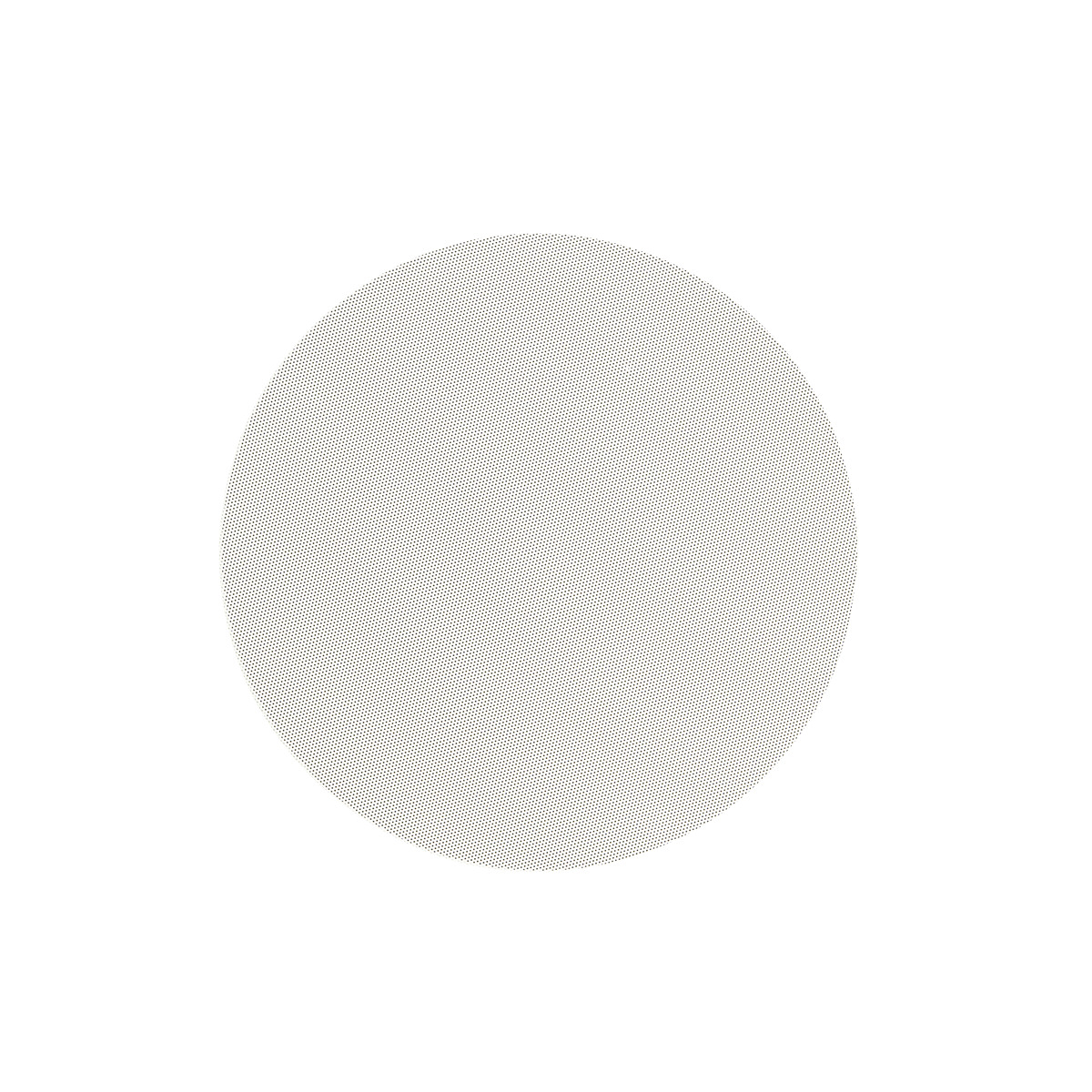

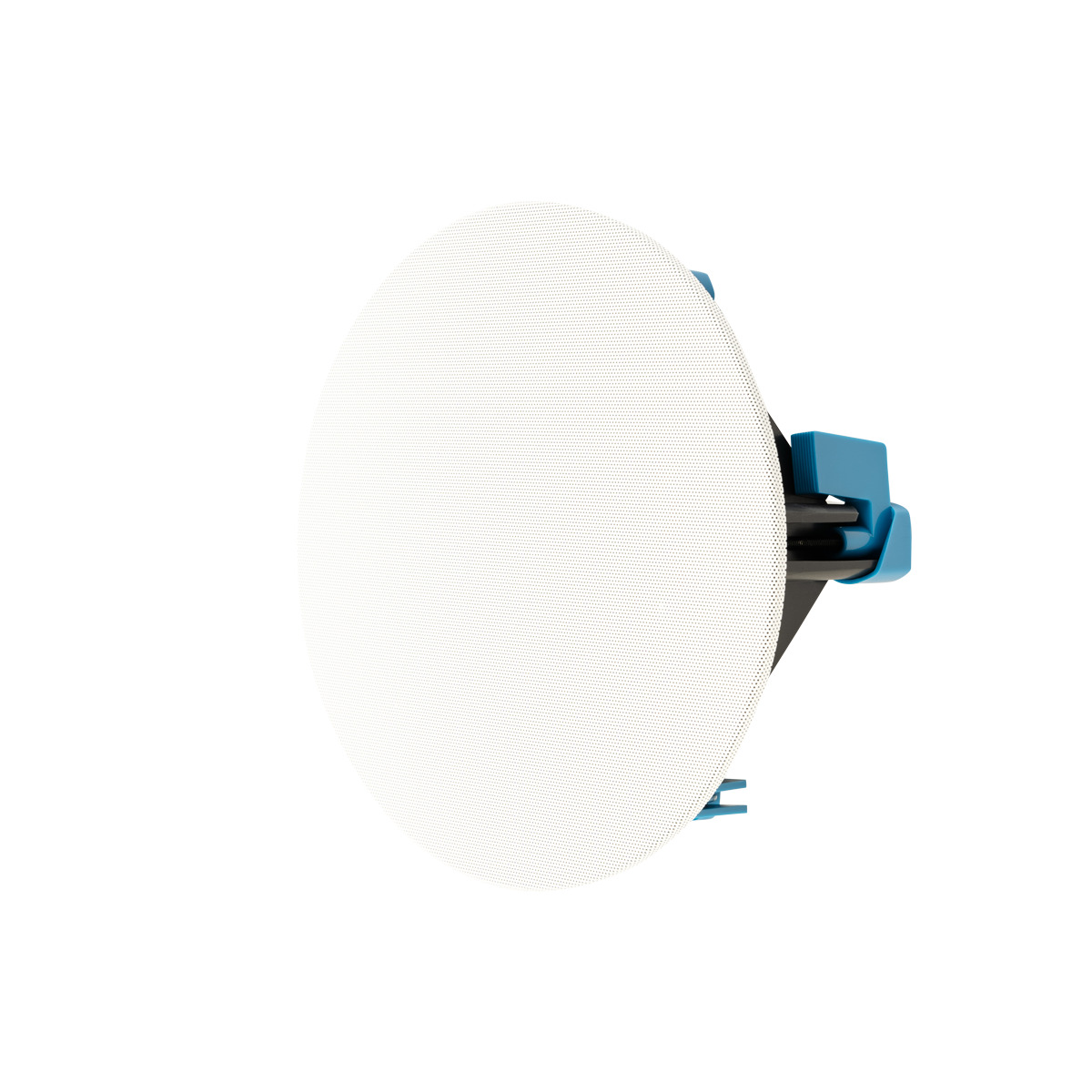

Your “Go-To” Custom Install Speaker. The CI HOME series address the important considerations when selecting custom installation speakers: truly superior sound, easy installation, and a new bezel-free micro-perf grille with an incredibly discreet aesthetic.
Specifications
| DESIGN | 2-driver, 2-way in-ceiling, ABS chassis & mounting clamps |
| CROSSOVER | 2nd-order electro- acoustic at 3.0 kHz |
| FREQUENCY RESPONSE ON-AXIS | ±2 dB from 75 Hz - 20 kHz |
| HIGH FREQUENCY DRIVER | 3/4” (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens |
| MID/BASS FREQUENCY DRIVER | 5.5” (13.9cm) Mineral-filled Polypropylene Cone |
| LOW FREQUENCY EXTENSION | 60 Hz |
| SENSITIVITY ROOM / ANECHOIC | 88 dB / 84 dB |
| FREQUENCY RESPONSE 30° OFF-AXIS | ±2 dB from 75 Hz - 18 kHz |
| SUITABLE AMPLIFIER POWER RANGE | 15-70 W |
| MAXIMUM INPUT POWER | 40 W |
| IMPEDANCE | Compatible with 8 ohms |
| WEIGHT | 2.5 lbs (1.2 kg) |
| FINISHES | White, paintable grille, black speaker |
| ACCESSORIES (NOT INCLUDED) | PB-7RN |
| CUT-OUT DIMENSIONS | 6-3/4” (17.2cm) dia. |
| MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) |
7cm |
| DIMENSIONS HXWXD (INCLUDES GRILLE). | diameter x depth 19.7cm x 8.7cm |
| CI HOME V2 DIMENSIONAL DRAWING |  |
1.7M |
| CI HOME V2 SPEC SHEET | |
1.44M |
| CI HOME SERIES V2 MANUAL | |
