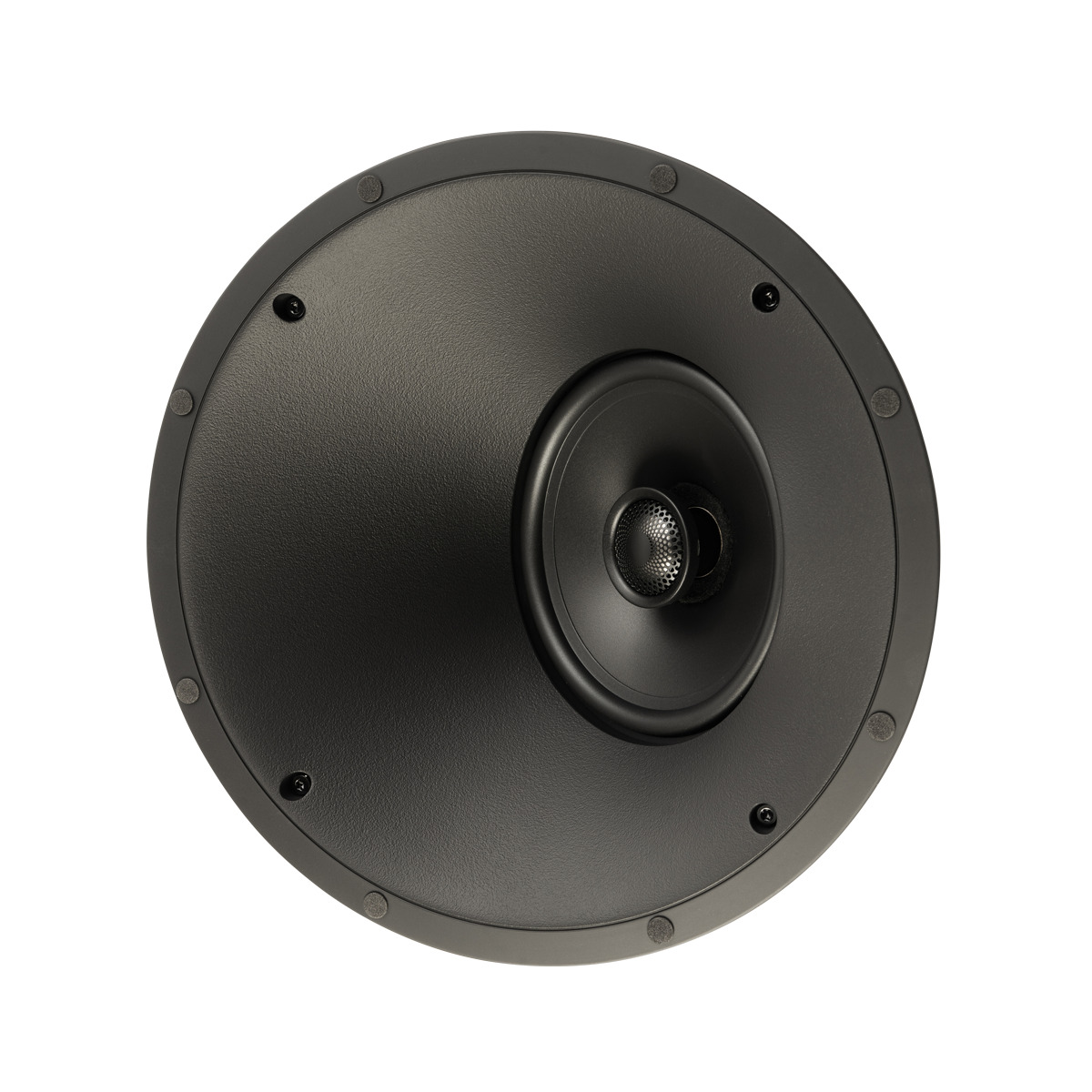

Το Paradigm CI Home H65-A V2 ειναι ηχειο οροφης δυο δρομων (woofer 6.5", tweeter τιτανιου 1") για εφαρμογες home theater ή μουσικης. Βαθος τοποθετησης 11,8 cm.
H τιμη αφορα 1 τεμαχιο.

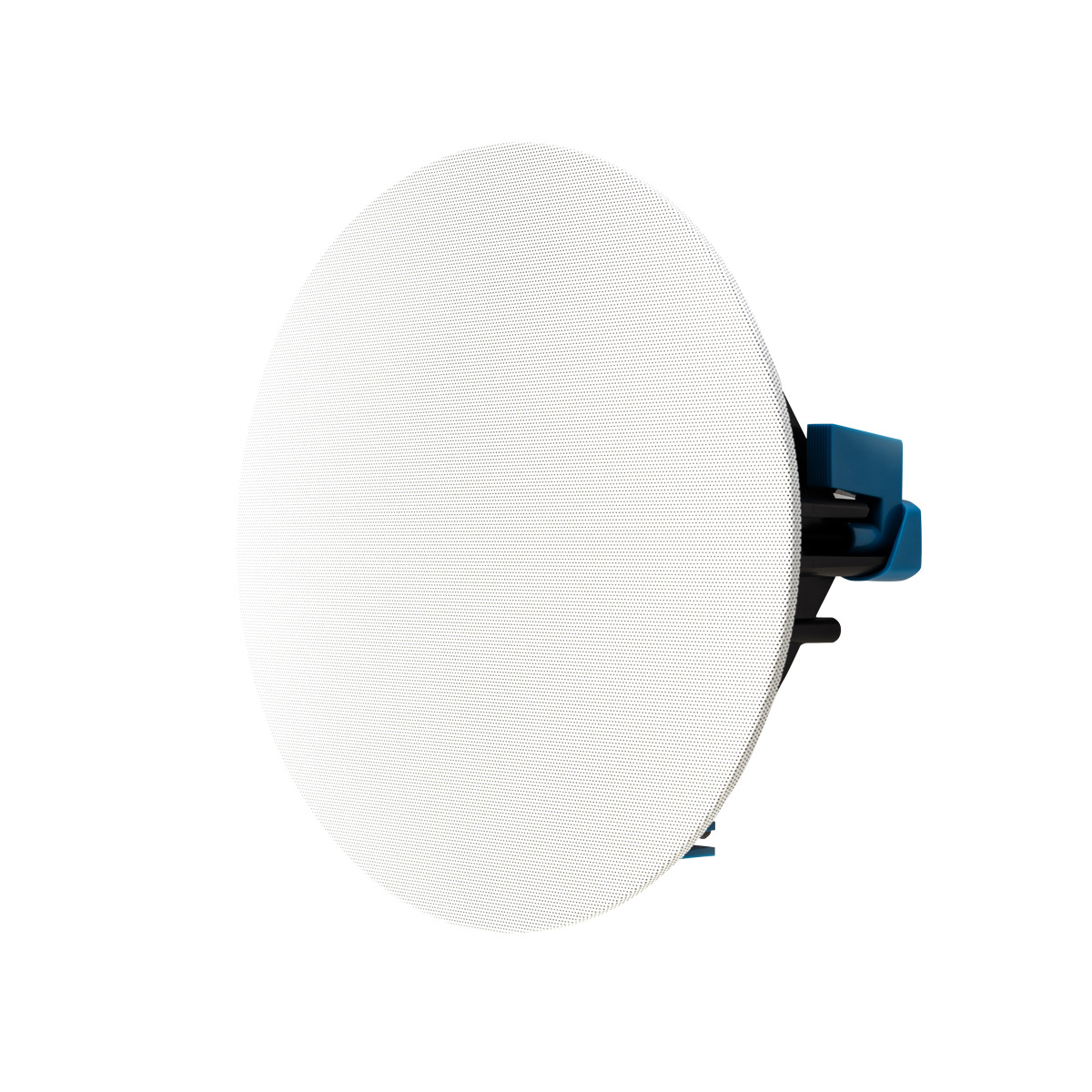

Your “Go-To” Custom Install Speaker. The CI HOME series address the important considerations when selecting custom installation speakers: truly superior sound, easy installation, and a new bezel-free micro-perf grille with an incredibly discreet aesthetic.

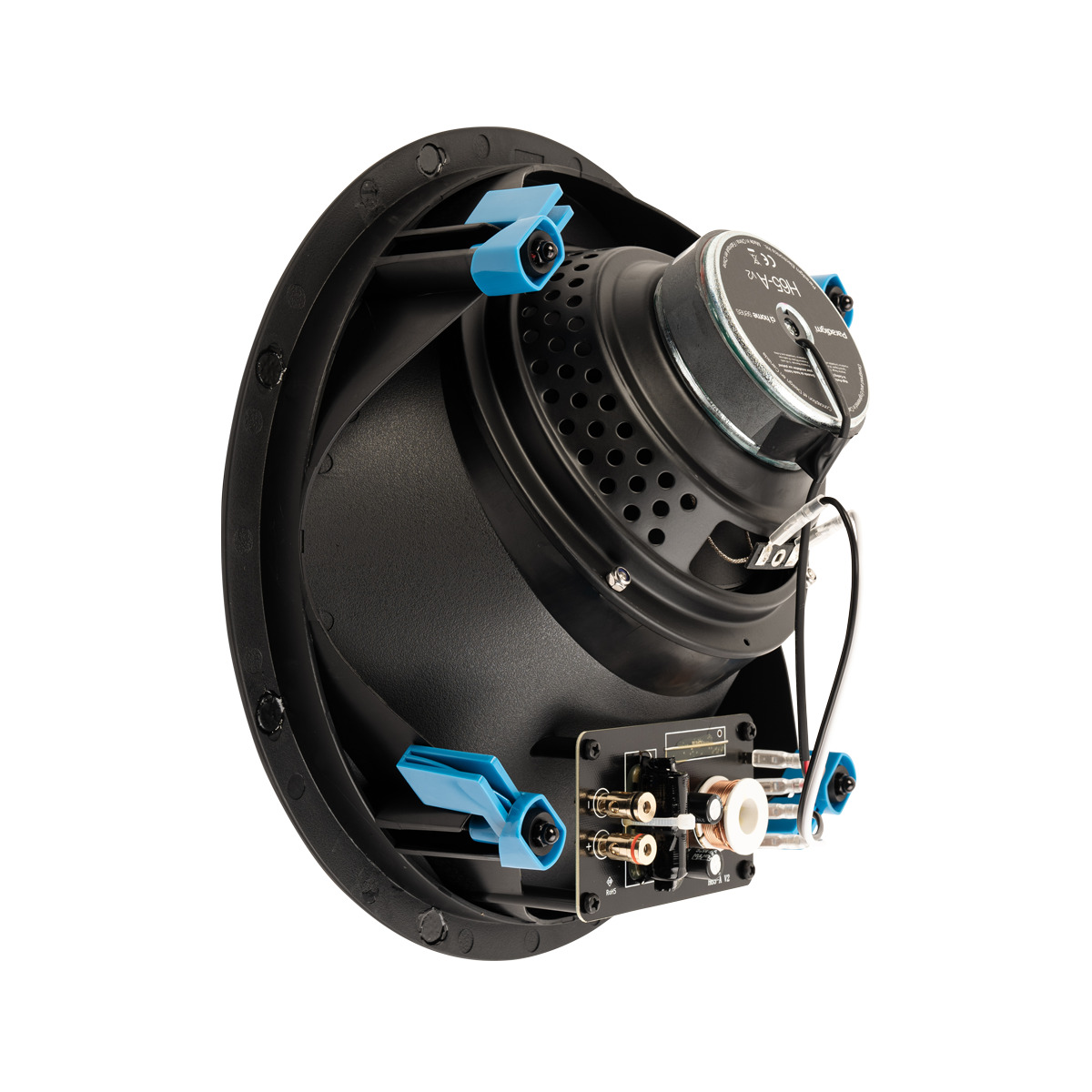

6-1/2 Round In-Ceiling with 30°-Angled Guided SoundField™, 2-driver 2-way, ABS chassis/mounting clamps
Specifications
| DESIGN | 2-driver, 2-way in-ceiling, 30°-Angled Guided Soundfield System, ABS chassis & mounting clamps |
| CROSSOVER | 2nd-order electro- acoustic at 2.5 kHz |
| FREQUENCY RESPONSE ON-AXIS | ±2 dB from 70 Hz - 20 kHz |
| HIGH FREQUENCY DRIVER | 3/4” (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens |
| MID/BASS FREQUENCY DRIVER | 6.5” (16.5cm) Mineral-filled Polypropylene Cone |
| LOW FREQUENCY EXTENSION | 55 Hz |
| SENSITIVITY ROOM / ANECHOIC | 89 dB / 85 dB |
| FREQUENCY RESPONSE 30° OFF-AXIS | ±2 dB from 70 Hz - 15 kHz |
| SUITABLE AMPLIFIER POWER RANGE | 15-80 W Mono |
| MAXIMUM INPUT POWER | 50 W Stereo |
| IMPEDANCE | Compatible with 8 ohms |
| WEIGHT | 5.3 lbs (2.4 kg) |
| FINISHES | White, paintable grille, black speaker |
| ACCESSORIES (NOT INCLUDED) | PB-10RN |
| CUT-OUT DIMENSIONS | 10-3/8” (26.3cm) dia. |
| MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) |
11.8cm |
| DIMENSIONS HXWXD (INCLUDES GRILLE). | diameter x depth 29cm x 13.4cm |
| CI HOME V2 DIMENSIONAL DRAWING |  |
1.7M |
| CI HOME V2 SPEC SHEET | |
1.44M |
| CI HOME SERIES V2 MANUAL | |
