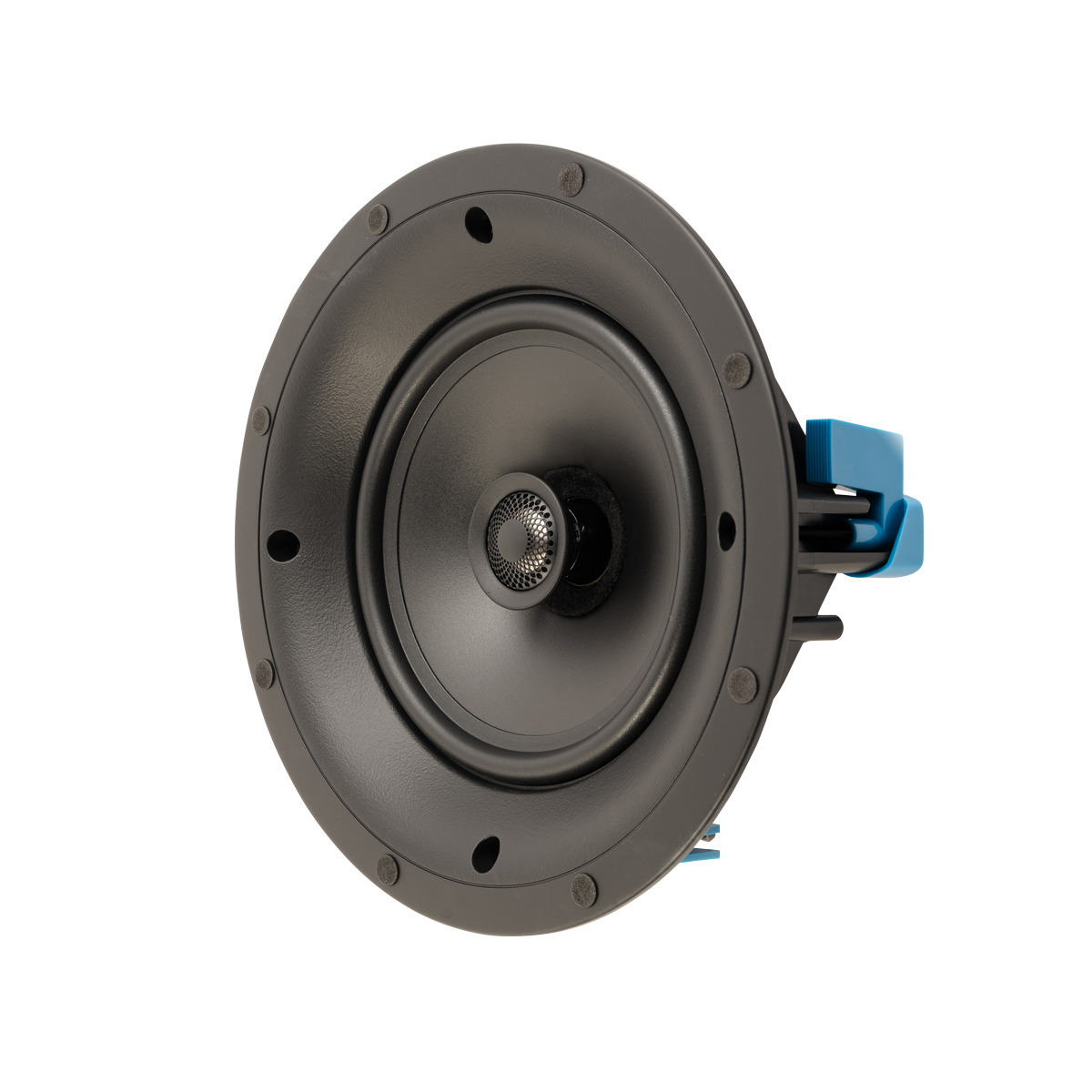

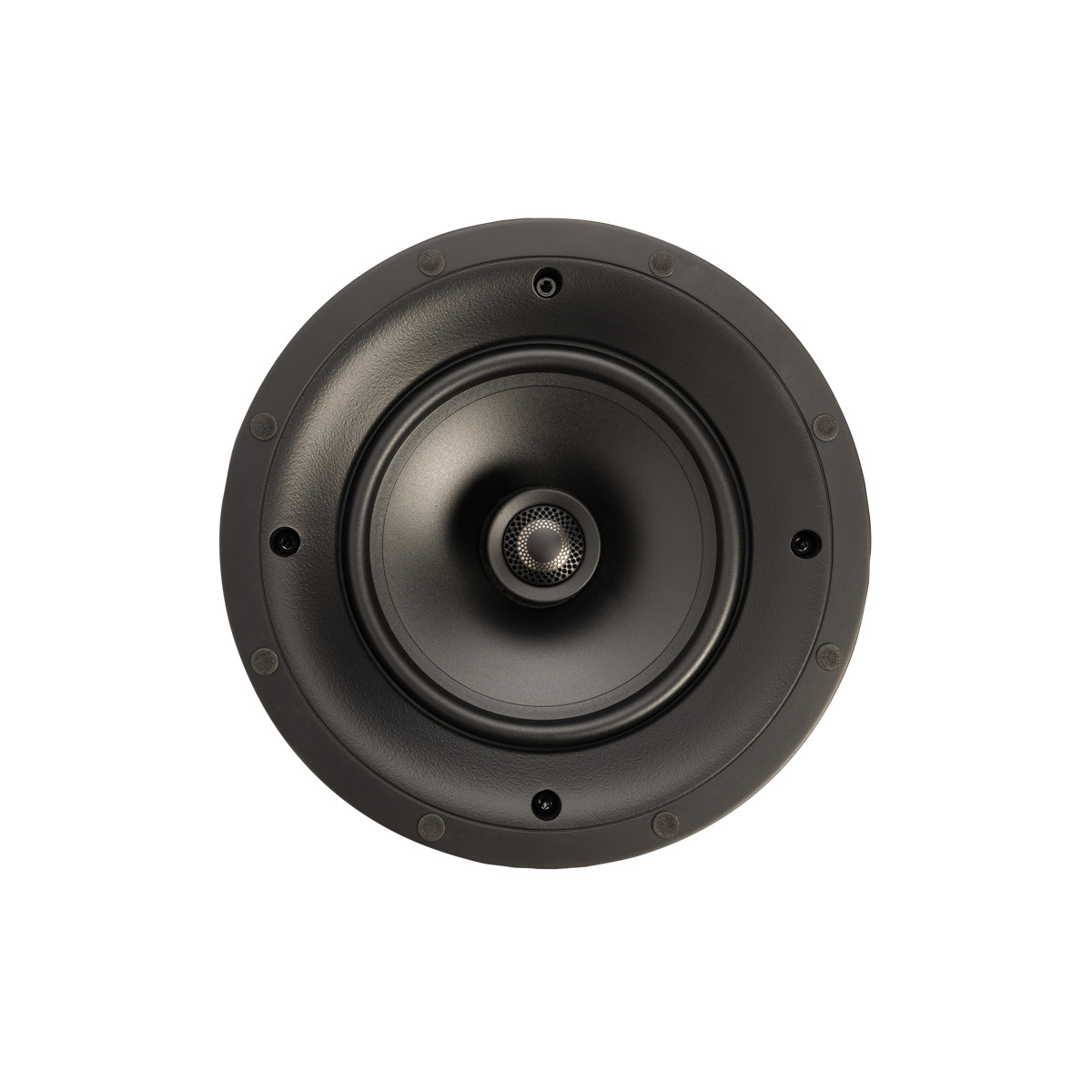

Το Paradigm CI Home H65-R V2 ειναι ενα ηχειο οροφης δυο δρομων (woofer 6.5", tweeter τιτανιου 0.75 inch). Βαθος τοποθετησης 7,6 cm.
H τιμη αφορα 1 τεμαχιο.

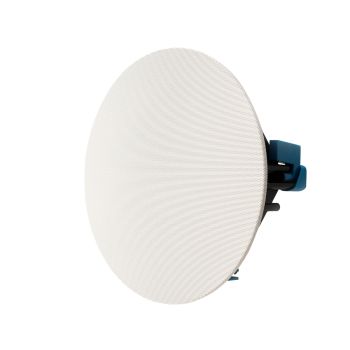

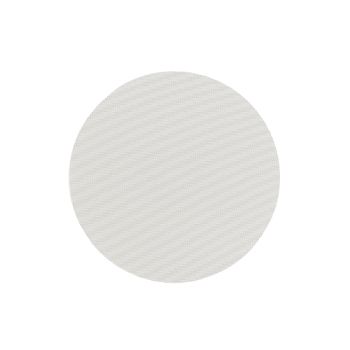

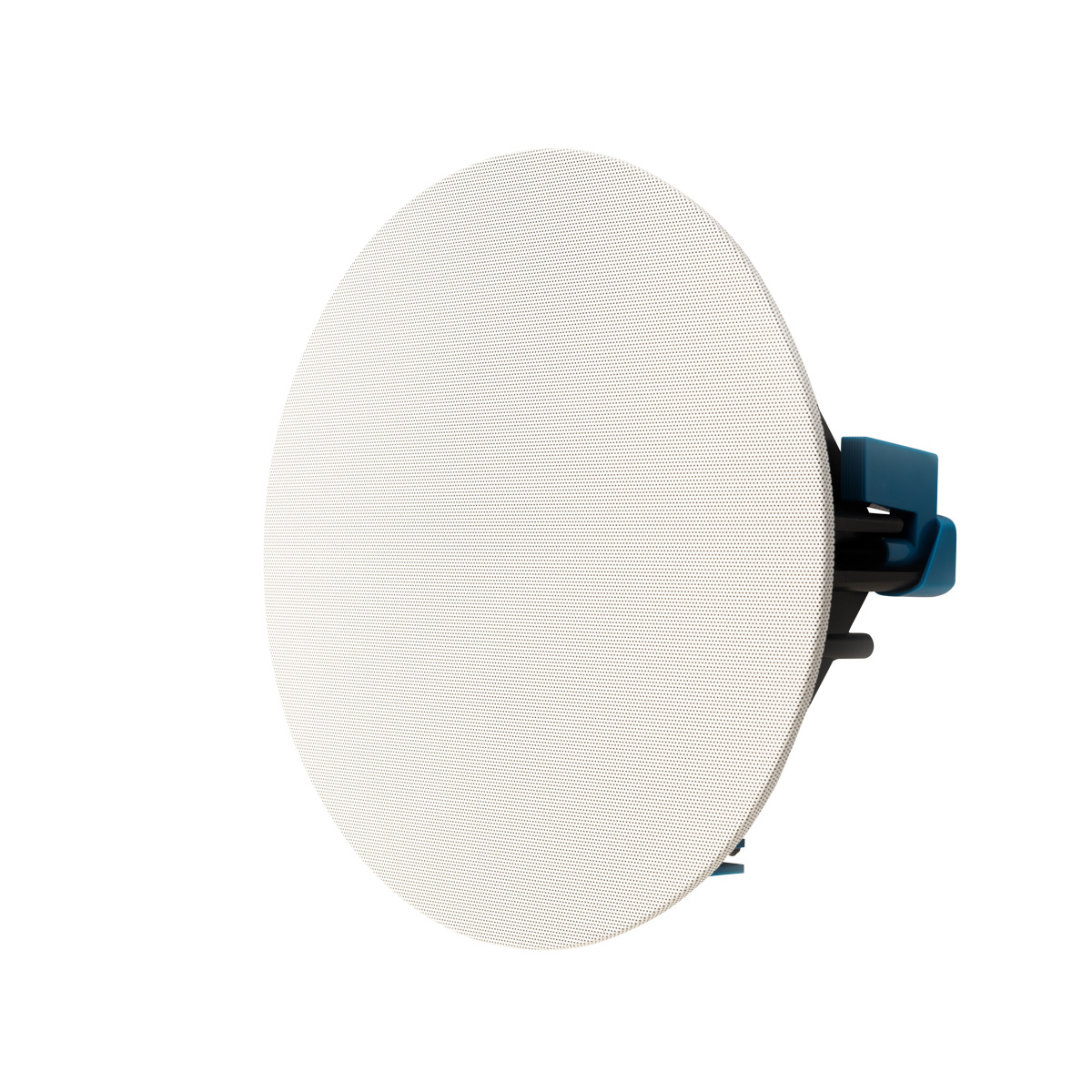

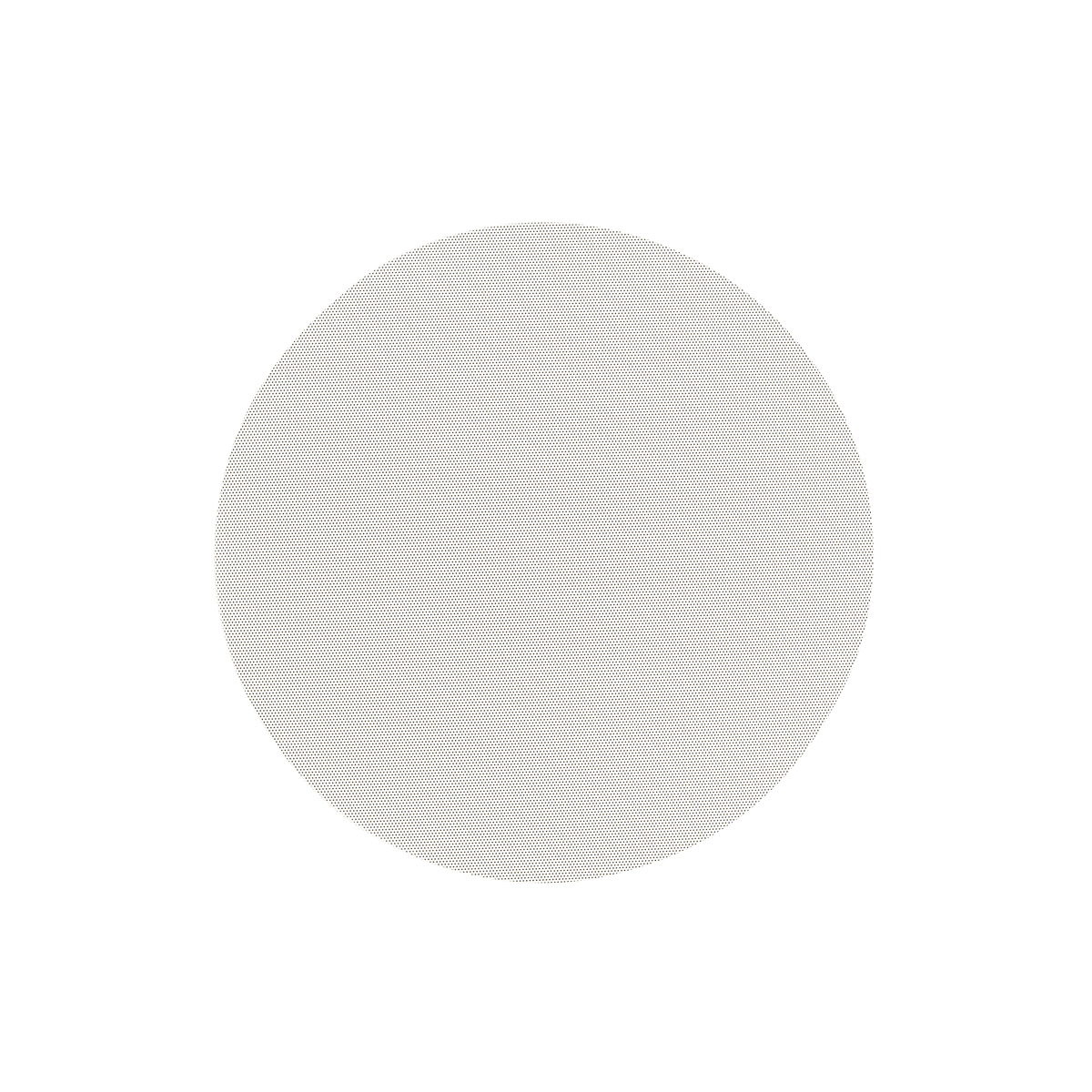

Your “Go-To” Custom Install Speaker. The CI HOME series address the important considerations when selecting custom installation speakers: truly superior sound, easy installation, and a new bezel-free micro-perf grille with an incredibly discreet aesthetic.
Specifications
| DESIGN | 2-driver, 2-way in-ceiling, ABS chassis & mounting clamps |
| CROSSOVER | 2nd-order electro- acoustic at 3.0 kHz |
| FREQUENCY RESPONSE ON-AXIS | ±2 dB from 70 Hz - 20 kHz |
| HIGH FREQUENCY DRIVER | 3/4” (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens |
| MID/BASS FREQUENCY DRIVER | 6.5” (16.5cm) Mineral-filled Polypropylene Cone |
| LOW FREQUENCY EXTENSION | 55 Hz |
| SENSITIVITY ROOM / ANECHOIC | 89 dB / 85 dB |
| FREQUENCY RESPONSE 30° OFF-AXIS | ±2 dB from 70 Hz - 18 kHz |
| SUITABLE AMPLIFIER POWER RANGE | 15-80 W |
| MAXIMUM INPUT POWER | 50 W |
| IMPEDANCE | Compatible with 8 ohms |
| WEIGHT | 1.6 kg |
| FINISHES | White, paintable grille, black speaker |
| ACCESSORIES (NOT INCLUDED) | PB-8RN |
| CUT-OUT DIMENSIONS | 7-3/4” (19.6cm) dia. |
| MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) |
7.6cm |
| DIMENSIONS HXWXD (INCLUDES GRILLE). | diameter x depth 22.1cm x 9.2cm |
| CI HOME V2 DIMENSIONAL DRAWING |  |
1.7M |
| CI HOME V2 SPEC SHEET | |
1.44M |
| CI HOME SERIES V2 MANUAL | |
