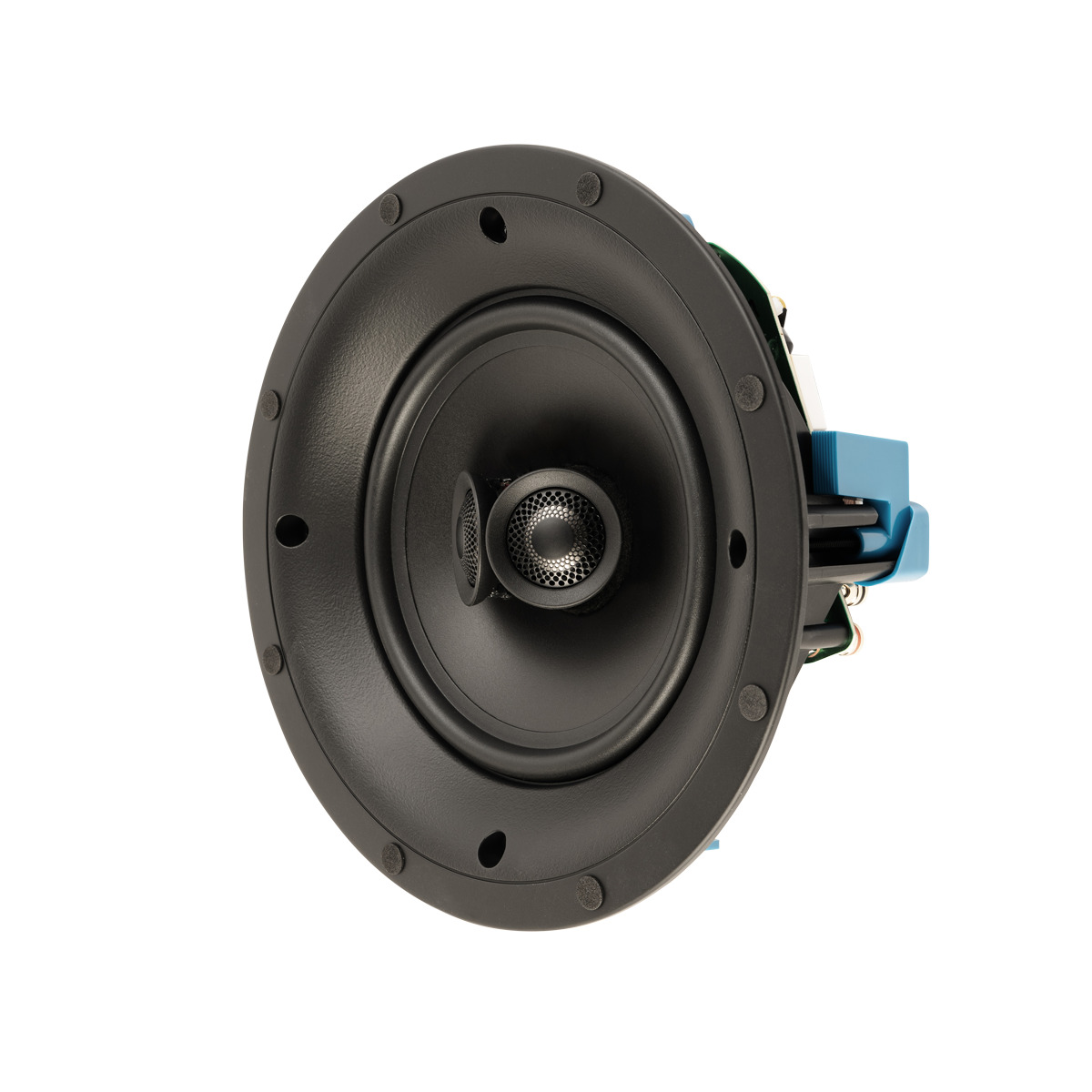

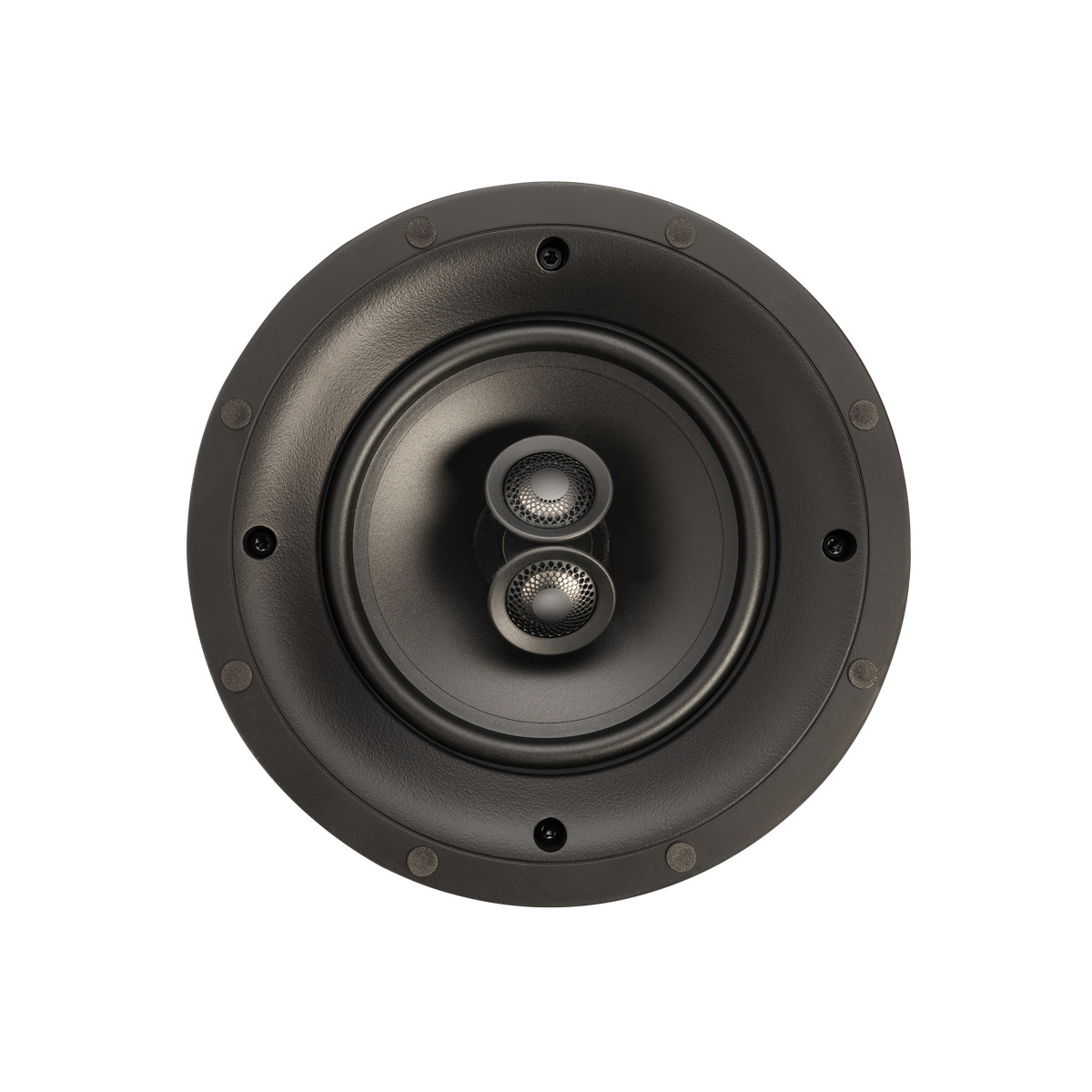

Το Paradigm CI Home H65-SM V2 ειναι ενα ηχειο οροφης δυο δρομων STEREO or MONO, (1x woofer 6.5", 2x tweeter τιτανιου 0.75"). Βαθος τοποθετησης 7,6 cm.
H τιμη αφορα 1 τεμαχιο.

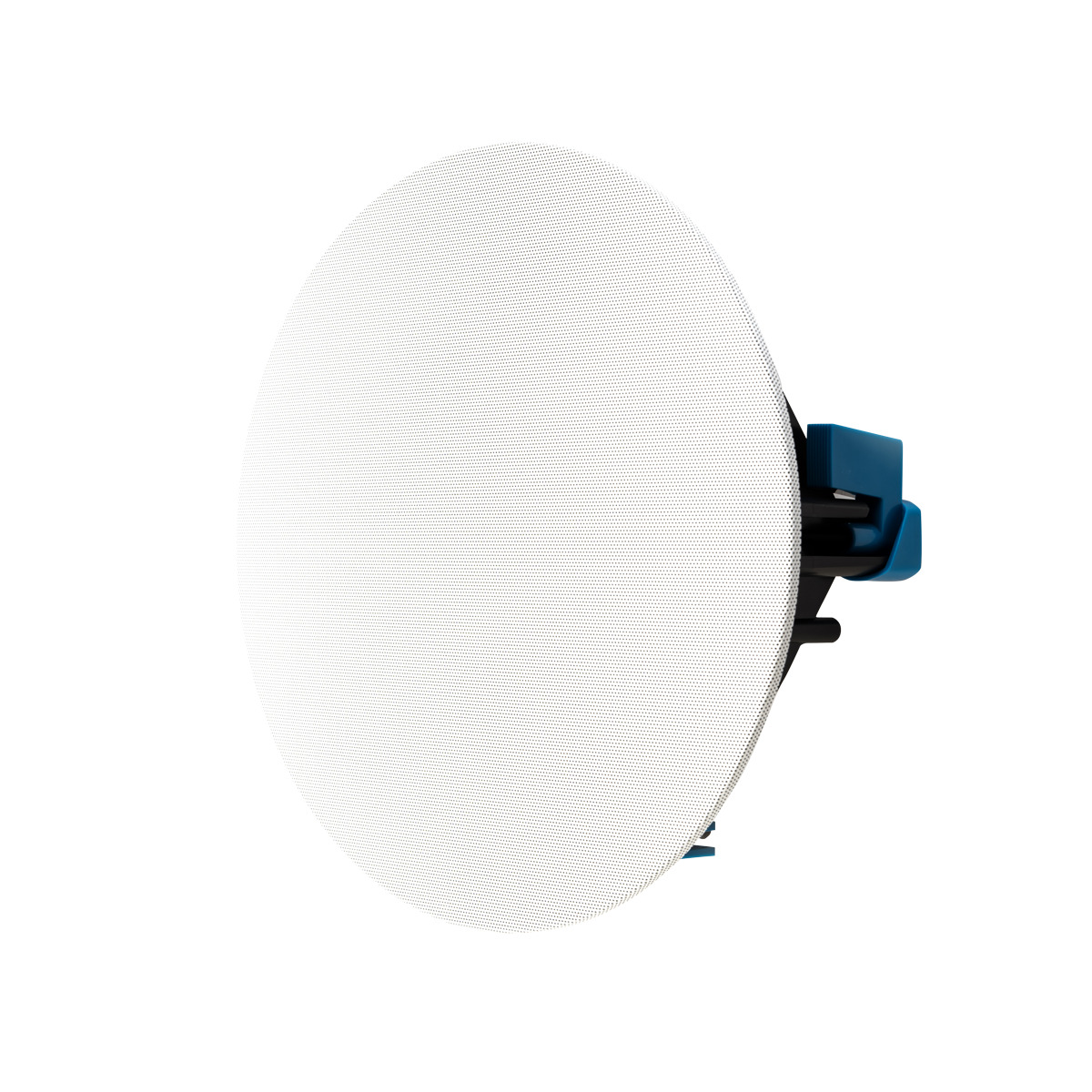

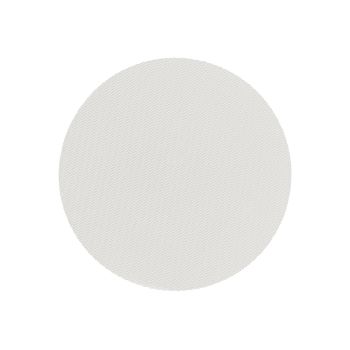

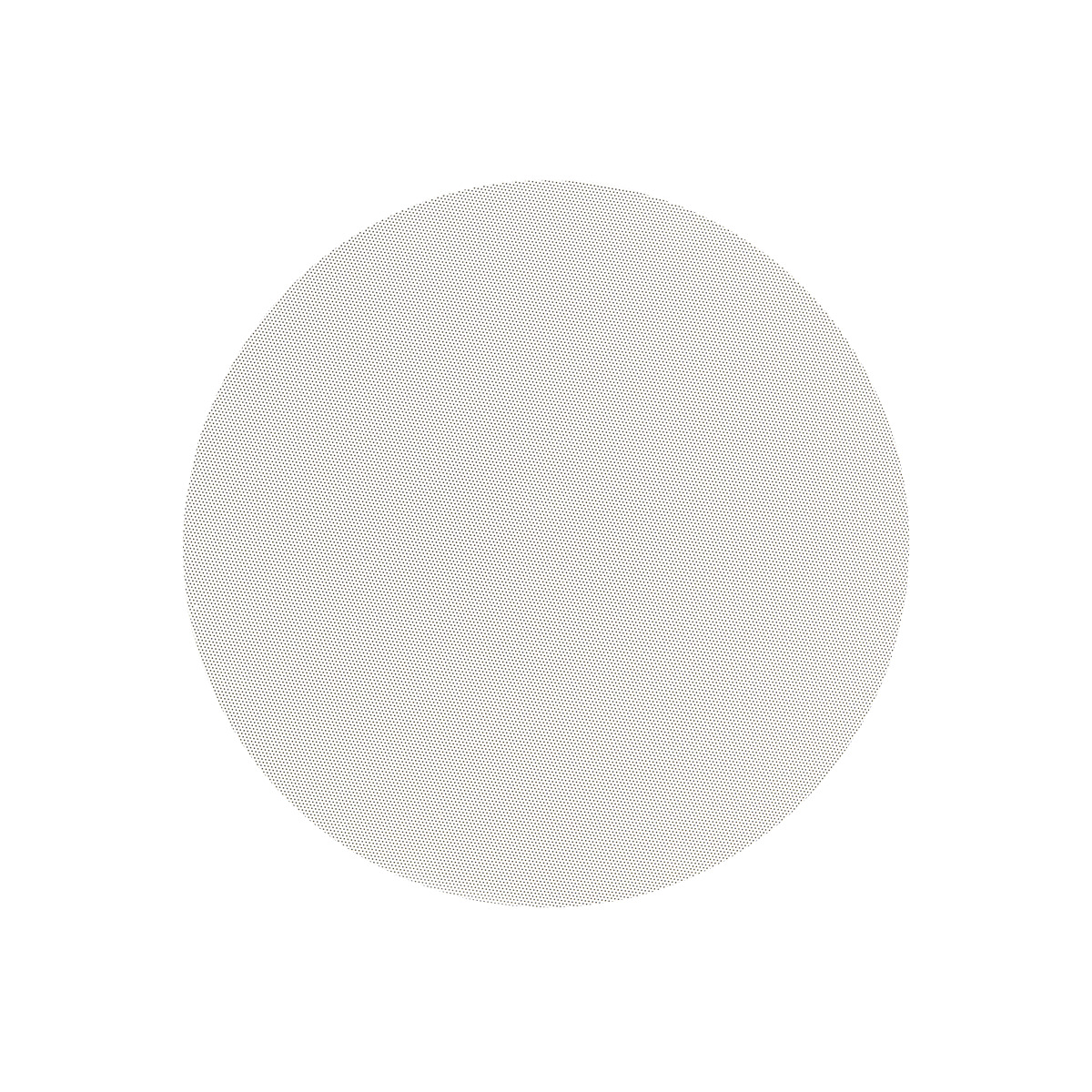

Your “Go-To” Custom Install Speaker. The CI HOME series address the important considerations when selecting custom installation speakers: truly superior sound, easy installation, and a new bezel-free micro-perf grille with an incredibly discreet aesthetic.
Specifications
| DESIGN | 3-driver, 2-way in-ceiling, Dual-Directional Soundfield™, ABS chassis & mounting clamps |
| CROSSOVER | 2nd-order electro- acoustic at 3.0 kHz |
| FREQUENCY RESPONSE ON-AXIS | ±2 dB from 70 Hz - 20 kHz |
| HIGH FREQUENCY DRIVER | Two 3/4” (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens |
| MID/BASS FREQUENCY DRIVER | 6.5” (16.5cm) Mineral-filled Polypropylene Cone |
| LOW FREQUENCY EXTENSION | 52 Hz |
| SENSITIVITY ROOM / ANECHOIC | 89 dB / 85 dB |
| FREQUENCY RESPONSE 30° OFF-AXIS | ±2 dB from 70 Hz - 15 kHz |
| SUITABLE AMPLIFIER POWER RANGE | 15-80 W Mono / 15-40 W Stereo |
| MAXIMUM INPUT POWER | 100 W Mono / 50 W Stereo |
| IMPEDANCE | Compatible with 8 ohms |
| WEIGHT | 4 lbs (1.8 kg) |
| FINISHES | White, paintable grille, black speaker |
| ACCESSORIES (NOT INCLUDED) | PB-8RN |
| CUT-OUT DIMENSIONS | 7-3/4” (19.6cm) dia. |
| MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) |
7.6cm |
| DIMENSIONS HXWXD (INCLUDES GRILLE). | diameter x depth 22.1cm x 9.2cm |
| CI HOME V2 DIMENSIONAL DRAWING |  |
1.7M |
| CI HOME V2 SPEC SHEET | |
1.44M |
| CI HOME SERIES V2 MANUAL | |
