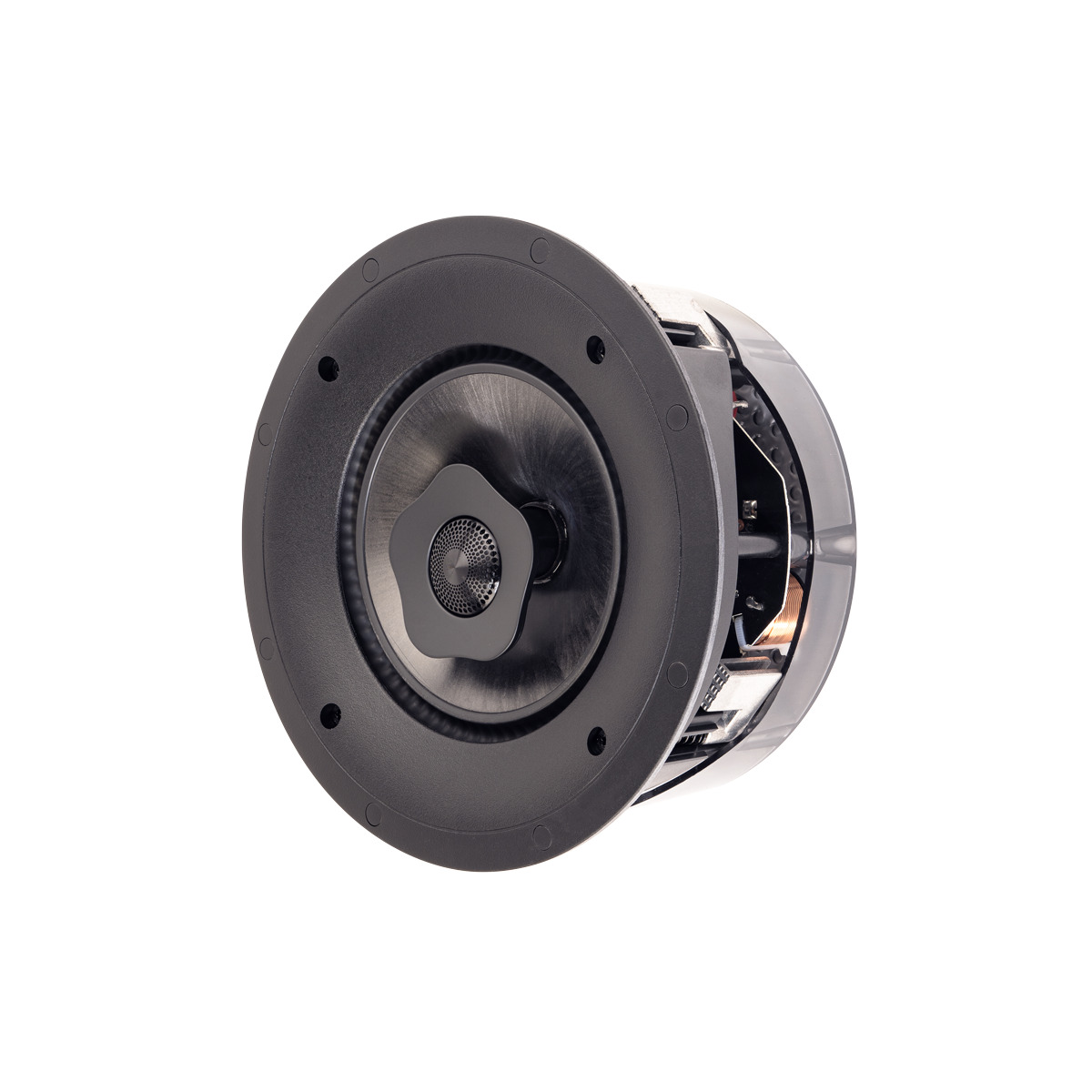

Το Paradigm CI Pro P65-R V2 ειναι ενα ηχειο οροφης δυο δρομων (woofer 6.5", tweeter τιτανιου 1"). Βαθος τοποθετησης 9,2 cm.

H τιμη αφορα 1 τεμαχιο.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Features

• Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens AL-MAC™ is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn’t just sound good “on paper” but truly sounds incredible in the real world.
• CARBON-X™ Cones Paradigm’s exclusive CARBON-X™ Cone combines lightweight stiffness with high consistency for a greater degree of accuracy and smooth, uncolored frequency response. Drivers feature long excursion voice coil motors for greater power handling and reduced power compression.
• Advanced Shock-Mount™ System mechanically decouples the die-cast aluminum baskets from the specially formulate CARBON-X™ ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.
• Patented† Active Ridge Technology (ART™) surrounds Made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.

Specifications

• Design: 2-driver, 2-way in-ceiling, Advanced SHOCK-MOUNT™ System, Nylon Reinforced Baffle
• Crossover: 2nd-order electro-acoustic at 2.5 kHz
• High frequency driver: 1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with exclusive perforated phase-aligning (PPA™) tweeter lens and reduced edge diffraction (RED™) technology
• Frequency response on-axis: ±3 dB from 75 Hz - 22 kHz
• Frequency response 30° off-axis: ±3 dB from 75 Hz - 18 kHz
• Mid/bass frequency driver: 6.5” (16.5cm) CARBON-X™ cone with overmolded Active Ridge Technology (ART™) surround, advanced Shock-Mount™ system, FEA-optimized ultra rigid cast-aluminium baskets
• Sensitivity room / anechoic: 91.5 dB / 87.5 dB
• Low frequency extension: 41 Hz
• Suitable amplifier power range: 15-100 W
• Maximum input power: 80 W
• Impedance: Compatible with 8 ohms
• Cut-out dimensions: 19.7cm dia.
• Minimum mounting depth: 9.2cm (depth required is the distance between 1.25cm drywall, or similar material)
• Dimensions HxWxD (includes grille): (diameter) x (depth) 22.6cm x 10.7cm
• Weight: 2.6 kg

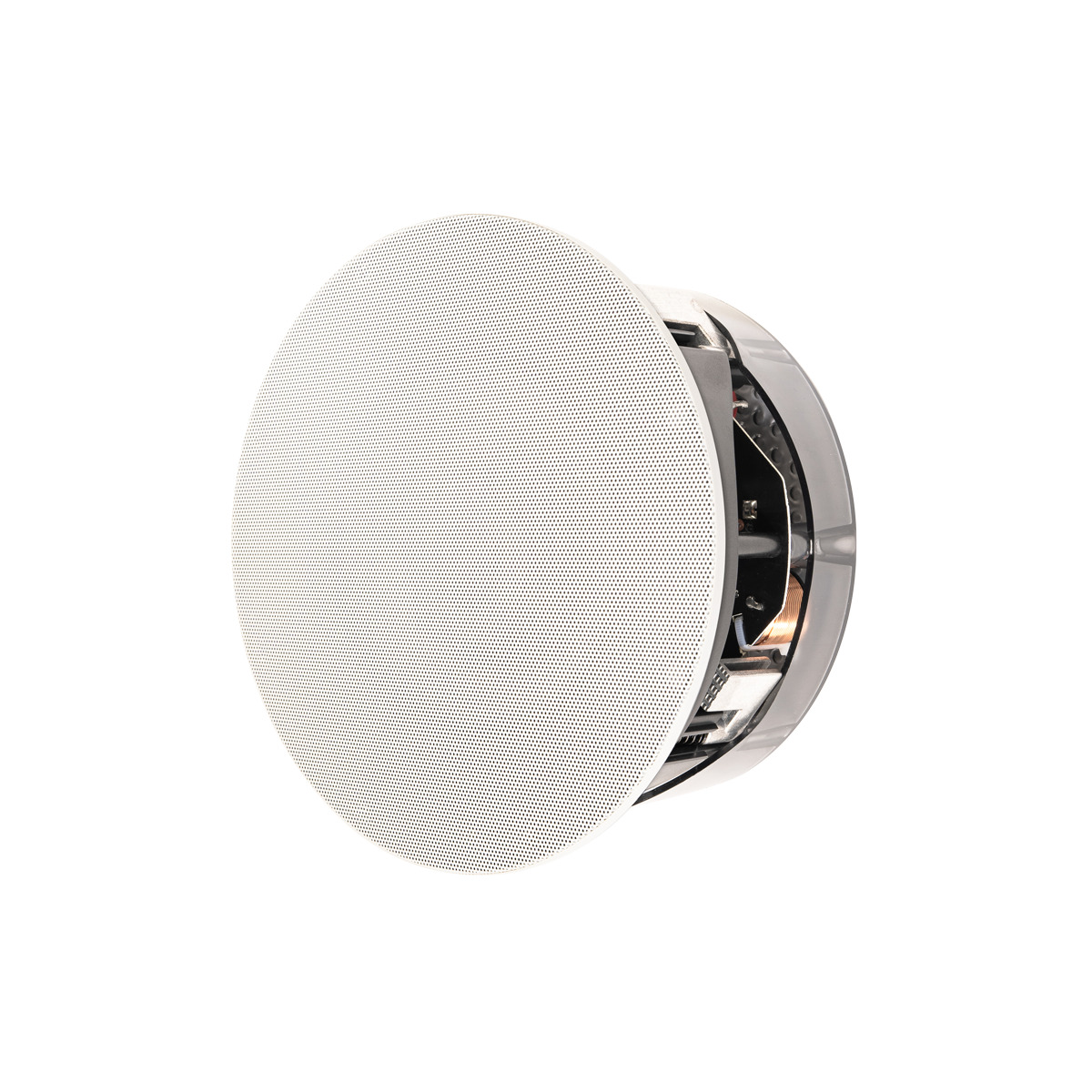

• Finishes: White, paintable grille, black speaker
