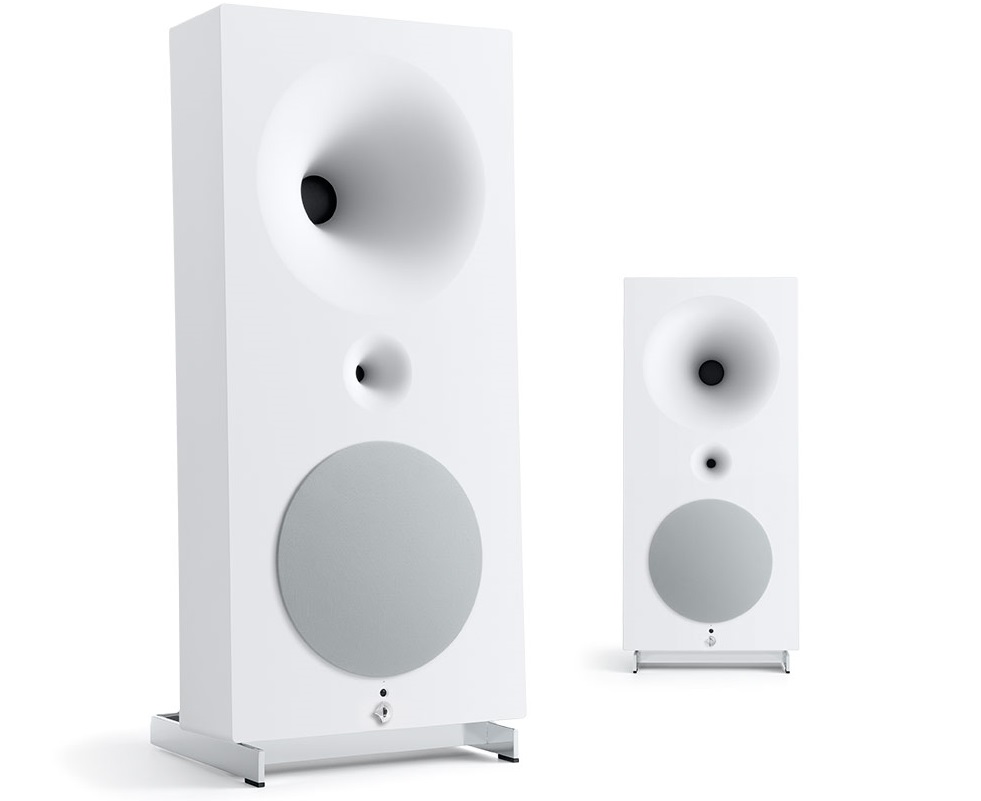

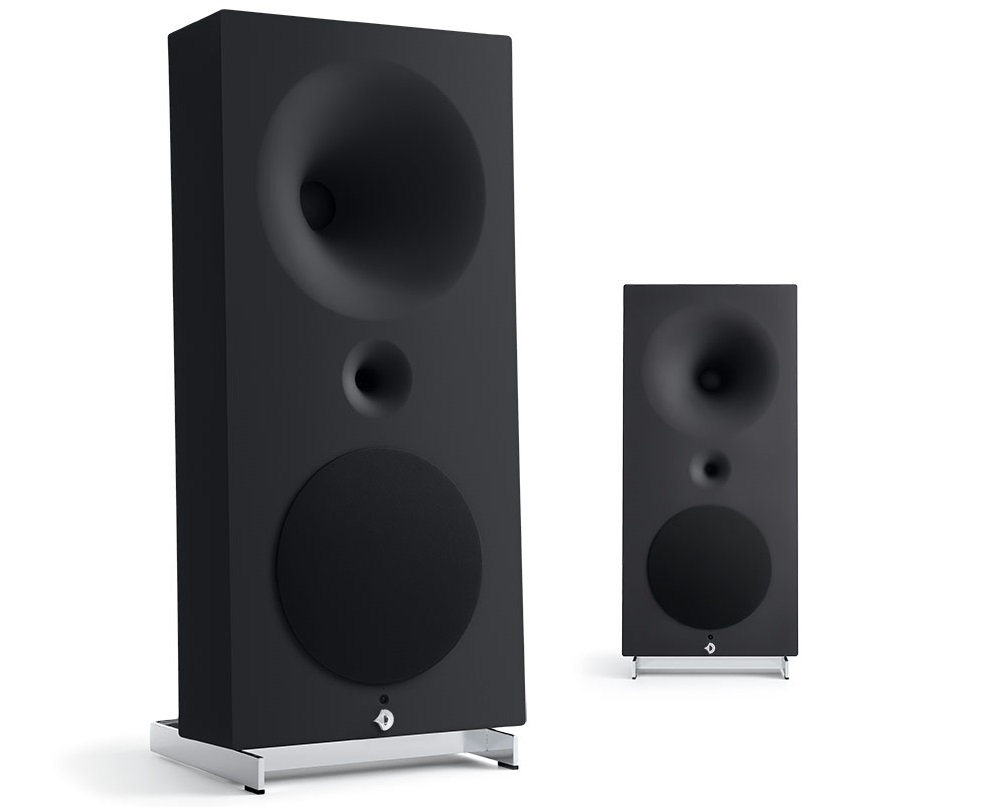

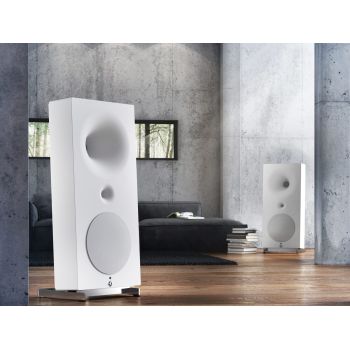

Τα Avantgarde Zero 1XD ειναι ενεργα ηχεια με φορτιση χοανης (τυπου κορνας). Διαθετουν ενισχυτες : 500w class D για το sub, 50w class A/AB για το midrange και 50w class A/AB για το tweeter.
More integrated, compact and simple and yet a veritable horn loudspeaker—to the very last decibel. The ZERO 1 is a dream come true — one that we have shared with many music lovers for over twenty years. Though fascinated, moved and amazed by our larger acoustic transducers we have always longed for a more compact horn loudspeaker to make the incomparable experience of Avantgarde Acoustic accessible to a wider audience of audio enthusiasts. The ZERO 1 opens up this new road with a revolutionary size simplified shape hassle-free setup and fully integrated processor and amplifier technology.
Overview
- 3-way active system
- 500 W Class-D + 2 x 50 Watt Class A/AB
- FPGA-based FIR filter programming
- 5 digital + 1 analog input
- Remote control for input and volume
- 104 dB efficiency midrange and tweeter
- 130 mm spherical tweeter horn
- 400 mm spherical midrange horn
- 12 inch bass driver

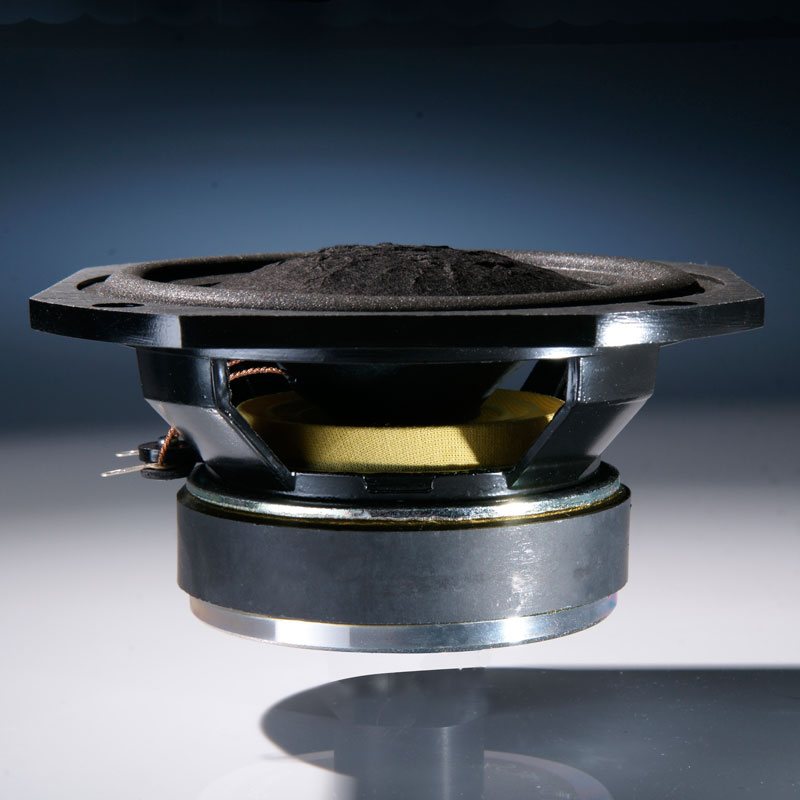

Midrange driver
HORN
| Horn type |
Spherical horn |
| Horn material |
PUR, molded |
| Horn finish |
matt lacquered |
| Horn dispersion angle |
180 degrees |
| horn mouth area |
0.126 sqm |
| horn diameter |
400 mm |
| horn length |
280 mm |
| CDC (Controlled Dispersion Characteristic) |
yes |
HORN DRIVER
| membrane diameter |
125 mm |
| membrane material |
ladled paper |
| magnet material |
Ferrite |

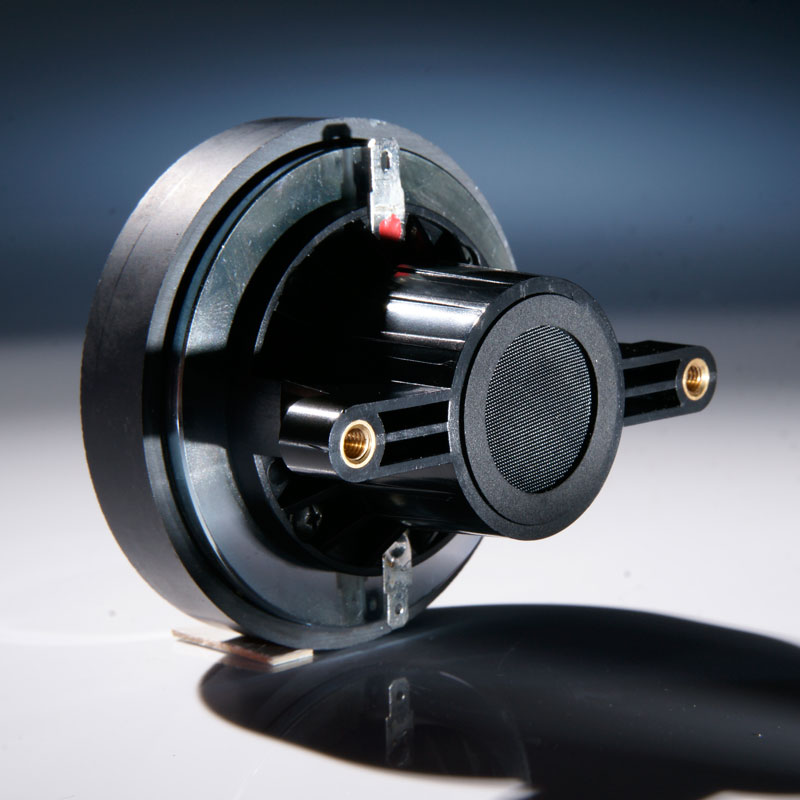

Tweeter driver
HORN
| Horn type |
Spherical horn |
| Horn material |
PUR, molded |
| Horn finish |
matt lacquered |
| Horn dispersion angle |
180 degrees |
| Horn area |
0.013 sqm |
| Horn diameter |
130 mm |
| Horn length |
77 mm |
HORN DRIVER
| Membrane diameter |
25 mm |
| Membrane material |
Mylar |
| Magnet material |
Ferrite |

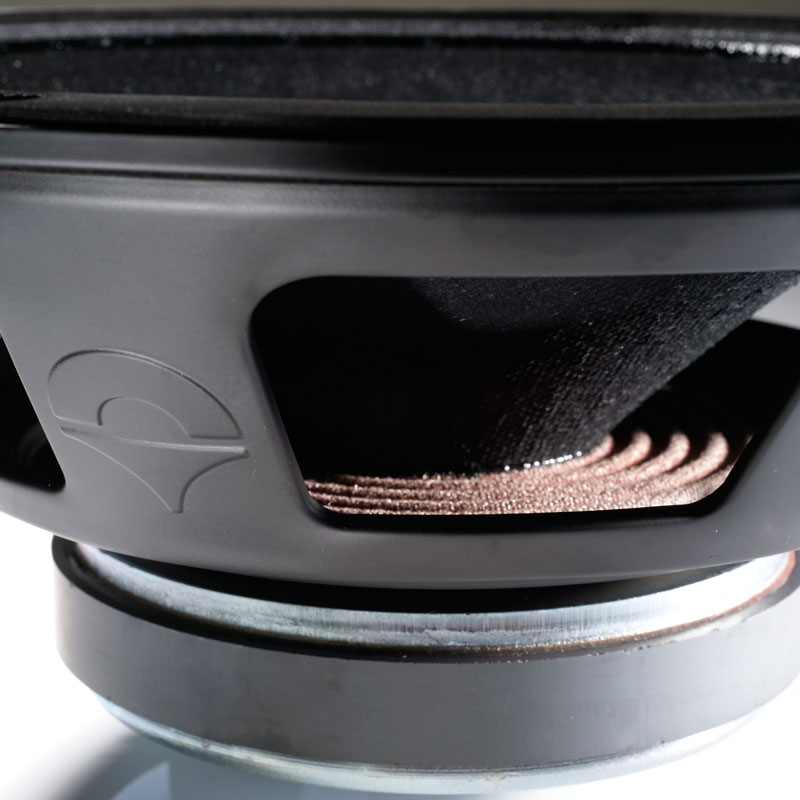

Subwoofer driver
| Driver diameter |
300 mm/12“ |
| Membrane material |
impregnated paper |
| Magnet material |
Ferrite |
| Drivers per subwoofer |
1 |

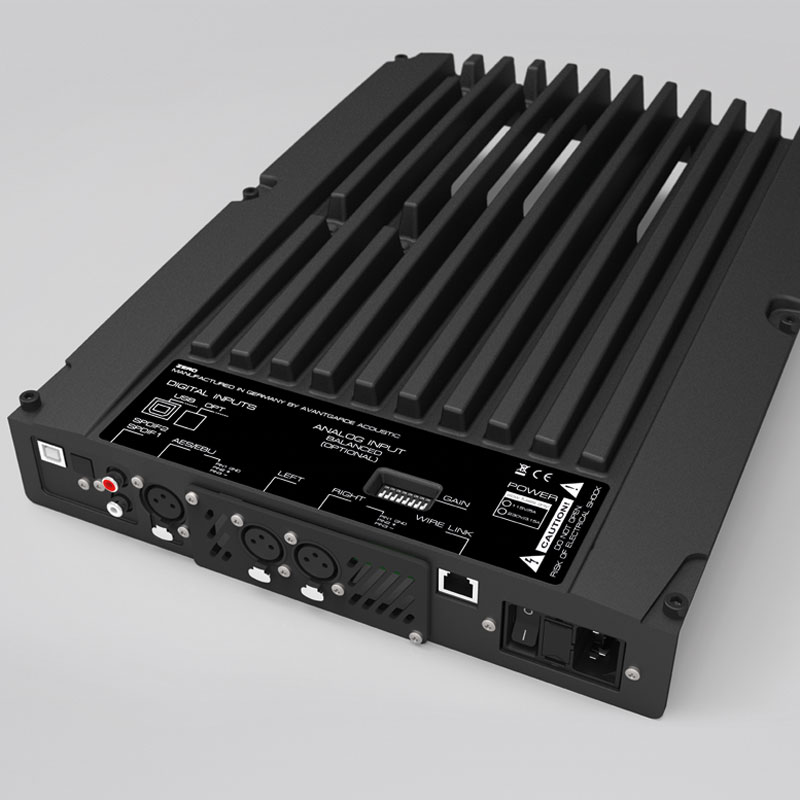

Subwoofer amplifier
| Master/Slave system |
yes, channels assignable via software |
| Master/Slave link |
Wireless (2.4 Ghz)/Wire-Link |
| Amplifier power bass (RMS) |
500 Watt, Class-D |
| Amplifier power mid/high |
2 x 50 Watt (Class A/A-B) |
| Digital inputs |
5 (AES, Toslink, 2 x SPDIF, USB) |
| Analog input |
1 pair XLR sockets |
| Active crossover |
Pre-pogrammed via FPGA |
| EQ filters |
Programmable via FPGA |
| Programmable via USB |
yes |
| Remote control included |
yes |
Mechanical Construction
| Foot frame |
massive steel, chrome plated, adjustable |
| Cabinet |
Reinforced construction from casted PUR |
| Subwoofer front cover |
Detachable cloth cover |
| Operation indicator |
LED at cabinet logo panel |
| Subwoofer rear cover |
PUR plate, magnetic fixation |
