Το Graham Derek Hughes LS8/1 ειναι ζευγος ηχειων 3 δρομων βασεως, με 1x 8" polypropylene woofer, 1x 1" silk dome tweeter και 1x 0.75" silk dome super tweeter. Η σχεδιαση της καμπινας ακολουθει την αγγλικη σχεδιαστικη λογικη "thinwall".

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

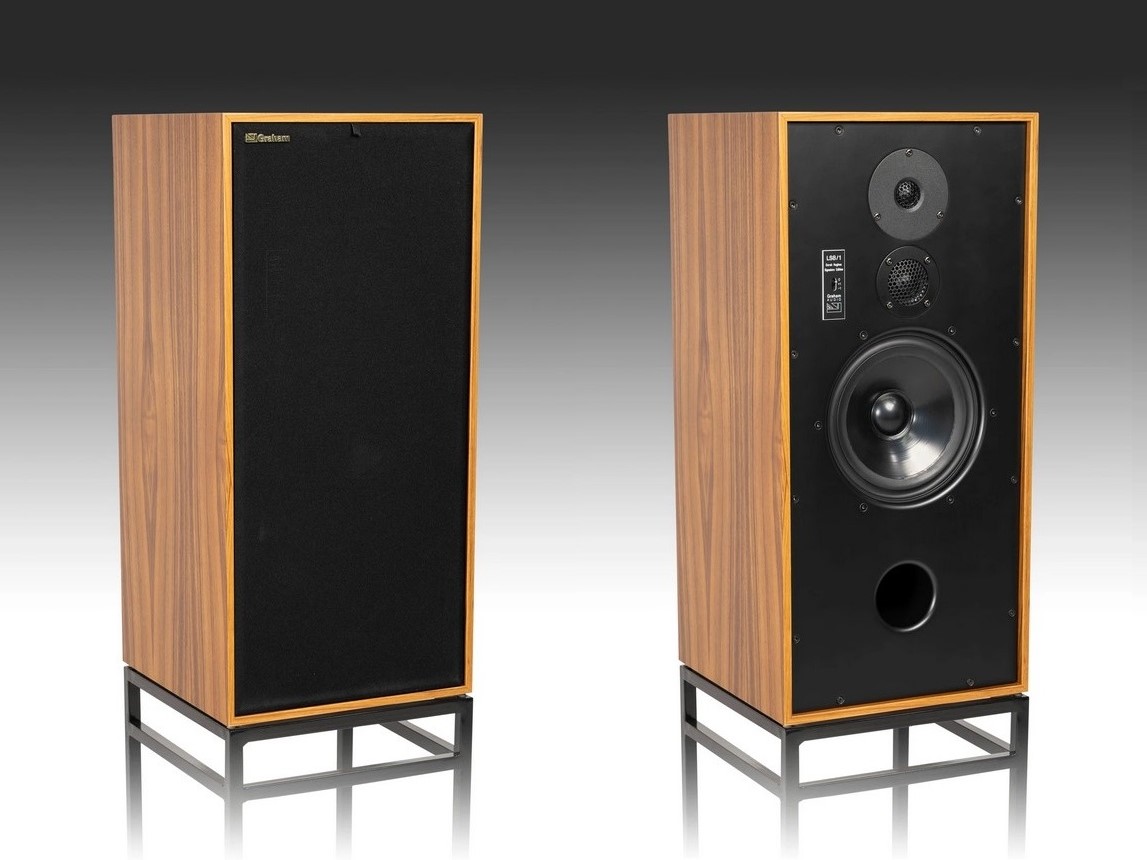

The LS8/1 is Graham Audio's take on the classic 8 inch bass driver in a 2 cubic foot box format, as used by many designers over the years,  including our own Derek Hughes (and his father Spencer, who of course designed the BBC LS3/6).

The Graham Audio LS8/1 draws on decades of experience and modern techniques. High temperature motor design and materials permit much greater power handling than ever, while building on the midrange openness and resolution of the original LS3/6.

Sophisticated soft-dome units are used for the tweeter and super-tweeter, both with protective metal grilles, the HF level can easily be adjusted from the front panel to help match the loudspeakers to the acoustic environment they are being used in, the grille is held in place with concealed magnets. As with the original LS3/6, the front and rear panels are attached to the cabinet with screws rather than glued joints, helping to reduce colouration by decoupling the panels, and easing future maintenance, should that become necessary. High quality birch ply is used beneath the premium hand-matched veneers.

Specifications

• Colour  Cherry, Ebony, Oak, Rosewood, Walnut
• Operating Principle 3 way, Bass reflex
• Speaker Drivers 1 x 200mm mid/bass, 1 x 26mm soft dome tweeter & 1x 19mm soft dome super tweeter
• Impedance 8 Ω
• Frequency Response 45 Hz – 16 kHz ±3 dB
• Crossover 3.5khz, 14kHz
• Sensitivity 87 dB
• Maximum Output Over 100 db for a pair at 2m
• Recommended Amplifier Power 50 W – 250 W
• Construction Birch plywood, Thin wall damped construction
• Dimensions (WxDxH) 30 cm x 30 cm x 63.5 cm (including plinth)
• Weight 17 kg each
• Warranty 5 years
