Το Monitor Audio Anthra W14 ειναι ενα ενεργο υπογουφερ για home cinema εφαρμογες, με woofer 15" και ενισχυτη class-D 1500 wrms.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Engineered to deliver the deepest bass in the largest of spaces, the Anthra W15 subwoofer features a massively powerful 1,500 Watt Class-D amplifier driving a 15” (38cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W15 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.

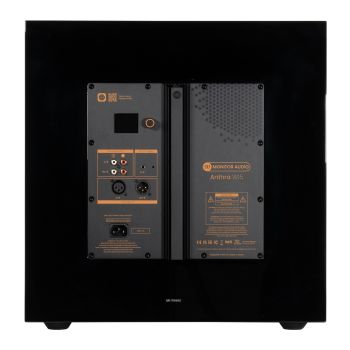

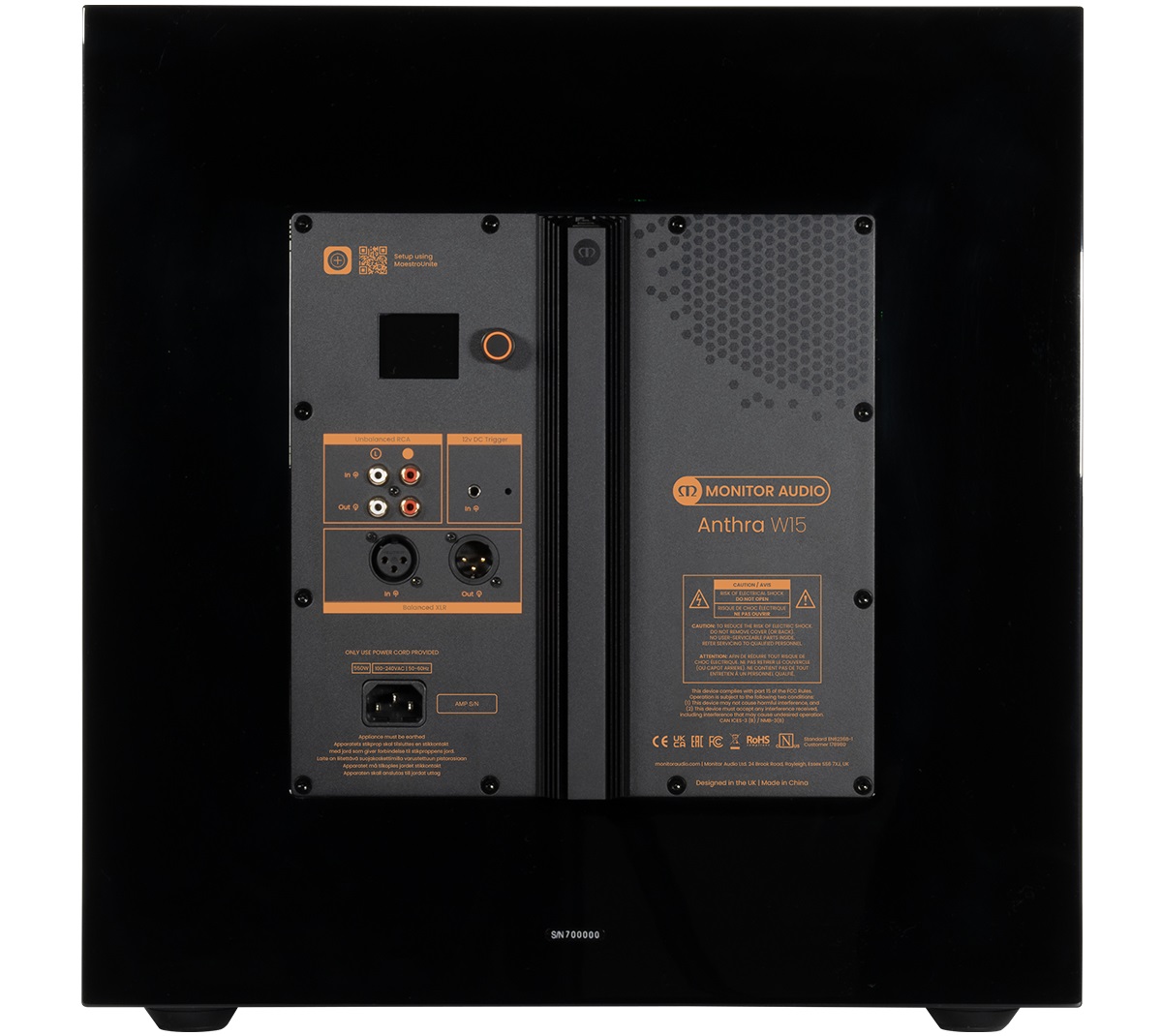

A full-colour LCD display and rotatory dial is located on the back panel, to allow for basic subwoofer setup and EQ preset selection, while advanced features including DSP configuration and multi-sub connectivity setup are available via the MaestroUnite app.

Key Features

Engineered to deliver the deepest bass in the largest of spaces, the Anthra W15 subwoofer features a massively powerful 1,500 Watt Class-D amplifier driving a 15” (38cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W15 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.

A full-colour LCD display and rotatory dial is located on the back panel, to allow for basic subwoofer setup and EQ preset selection, while advanced features including DSP configuration and multi-sub connectivity setup are available via the MaestroUnite app.

Specifications

• System Format    Active – Sealed Cabinet
• Drive Unit Complement    1x 15" (381 mm) High Linear-Excusion Triple Suspension Driver
• Amplifier Classification    High-Efficiency Class-D
• Lower Frequency Limit    -6dB @16Hz
• Upper Frequency Limit    (LPF Off) -6dB @400Hz
• Driver Excursion (pk-pk)    50 mm
• DSP    28 Bit 50 MIPS Configuratable through MaestroUnite
• Analogue Digital Conversion    Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals
• Amplifier Output Power, 240Vac    Instantaneous: 2500 W* Continuous short-term: 1400 W**
• Amplifier Output Power, 120Vac    Instantaneous: 2500 W Continuous short-term: 1400 W
• LED UI Control    Brightness, On-Off
• Phase Control    0-360 Degrees measured at LPF Crossover
• Low Pass Filter    20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct
• Custom EQ    Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)
• Volume Level    Wide adjustable input gain to allow maximum output from a wide range of input signals
• Inputs    Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)Mono/LFE Balanced XLR
• Outputs    Stereo unbalanced outputs with unbuffered throughput from RCA Inputs Mono/LFE Balaned XLR outputs with unbuffered throughput from XLR Input
• Mains Input Voltage    Universal Mains, 85-265VAC
• External Dimensions (without feet) (HxWxD)    439 x 439 x 439 mm
• Power Consumption    550 W
• Cabinet Construction    Braced 25 mm thick MDF with 36mm front baffle

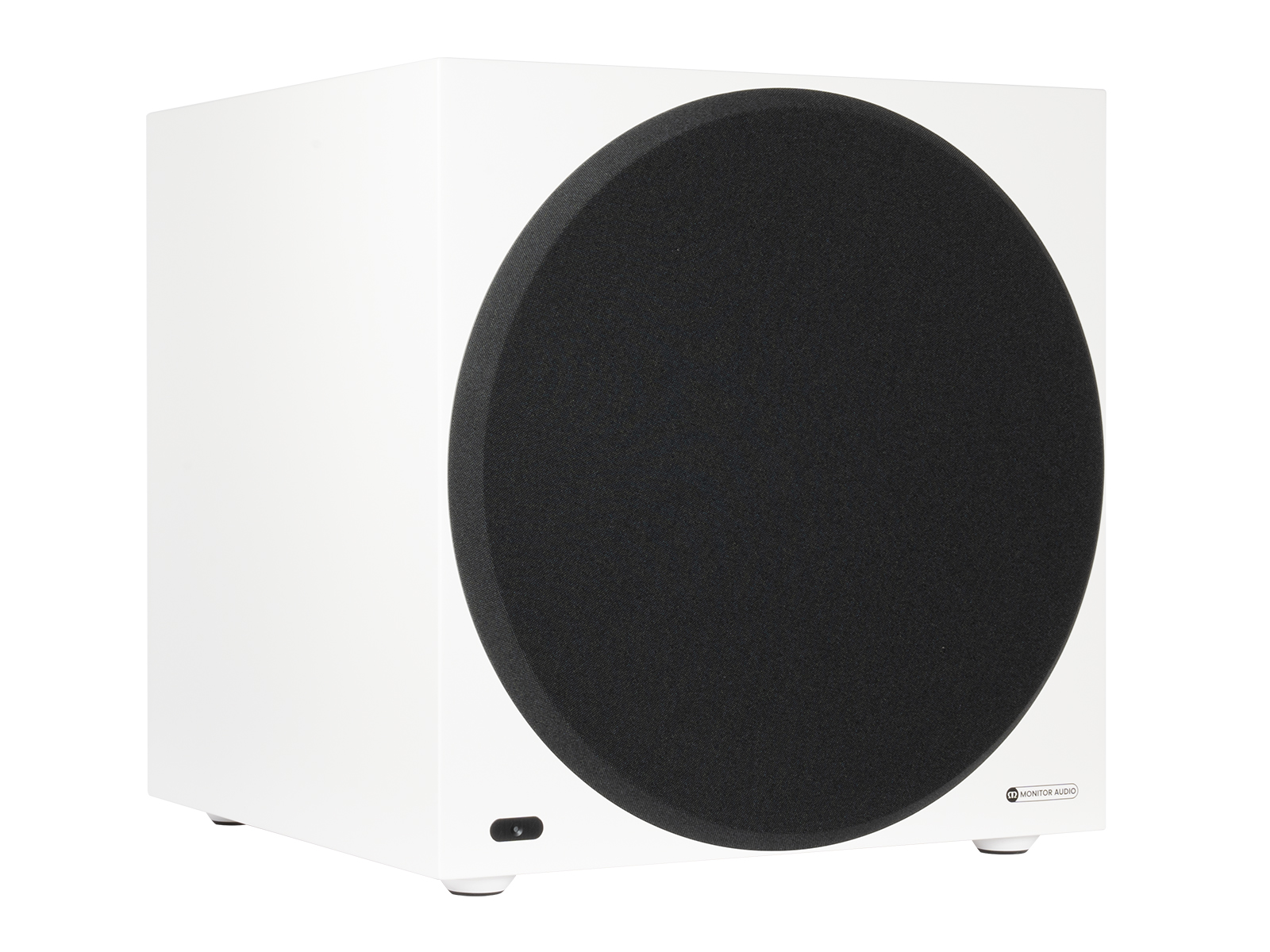

• Grille    Cloth covered magnetically attached Grilles
• Weight    40.3 kg

* Maximum RMS output for an instantaneous signal ** Sinewave for 10 seconds
