Τα Rogers LS5/9 ειναι ζευγος ηχειων βασεως bass reflex 8 Ωμ, με woofer 8.3" και tweeter 1.3" soft dome.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

With its high-frequency level adjustment (set by resistor jump links) for optimum pair matching, the Rogers LS5/9 Classic speakers are perfect for monitoring use in the mastering studio as they are for those who want the finest music reproduction at home.

Features

• Constructed from the finest 9mm Birch plywood
• All joints are hardwood battened with beech fillets
• Balanced real wood veneers
• Cabinet walls critically damped with bituminous damping panels
• Single wire, 4mm Multi-Contact sockets
• Sockets are silver-plated for the best connection
• Choice of beautiful real-wood veneers
• Cabinets handbuilt by master-craftsman
• Latest version of the 34mm Audax HD34 Tweeter
• Tweeter has been adapted by Rogers with the addition of a dispersion loading protective plate
• Midrange and Bass are handled by a Rogers specified 210mm woofer
• Critically flared polypropylene Mid/Bass cone is terminated by an inverted half roll of select vinyl
• Hand-finished and pair-matched in the UK
• Single layer one-ounce copper track fibreglass PCB
• High-quality dividing network uses ten reactive elements
• High-quality dividing network uses 17 resistors
• High voltage Metalised capacitors
• All components hand soldered with silver solder
• High-frequency level is set by resistor jump links:
  • Ensures optimum pair matching
  • Eessential for monitor use
• Standard finishes: rosewood, walnut and olive

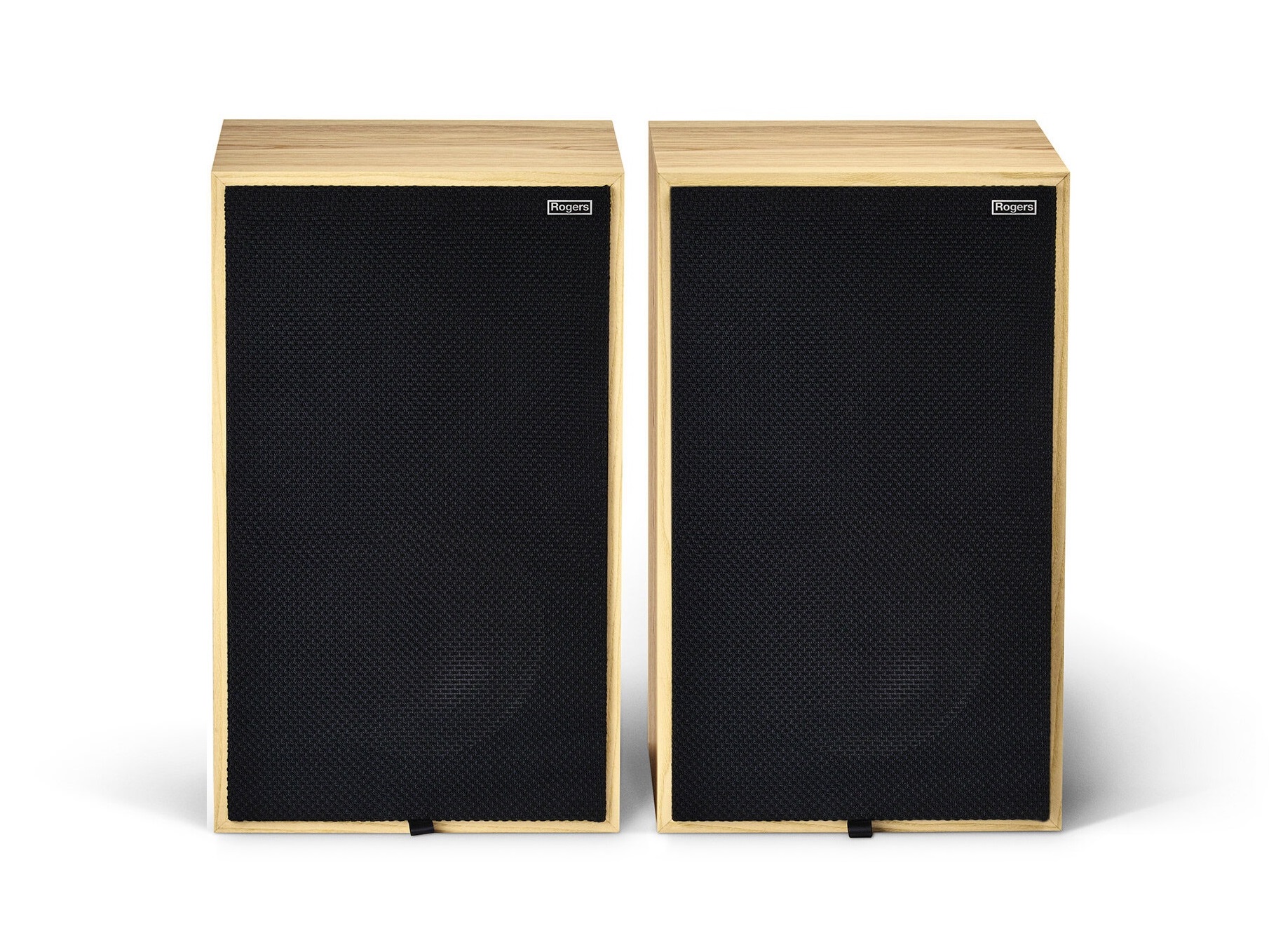

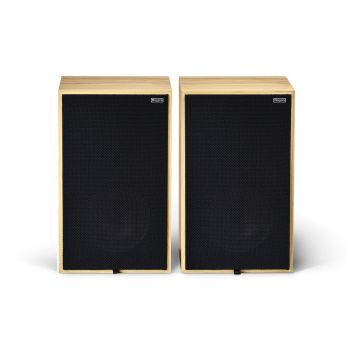

• Beautiful black Tygan grille
• Walnut, Rosewood, and Olive finish as standard

Specifications

• System type: Two way bass reflex
• Tweeter: Audax 34mm with phase correction
• Mid/Bass: Rogers 210 mm polypropylene cone vinyl surround
• Crossover: 3KHz 27 precision element 18dB per Octave
• Sensitivity: 87dB for 1W at 1M
• Nominal Impedance: 8 Ohms
• Power handling: 100 Watts unclipped
• Maximum SPL: 106 dBA typical in room
• Cabinet: 9mm Birch plywood hardwood battens
• Grille: Black Tygan
• Finish: Walnut, Rosewood and Olive
• Connections: Stereo pair 4mm banana sockets
• Dimensions: 460mm x 275mm x 285mm (HxWxD)
• Weight: 12Kg (each speaker)
• BBC-licensed
