Τα Manger Audio c1 ειναι ζευγος ενεργων ηχειων (με 2 ενισχυτες class AB low 250W + high 180W), 2 δρομων, τα οποια χρησιμοποιουν στις μεσουψηλες το φημισμενο Manger Sound Transducer και για τις χαμηλες, ενα custom made woofer 8" με 42mm voice coil και κωνο Carbon Fiber-Paper sandwich.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα ανταλλαγων, δοσεων.

Unerring masters
Music has no limits. The soft tones of a Gregorian chant, the powerful dynamics of a symphony, the cutting guitar riffs of a metal band – the c1 active compact monitors handle everything expertly. These loudspeakers serve the music so neutrally that renowned recording studios consider the c1 as indispensable.

Own ways

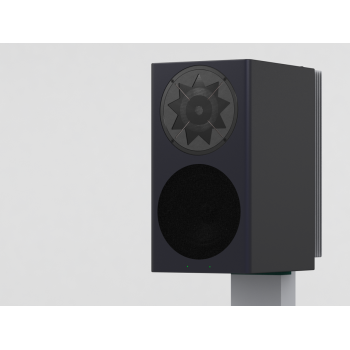

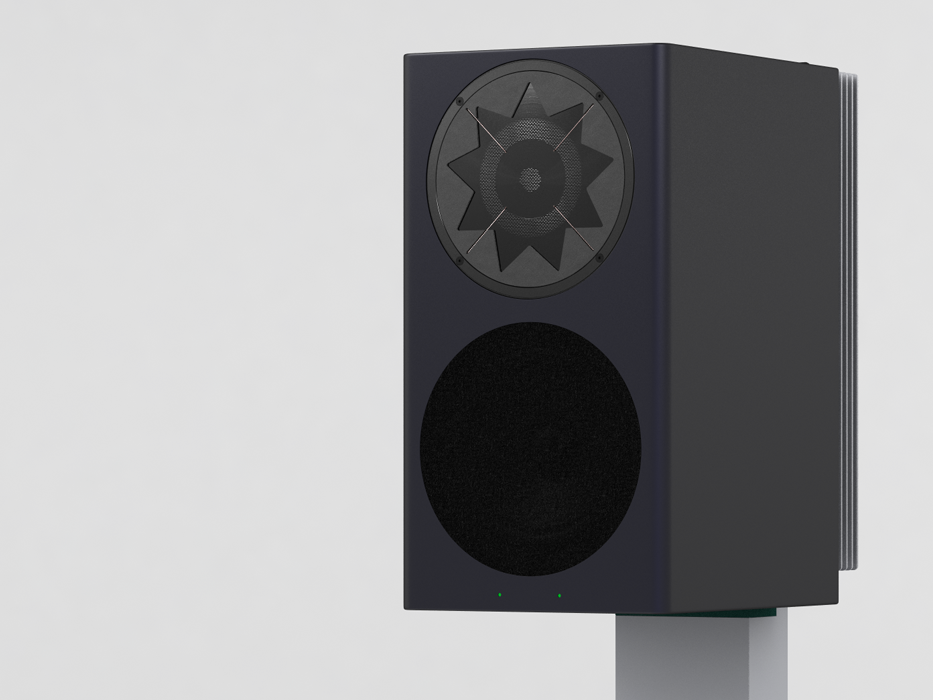

The star-shaped Manger sound transducer breaks technologically radically with conventional chassis. The result: an impressive bandwidth that eliminates the need for the per se faulty separation of the frequencies in the middle, as is common with conventional loudspeakers. Human hearing is particularly sensitive in this area. The patented Manger sound transducer, on the other hand, achieves impulse fidelity and precision that is far superior to conventional loudspeakers.

Award winning design
Gold for the Manger c1 - the loudspeakers
were awarded the internationally renowned
“Focus Open Gold 2012” design prize.
Designer: Stefan Harlé, Nuremberg

Strong team
Just as in high-performance sport only a well-rehearsed team leads to the podium, the Manger c1 paves the way for the sound of all elements to become world class. In the Manger c1, only components of the highest quality, which have been determined in intensive listening tests, do their job. The robust housing offers the chassis and the sophisticated electronics optimal conditions. Housing resonances, which lead to discoloration in the sound, are prevented.

Uncompromisingly active

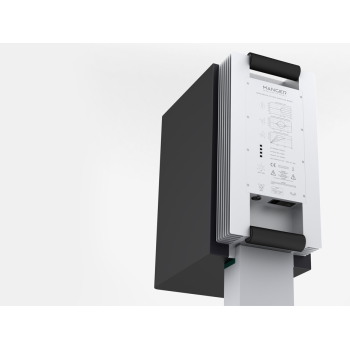

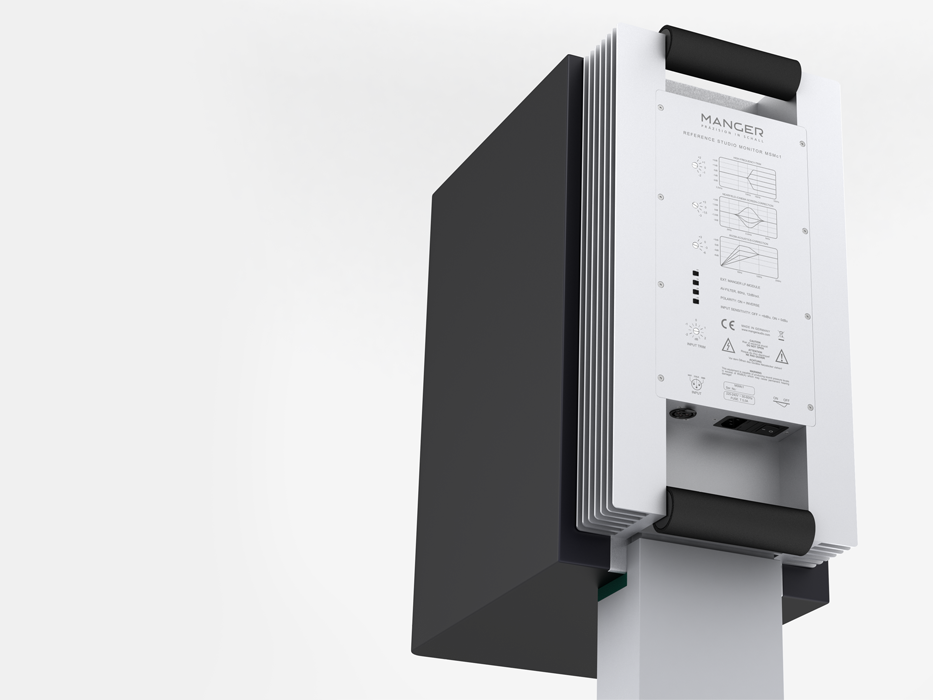

The Manger c1 offer all the advantages of modern active technology. The woofer and Manger sound transducer are each driven by their own analogue amplifier. The division of labor makes it possible to coordinate the chassis and amplifier with one another. Intelligent analogue filters in bass, middle and treble allow uncompromising adaptation of the Manger c1 to the individual requirements of the setup and room acoustics. And thanks to generous power reserves, the Manger c1 master every challenge with ease.

Perfect in form and function
The grace and timeless elegance of the Manger c1 are the result of intensive development work down to the smallest detail. The softened edges underline the cultivated appearance of the loudspeakers, but at the same time have a positive effect on the radiation behavior. Connection and handling of the Manger c1 are very easy, all operating elements are freely accessible and the electronic components are protected by intelligent protective circuits.

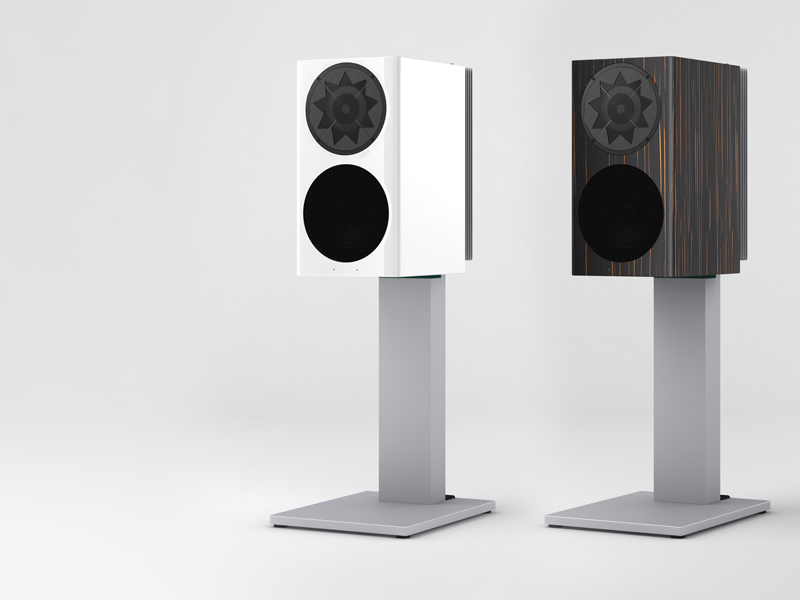

Housing versions
As a highly specialized manufacturer, Manger offers an almost unlimited variety of the finest veneers and color options right through to the individual design of housing and base. Ask us, we will be happy to advise you personally.

Below is just a brief selection:

Specifications

• Enclosure closed
• Type Active 2-Way System
• Max SPL 110 dB Peak
• Frequency Range 30 Hz – 40 kHz
• Crossover Frequency 330 Hz
• High + Mid Manger® Sound Transducer
• Bass 8” (200 mm) Glass Fiber-Polyester Sandwich Design, 38mm Voice Coil ø
• Connectors Bi-Wiring – WBT plasmaprotect nextgenTM Cu
• Finish customized - all colors, veneer or Ultra High Gloss
• Dimensions 495 x 270 x 424 mm
• Weight 30 kg

Amplifier Specifications

• Max. Power Output LF 250 W @ 8 Ohms Class AB
• Max. Power Output HF 180 W @ 8 Ohms Class AB
• Power Bandwidth HF 250 kHz (-3 dB)
• Input Sensitivity 6 dBu (1.55 V) or 0 dBu
• Input Impedance 10 kOhms
• Input XLR-3 (balanced)

Control Switches

• Input Trim 11 Positions (-2.5 dB to 2.5 dB)
• Input Sensitivity 6 dBu, 0 dBu
• AV Filter Hi-pass Filter (80 Hz, 12 dB)
• LF Module LF -6 dB
• Room Acoustics Correction 100 Hz (+3 dB, 0 dB, -3 dB, -6 dB)
• Nearfield/Cinema Screen Correction 3.25 kHz, 1.0 oct. (+3 dB, 0 dB, -1.5 dB, -3 dB)
• High Frequency Trim Shelving 10 kHz (+2 dB, +1 dB, 0 dB, -1 dB, -2 dB)

Special Features

• Power LED green
• Limiter LED green/red
• Finish     all colors, veneer or Ultra High Gloss
• LINN Space Optimisation listed in LINN database
