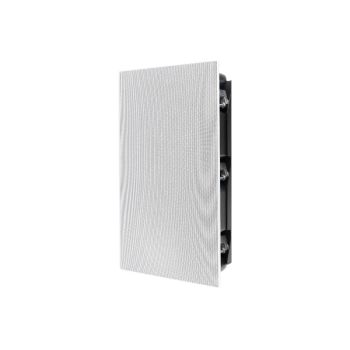

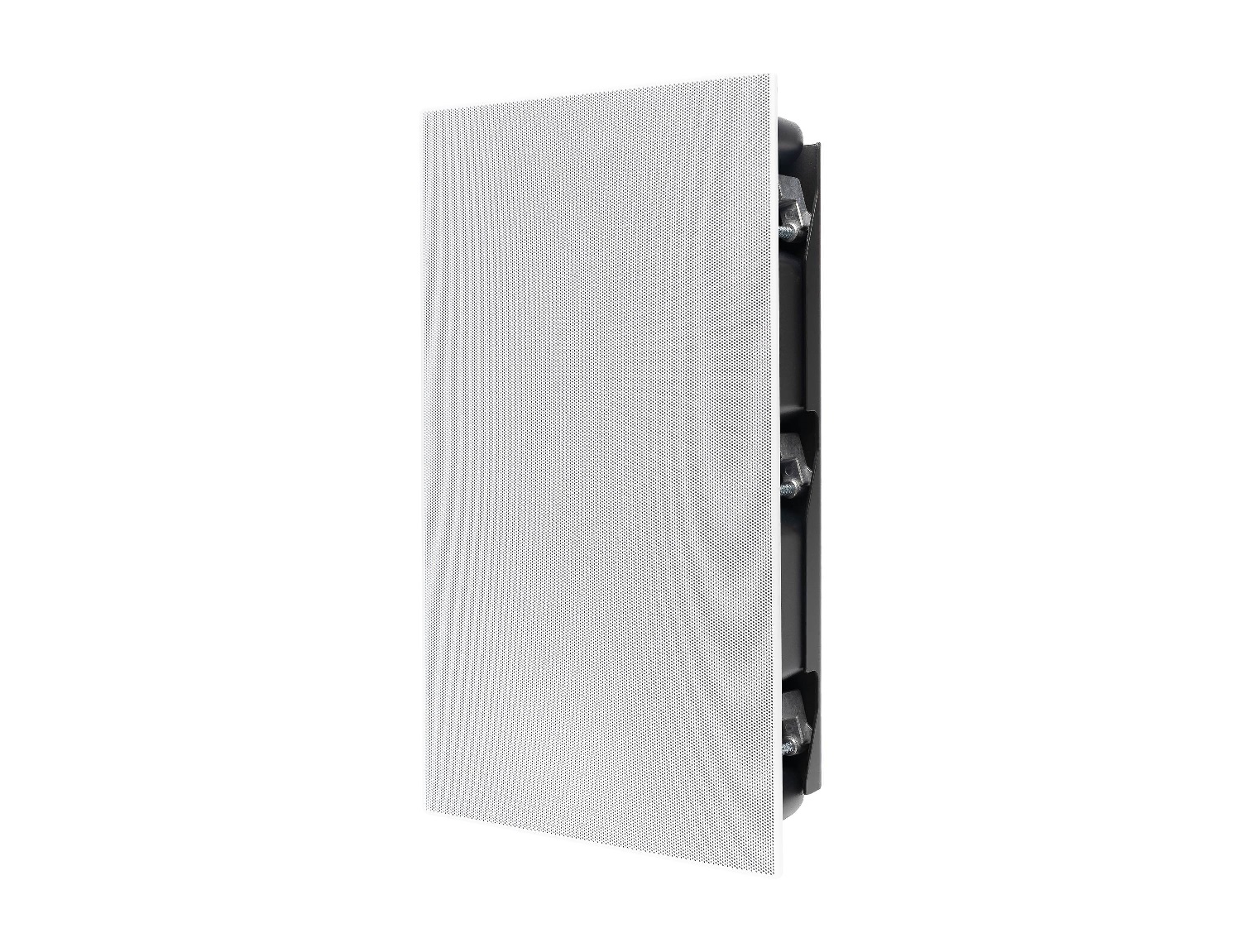

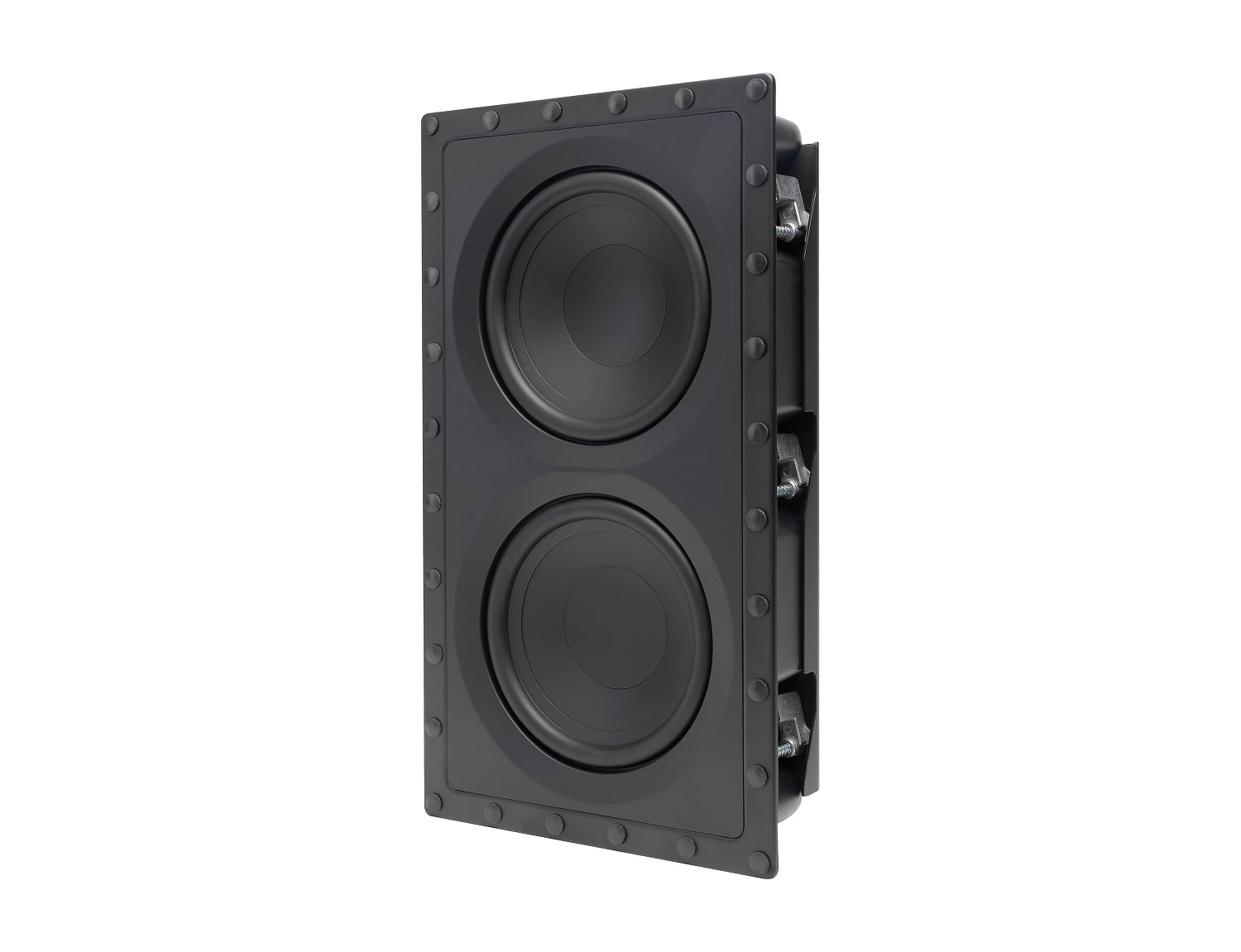

Το Martin Logan Dynamo IW-O ειναι παθητικο open back υπογουφερ εντοιχιζομενο (InWall Subwoofer) με 2x 8" woofers. Βαθος τοποθετησης 8.9cm.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

What’s the difference between Dynamo IW-O and IW-S? The Dynamo IW-O uses the same retrofittable size, and dual 8” woofer configuration as the IW-S, but with an open back design instead of a sealed, fire rated enclosure. The open back of Dynamo IW-O means more sound will transfer into the wall (which could cause some noise complaints from other rooms), but with the tradeoff of deeper bass extension and higher output potential than IW-S. IW-O also has an available “High Output Back Box” accessory for when a mixture of sound control and higher output is desired.

Specifications

• Design Dual high-excursion drivers, in-wall, GRIPTM chassis/mounting bracket, and optional backbox
• Frequency Response +/-3dB from 30->190 Hz
• Low Frequency Extension*† 25 Hz (DIN)
• Max input power 400W
• Minimum Mounting Depth 8.9cm
• Minimum Mounting Depth 48.5cm x 27.2cm x 8.9cm
• Low Frequency Driver Two 8” (210-mm) CFPTM carbon- fiber-reinforced polypropylene cones, 1-1/2” (38-mm) voice coils, over- molded TPRTM surrounds, 1-1/2” (38- mm) 8-layer copper wire voice coils, high-temperature polyamide formers, ceramic/ferrite magnet structures
• Internal Volume 88L “standard” wall cavity (26L when installed in optional backbox)
• Suitable Amplifier Range 50-800W
• Weight 6.8kg each
• Cut-Out Dimensions 45.7cm x 24.5cm
• Finish White, paintable

Manuals

• Spec Sheet ( 1.7 MB )
• High Output Back Box Installation Instructions ( 1.1 MB )
• Owner's Manual ( 13.1 MB )
• Dimensional Drawing ( 0.4 MB )
