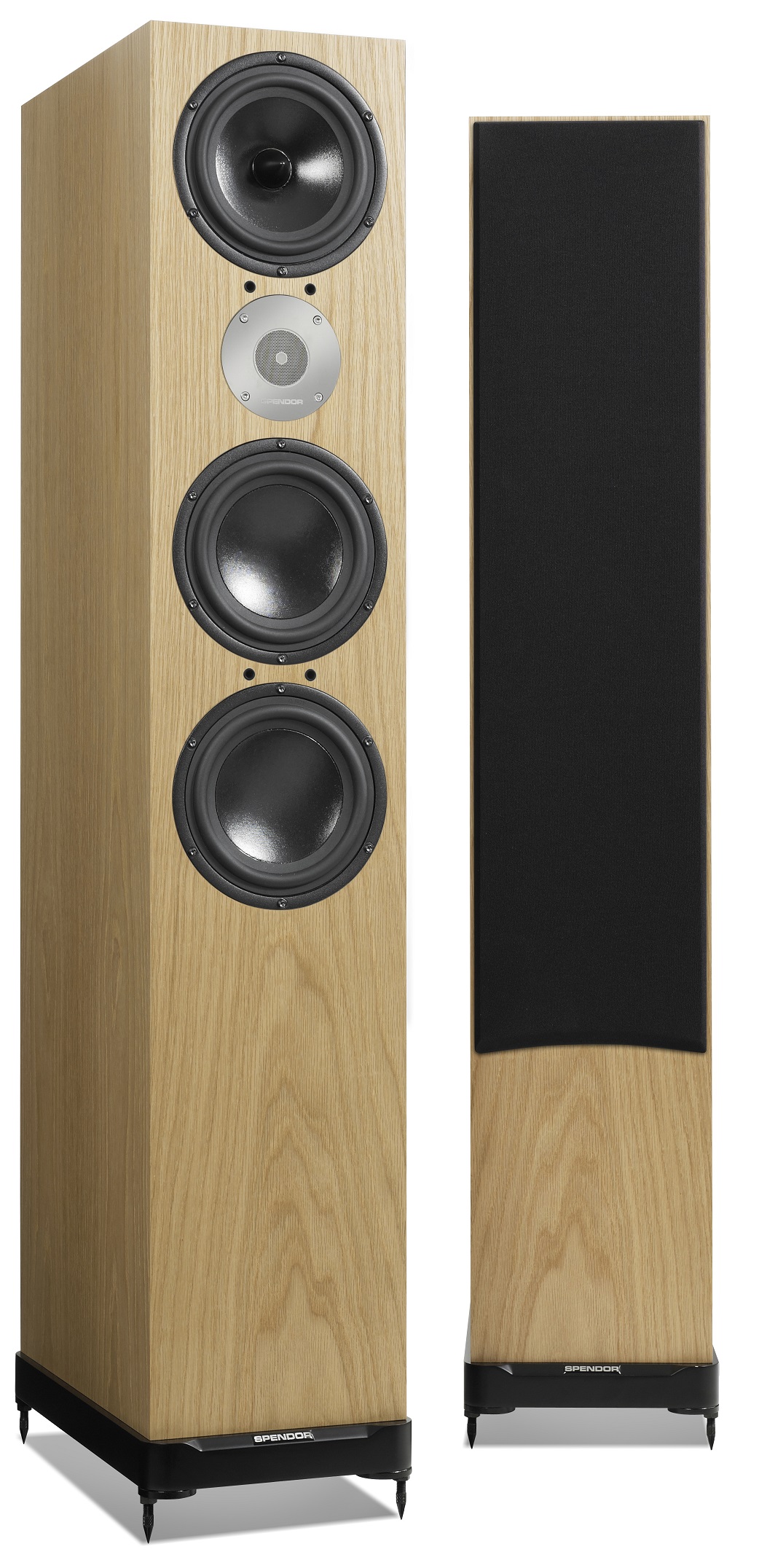

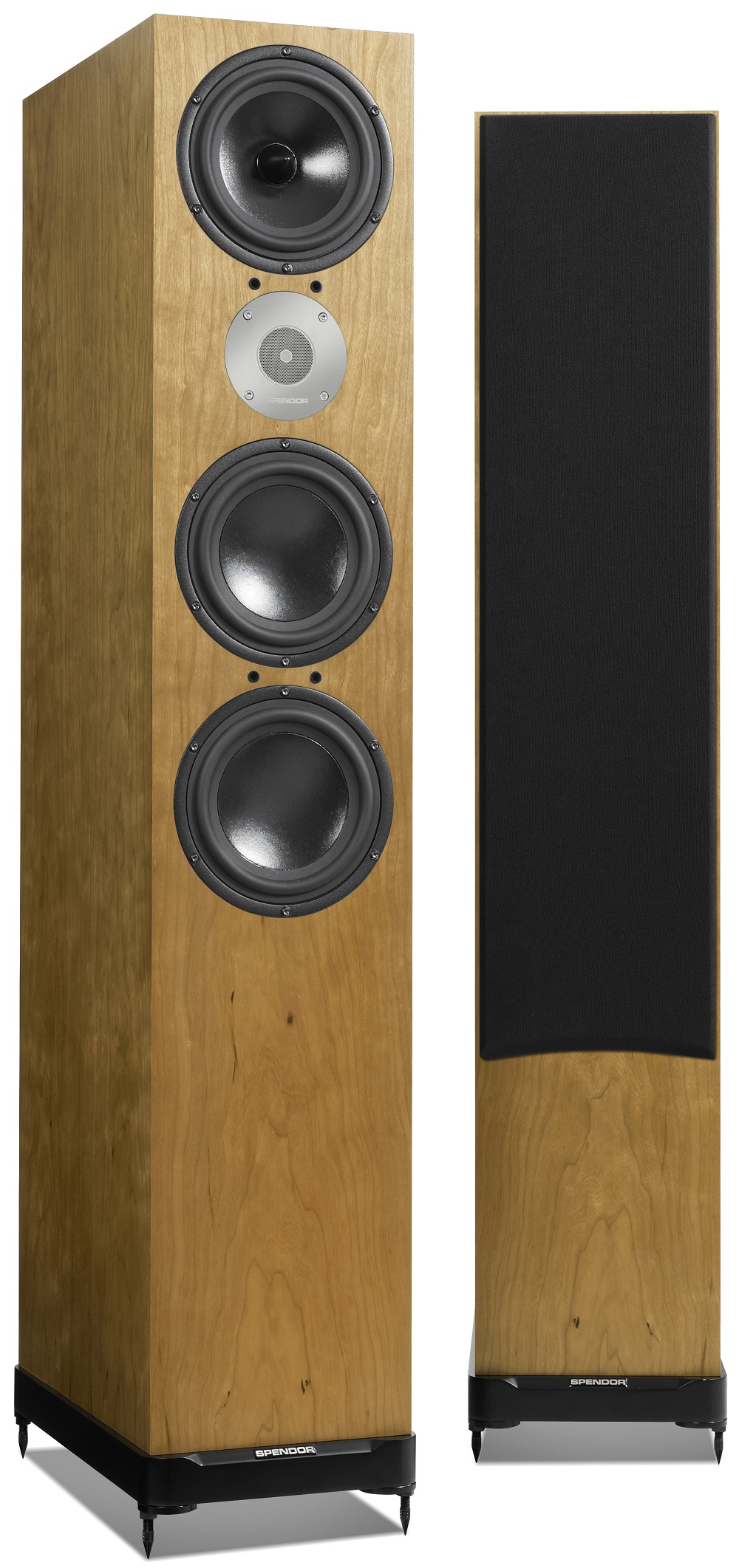

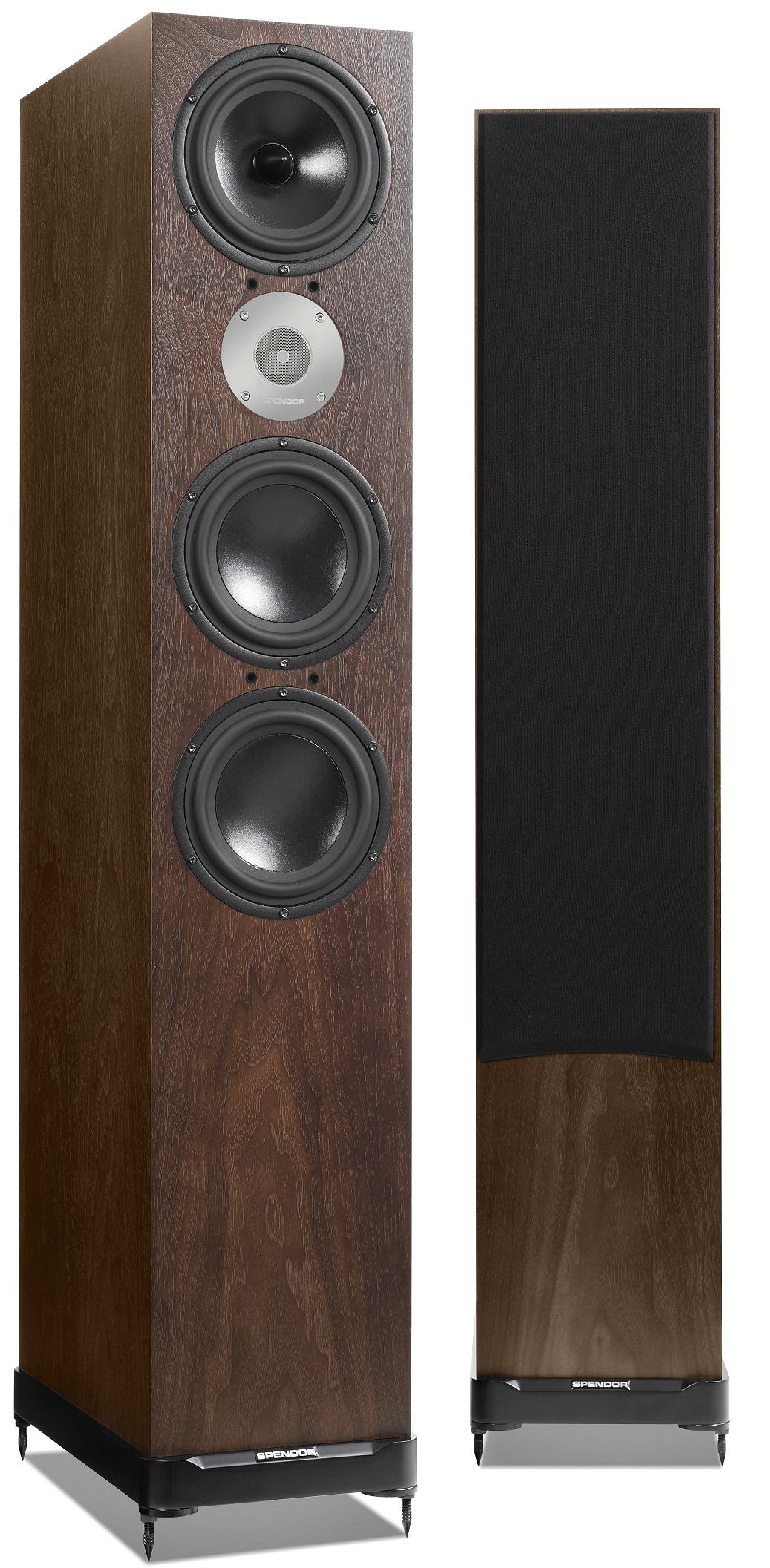

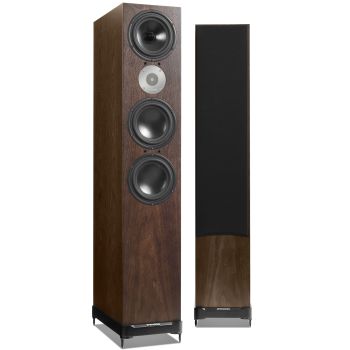

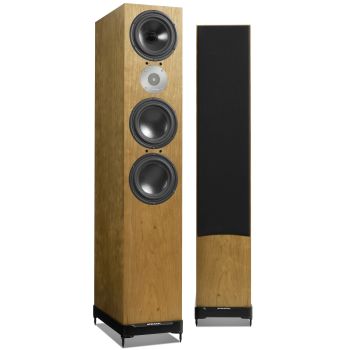

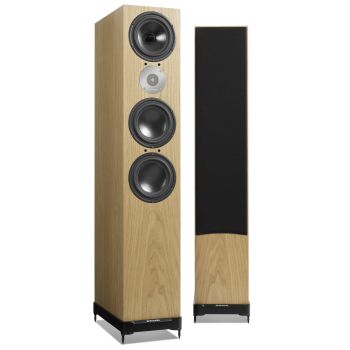

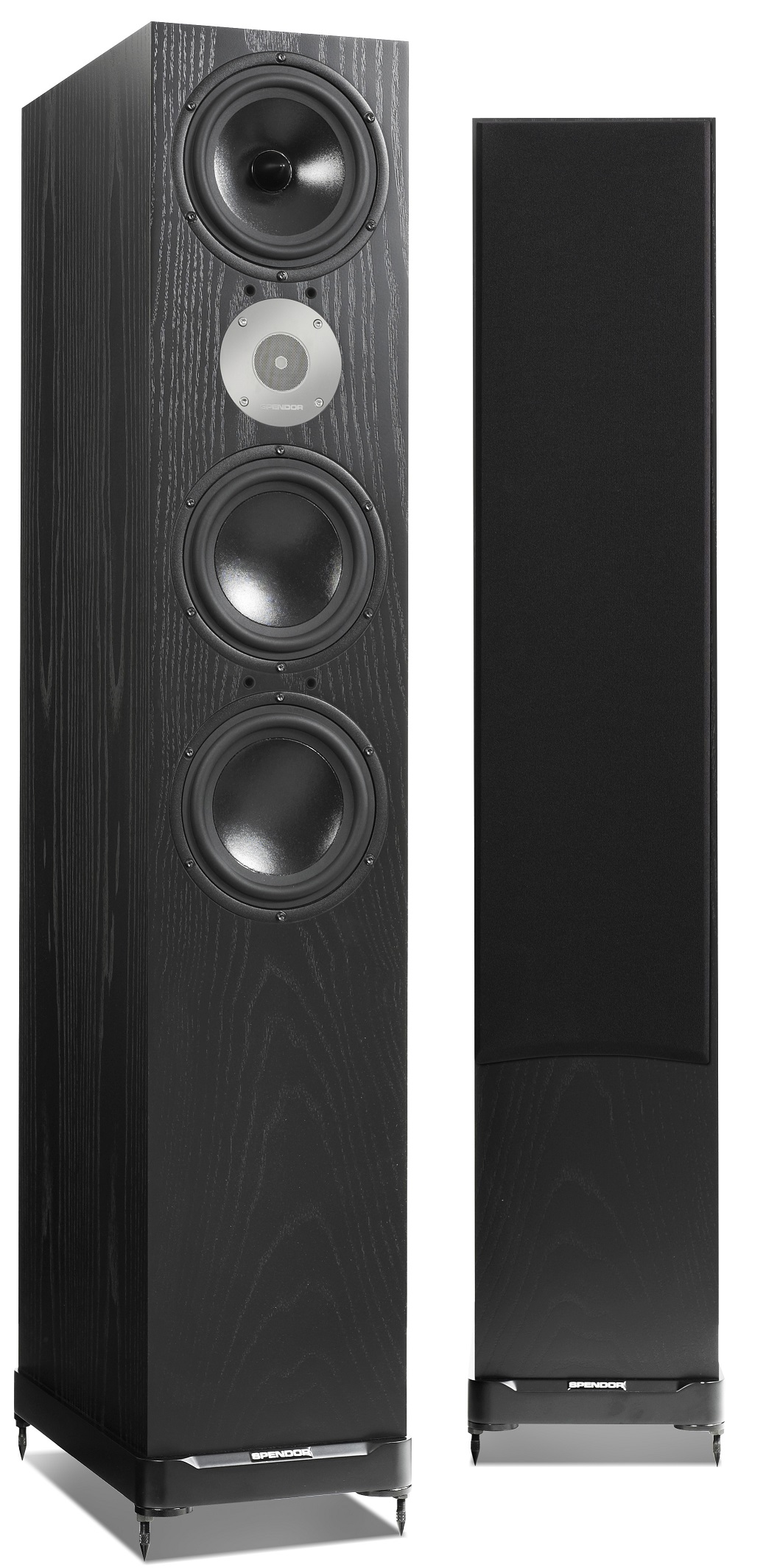

Το Spendor D9.2 ειναι ηχειο δαπεδου 3  δρομων , 4 μεγαφωνων . The new Spendor D9.2 is an elegant, modern, full-size, 3-way, 4-driver, floor-standing loudspeaker. Χρωματα Walnut, Cherry , Black Oak, Satin White και Oak.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα ανταλλαγων, δοσεων.

The D9 delivers music with exceptional resolution and a vibrant realism that conventional loudspeakers cannot match. It delivers low frequencies with breath-taking power, scale and authority. It is easy to place in real-world listening rooms, very efficient, and compatible with all good amplifiers. With a tall slim enclosure and smart modern finishes the Spendor D9 is entirely at home in any living environment. The D9 incorporates all the engineering innovation developed for our 3-way Spendor D7 loudspeaker, but the new D9 is far more than just a big D7 . . .

Spendor loudspeakers, cabinets, crossovers and drive units are all designed and manufactured in-house in the UK .

Specifications:

• Description : 3-way floor standing loudspeaker
• Enclosure type : Rigid, asymmetric braced, vented cabinet with dynamic damping
• Vent type : Fifth generation Spendor linear flow, tapered twin-venturi port
• Input connection : Single pair recessed precision binding posts
• Typical in-room response : 27Hz - 25kHz
• Power handling : 250 watts unclipped programme
• Sensitivity : 90dB for 1 watt at 1 metre
• Nominal impedance: 8 ohms
• HF driver : Spendor made 22mm LPZ polyamide dome
• Mid driver : Spendor made 18cm EP77 polymer cone
• Bass driver : 2 x Spendor made 18cm Kevlar© composite cone
• Crossover frequencies : 500Hz, 4.2kHz
• Net Weight : 35kg
• Height : 1,125mm (excluding feet)
• Width Cabinet : 210mm, plinth 222mm
• Depth Cabinet : 385mm, plinth 409mm
• Finishes special : Spendor dark (hi-gloss), satin white, dark ebony, rosewood
• Finishes standard: cherry, light oak, black ash, dark walnut
• Plinth : satin black

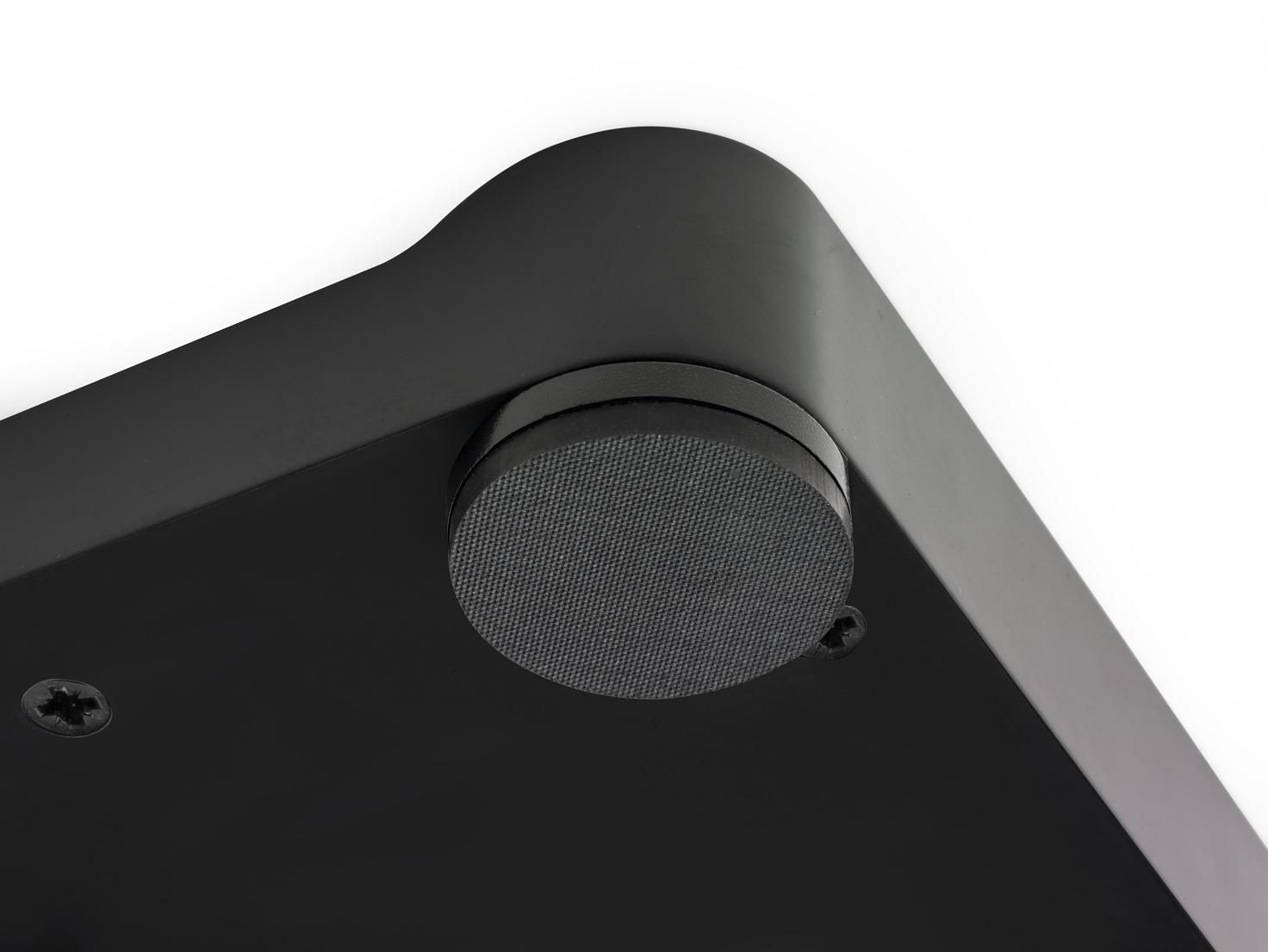

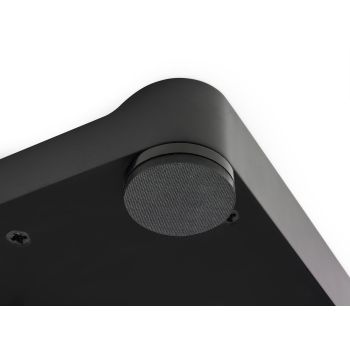

• Accessories : Height adjustable spike feet, grille, non-slip polymer feet

KEY TECHNOLOGY :

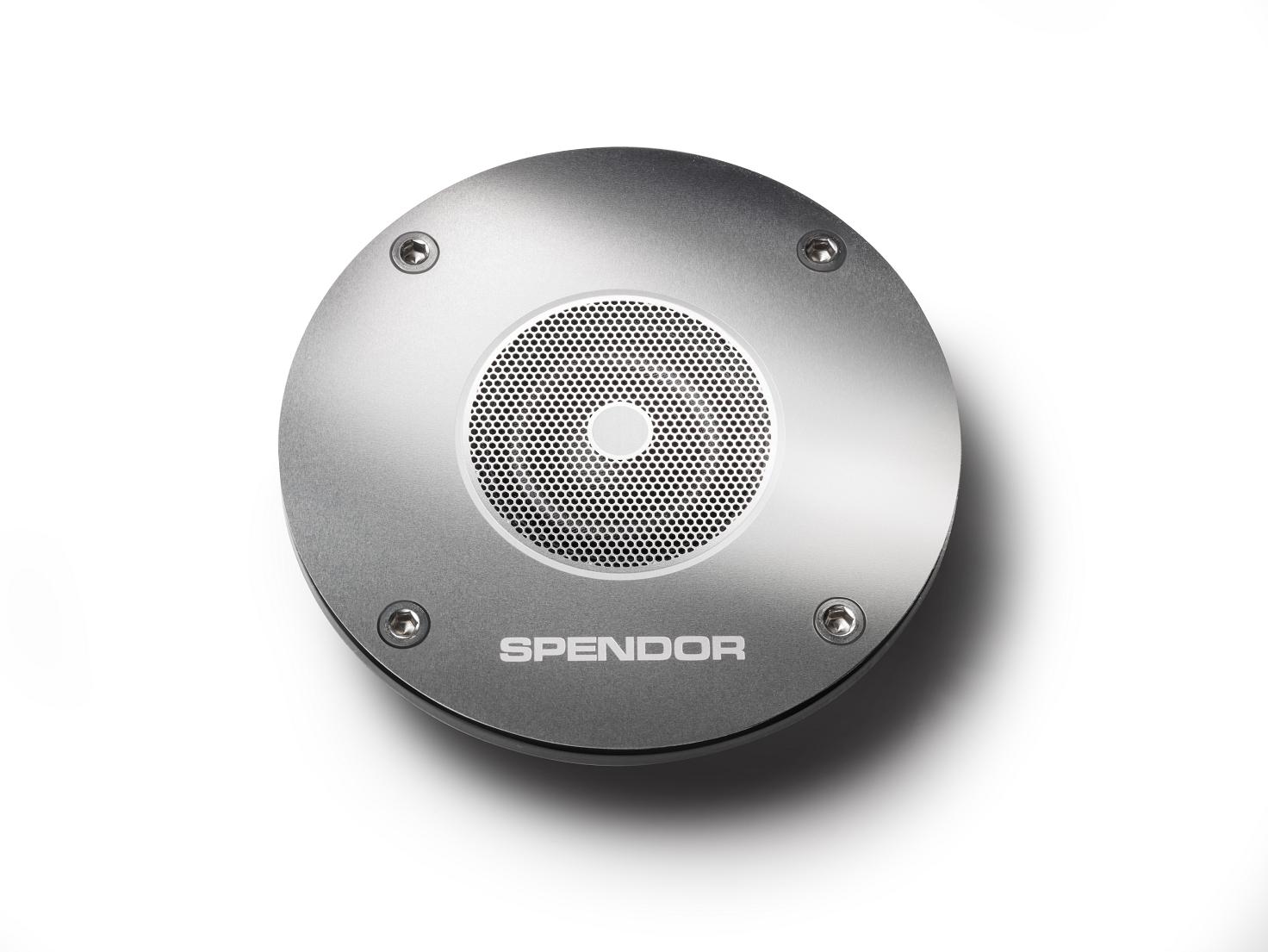

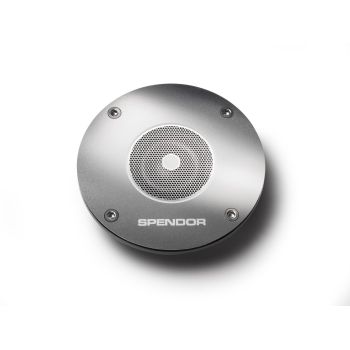

SPENDOR LPZ (LINEAR PRESSURE ZONE) TWEETER
The goal of every tweeter designer is to achieve linear acoustic output over a wide frequency range. In practice this is extremely difficult. Spendor’s approach to this challenge is radical, and it works.

 The Spendor LPZ tweeter is built around a stainless steel front plate which forms a damped acoustic chamber directly in front of a lightweight woven polyamide diaphragm. The front plate incorporates a phase correcting micro foil to equalise sound wave path lengths across the diaphragm surface. Simultaneously it generates a symmetrical pressure environment on both faces of the diaphragm so the tweeter always operates in a balanced linear mode. The front plate also provides excellent mechanical protection for the delicate tweeter dome and a smart modern appearance.

 Imagine focusing an ultra-high quality camera lens until you see a clear bright image. That’s the effect of Spendor LPZ Technology. Our sequential geometry micro-foil operates like an acoustic lens. The result is perfect focus, uninhibited sound transmission and a very wide listening window. Sound images are vivid, in-the-air, as bright or sweet as any music demands.

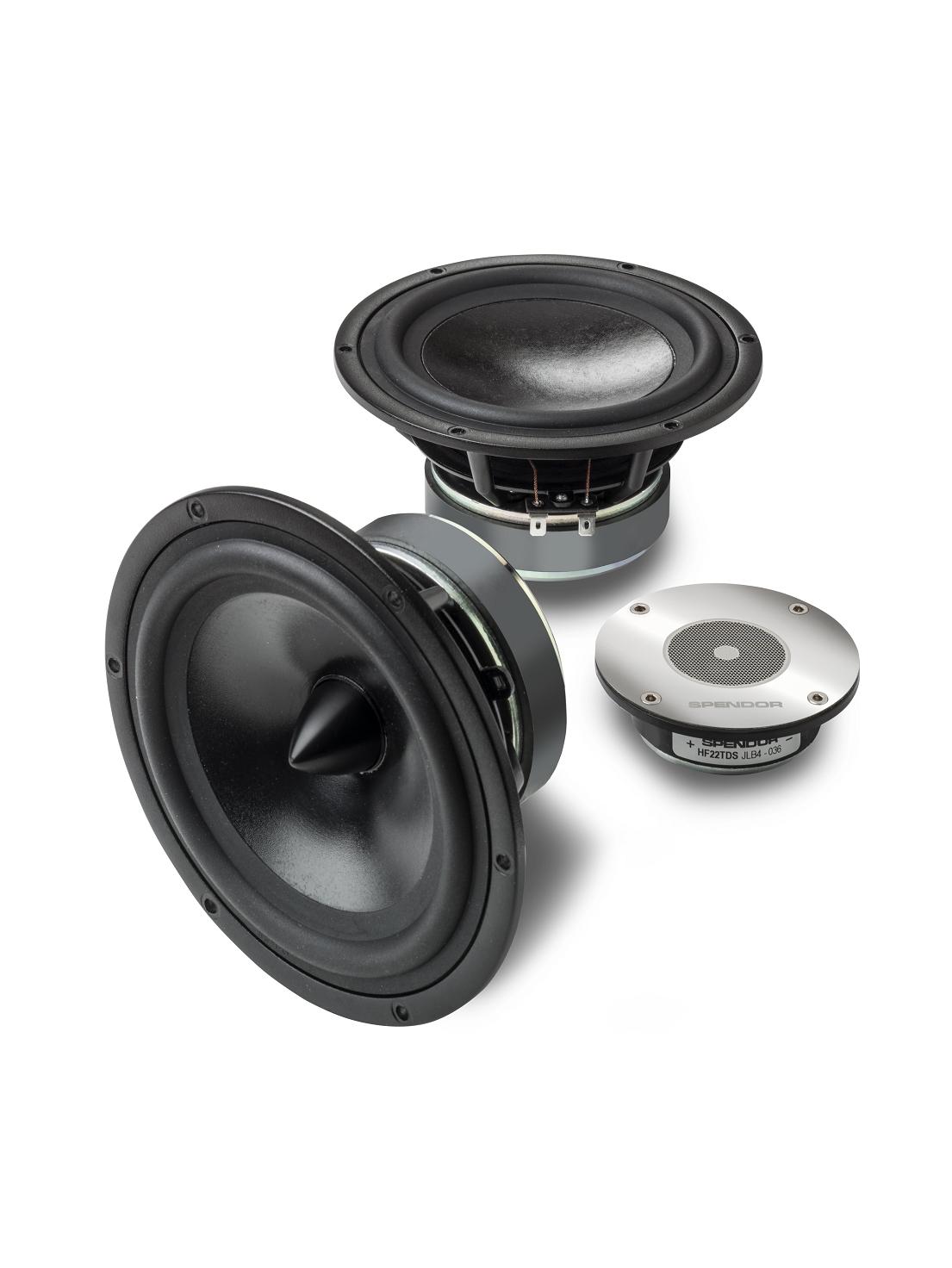

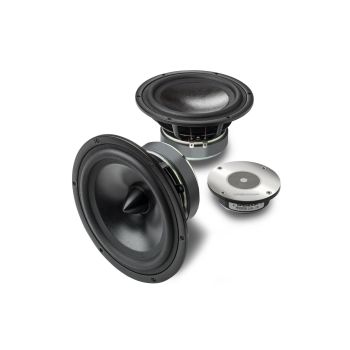

NEW SPENDOR 18CM DRIVE UNITS DEVELOPED FOR D9
The D9 mid-bass drive unit has an advanced EP77 polymer cone. Housed in an isolated enclosure at the top of the cabinet, it handles only mid-range frequencies which eliminates mid-low frequency intermodulation. It delivers music with superb clarity and vanishingly low colouration. The two D9 low frequency drivers have ultra-rigid, two part bonded, lightweight Kevlar composite cone assemblies. The bass drivers are in a large dedicated low-frequency acoustic enclosure. This allows the D9 to deliver accurate powerful bass without distortion or compression.

 All three drivers feature cast magnesium alloy chassis, high efficiency motor systems, optimised electro-dynamic damping, and excellent thermal dissipation for wide dynamic range. New polymer surrounds with very stable molecular composition reduce driver break-in time significantly.

FIFTH GENERATION SPENDOR LINEAR FLOW PORT
When extended low frequency sound reproduction is the goal there is simply no substitute for volume. In the D9 low frequencies are handled by two specially designed bass drivers in a substantial volume enclosure. For optimum low frequency response and power handling the enclosure is ported, but not like any conventional loudspeaker. The D9 incorporates our innovative Fifth Generation Spendor Linear Flow Port Technology. Inspired by Formula 1 diffuser technology it offers significant advantages over any conventional port or transmission line loading. An aerodynamically profiled central baffle, like an aircraft wing, creates a tapered twin-venturi port. Air at the port extremities is smoothly decelerated and there is a further reduction in air velocity in the large tapered area at the cabinet base. The result is evenly balanced acoustic pressure and linear air-flow along the whole length of the port. Rapidly decreasing air velocity at the port extremities creates an air-curtain effect to eliminate port noise and spurious mid-band radiation.

 A carefully optimised combination of bass driver electrical and mechanical parameters, enclosure volume, air flow and wide-band (very low Q & very low phase shift) alignment allows the D9 to deliver deep, fast, articulate bass in a way no conventional loudspeaker can challenge.

 High quality terminals are recessed within the port aperture to hide plug and cable connections.

UNCONSTRAINED AIRFLOW
Conventional loudspeakers incorporate foam or fibre to provide low frequency acoustic damping. The damping material stores energy. As stored energy is released it is no longer in-time with the original music and it creates an unnaturally, heavy, slow sound. Inside the D9 there is no low frequency damping, the sound path, from the bass drivers to the listening room, is totally unrestricted. Consequently, the Spendor D9 is entirely free from damping material energy storage effects. The advantage is clearly audible, music sounds naturally fast, agile and coherent.

SPENDOR DYNAMIC DAMPING AND ASYMMETRICAL APERTURE BRACING
Timing is a fundamental element of all music. In conventional loudspeakers rigid high density cabinet panels are mass-damped to reduce cabinet-talk. Spurious energy is stored and released slowly. This introduces unacceptable and unnatural blurring and slowing of the sound. Spendor’s solution is Asymmetrical Aperture Bracing to disperse internal waves and create a very rigid non-resonant enclosure, while Spendor Dynamic Damping with small low mass constrained polymer dampers at key energy interface points instantly convert any spurious energy in the cabinet structure into inaudible heat. The result is a silent rigid cabinet and a naturally fast engaging sound.

STABILISER INSERTS

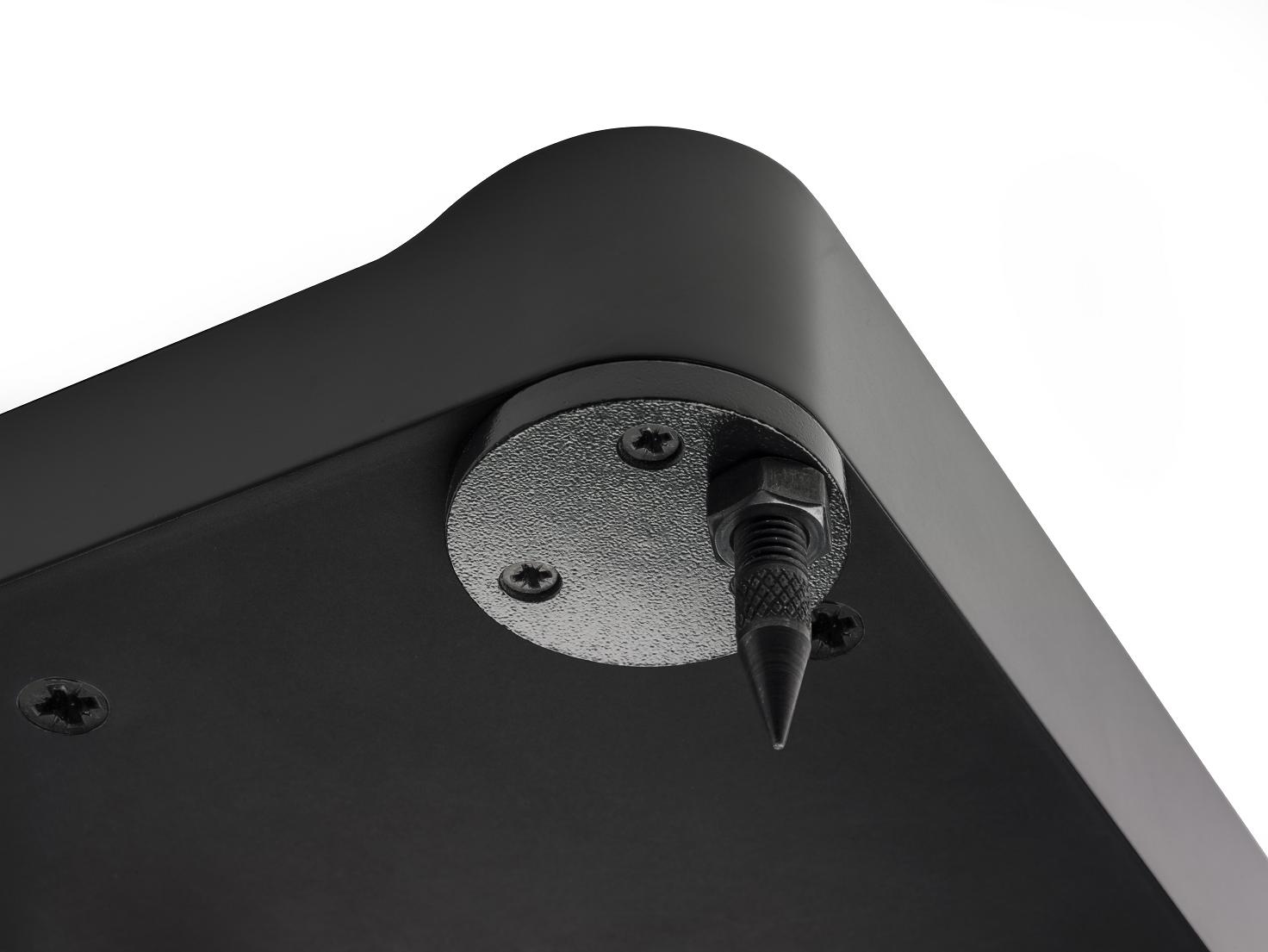

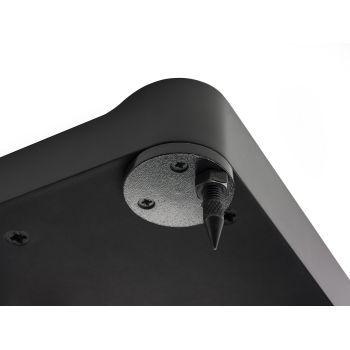

The base of each cabinet has four levelling feet attached via forged steel inserts to hold the cabinet rock-steady. The elimination of micro vibration allows fine musical detail to be reproduced with delicate precision.

CROSSOVER NETWORK
A meticulously refined crossover network with precision wound inductors and high-linearity plastic film capacitors integrates the drivers seamlessly in a minimum phase alignment.

All crossover components and Spendor drive units are calibrated and matched to stringent broadcast reference standards.

HIGH EFFICIENCY
90dB efficiency and an easy to drive 8ohm load ensure complete compatibility with all good amplifiers and cables. With substantial power handling the D9’s can play very loud without compression. At low replay levels the sound is always clear and balanced.

ELEGANT MODERN DESIGN
The Spendor D9 looks as good as it sounds. Our special finishes perfectly complement today’s on-trend interiors. Spendor Dark, a diamond polished gloss lacquer over a dark natural veneer, for an alluring modern look. Satin white, a silky pure white lacquer, for a distinctive contemporary look. Dark ebony for a deep luxurious look, and natural rosewood for a timeless exotic look. Standard finishes are light oak, dark walnut, cherry and black ash.

Tests and Reviews :

HiFi+ - September 2017
