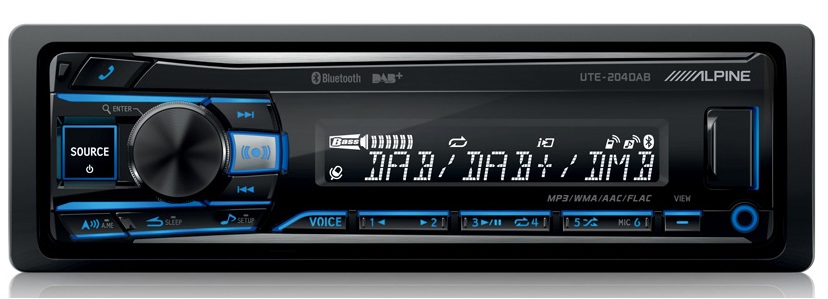

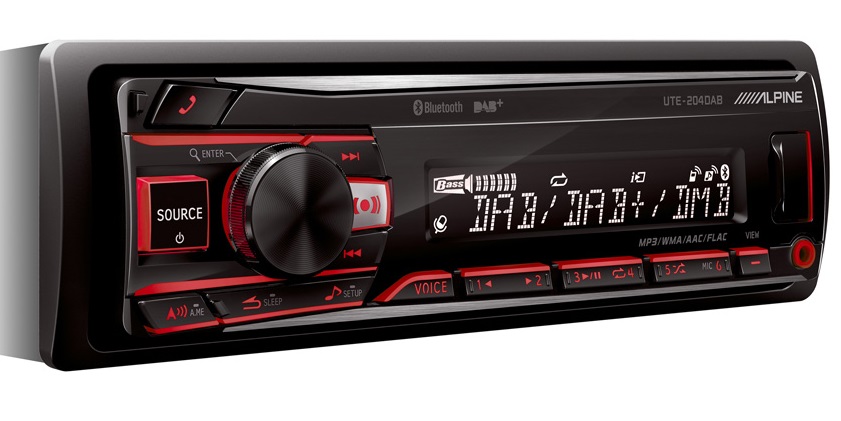

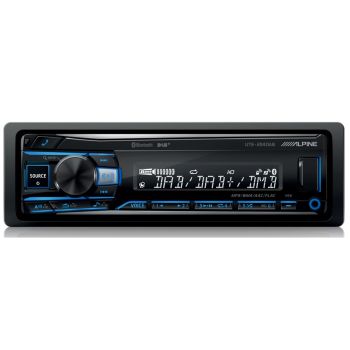

Το Alpine UTE-204DAB ειναι ραδιο-USB made for iPhone® / iPod® (ψηφιακος δεκτης πολυμεσων), ραδιο : FM , DAB, BAB+, MW , LW. Αναπαραγωγη MP3 , FLAC , AAC , WMA. Θυρες USB και AUX. Διαθετει 24bit dac. Διαθετει δεκτη bluetooth για συνδεση τηλεφωνου η ροη μουσικης. Ενσωματωμενος ενισχυτης 4x50 watt. Διαθετει 3 εξοδους προενισχυσης RCA.
Εγγυηση Αντιπροσωπειας (Ventor-Κιοκας) 2 ετη.
Features
Tuner
- Memory Presets: Preset Stations (FM:12, MW:6, LW:6)
- Memory: Auto Memory
RDS
- RDS Functions: AF, TA, TP, PTY, EON
- PTY (Programme Type) Display
DAB Tuner
- DAB+ Tuner Built-in
- DAB+/DMB Supported
- DLS (Dynamic Label Service)
- DAB Service Following
- RDS Fallback (where available)
- Service Preset: 18 Preset Memory
- Auto Ensemble/Service Memory
- Service Search Function
- PTY Search Function
- Antenna Power Supply Selection
- A compatible DAB Antenna is required
BLUETOOTH®
- Built-in BLUETOOTH® Module
- Hands Free Calling: HFP (Hands Free Profile)
- Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
- Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) Ver.1.3 Compatible
- Phone Book Search
- Voice Dial Operation
- Auto Answer
- Call Waiting
- Call History Display: Phone Book Call, Dialled Call, Received Call
- Speech Volume Level Adjustment
- Hands-Free Phone Sound Setting
- Firmware Updatable
- Microphone Included
Made for iPhone® / iPod®
- Connection: USB connection (KCU-445i Required)
- Made for iPod/iPhone
- M.I.X. (Shuffle) Play: Track
- Repeat: All, Track
- Battery Charging
USB Media Connection
- Front USB Connection
- MP3, WMA, FLAC, AAC Playback
- Folder Up/Down
- M.I.X. Random Play
- Repeat: Track, Album, All
- USB AOA (Android Open Accessory) 2.0
Sound Tuning
- Subwoofer Level Adjustment
- BASS ENGINE SQ: Level Control OFF/1-6
- Subwoofer Phase Select: 0°/180°
- Subwoofer System Select
- High Pass Filter
- Low Pass Filter
- 2V Voltage 3PreOuts
- 10 Equalizer PreSets: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country and Classical
- 3-band Parametric Equalizer
General
- Power Output: 4 x 50 W High Power Amplifier
- Display LCD: 14 Segments White LCD Display 1Line
- Control Type: Rotary Encoder Knob
- Variable RGB Illumination Buttons

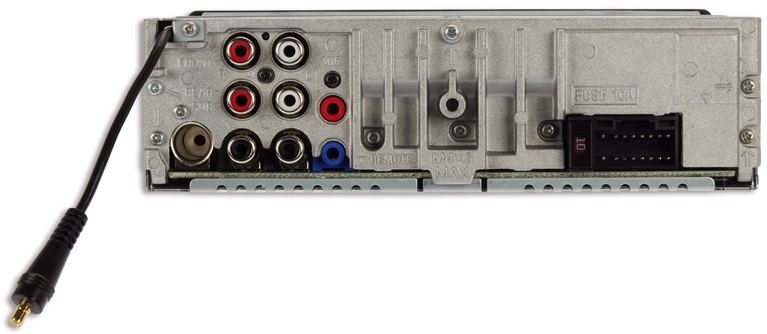

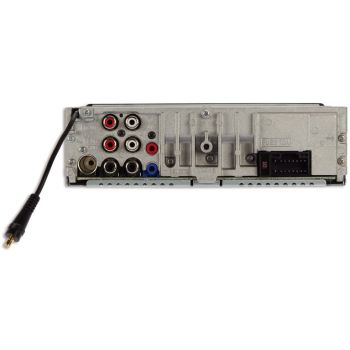

- 3 PreOuts (2V, Front / Rear / Subwoofer)
- 24-bit DAC
- Front AUX Input (3.5mm mini jack)
- Steering Wheel Remote Control Ready
- -20dB Mute
- Remote Control Ready
- Clock
- Detachable DIN Trim Plate
- Detachable Face Plate
- Dimmer
- Power Antenna Lead
- Remote Turn-On
- AUTO OFF function (after 30 min)
Specifications
- Max Power Output Ratings Max Power Output: 4 x 50W
- DAB Tuner Tuning Range Band III : 174.928 - 239.2 MHz
- FM Tuner Tuning Range: 87.5 - 108.0 MHz
- MW Tuner Tuning Range: 531 - 1,602 kHz
- LW Tuner Tuning Range: 153 - 279 kHz
USB
- USB Requirements: USB 1.1/2.0
- Max. Power Consumption: 1000 mA
- File System: FAT 16/32
Sound Tuning
- Subwoofer Level Adjustment: 0 to 15 dB
- Subwoofer Phase Setting: 0° or 180°
- High Pass Filter: Off, 80/100/120 Hz
- Low Pass Filter: Off, 80/100/120 Hz
- Bass Level Control Range: ±7 dB at 100Hz
- Bass Center Frequency: 60/80/100/120 Hz
- Bass Band Width Adjustment (Q): 4 choices (0.5=wide, 1.0=medium, 1.5=medium, 2=narrow)
- Treble Level Control Range: ±7 dB at 10 kHz
- Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
- Treble Band Width Adjustment (Q): 2 choices (0.75=wide, 1.25=narrow)
- Mid Level Control Range: ±7 dB
- Mid Center Frequency: 500/1k/1.5k/2.5k Hz
- Mid Band Width Adjustment (Q): 4 choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)
General
- Power Requirement: 12V.DC
- Pre Output Voltage (Before Clipping): 2V / 10k ohms
- Aux In: 1.4V / 10k ohms
- Maximum Mounting Angle: 30°
- Weight: 0.8 kg
Dimensions
- Din Size: 1 DIN
- Chassis Size (W x H x D) mm: 178 x 50 x 177 mm
