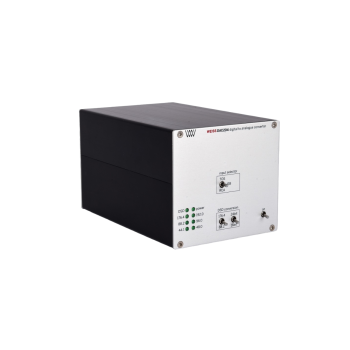

Το Weiss DAC205 ειναι ενας ψηφιοαναλογικος μετατροπεας 24bit/192kHz. Εισοδοι: 1x Coaxial, 1x Optical. Εξοδοι: 1x pair XLR, 1x pair RCA.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Features

• Inputs: There are two AES/EBU (S/PDIF) inputs on RCA and Toslink (optical) connectors. The sampling frequencies supported are 44.1, 48, 88.2, 96, 176.4 or 192 kHz. In addition there is a USB input which supports sampling frequencies of 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz plus DSD64 and DSD128.
• Outputs: The outputs are balanced on XLR con- nectors and unbalanced on RCA connectors. The XLR outputs have a 6dB higher level than the RCA outputs. The XLR outputs (XLR pin 2 or pin 3) must not be shorted to ground, i.e. there is no servo circuitry implemented. In addition there are three digital outputs with AES/EBU format on XLR, RCA and BNC connectors.
• Output Level: Two switches allow to set 4 different output levels at 10dB steps.
• Sampling Rates, Word-length: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz at up to 24 Bits are supported. Plus DSD64 and DSD128.
• Jitter suppression: Several signal reclocking schemes are combined for a high jitter attenuation.
• Converters: Oversampling sigma delta D/A converters are used. Four D/A Converters per audio channel are operated in parallel for enhanced signal to noise performance.
• Power Supply: An external power supply is used. The required voltage is between 6V and 9V.

Specifications

Digital Inputs:
(1) RCA connector, (1) Toslink connector (optical)

• All inputs accept professional or consumer standard , i.e. accept AES/EBU or S/PDIF signals.
• Sampling frequencies: 44.1, 48.0, 88.2, 96.0, 176.4 or 192 kHz on the RCA input.
• Sampling frequencies: 44.1, 48.0, 88.2, 96.0 kHz on the Toslink input.
• Maximum input word-length: 24 Bits.

(1) USB connector

• Accepted sampling frequencies: 44.1, 48.0, 88.2, 96.0, 176.4, 192, 352.8, 384 kHz, DSD64, DSD128

Analog Outputs:

• (2) XLR connectors (hot output on pin 2, not servo controlled), DC coupled, short circuit proof output circuitry, Output impedance: 44 Ohm
• (2) RCA connectors, DC coupled, short circuit proof output circuitry, Output impedance: 22 Ohm
• Output level: Selectable by two toggle switches, 4 settings

XLR outputs:

• 7.5 Vrms, +19.7 dBu, with a 0 dBFS sinewave input
• 2.3 Vrms, +9.7 dBu, with a 0 dBFS sinewave input
• 0.75 Vrms, -0.3 dBu, with a 0 dBFS sinewave input
• 0.23 Vrms, -10.3 dBu, with a 0 dBFS sinewave input

RCA outputs:

• 3.75 Vrms, +13.7dBu, with a 0 dBFS sinewave input
• 1.15 Vrms, +3.7dBu, with a 0 dBFS sinewave input
• 0.375 Vrms, -6.3dBu, with a 0 dBFS sinewave input
• 0.115 Vrms, -16.3dBu, with a 0 dBFS sinewave input

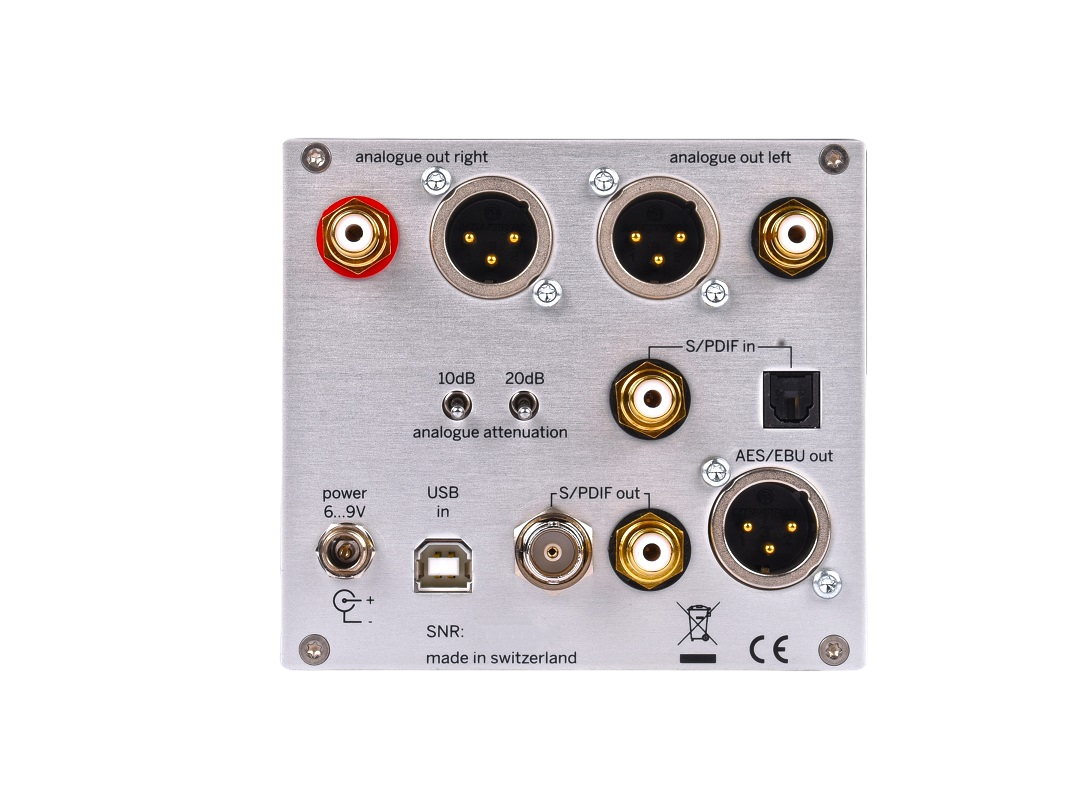

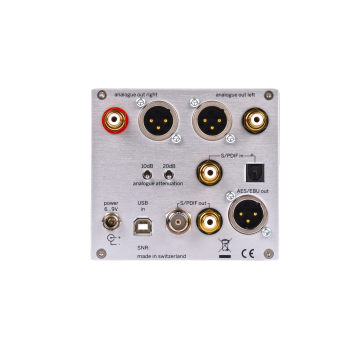

Digital Outputs:

• (1) XLR connector, (1) RCA connector, (1) BNC connector

Synchronization:

• Synchronized via the input signal in the case of RCA or Toslink inputs. In the USB input case the DAC204 is the master clock.
• Extremely efficient Jitter attenuation.
• Sampling frequencies supported: 44.1 kHz, 48.0 kHz, 88.2kHz, 96.0kHz, 176.4khz, 192kHz, 352.8kHz, 384kHz, DSD64, DSD128

Power:

• DC input voltage: 6 to 9 Volt
• DC input current: 1050mA at 6V, 700mA at 9V
• Power consumption: 6.3 W
