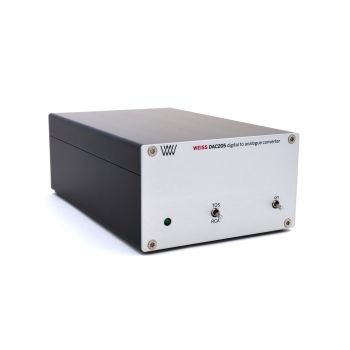

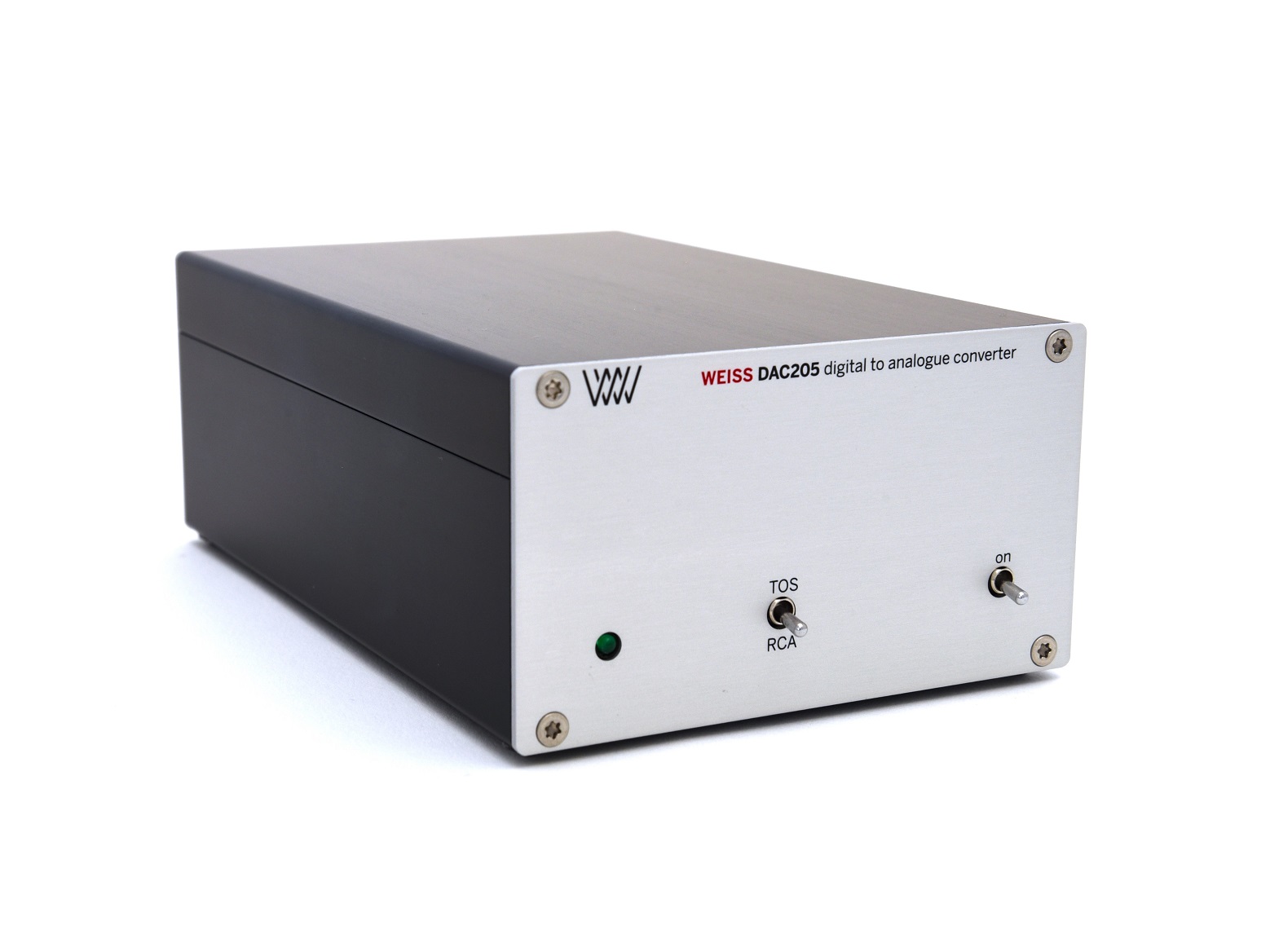

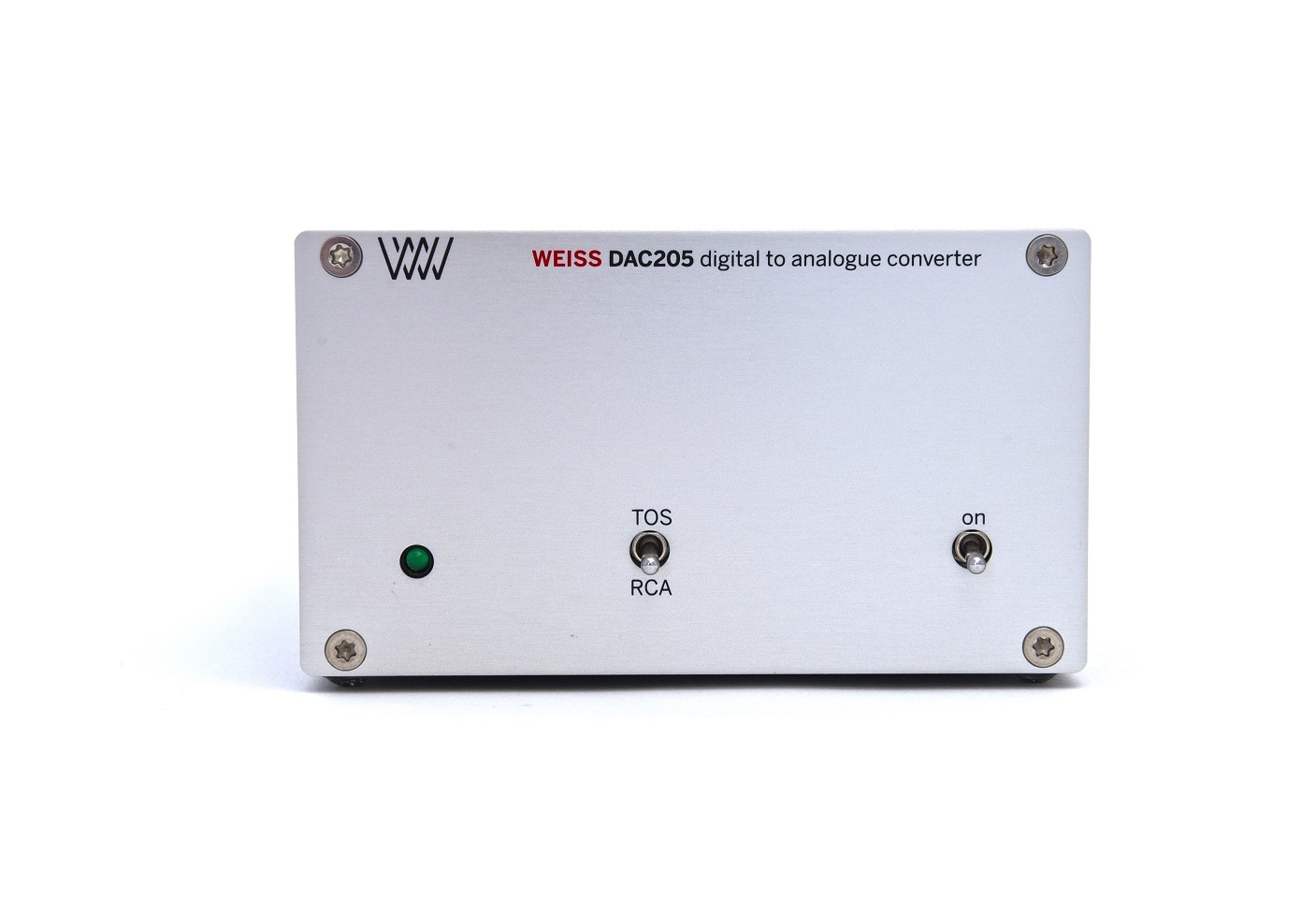

Το Weiss DAC205 ειναι ενας ψηφιοαναλογικος μετατροπεας 24bit/192kHz. Εισοδοι: 1x Coaxial, 1x Optical. Εξοδοι: 1x pair XLR, 1x pair RCA.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Features

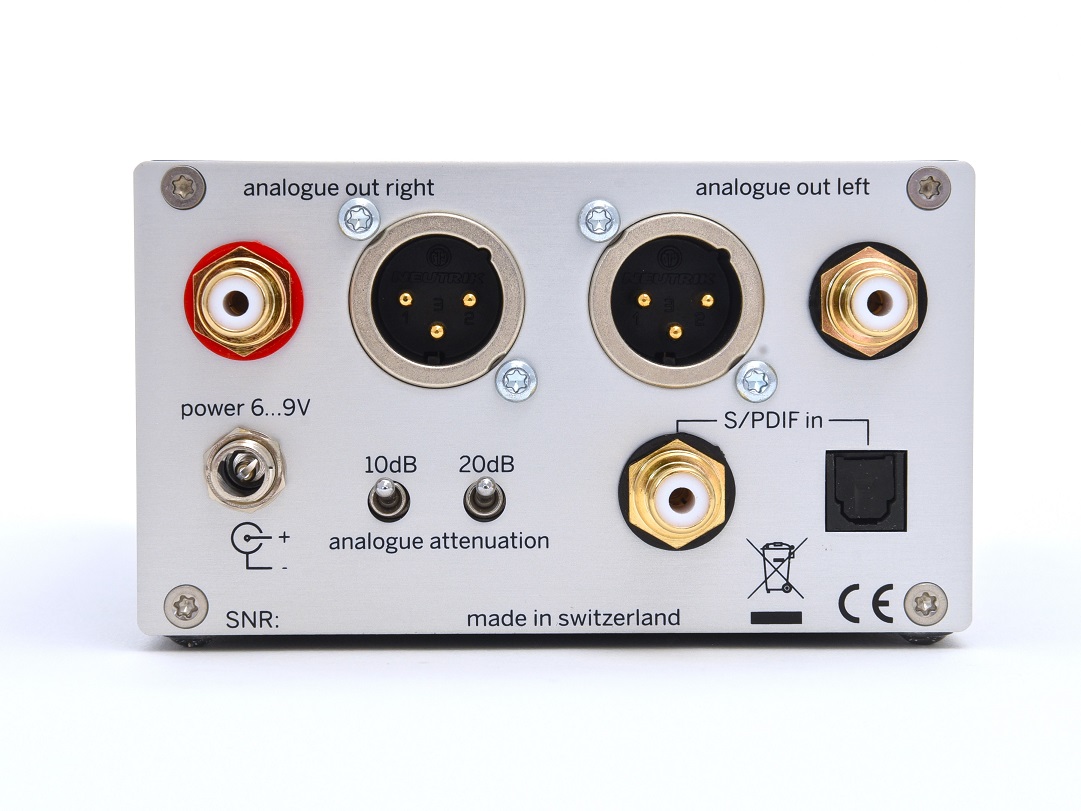

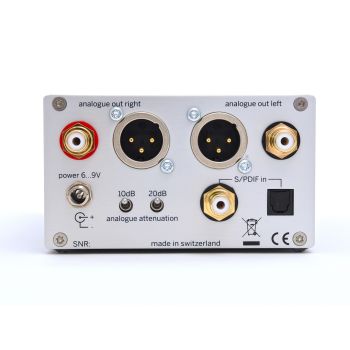

• Inputs: There are two AES/EBU (S/PDIF) inputs on RCA and Toslink (optical) connectors. The sampling frequencies supported are 44.1, 48, 88.2, 96, 176.4 or 192 kHz.
• Outputs: The outputs are balanced on XLR con- nectors and unbalanced on RCA connectors. The XLR outputs have a 6dB higher level than the RCA outputs. The XLR outputs (XLR pin 2 or pin 3) must not be shorted to ground, i.e. there is no servo cir- cuitry implemented.
• Output Level: Two switches allow to set 4 different output levels at 10dB steps.
• Sampling Rates, Word-length: 44.1, 48, 88.2, 96, 176.4, 192 kHz at up to 24 Bits are supported.
• Jitter suppression: Several signal reclocking schemes are combined for a high jitter attenuation.
• Converters: Oversampling sigma delta D/A converters are used. Four D/A Converters per audio channel are operated in parallel for enhanced signal to noise performance.
• Power Supply: An external power supply is used. The required voltage is between 6V and 9V.

Specifications

Digital Inputs:

• (1) RCA connector, (1) Toslink connector (optical)
• All inputs accept professional or consumer standard, i.e. accept AES/EBU or S/PDIF signals.
• Sampling frequencies: 44.1, 48.0, 88.2, 96.0, 176.4 or 192 kHz on the RCA input.
• Sampling frequencies: 44.1, 48.0, 88.2, 96.0 kHz on the Toslink input.
• Maximum input word-length: 24 Bits.

Analog Outputs:

• (2) XLR connectors (hot output on pin 2, not servo controlled), DC coupled, short circuit proof output circuitry, Output impedance: 44 Ohm
• (2) RCA connectors, DC coupled, short circuit proof output circuitry, Output impedance: 22 Ohm
• Output level: Selectable by two toggle switches, 4 settings

XLR outputs:

• 7.5 Vrms, +19.7 dBu, with a 0 dBFS sinewave input
• 2.3 Vrms, +9.7 dBu, with a 0 dBFS sinewave input
• 0.75 Vrms, -0.3 dBu, with a 0 dBFS sinewave input
• 0.23 Vrms, -10.3 dBu, with a 0 dBFS sinewave input

RCA outputs:

• 3.75 Vrms, +13.7dBu, with a 0 dBFS sinewave input
• 1.15 Vrms, +3.7dBu, with a 0 dBFS sinewave input
• 0.375 Vrms, -6.3dBu, with a 0 dBFS sinewave input
• 0.115 Vrms, -16.3dBu, with a 0 dBFS sinewave input

Synchronization:

• Synchronized via the input signal.
• Extremely efficient Jitter attenuation.
• Sampling frequencies supported: 44.1 kHz, 48.0 kHz, 88.2kHz, 96.0kHz, 176.4khz, 192kHz

Power:

• DC input voltage: 6 to 9 Volt
• DC input current: 900mA at 6V, 600mA at 9V
• Power consumption: 5.4 W
