Το Exposure VXN-3-Way ειναι ενα ενεργο ηλεκτρονικο κροσσοβερ 3 δρομων, ρυθμιζομενο ως προς τις συχνοτητες, την κλιση φιλτρων 6-18 db/octave και ενταση καθε τμηματος σε βηματα 0.5db. Το τροφοδοτικο ειναι ξεχωριστη συσκευη και πωλειται ξεχωριστα. Εγγυηση αντιπροσωπειας 3 ετη. Δυνατοτητα δοσεων.

Εγγυηση αντιπροσωπειας 3 ετη. Δυνατοτητα δοσεων.

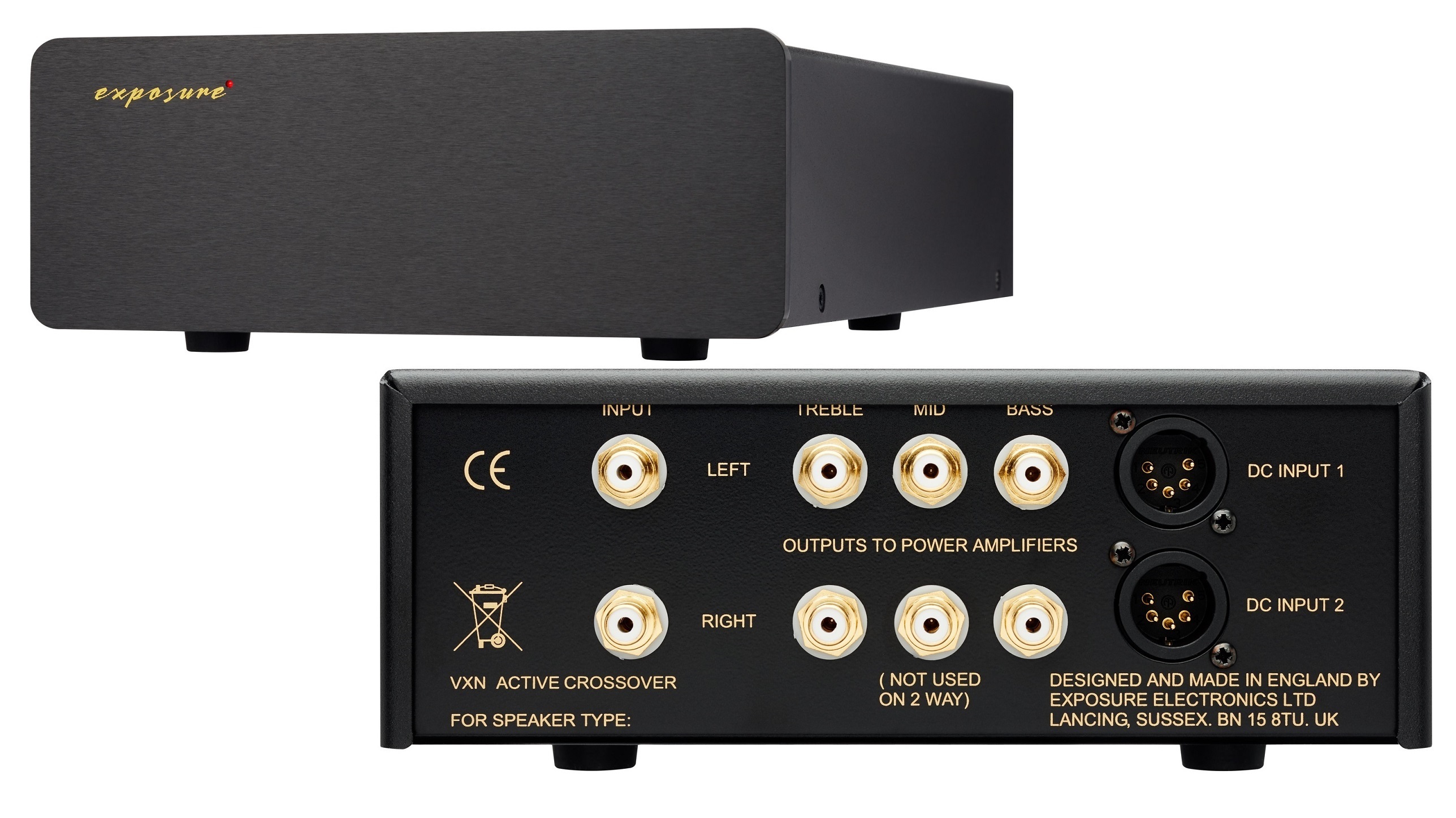

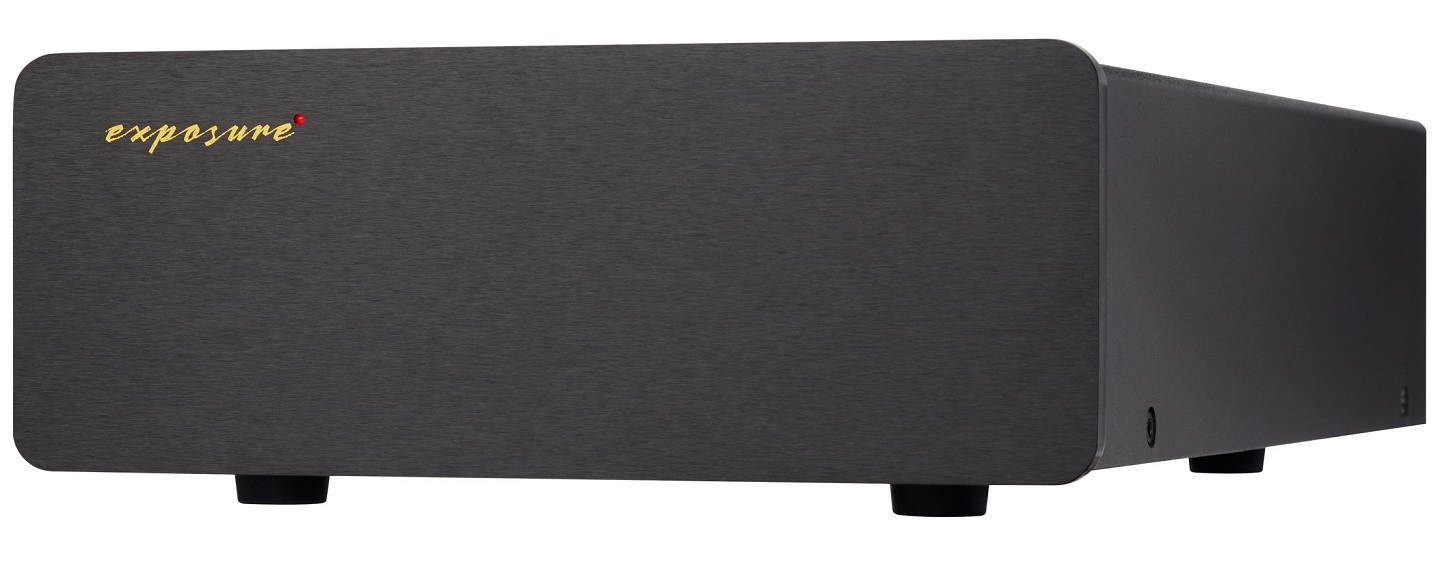

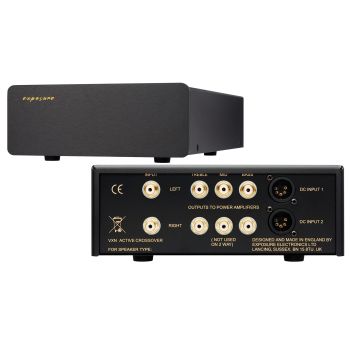

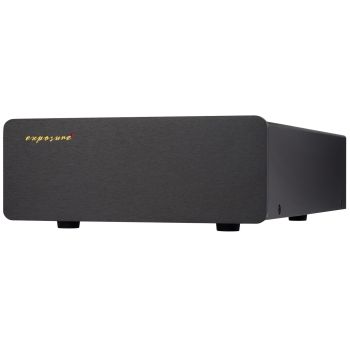

Exposure VXN 3 Way  Active Crossover

Features

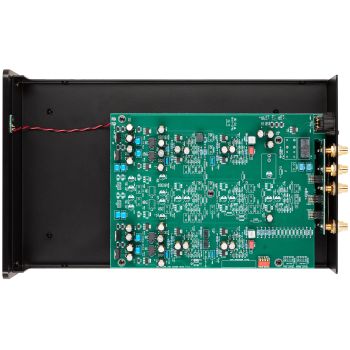

1. All active circuitry using discrete transistors - no ICs in the signal path
2. Very low noise regulators used
3. Level setting by DIP switches for good sound and repeatability
4. Very high quality capacitors used in the signal path, all 1% tolerance for accurate setting of frequency roll off

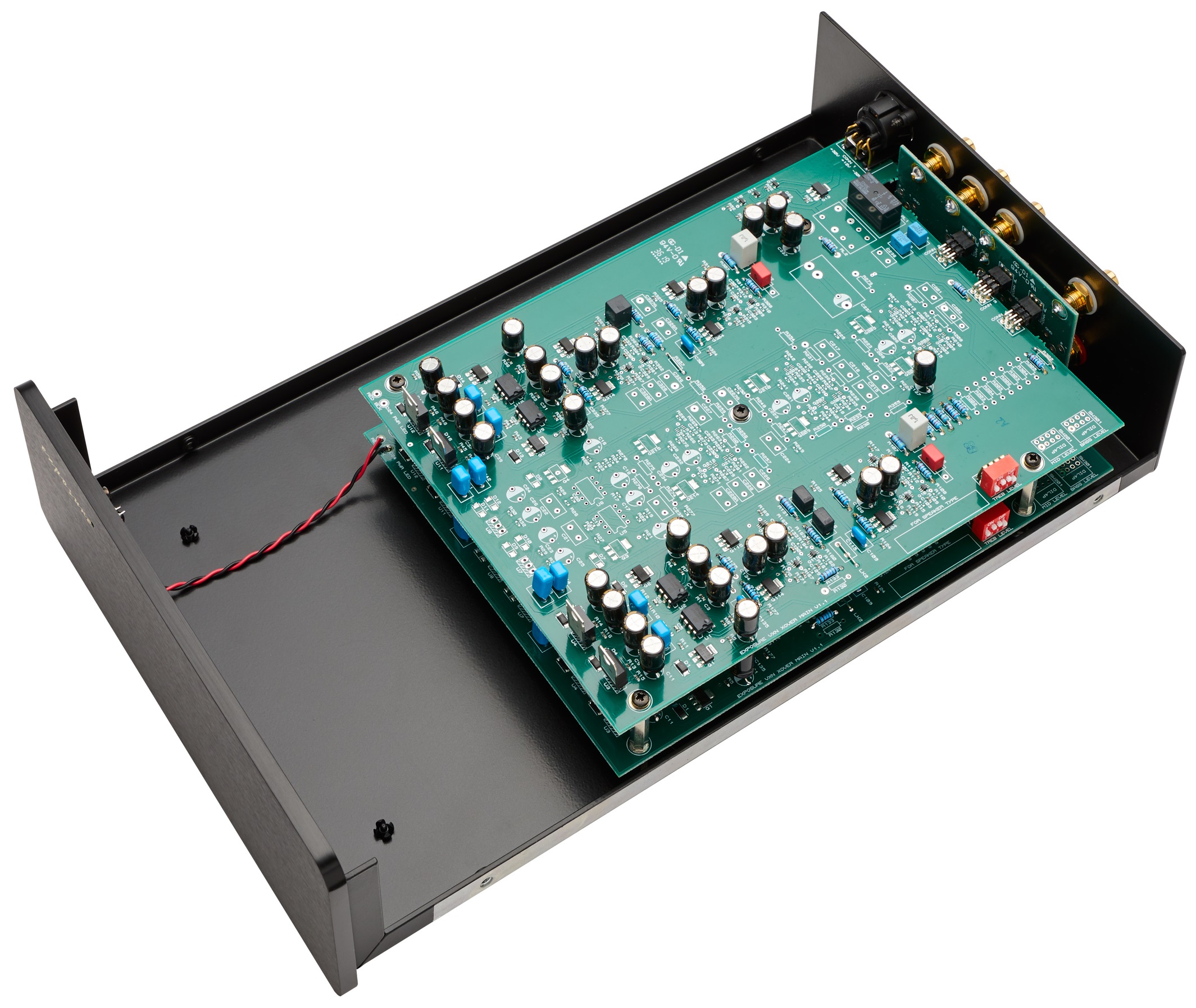

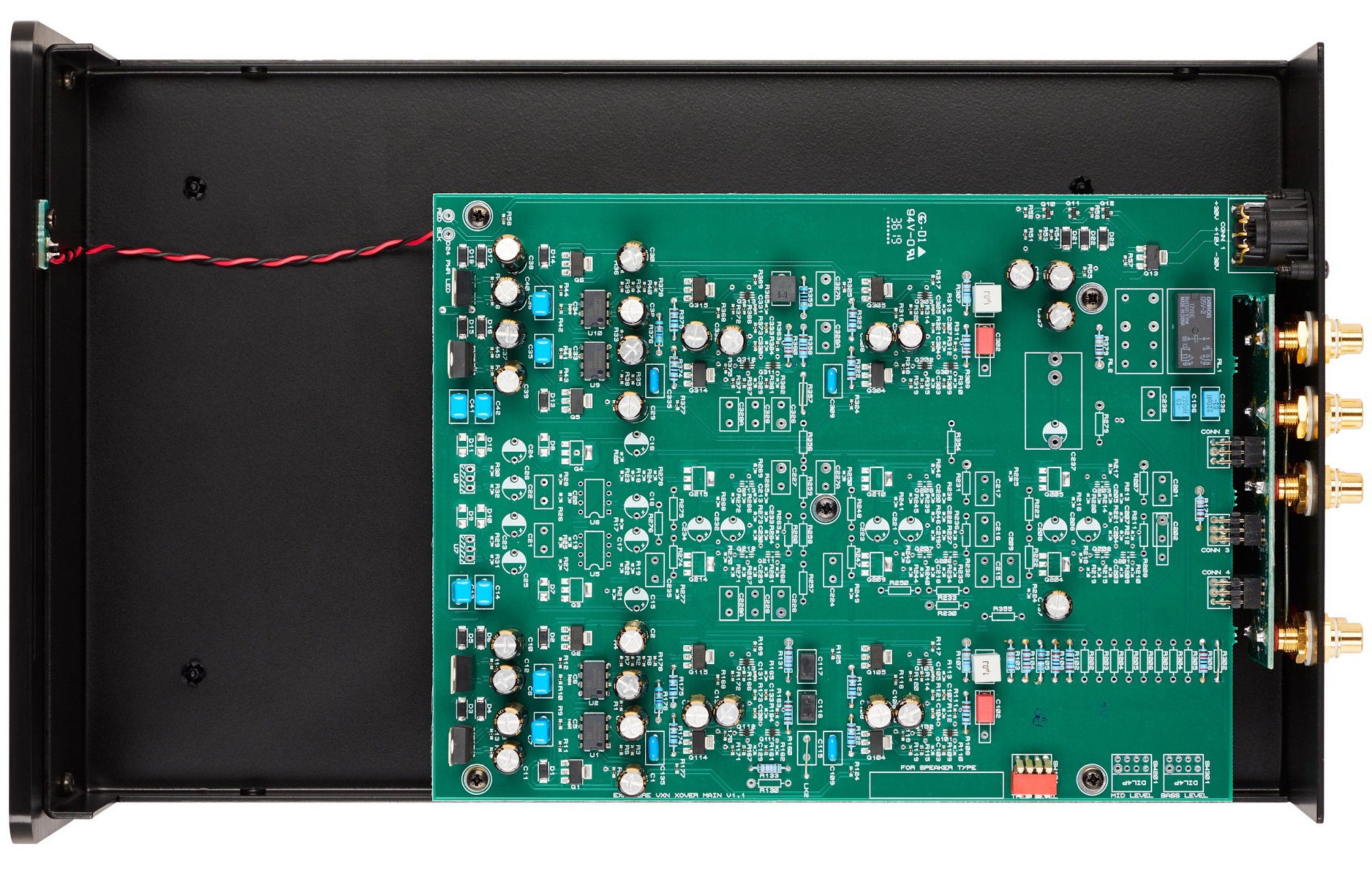

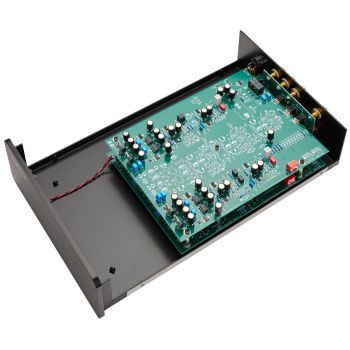

5. Dual mono construction using separate PCBs

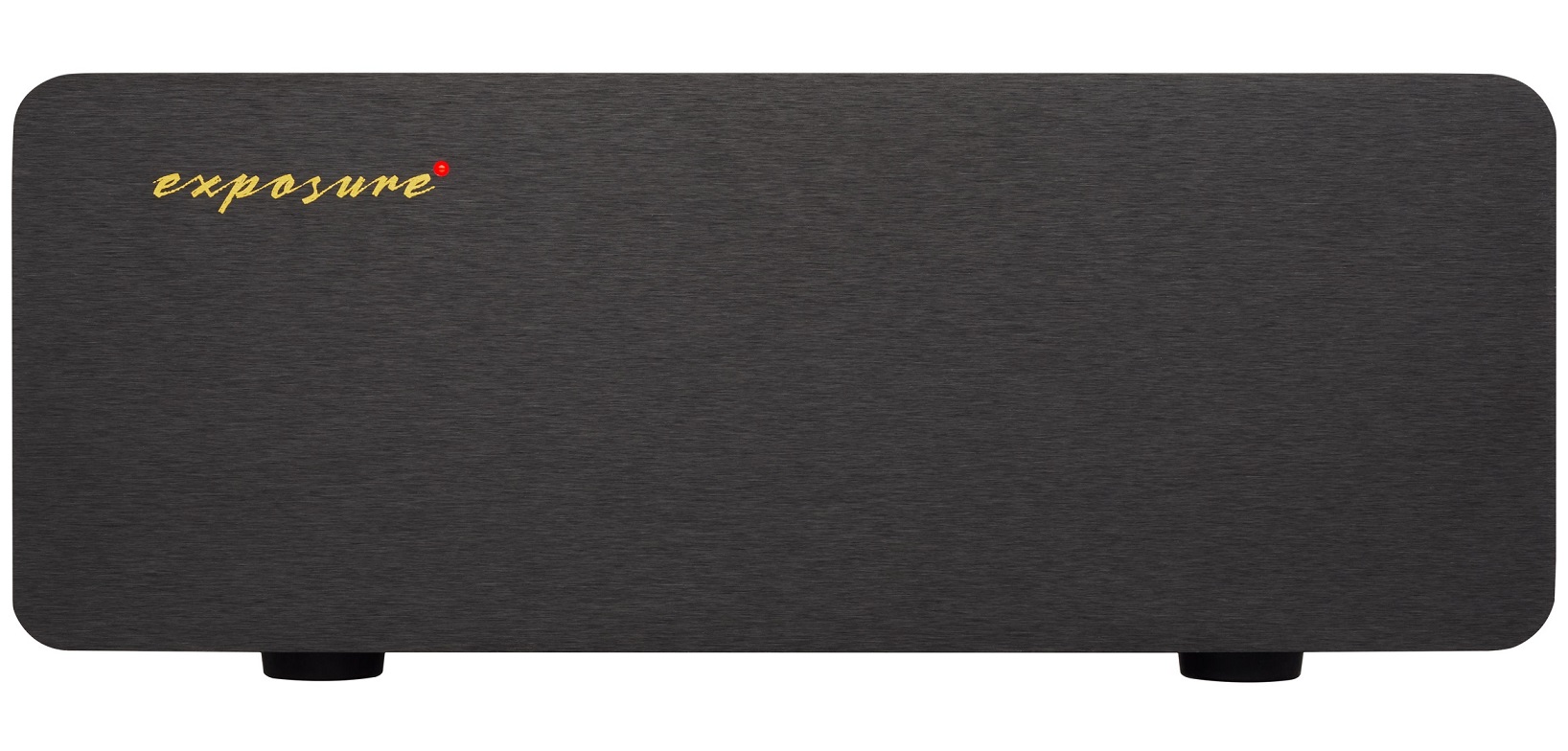

6. All aluminium casework and extruded front panel to control resonance and stray electro-magnetic fields
7. Three year guarantee
8. Available in black only

Specifications

• To be powered by an Exposure VXN Power Supply only
• 2 Way or 3 Way Active Crossover : Roll off rates and level settings to match the koudspeaker in use (to be specified at time of order)
• Treble : 12-18dB per octave high pass filer
• Mid : 12-18dB per octave high pass filter, 6-18dB per octave low pass filter
• Bass : 6-18dB per octave low pass filter
• Maximum Output Level (any output) : 7V RMS
• Bass output THD @ 100Hz 2V output <0.005%
• Mid range output THD @ 1KHz 2V output <0.005%
• Treble output THD @ 10KHz 2V output <0.005%
• S/N ratio ref 2V output (any output >100dB
• Output impedance @ 1KHz (any output) 50 Ohms

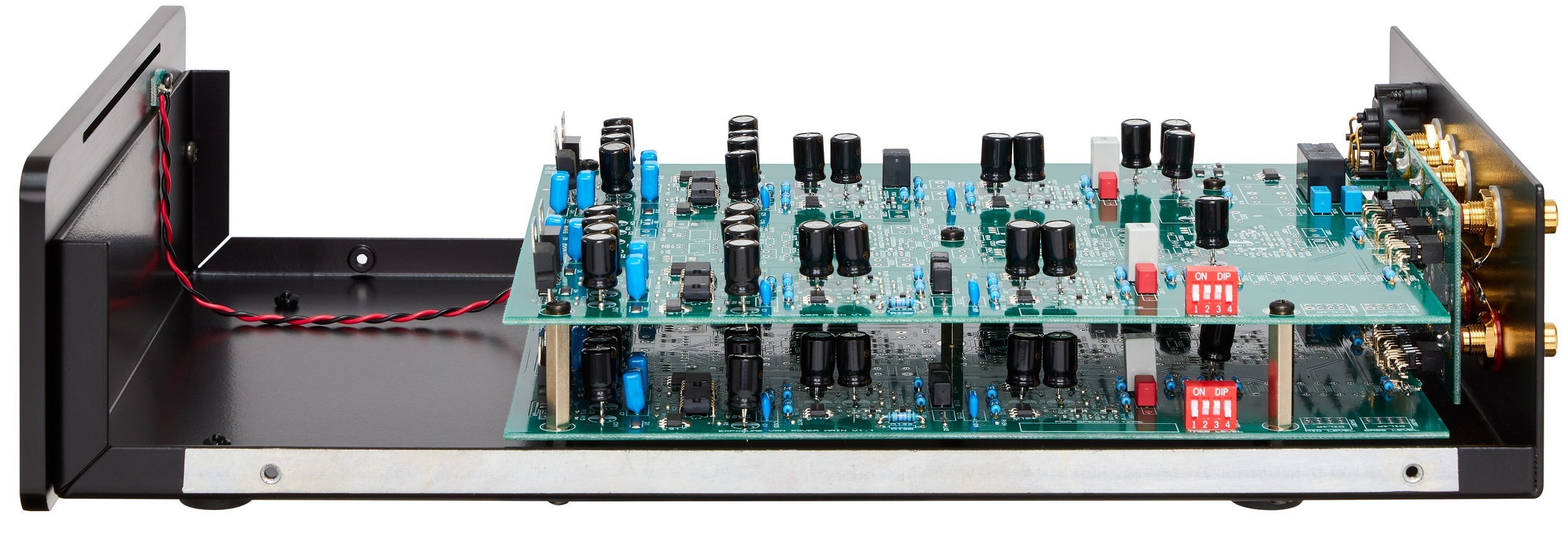

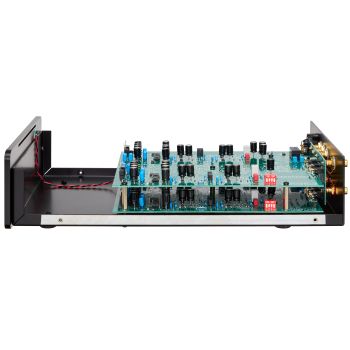

• Level settings of Treble & Mid Range by DIP switches inside the unit (one bank per channel for Treble & Mid Range).  Range -0.5dB to -6.5dB (specials to order)
• Power Consuption : <10W
• Dimensions (WxHxD) : 218mm x 89mm x 348mm
• Net Weight : 2kg
• Gross Weight : 3kg
