Ο Luxman 505Z ειναι δικαναλος ενισχυτης, ισχυος 2x100 wrms στα 8Ω.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

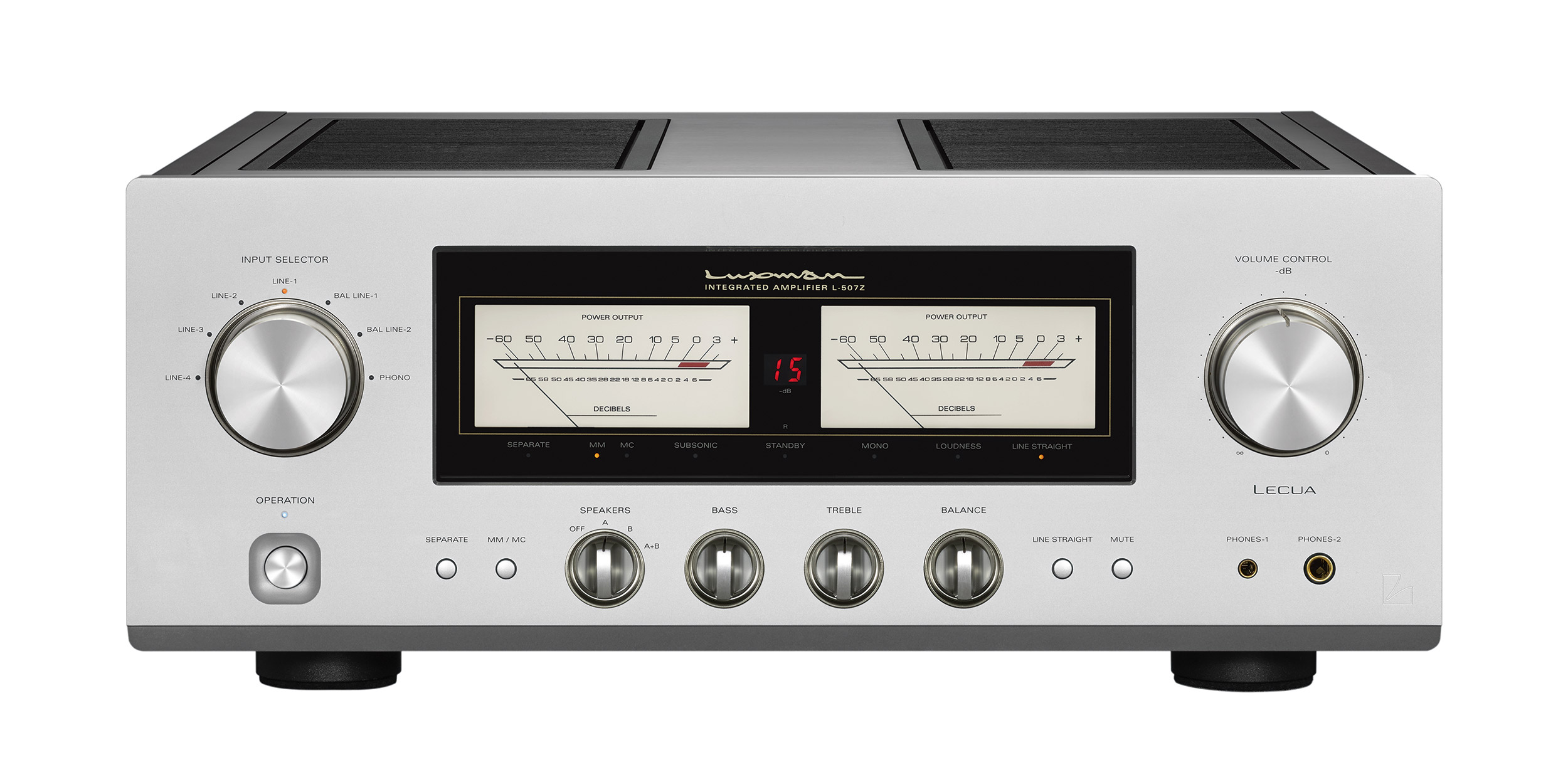

Luxman’s new generation Z series integrated amplifiers. The L-507Z is the debut model heralding our new generation of amplifier products. Featuring our newly developed LIFES amplification feedback engine, we look towards the future of Luxman. This amplifier has realized a dramatic development in musicality that goes far beyond its class. L-507Z combines advanced technology and sophisticated functionality. Our new, innovative Z series integrated amplifier generation begins with this superb model.

Specifications

• Rated output 110W+110W?8Ω?, 220W+220W?4Ω?
• Input sensitivity / Input impedance
  • PHONO MM : 2.5mV / 47kΩ
  • PHONO?MC  0.3mV / 100Ω
  • LINE: 180mV / 47kΩ
  • BAL.LINE: 180mV / 79kΩ
  • MAIN IN: 1.05V / 47kΩ
• Output voltage PRE OUT: 1V
• Frequency response PHONO: 20Hz to 20kHz (±0.5dB), LINE: 20Hz to 100kHz (within -3dB)
• Total harmonic distortion    0.007% or less (8Ω, 1kHz) 0.03% or less (8Ω, 20Hz to 20kHz)
• S/N ratio (IHF-A) PHONO (MM): 91dB or more, PHONO (MC): 75dB or more, LINE: 105dB or more
• Volume adjustment New LECUA1000
• Amplification feedback circuit    LIFES 1.0
• Output configuration Bipolar 3-parallel push-pull
• Damping factor 300
• Max. amount of tone control BASS: ±8dB at 100Hz, TREBLE: ±8dB at 10kHz
• Power supply 230V~(50Hz)
• Power consumption 350W 86W (under no signal), 0.4W (at standby)
• External dimensions 440(W) x 178(H) x 454(D) mm
• Net weight 25.4kg (main unit)

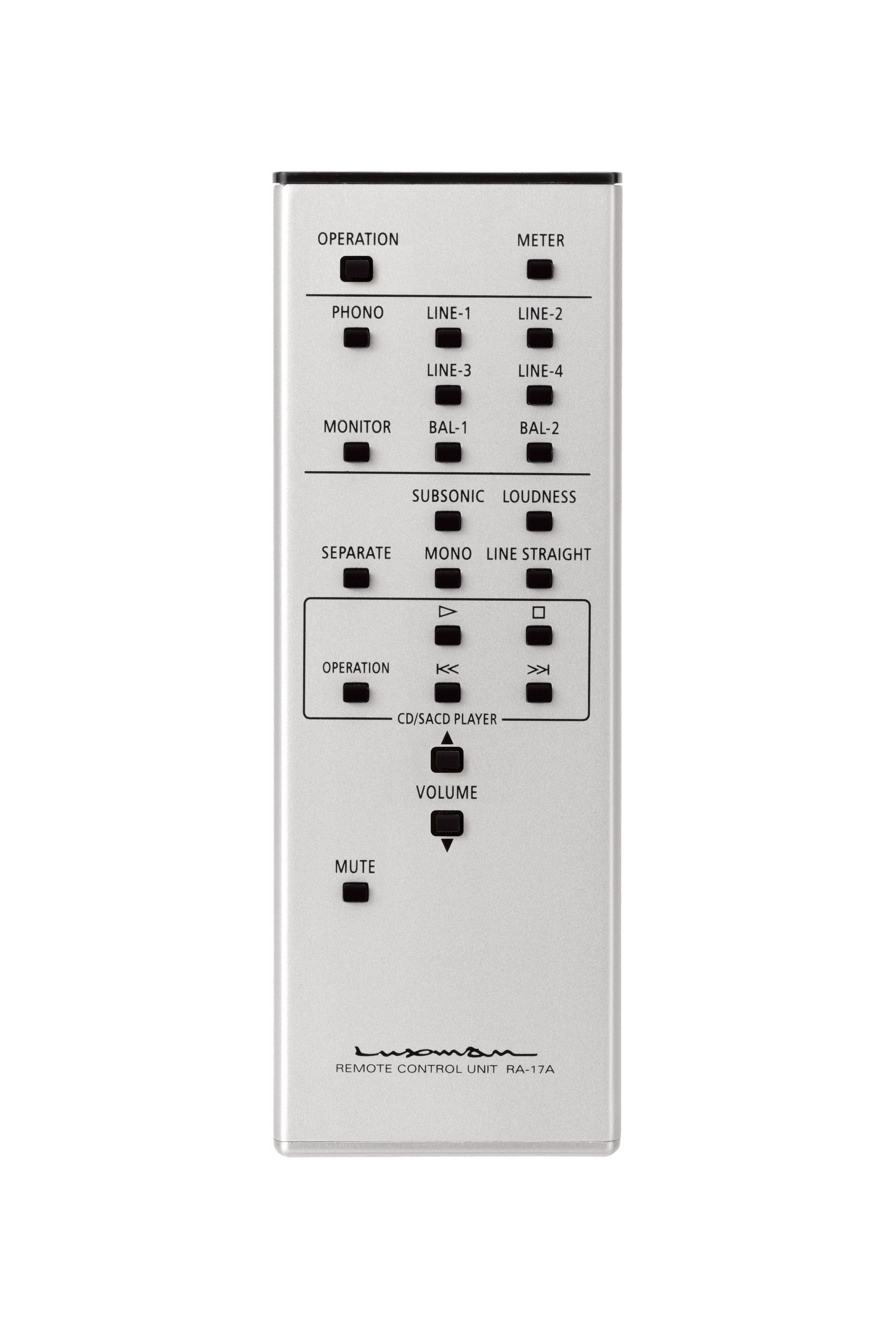

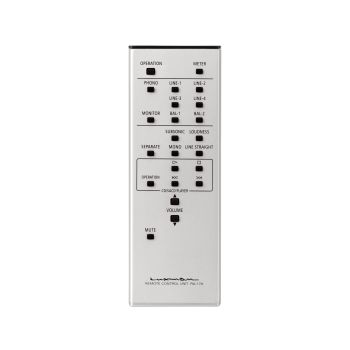

• Accessories Remote control (RA-17A), Power cable
• Speaker terminal Width of part a: 15mm or less
• Supported Y-lug terminal dimension: Width of part b: 8mm or more (Connection may not be performed depending on the shape of the Y-lug terminal).
