Ο Anthem M1 ειναι μονοφωνικος τελικος ενισχυτης 1 καναλιου, Class D, ισχυος 1x 1000 watts στα 8ohms , 1x 2000 watts στα 4ohms.
Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

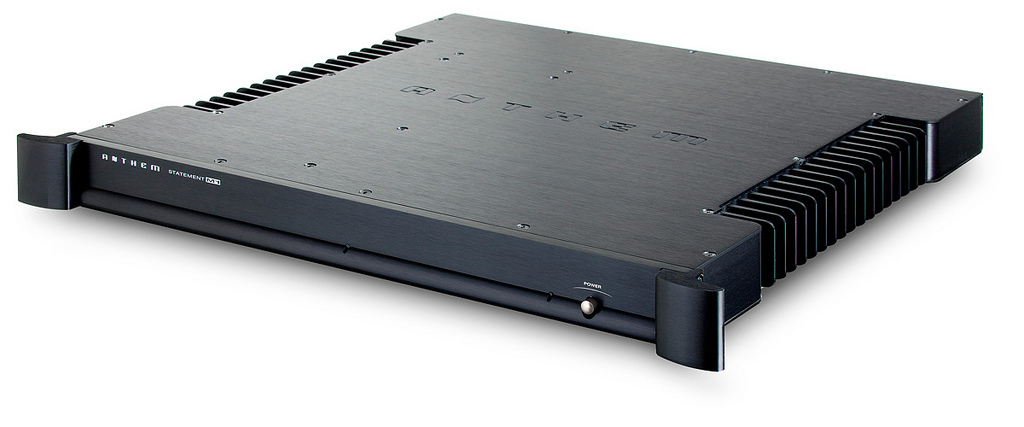

The highest sound quality at all volume levels, flat frequency response into any load, and stable into the most difficult loads. The Statement M1 is a state-of-the-art monaural amplifier delivering 1,000 watts into 8 ohms and 2,000 watts into 4 ohms or less with THD remaining under 0.1% from 20 Hz to 20 kHz. Designed and engineered in our advanced research center in Ottawa, Canada, the M1 is manufactured in our Toronto facility.
More than just a slim, technologically advanced monaural design, the M1 demonstrates that Class D architecture isn't fundamentally flawed, it simply hasn't been implemented well in the past, mainly because it required such a heavy commitment to R&D. We’re fortunate to have the in-house resources to create such a groundbreaking product and one listen will reveal the truly extraordinary nature of this amplifier.
Cutting Edge Technology & Design
- Full resolution of all of the sonic subtleties and complexities in the input signal.
- Accurate reproduction of the full dynamic range of the signal.
- Output stage is never allowed to clip.
- No compression as output increases.
- Flat frequency response into any load, without having to resort to digital conversion or equalization to compensate.
- Stable into all loads including open circuit and short circuit.
- A low noise floor.
- Exceptional efficiency with low heat output.
- An amp so mechanically silent it will suit even the quietest listening room.
- A design that allows multiple units to be stacked with no danger of overheating.
- All of the above delivered at a price point that while not inexpensive, delivers virtually limitless dynamic fidelity.
Specifications
Power Output continuous, 20 Hz to 20 kHz, <0.1% THD+N |
8 Ω |
1000 W |
4 Ω |
2000 W |
3 Ω |
2400 W |
2 Ω |
>2000 W depending on line voltage regulation |
Frequency Response 20 Hz to 20 kHz |
Open circuit |
+/- 0.1 dB |
8 Ω |
+/- 0.1 dB |
4 Ω |
+/- 0.1 dB |
2 Ω |
+/- 0.2 dB |
|
Power Bandwidth 1000 W at 8 Ω |
5 Hz to 45 kHz |
THD+N at 1 kHz, 8 Ω |
1 W |
0.01 % |
10 W |
0.01 % |
100 W |
<0.03 % |
1000 W |
<0.06 % |
IMD 19 kHz + 20 kHz, CCIF |
0.003% |
S/N Ratio ref. 1000 W, IEC-A |
113 dB |
Voltage Gain |
29 dB |
Input Sensitivity |
100 mV for 1 W output, 3.2 V for 1000 W output (8 Ω) |
Input Impedance |
10 kΩ (RCA), 20 kΩ (XLR) |
Damping Factor |
800 to 1400 depending on frequency |

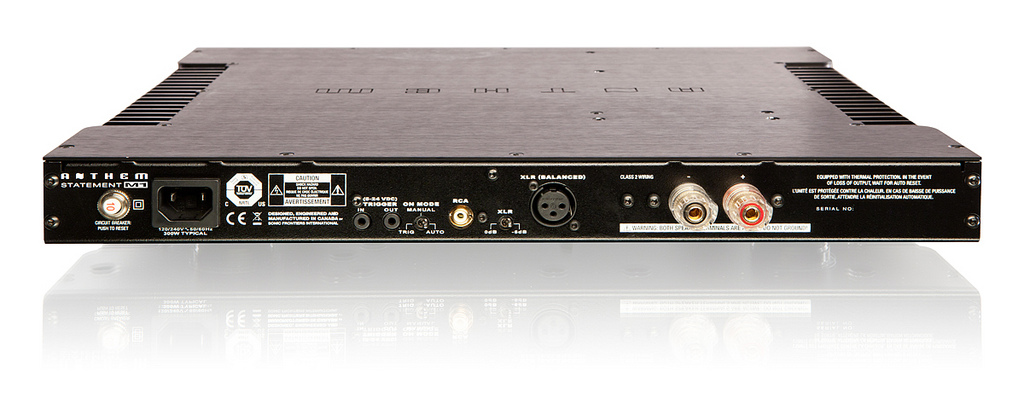

XLR Configuration |
Pin 1: Ground, Pin 2: Positive, Pin 3: Negative |
Consumption in a typical music/theater installation |
standby mode, 120V mains |
<1 W |
standby mode, 240V mains |
<2 W |
operate mode, idle |
33 W |
typical operation |
300 W |
Height with feet |
2 1/4 inches (5.7 cm) |
Height without feet |
1 rack unit |
Width standard handles |
19 1/4 inches (49 cm) |
Width rackmount handles |
19 inches (48.3 cm) |
Depth |
18 3/4 inches (47.6 cm) |
Weight (unpacked) |
20 lb (9 kg) |
