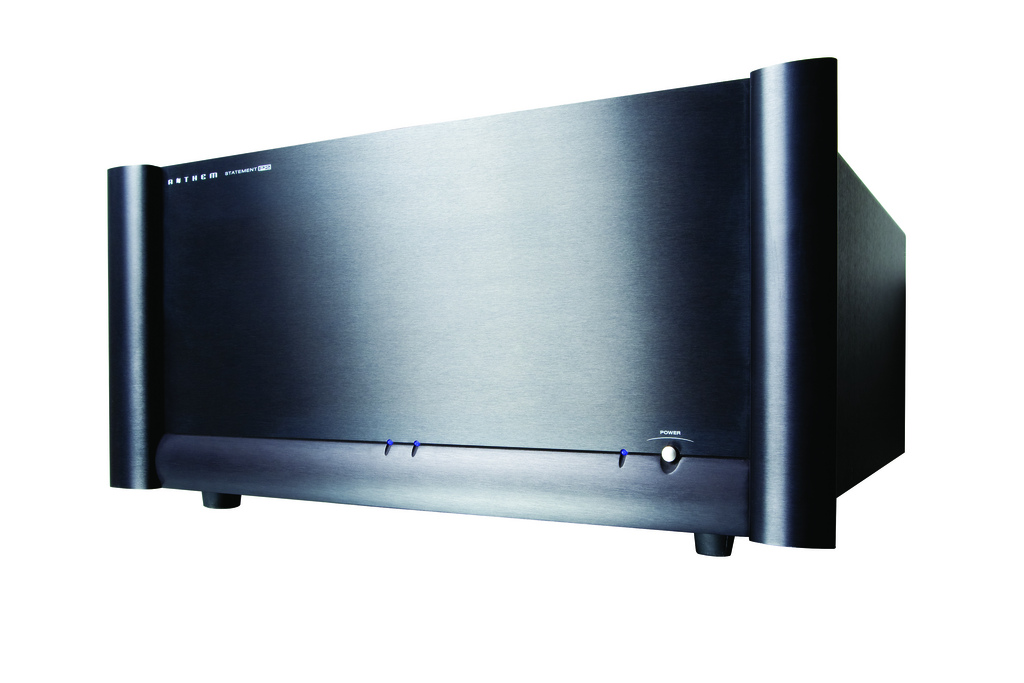

Anthem P2

Ο Anthem P2 ειναι τελικος ενισχυτης 5 καναλιων , ισχυος 2χ 325 wrms στα 8ohms. Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

6529.99€

Διαθεσιμότητα: 4-10 ημέρες

ΔΩΡΕΑΝ ΑΠΟΣΤΟΛΗ ΣΕ ΟΛΗ ΤΗΝ ΕΛΛΑΔΑ

Ο Anthem P2 ειναι τελικος ενισχυτης 5 καναλιων , ισχυος 2x 325 wrms στα 8ohms.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

In life we admire “heart.” When we say someone has heart we mean passion, spirit, fortitude. And we applaud it. While the amplifier is the brawn behind every successful music and movie presentation, it is also the heart! Its role is as crucial as that of the speakers in its ability to render delicate musical detail one moment and deliver room-shaking explosions the next. The most exquisite piece of music falls flat without clean, quiet power to sustain it through to its natural, musical ebb. Movie special effects require an inordinate supply of stable, high current power to give visceral credibility to the “special” aspect of each effect! In fact, all truly successful sound reproduction requires “heart.” The heart of an amplifier rests with its design and it is here that P2 and P5 amplifiers reveal their high-end lineage: multi-layered, hand-designed circuit boards with thick copper traces; rugged, independent power supplies with tuned toroidal power transformers for each amplifier channel; fourteen rugged bipolar output devices per channel; custom-designed convection-cooled heatsinks with serrated fins; a “no-fuse” design strategy. And the list goes on.

Specifications

General
Inputs 2 Single-Ended, 2 Balanced, 1 Relay Trigger (3.5 mm Mono Jack)
Outputs 2 Pairs Speaker Binding Posts, 1 Relay Trigger (3.5 mm Mono Jack)
THD+N (225 W into 8 Ω) 0.0007% at 1 kHz, 0.008% at 20 kHz
IMD 0.00019% (CCIF, 325 W into 8 Ω)
POWER BANDWIDTH 10 Hz to 150 kHz
(+0 -3 dB, 325 W into 8 Ω)
FREQUENCY RESPONSE 20 Hz to 20 kHz (+0 -0.15 dB),
5 Hz to 100 kHz (+0 -2 dB)
INPUT SENSITIVITY (RCA and XLR 0 dB inputs) 1 Vrms in for 28.3 Vrms out
(100 W into 8 Ω)
INPUT IMPEDANCE 18 kΩ (RCA), 22 kΩ (XLR)
DAMPING FACTOR >600 at 20 Hz, 400 at 1 kHz (ref. 8 Ω)
S/N RATIO 125 dB, A-weighted (ref. 325 W)
CROSSTALK (between any two channels) -140 dB (20 Hz), -80 dB (20 kHz)
VOLTAGE GAIN 29 dB
SLEW RATE 40 V/µs
SWITCHES
Front Panel Power (On/Off)
Rear Panel On/Off Modes (Trigger, Manual, Auto), Inputs (RCA, XLR, XLR -6dB)
POWER OUTPUT
(Per channel, continuous RMS, 20 Hz to 20 kHz, <0.1% THD, one or all channels driven.)
Impedance
# of Channels Driven 1 All 1 All 1 All
  325 W 325 W 500 W 500 W 675 W 675 W
Statement P2 and P5 amplifiers are stable into any impedance down to a short circuit at full output.
POWER REQUIREMENTS
SUPPLY VOLTAGE 105 to 130 V, 60 Hz
POWER CONSUMPTION 1800 W
DIMENSIONS
Height 9-3/8 inches (23.8 cm) including feet
Width Faceplate 19-1/4 inches (49 cm)
Chassis 17-1/4 inches (43.8 cm)
Depth 22-1/2 inches (57.2 cm) including handles
Weight (unpacked) 75 lb (34 kg)
