Ο Anthem STR Power Amplifier ειναι ενας δικαναλος τελικος ενισχυτης, ισχυος 2x400wrms at 8ohms, 2x600wrms at 4ohms, 2x800wrms at 2ohms.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

The STR Power Amplifier is the beating heart of a world-class 2-channel sound system. It delivers massive power generation, with audiophile-quality output in a smartly designed component.

Designed, engineered, and Crafted in Canada, the STR Power Amplifier delivers 400 Watts/channel into 8 ohms with both channels driven, a massive 600 Watts/channel into 4 ohms (both channels driven) and 800W in 2 ohms, for true no-holds-barred performance.

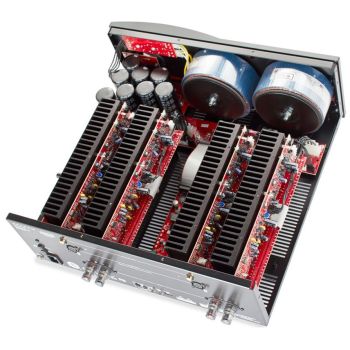

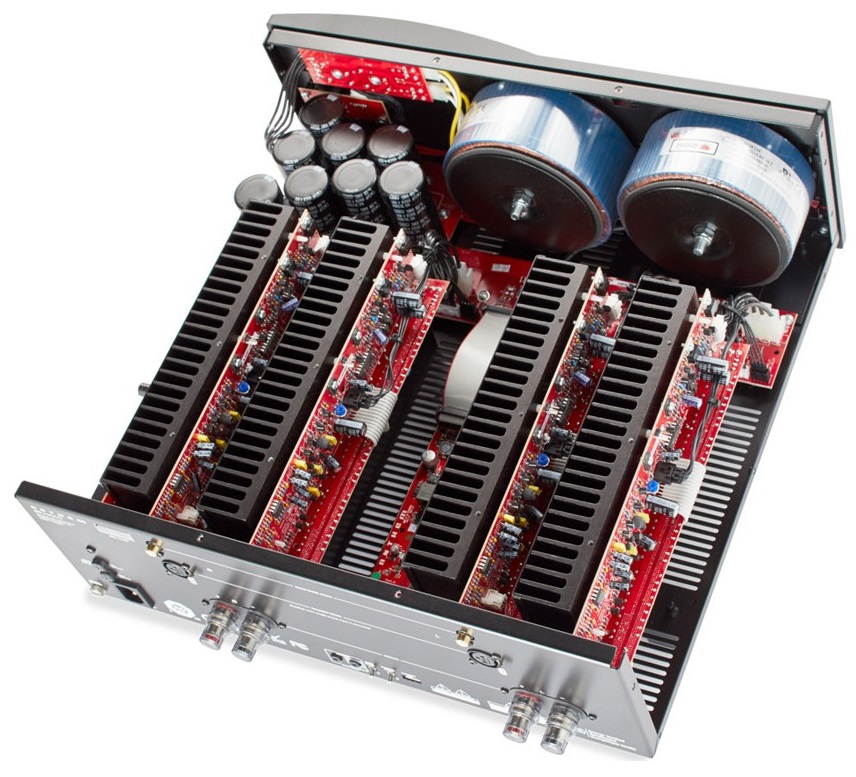

Inside, the STR Power Amplifier uses two colossal transformers and multiple high-current output devices so the most subtle details and dynamic peaks are handled equally well. Outside, its beautifully designed cosmetics, including a 7-inch graphic control display and secure, highly conductive audiophile connectors provide a perfect match to the STR Preamplifier.

Features

• 400W/600W/800W into 8/4/2 ohms
• Cascoded complementary feedback input stage
• Sixteen bipolar output devices per channel
• Dual Mono Design
• Massive toroidal transformers
• Soft turn-on
• Four power on/off options
• No rail fuses
• Advanced Load Monitoring™ Technology

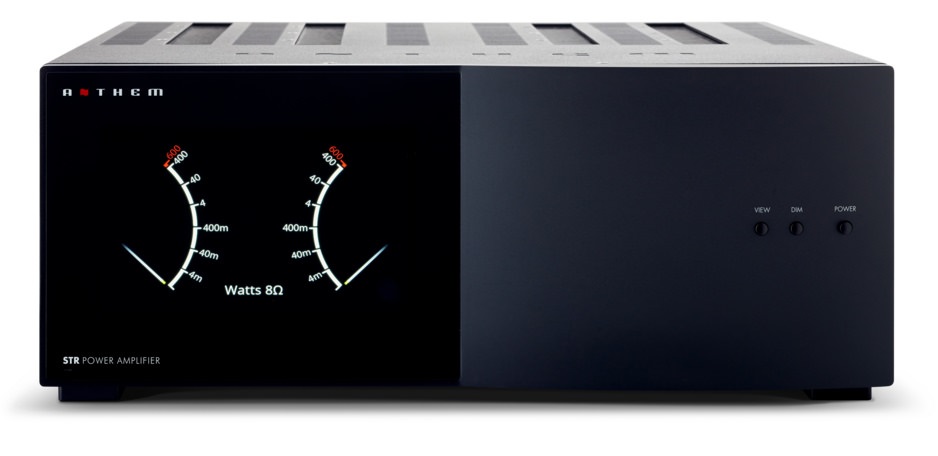

• Graphic front panel display for the power meter, status, and easy setup navigation
• Available in Silver and Black Finishes
• Crafted in Canada

Cascoded Complementary Feedback Input Stage
The STR Power Amplifier benefits from our proprietary input topology—a unique departure from the classic differential input stage. Eight low-noise bipolar input devices are configured in a complementary active-load cascoded feedback arrangement for reduced distortion, exceptionally linear response and superior bandwidth. Transistors in critical stages are hand-selected and matched for lowest possible distortion.

Sixteen Bipolar Output Devices Per Channel
Anthem engineers incorporated sixteen bipolar output devices per channel, resulting in peak production that is effortless and instantaneous, cinching even the most challenging material. The use of multiple bipolar output devices in class AB configuration also dramatically reduces distortion while ensuring extreme linearity, extensive bandwidth, and stress-free reliability.

Experience the immense dynamics of up to 800 clean watts delivered into demanding 2-ohm loads, or 400W into 8 ohms/600W into 4 ohms continuously and with both channels driven.

Massive Toroidal Transformers
Conservatively rated, in a low-profile design shaped to minimize hum, the low-impedance toroidal power transformers — one for each channel — make no sacrifices when it comes to delivering a continuous supply of pure, clean, low noise power. As well, both the power supply impedance and internal cabling inductance are minimized to deliver a clear path for maximum power.

The amplifier channels are thus able to deliver stable, continuous power at maximum output without affecting one another, even when driving the lowest impedances. While some amplifiers oscillate or run out of power when driving lower impedance loads, the STR Power Amplifier remains perfectly stable under all conditions.
Soft Turn-On

A sequence-controlled soft turn-on significantly reduces power line transients and in-rush current during start up, thereby preventing accidental tripping of circuit breakers.

No Rail Fuses
The amplifier sections are Direct Connected to the power supply capacitor bank. This keeps output impedance remarkably low while making more power available to the amplifier. Even when driving lower or complex impedance loads, the result is audibly superior performance.
Power On/Off Options

In addition to the traditional options for power-on, the STR Power Amplifier allows trigger mode and audio signal sensing to be combined so you would never need to think about turning the amplifier on or off manually. This can be useful when using a preamp with Home Theater Bypass mode together with a surround sound processor in the same system.
The Crafted in Canada Difference

The STR Power Amplifier is designed, engineered and manufactured in Canada and is part of premium STR Series by Anthem, the leader in audio power and control.

Specifications

• 400 watts per channel into 8 ohms (frequency bandwidth not given) at 0.004% THD with 2 channels driven
• 600 watts per channel into 4 ohms
• 800 watts per channel into 2 ohms
• Class AB design with 16 high-current bipolar output transistors per channel for ultra-low distortion
• 2 massive toroidal transformers (1 per channel) for stable, noise-free operation
• direct connection between amplifier sections and power supply capacitor bank keeps output impedance low while making more power available to the amplifier
• Advanced Load Monitoring™ technology monitors internal temperature, current, and voltage to ensure safe, uninterrupted operation
• front-panel power meters show the instantaneous peaks in the signal for each channel
• manual, triggered, or signal-sensing auto power on/off options

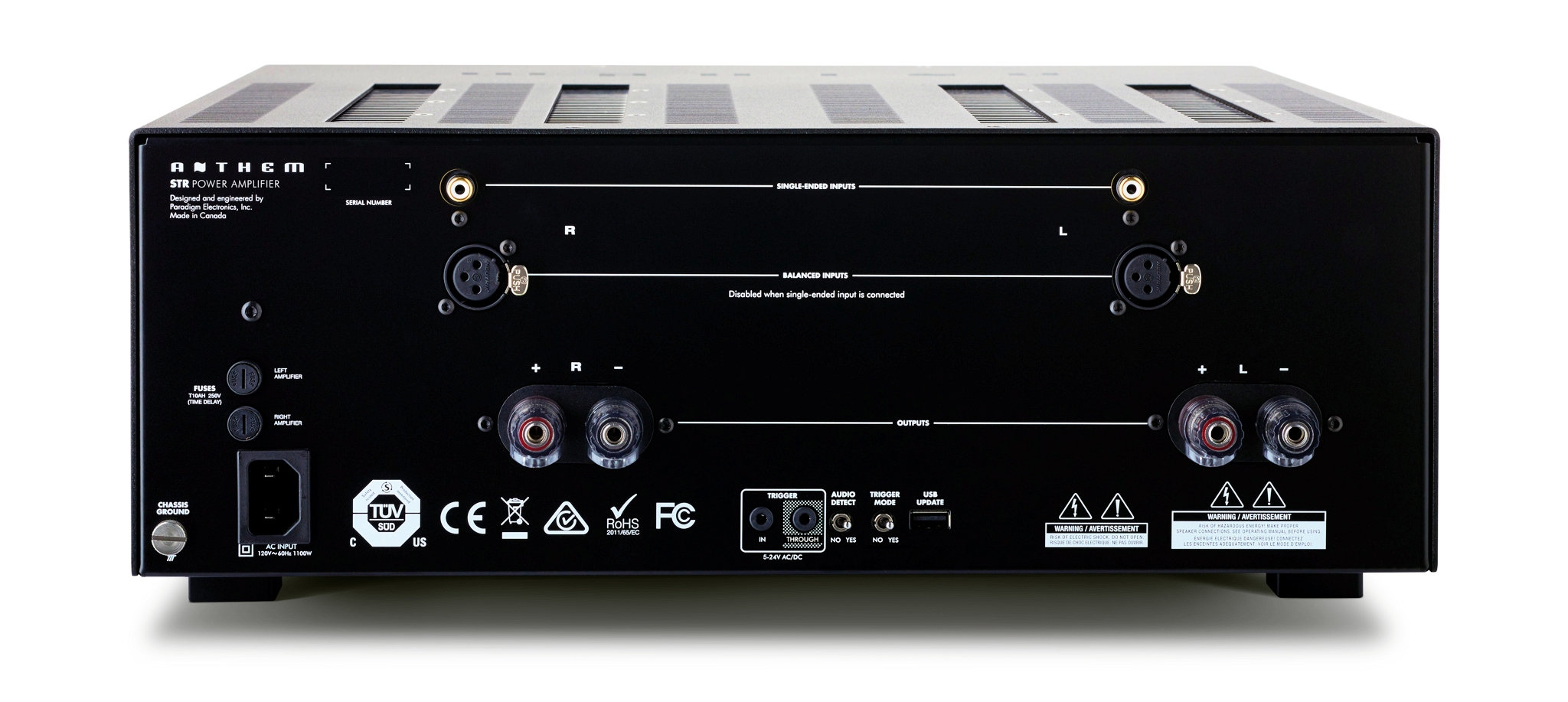

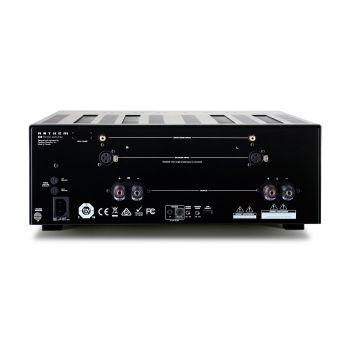

• stereo balanced XLR and unbalanced RCA inputs
• custom-designed oversized binding post terminals accept bare wire, banana plugs, and spade lugs
• 3.5mm trigger jacks allow the amplifier to be turned on or off remotely
• detachable power cord
• designed, engineered, and manufactured in Canada
• total harmonic distortion: 0.004%
• signal-to-noise ratio: 121 dB
• 17.2cm x 43.2cm x 47cm
• weight: 27.3 kg
• warranty: 5 years
