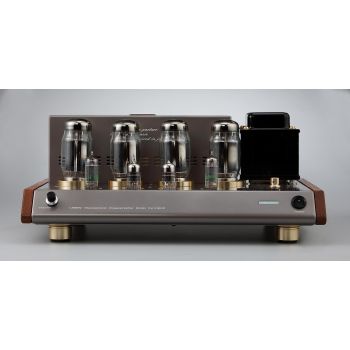

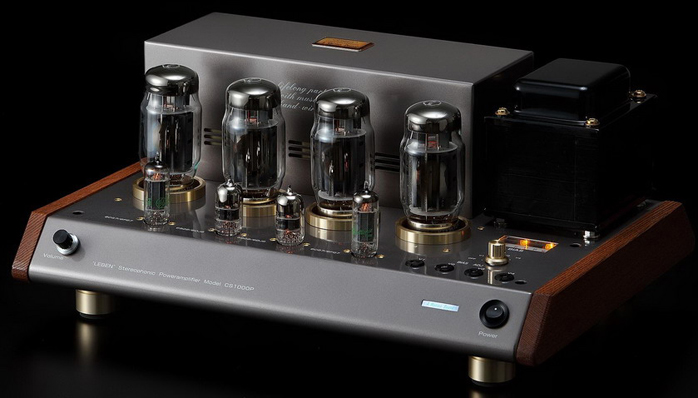

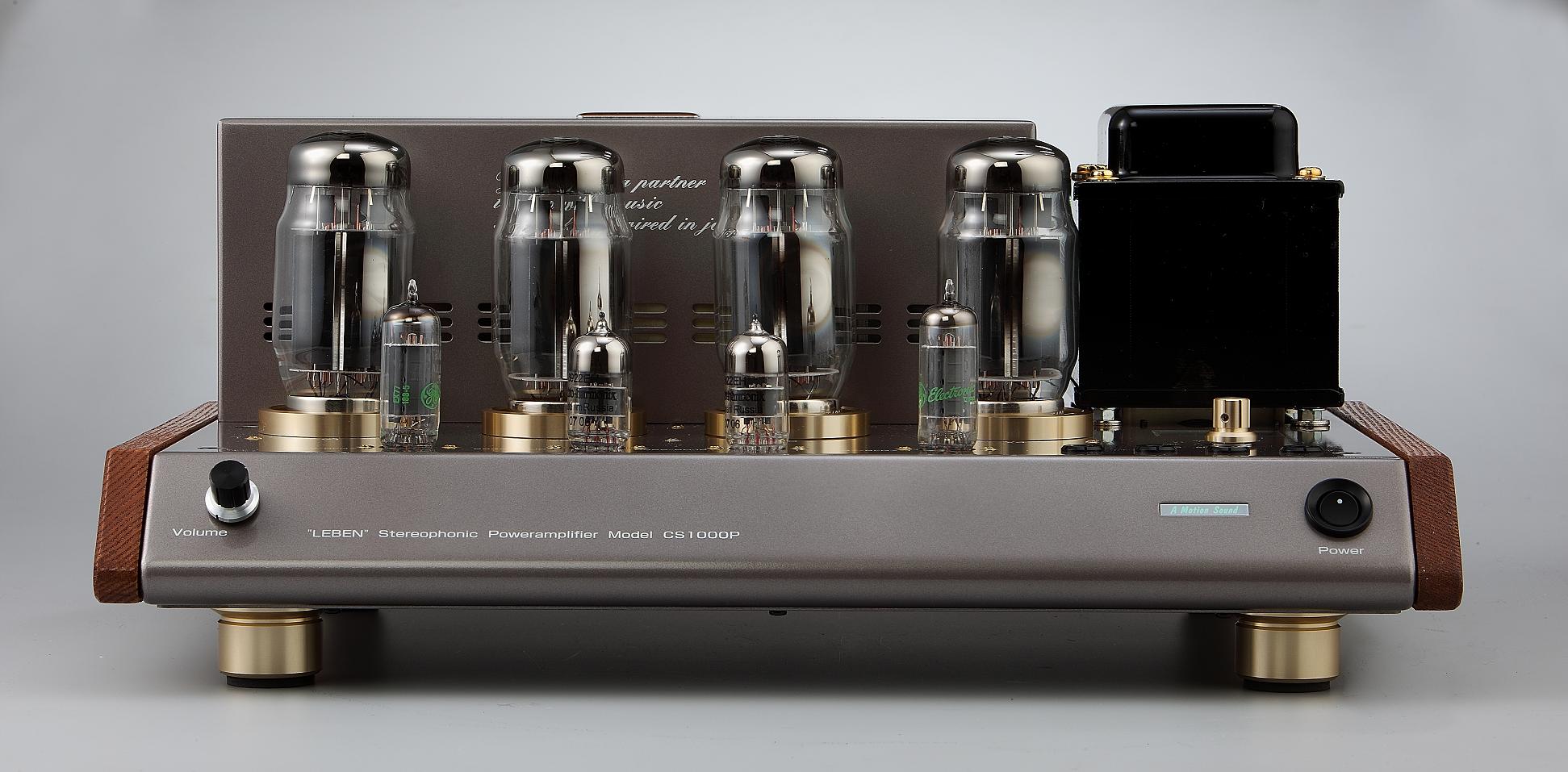

Ο Leben CS-1000P ειναι ειναι δικαναλος τελικος ενισχυτης 2χ100 wrms.
Features
- High power output tube KT120(Super KT88) 100W/ch(1KHz) at Pentode circuit (70W/ch at Triode).

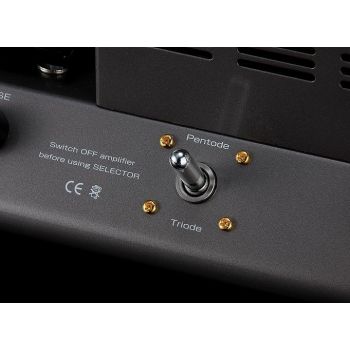

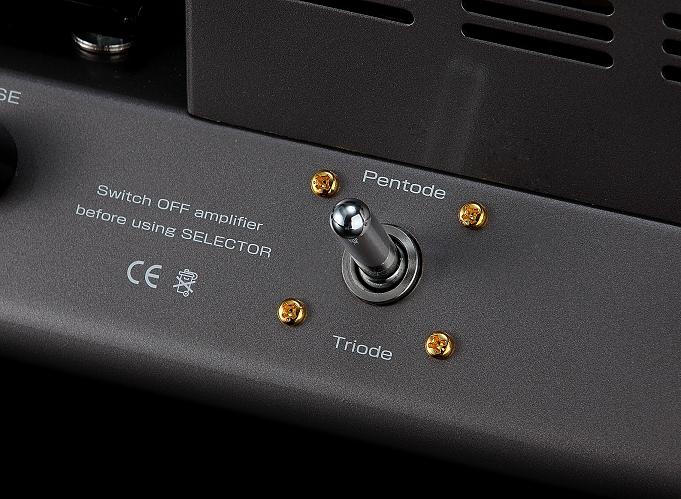

- Pentode/Triode selector switch Bias adjustment with a Cathode-direct meter Several type of output tubes are applicable by adjusting the cathodal electric current.
- Newly developed Orient-core output transformer A minimum loss and a Superior high-frequency response.
- Flat and wide Frequency Response A wide frequency response from 10Hz to 150KHz(-0dB) caters for digital audio formats such as SACD/HDCD.
- High rigidity solid aluminum insulators
- Super-high sensitivity bias meter made by a long-established manufacturer.
- High-grade Metal glaze resistorals of below 1% error margin.
- High-grade 41-steps Detent Volume of ALPS.
Specifications
TUBES COMPLIMENT |

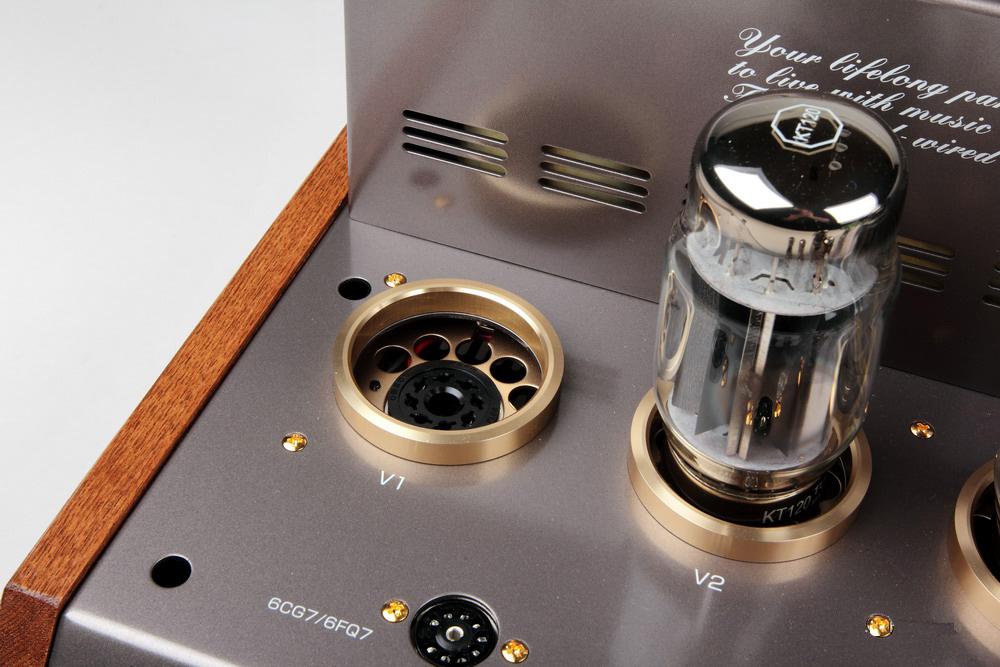

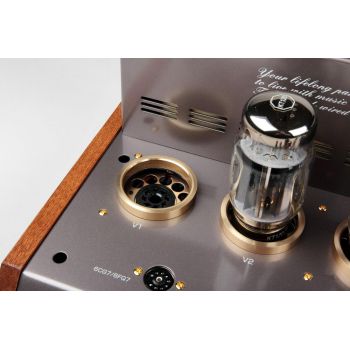

KT120 x 4
6922/6DJ8(ECC88) x 2
6CG7/6FQ7 x 2
|
OUTPUT POWER |
100W x 2 at 1KHz. |
FREQUENCY RESPONSE |
10Hz - 150KHz. (-3dB) |
INPUT SENSITIVITY |
0.4V at 50W |
INPUT IMPEDANCE |
100K Ohms. |
OUTPUT IMPEDANCE |

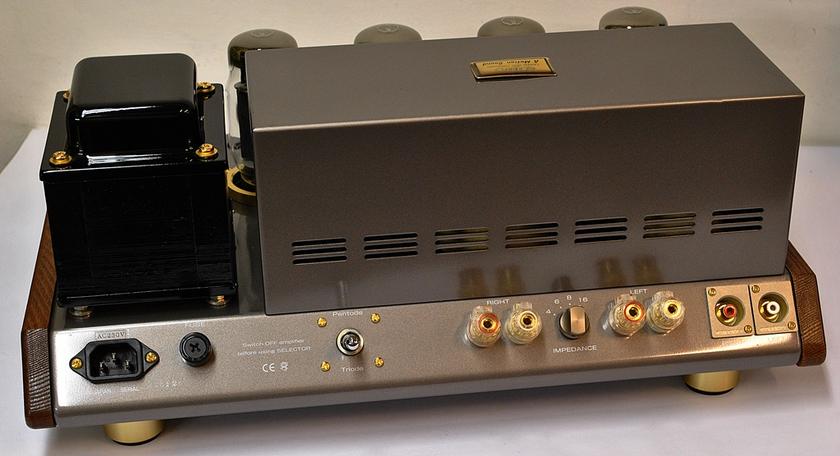

4/6/8/16 Ohms (Selectable) |
POWER CONSUMPTION |
|
WEIGHT |
23.5 Kgs. |
DIMENSIONS |
455 (W) X 200 (H) X 335 (D) mm |
ATTACHMENT |
Detachable AC Power Cable x 1 |
