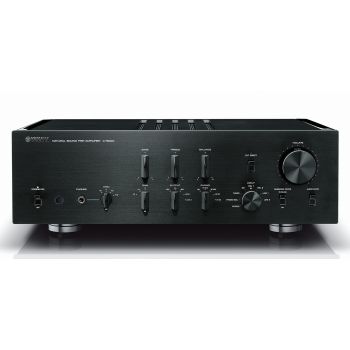

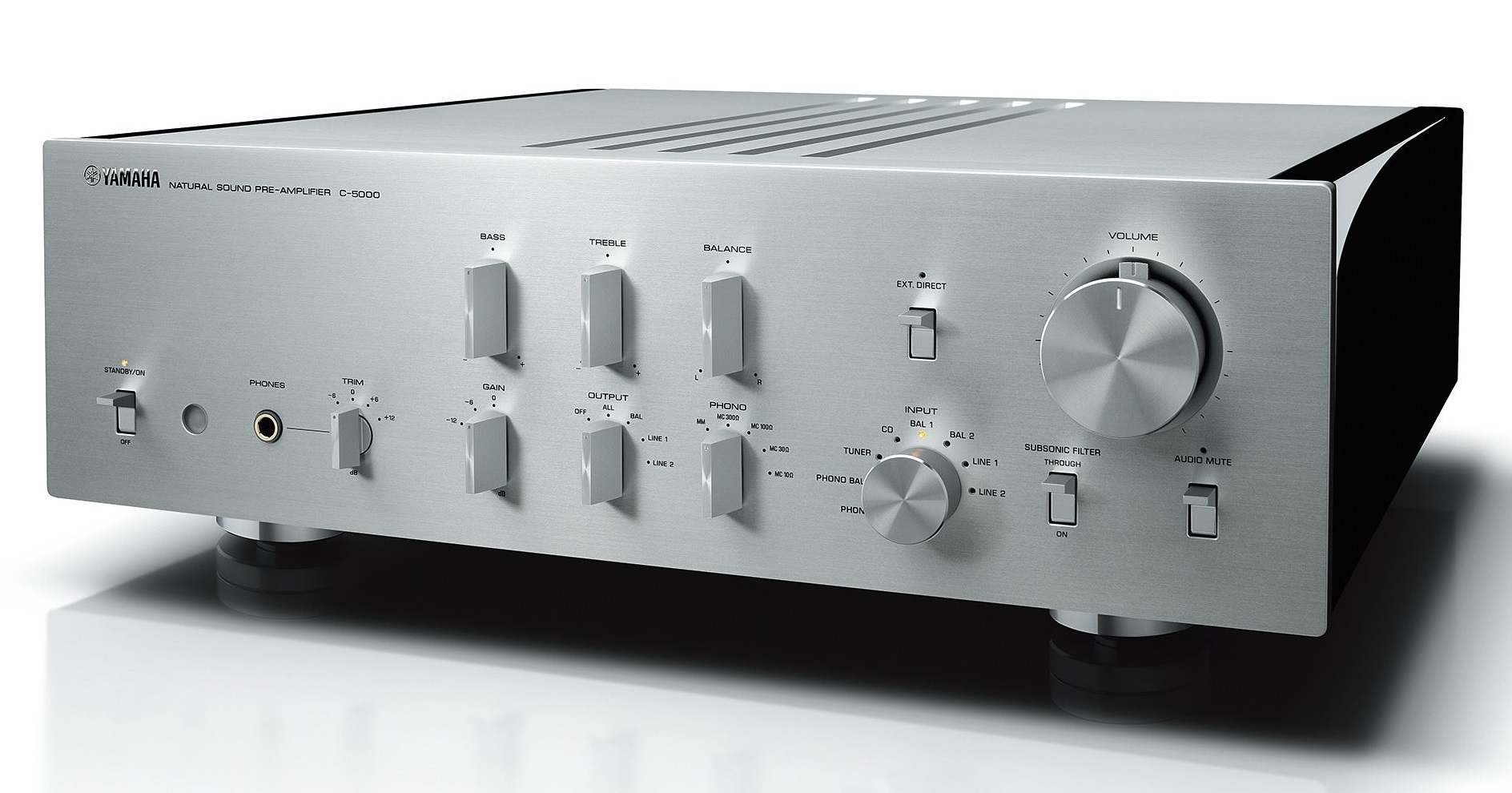

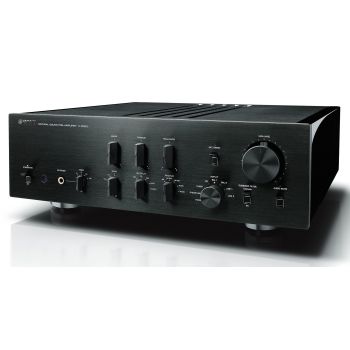

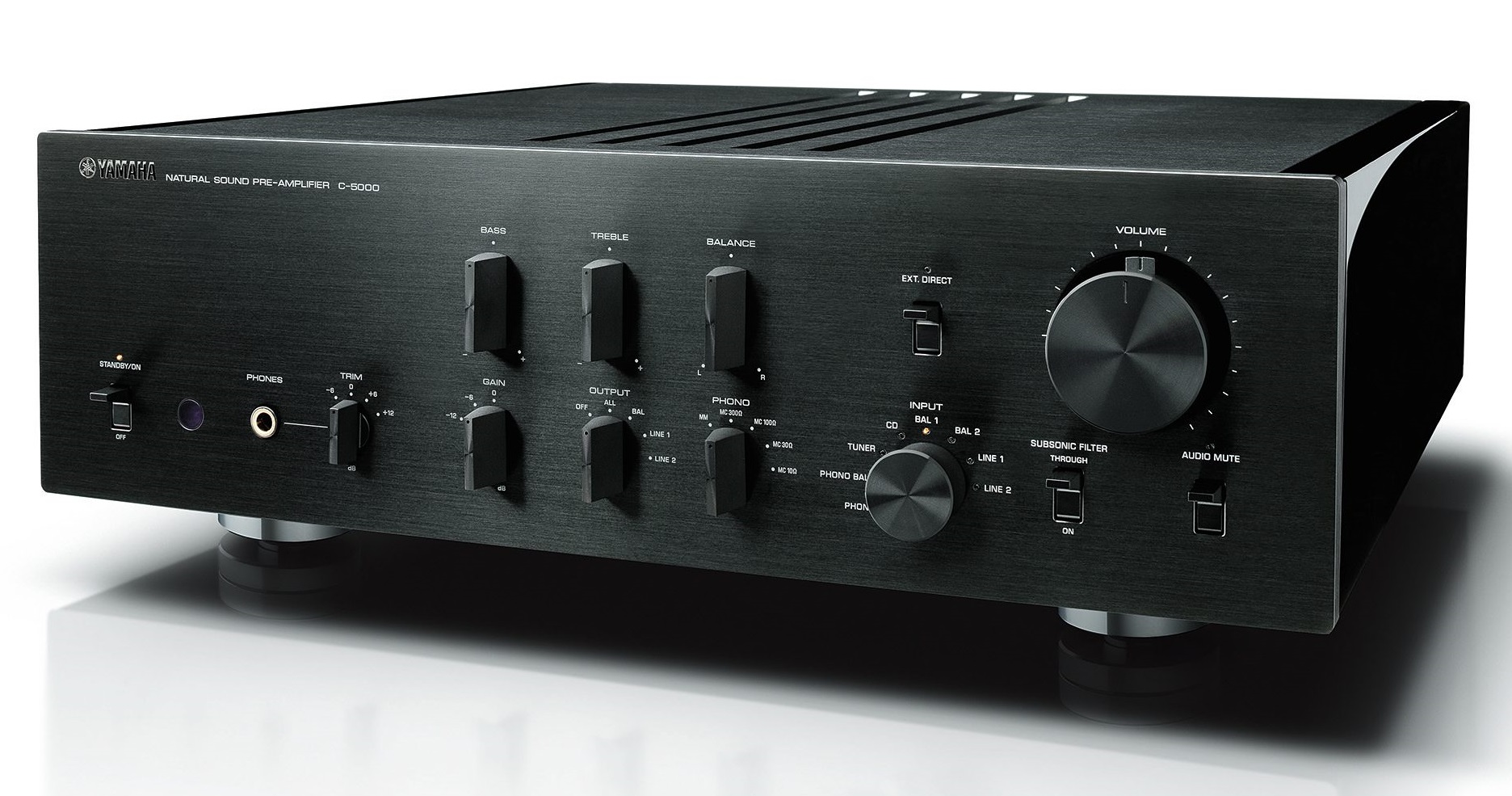

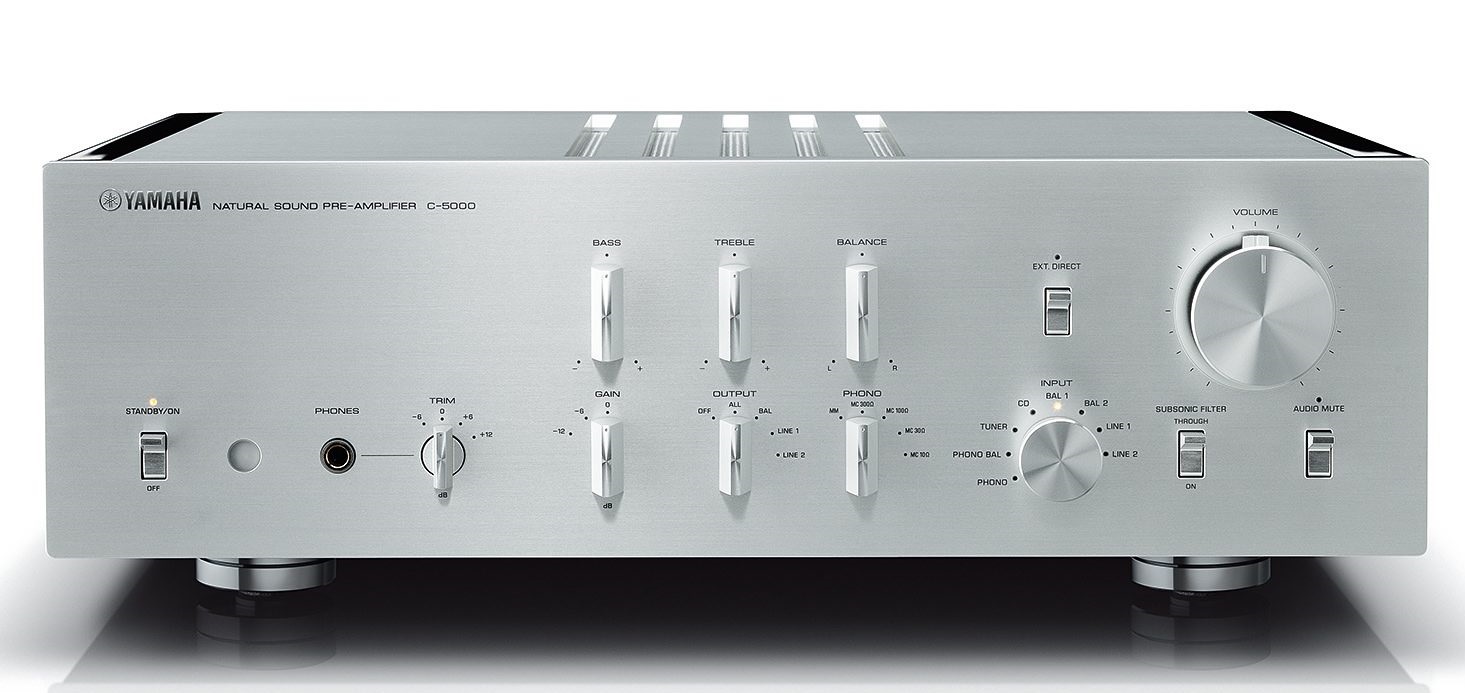

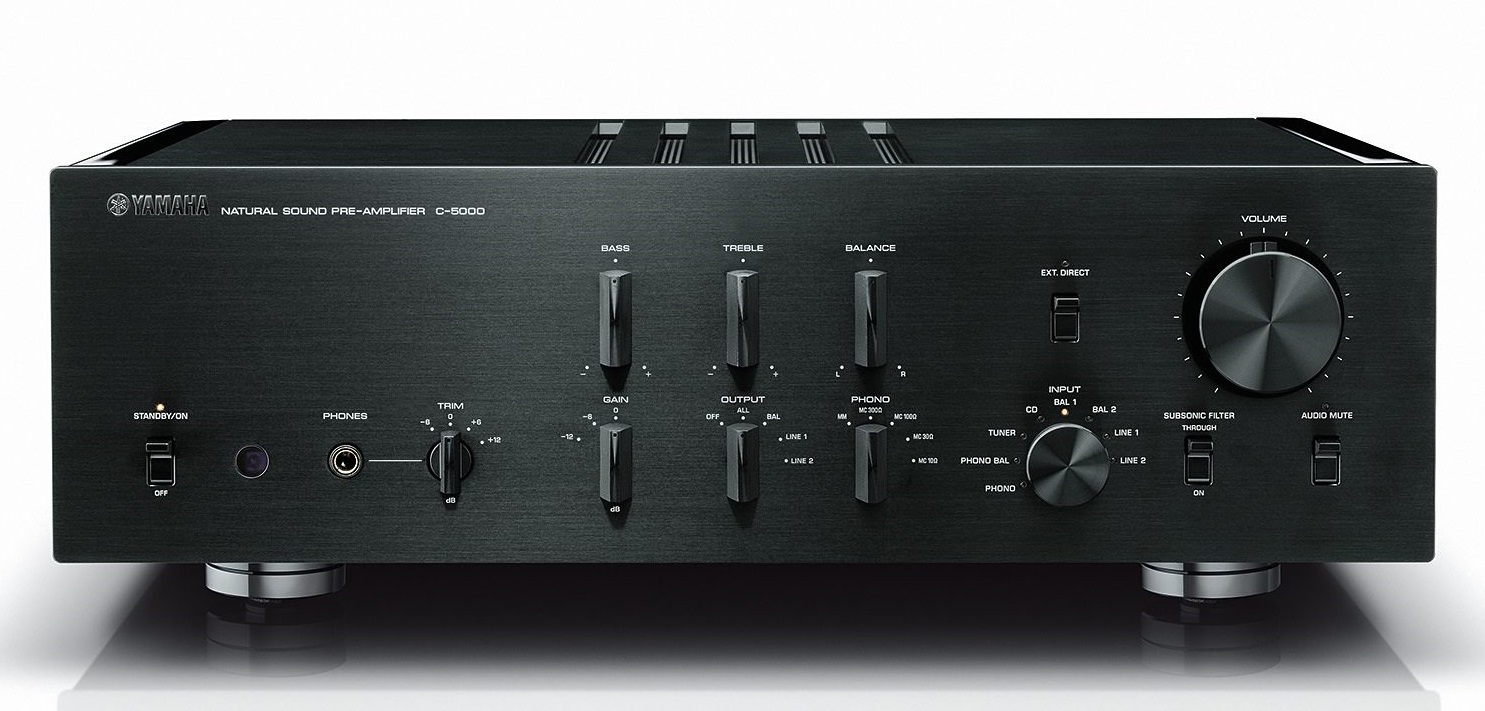

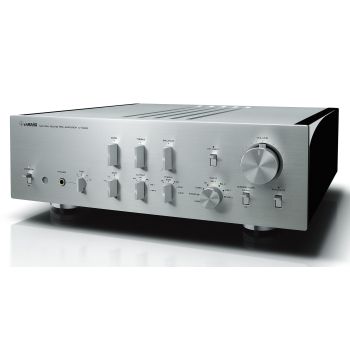

Ο Yamaha C-5000 ειναι full balanced προενισχυτης.

Εγγυηση 2 χρονια αντιπροσωπειας (Φ.ΝΑΚΑΣ). Δυνατοτητα δοσεων.

In pursuit of the intangible musical quality that breathes life into high-fidelity audio, the world's largest sound company presents the C-5000 pre-amplifier. From the concert stage to the home, Yamaha has drawn on its vast musical history to create an instrument capable of faithfully reproducing every nuance and emotion in the performance.

Features

• Perfectly balanced signal transmission
• Floating balanced pre-amp
• Symmetrical, folding-book circuit design
• Low-impedance design
• Rigid and precise design

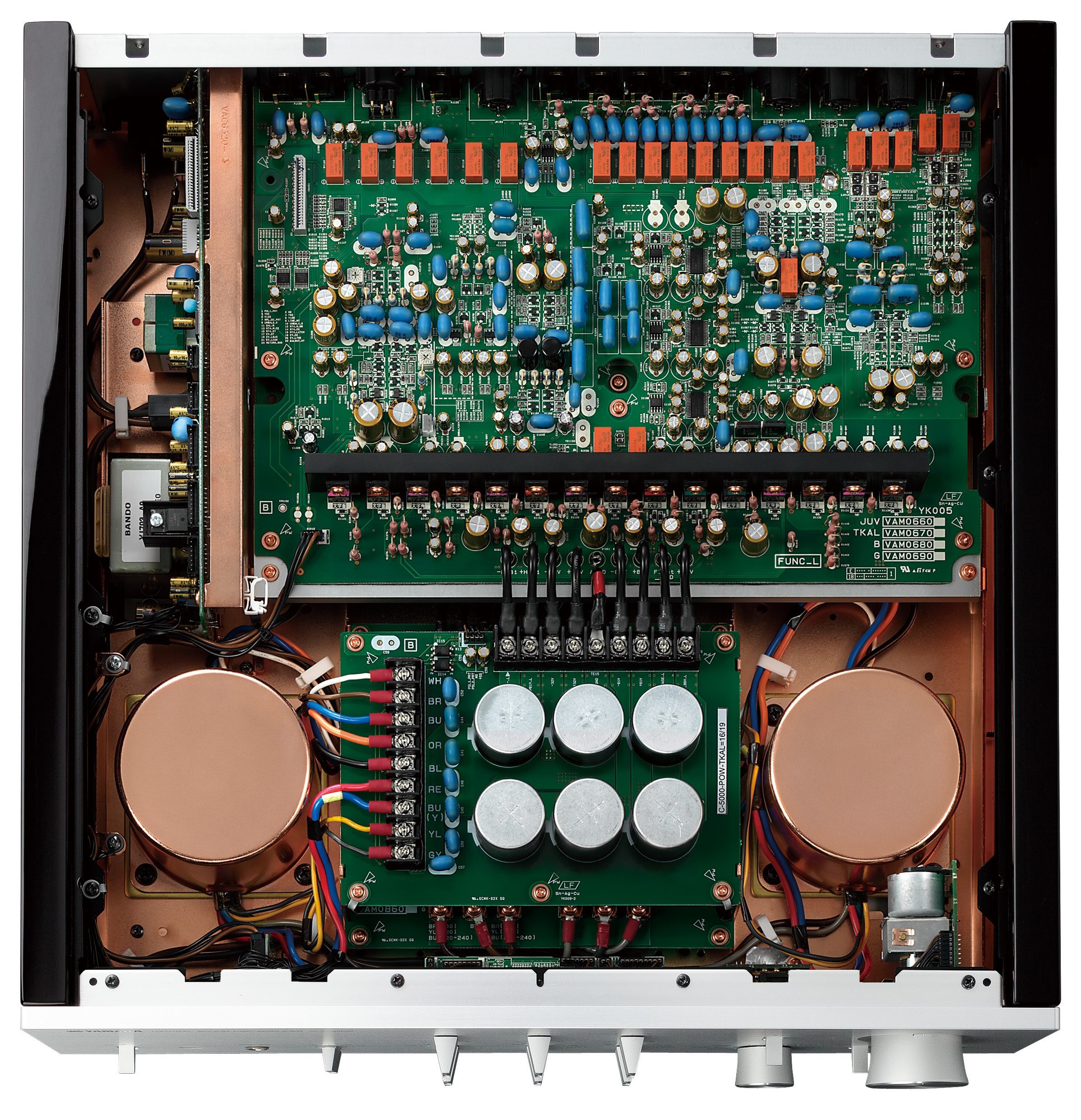

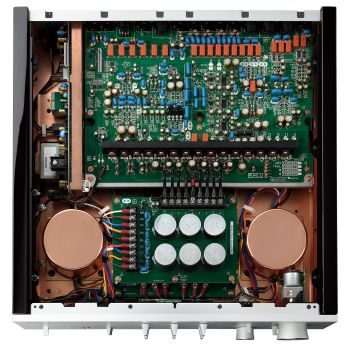

• Dual Toroidal Transformer

Specifications

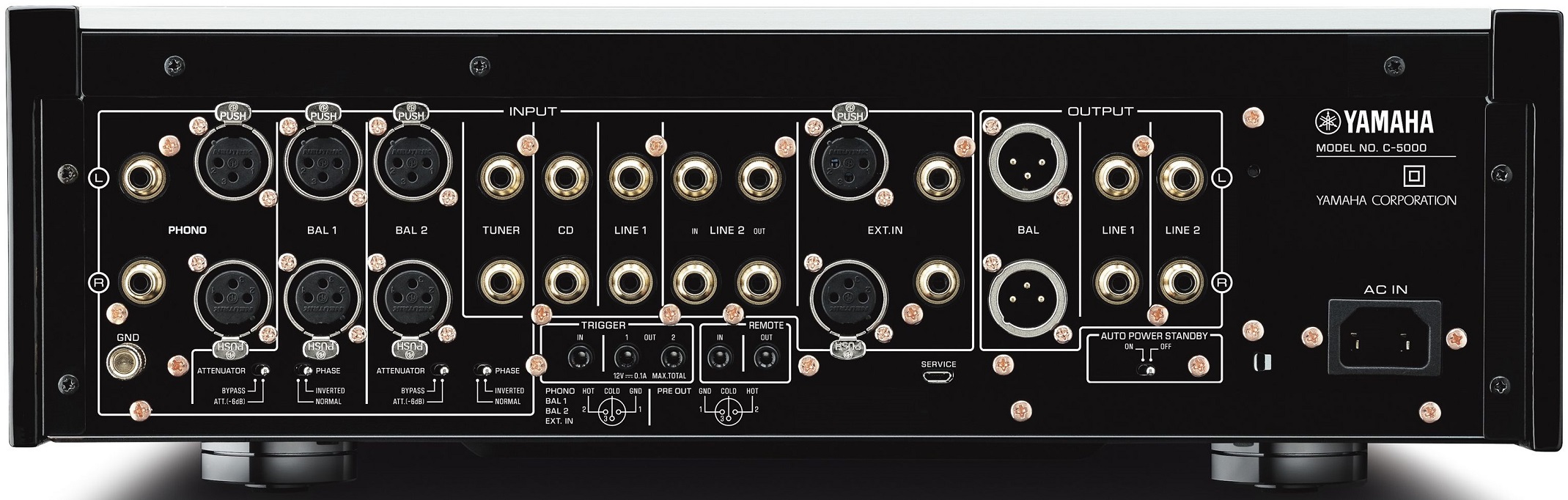

• Input Terminal     RCA:6 (PHONO, TUNER, CD, LINE 1, LINE 2 IN, EXT IN), BAL:4 (PHONO, BAL 1, BAL 2, EXT IN), TRIGGER IN: 1 (Slave mode), REMOTE IN:1
• Output Terminal     RCA:3 (LINE 2 OUT, LINE 1, LINE 2), BAL:1 (BAL), TRIGGER OUT: 2 (Master mode), REMOTE OUT:1
• Rated Output Voltage     [Input 200 mV, 20 Hz-20 kHz, 0.01% THD] (BAL BYPASS) 2 Vrms / 150 ohm, (BAL ATT) 1 Vrms / 150 ohm, (LINE 1 / LINE 2) 1 Vrms / 150 ohm), (LINE 2 RECOUT) 200 mVrms / 1.2 kohm
• Maximum Output Voltage     [1 kHz, 0.05% THD] (BAL) 6 Vrms, (LINE 1 / LINE 2) 3 Vrms, (LINE 2 RECOUT) 3Vrms
• Input Sensitivity / Input Impedance     [BAL / LINEOUT: 1 V] (BAL) 200 mVrms / 52 kohm, (LINE,etc) 200 mVrms / 47 kohm, [LINE 2 RECOUT, 150mV (1 kHz) ] (PHONO MC 300 ohms) 100 uVrms / 300 ohms, (PHONO MC 100 ohm) 100 uVrms / 100 ohms, (PHONO MC 30 ohm) 100 uVrms / 30 ohm, (PHONO MC 10 ohm) 100 uVrms / 10 ohm, (PHONO MM BAL(UNBAL)) 2.5 mVrms / 52 k(47 kohm), (EXT IN) 1 Vrms / 20 kohm
• Maximum Input Signal Voltage     [LINE2 REC (1kHz, 0.05% THD)] (BAL) 2.8 Vrms, (BAL ATT) 5.6 Vrms, (LINE,etc) 2.8 Vrms,(PHONO MC) 2 mVrms, (PHONO MM) 50 mVrms, ?BAL/LINEOUT (1kHz 0.05% THD)?(EXT IN) 5.6 Vrms
• Frequency Response     [JEITA, Load 22 kohm] (BAL/LINE, etc) +0 / -3 dB (10 Hz-100 kHz), +0 / -0.3 dB (20 Hz-20 kHz)
• Total Harmonic Distortion Plus Noise     [JEITA, Input: 0.5 V] 0.0100% (BAL [LINE, etc.] to BAL [LINE], 20 Hz-20 kHz), 0.0200% (MM / MC BAL [UNBAL] to LINE 2 RECOUT, 20 Hz-20 kHz)
• Channnel Separation     [JEITA, Input 1.0 kohm terminated, 1 kHz / 10 kHz] 110 dB or higher (BAL / LINE, etc.), 80 dB or higher (MC, BAL / UNBAL), 98 dB or higher (MM, BAL / UNBAL)
• Function Separation     [IHF-A network, Input 1.0 kohm terminated, JEITA] 110 dB or higher (BAL / LINE, etc.), 75 dB or higher (MC, BAL / UNBAL), 95 dB or higher (MM, BAL / UNBAL)
• Signal-to-Noise Ratio     [IHF-A network, Input 1.0 kohm terminated, JEITA] 110 dB or higher (BAL / LINE, etc.), 80 dB or higher (MC, 300 ohms, BAL / UNBAL), 98 dB or higher (MM, BAL / UNBAL)
• Residual Noise     [IHF-A network] 3 uV (BAL / LINE OUT)
• Tone Control Characteristics     (BASS) Boost / Cut [30 Hz] ±9 dB, Turnover Frequency 350 Hz, (TREBLE) Boost / Cut [20 Hz] ±9 dB, Turnover Frequency 3.5 kHz
• Headphone Jack Rated Output Power     35 mW + 35 mW (CD, etc. [1 kHz, 32 ohm, 0.2% THD])
• Deviations from RIAA Equalizer     ±0.5 dB (MC / MM BAL [UNBAL])
• Subsonic Filter     15 Hz: -3 dB (MC / MM BAL [UNBAL])
• General     Power Consumption     60 W
• Standby Power Consumption     0.2 W
• Power Management (Auto Power Standby)     Yes
• Dimension (W×H×D)     435 x 142 x 451 mm
• Weight     19.1 kg
