H Goldring Elite ειναι κεφαλη κινητου πηνιου MC (Moving Coil) με ισχυρους μαγνητες νεοδιμιου σωμα απο Pocan. Εξοδος 0.5mV.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

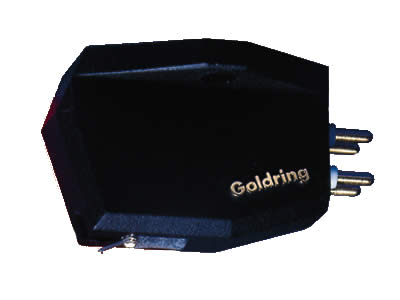

The Elite is an ultra high-performance low-output moving coil cartridge which incorporates Goldring's most recent design features. These include new magnetic circuitry, an ultra-rigid Pocan body and a Neodymium magnet. The Elite incorporates a Gyger 1 line contact stylus, providing maximum groove information retrieval and an outstandingly smooth and extended response. Optimum damping on both channels is achieved by symmetrically winding the low-mass armature. Silver wire is used for the coils, which supplies much higher definition than is found in standard cartridge construction. The Elite represents the very best in British audio technology and design.

Specifications

• Frequency Response     20Hz-30kHz±2 dB
• Channel Balance     1dB max. @ 1kHz
• Channel Separation     25dB min. @ 1kHz
• Sensitivity     0.5mV±1dB
• Static Compliance     18mm/N
• Equivalent tip mass     0.35 mg
• Vertical Tracking Angle     20°
• Stylus Radius     Gyger I
• Stylus Type     Non-Replaceable
• Load Resistance     100 Ohm
• Load Capacitance     100-500pF
• Internal Inductance     2 µH
• Internal Resistance     8 Ohm
• Cartridge Weight     5.7g
• Fixing Centre     0.5??? (12.7mm)
• Playing Weight     1.5-2.0g (1.7g nom.)
