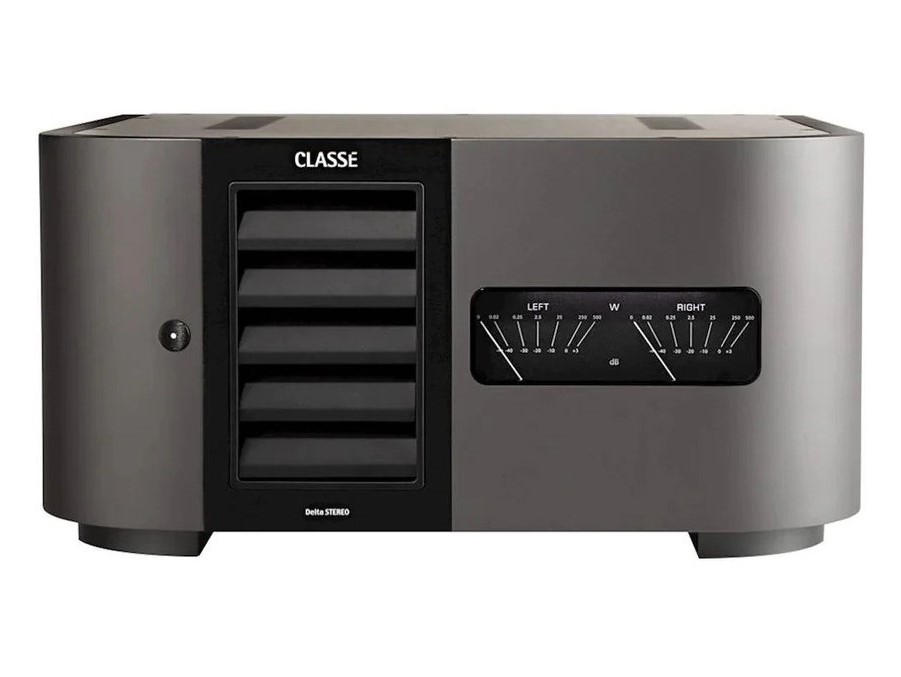

Ο Classe Delta Stereo ειναι τελικος ενισχυτης 2x 250 wrms/8ohms (εκ των οποιων τα πρωτα 2x 12.5 wrms σε Class A).

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων, ανταλλαγων.

Features

• Up to 12.5W per Channel delivered in pure Class A operation
• 250W per Channel total
• Massive, high-quality power supply
• Custom toroidal transformer
• Hand-laid circuit boards
• 6-layer circuit boards provide for shortened signal and power pathways with lowest noise
• 22 4-pole Mundorf® capacitors
• Custom-made Navcom® feet to absorb vibrations

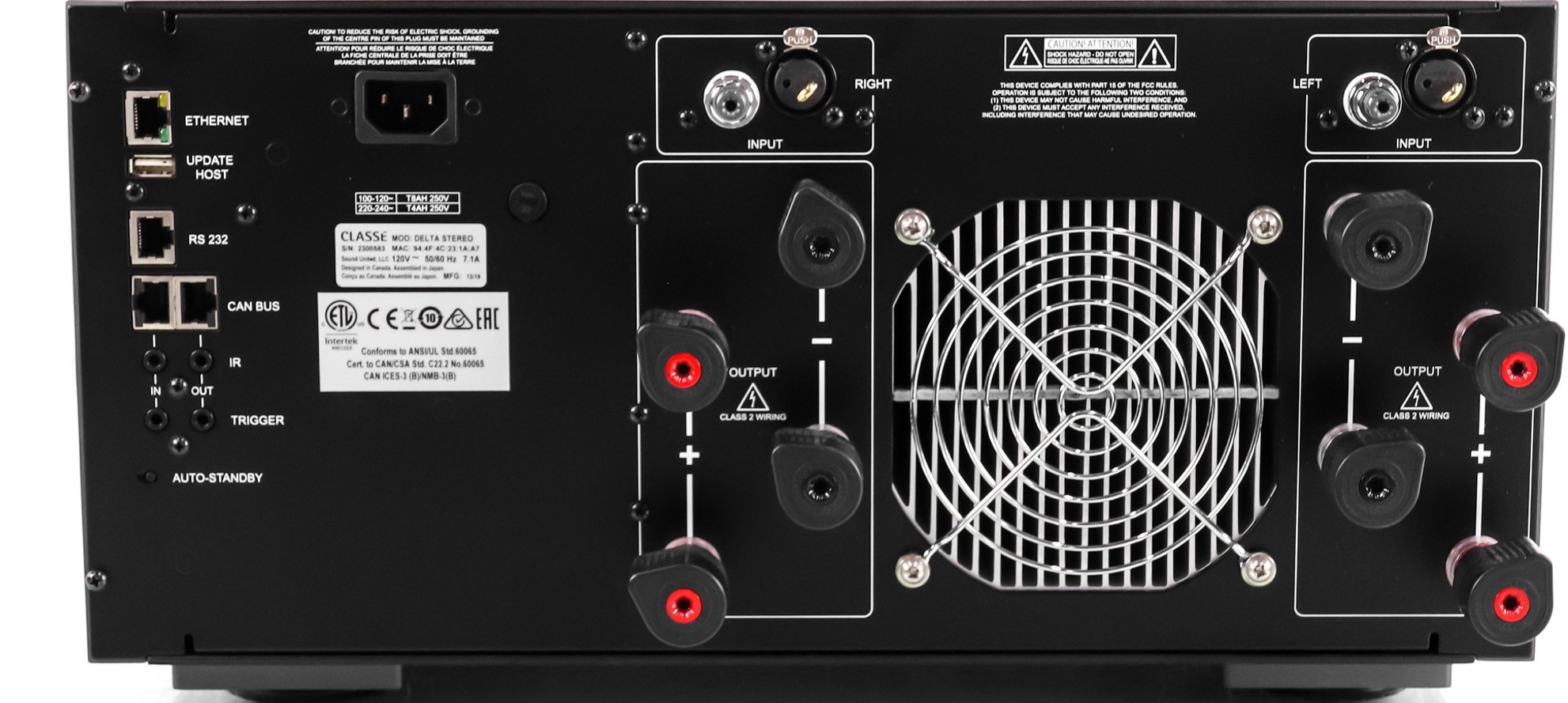

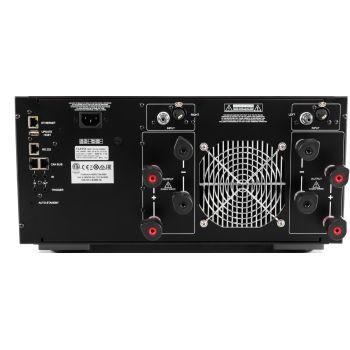

• Furutech® rhodium-plated RCA and torque-guard speaker connectors

Specifications

• Frequency Response (-3dB, 50Ω source impedance) 1Hz – 650kHz
• Continuous Output Power (at 1kHz, 0.1% THD+N) 12.5W / 8Ω delivered in pure class A operation, 250W / 8Ω, 500W / 4Ω (with AC line held constant), 350W / 2Ω (with AC line held constant)
• Harmonic Distortion (measurement bandwidth: 500kHz, 25Vrms in 4Ω or 8 Ω)     <0.0016% at 1kHz, <0.002% at 10kHz, <0.003% at 20kHz
• Harmonic Distortion (measurement bandwidth: 90kHz, 25Vrms in 4Ω or 8 Ω) <0.0007% at 1kHz, <0.001% at 10kHz, <0.0025% at 20kHz
• Peak Output Voltage (nominal AC line) 129Vp-p into 8Ω, 138Vp-p no load
• Input Impedance (at 1kHz, BAL / SE) 82kΩ
• Voltage Gain (at 1kHz, BAL / SE)     29dB
• Intermodulation Distortion (SMPTE 4:1) (8Ω or 4Ω, BAL / SE) <0.0018%
• Intermodulation Distortion (CCIF) (8Ω or 4Ω, BAL / SE)     <0.004%
• Signal-to-Noise Ratio (A wtd in parenthesis) (22kHz BW)     118dB (120dBA)
• Crosstalk (one channel driven to 250W / 8Ω)     124dB (100Hz), 107dB (1kHz), 90dB (10kHz)
• Slew Rate     75V / μs
• Output Impedance     0.009Ω (100Hz), 0.009Ω (1kHz), 0.012Ω (10kHz)
• Damping Factor (at 1kHz, ref 8Ω)     850
• Width: 444 mm
• Depth: 492 mm
• Height: 222 mm
• Net Weight: 46.4 kg
