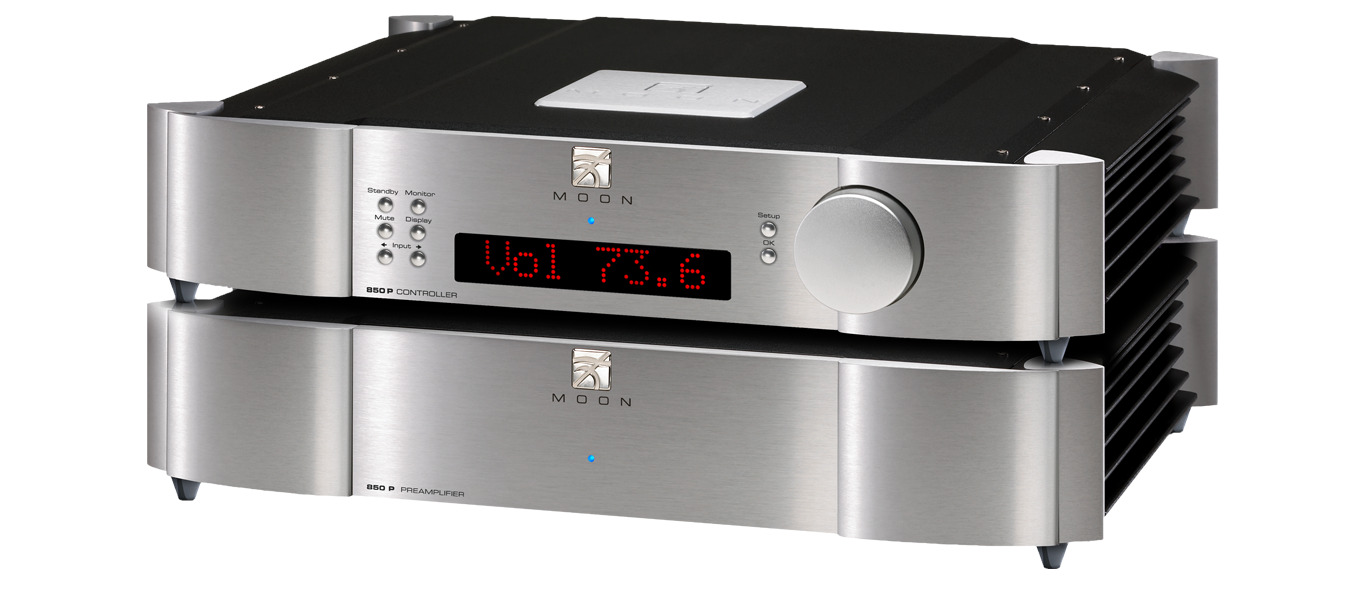

Ο SimAudio Moon 850P ειναι προενισχυτης με δυο σασι (προενισχυτης και τροφοδοτικο).

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Features

• 2-chassis design with 1 chassis housing the power supply, digital controller circuitry, software processing & the LED display. The other chassis contains ONLY audio circuitry.
• Power supply voltage regulation includes i 2 DCf (Independent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 40 stages in all.
• Gain offset adjustment of ±10dB for each line input.
• Each line input is fully configurable to be “home theater ready”, whereby the 850P’s volume control is bypassed.

Specifications

• Number of inputs - XLR / RCA 3 pairs / 5 pairs
• Input Sensitivity 200mV - 4.0V RMS
• Input Impedance 11,000Ω
• Gain 9dB
• Number of Outputs - XLR / RCA 2 pairs / 2 pairs (fixed + variable)
• Signal-to-noise Ratio (20Hz-20kHz) 130dB @ full output
• Frequency response 5Hz - 100kHz ±0.1dB
• Crosstalk @ 1kHz -130dB
• Output impedance 50Ω
• THD (20Hz - 20kHz) 0.0005%
• Intermodulation distortion 0.0001%
• Shipping weight 67 kg
• Dimensions - each chassis (w x h x d) 47.6 x 10.2 x 41.9 cm
