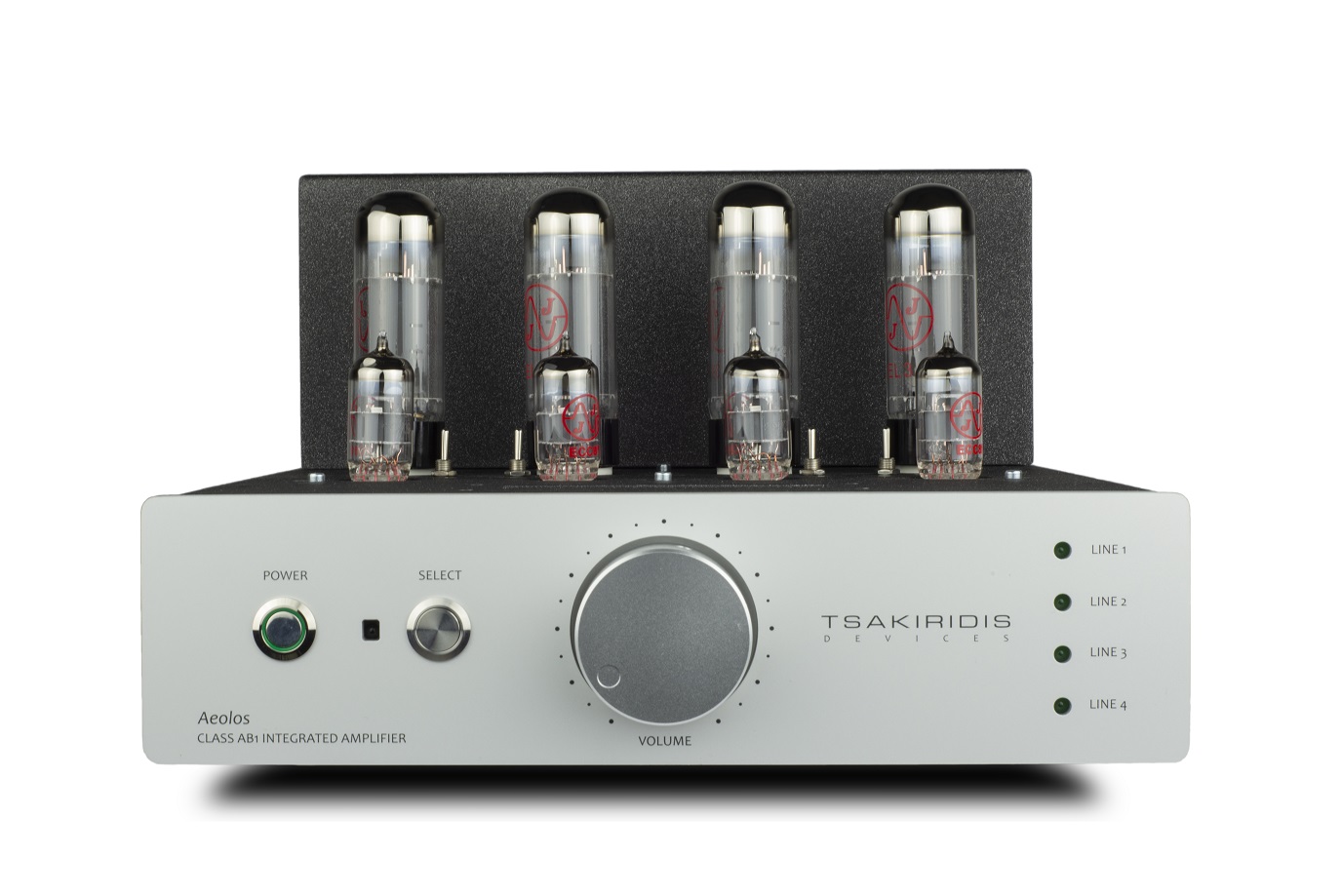

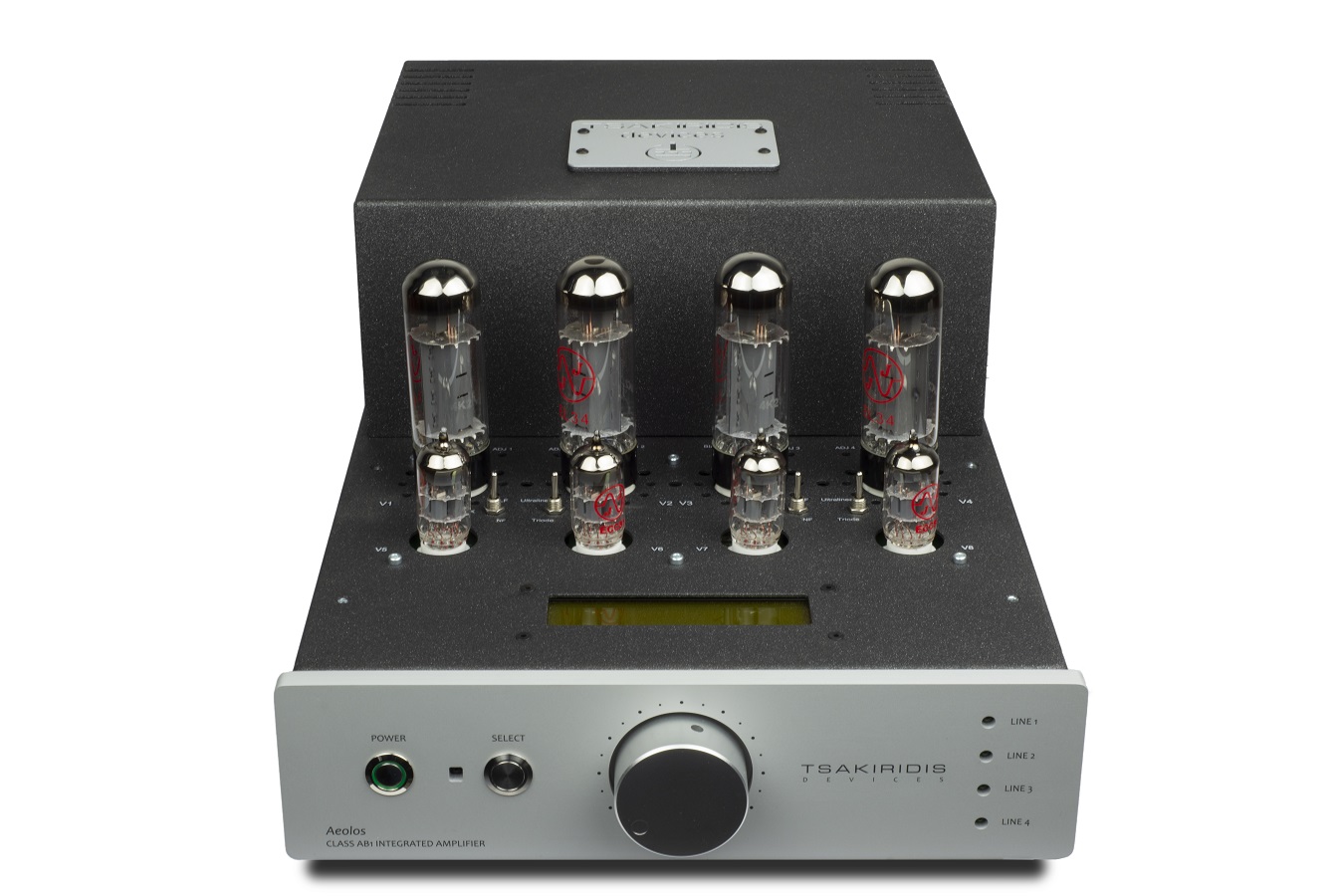

Tsakiridis Devices Aeolos EL34
O Tsakiridis Devices Aeolos EL34 ειναι ολοκληρωμενος ενισχυτης 2x35wrms με λυχνιες EL 34. Δυνατοτητα ακροασης, ανταλλαγης και δοσεων.
Άμεση Διαθεσιμότητα
ΔΩΡΕΑΝ ΑΠΟΣΤΟΛΗ ΣΕ ΟΛΗ ΤΗΝ ΕΛΛΑΔΑ
O Tsakiridis Devices Aeolos EL34 ειναι ολοκληρωμενος ενισχυτης 2x35wrms με λυχνιες EL 34.
Δυνατοτητα ακροασης, ανταλλαγης και δοσεων.

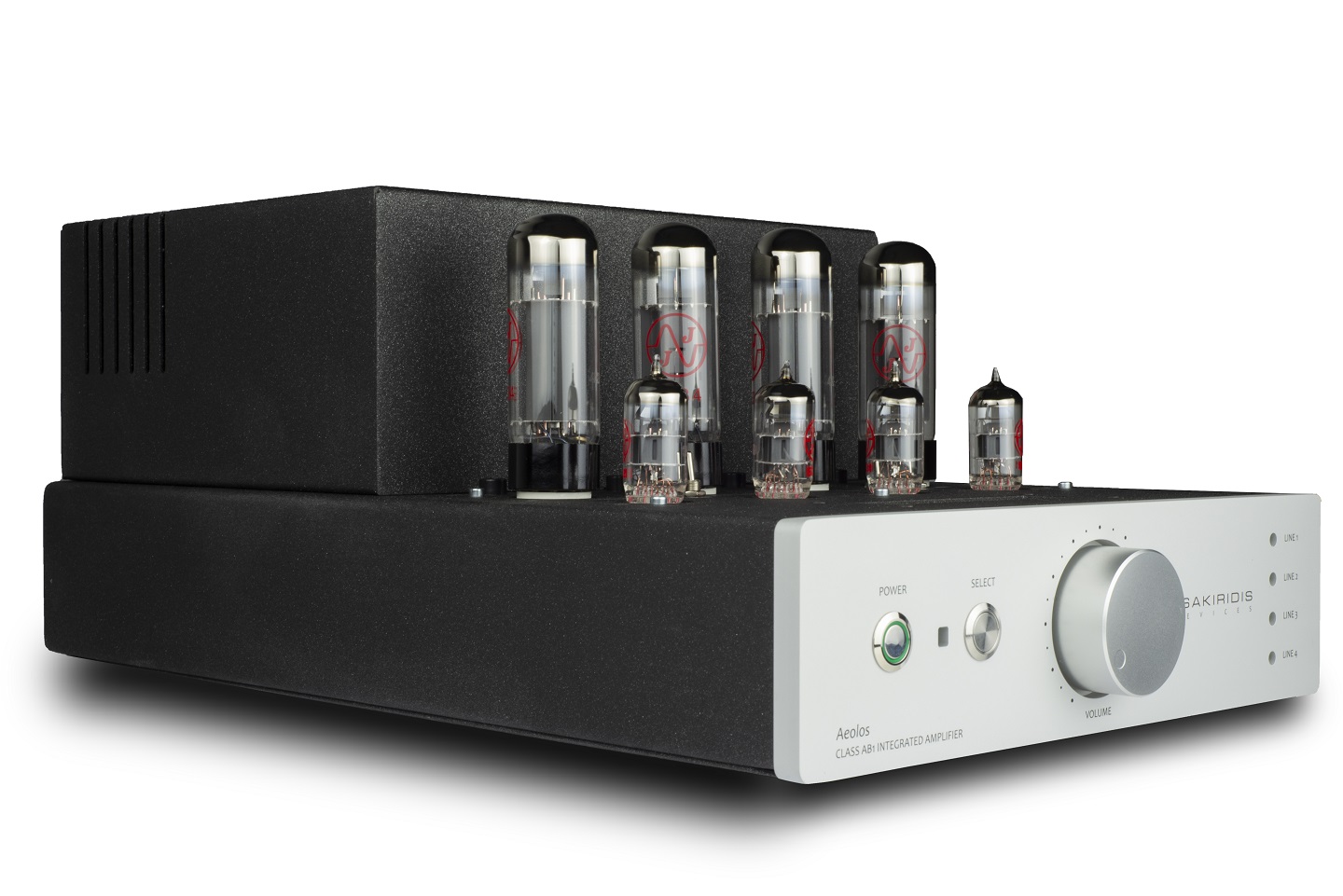

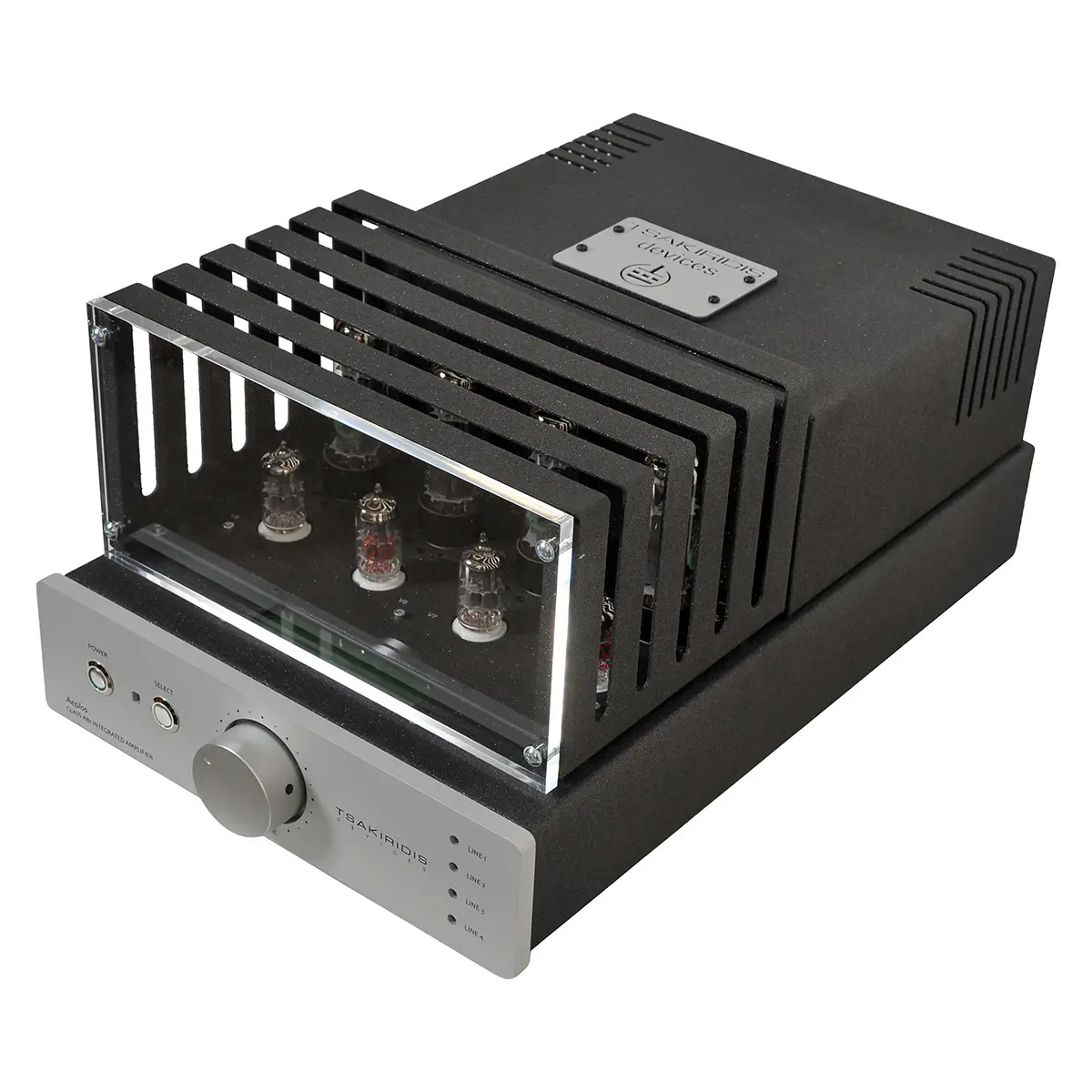

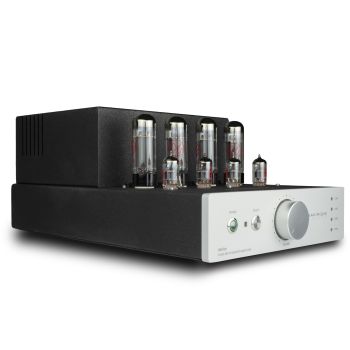

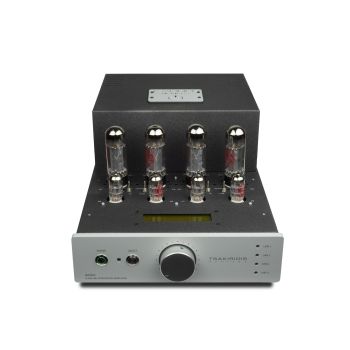

Aeolos EL34, Tube Integrated Amplifier, 2 x 35 Watt, (4 x EL 34, 4 x 12AT7).
Features
- Remote Control.

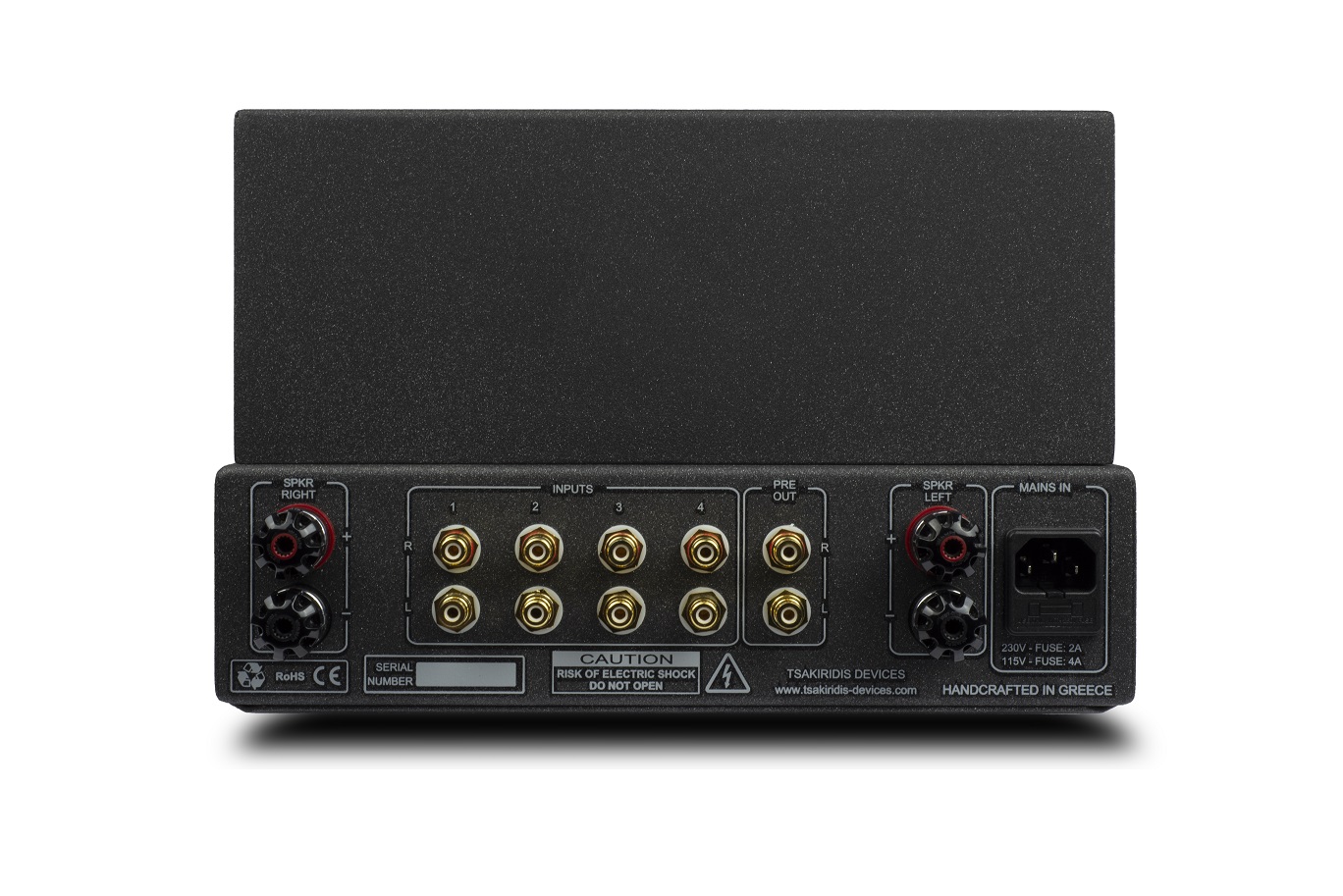

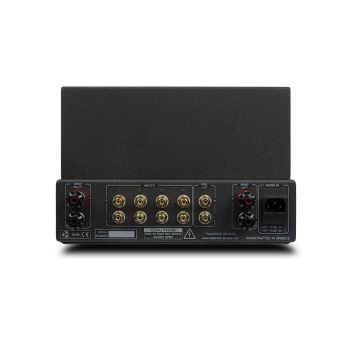

- Four (4) Inputs Rele's Line Selector with Tape Out.
- High Grade Selection Rele's.
- Alps Volume Control.
- Matched Input & Output Tubes.
- Power Supply Capacitors United Chemicon.
- Porcelain Tube Bases.

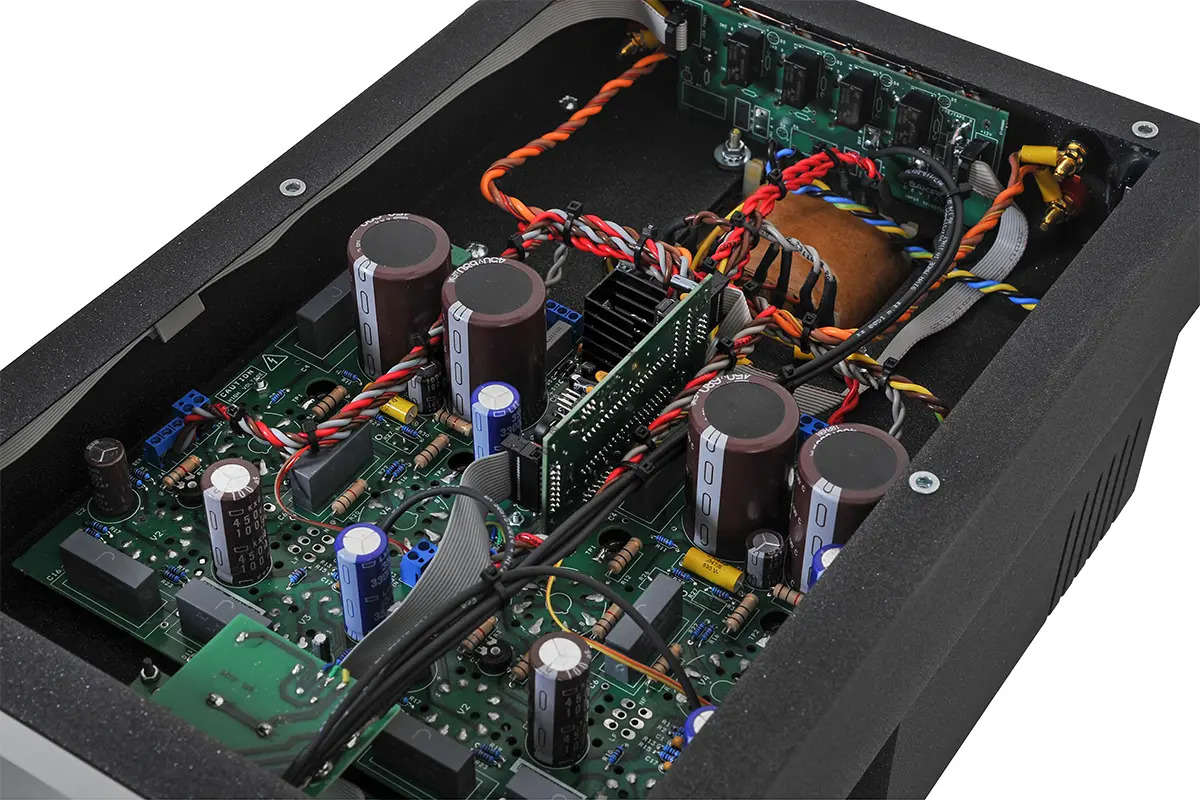

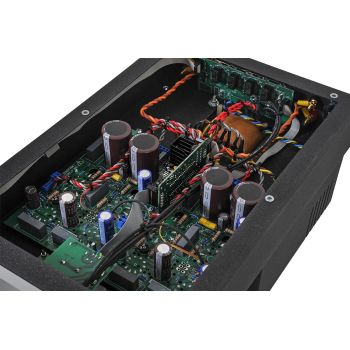

- Double Face Printing Circuit with Separate Signal & Power Path.
- Hand Made Ultralinear Multi Layer Output Transformers.
- High Grade Polypropylene Signal Capacitors.
- Metal Film Resistors with Low Tolerance 1%.
- Gold Plated Input Connectors Ultimax.
- Nickel Plated Output Connectors Ultimax.
- Five Years Guarantee.
Technical Specifications
|
Power Output |
35 Watt (EL 34)
45 Watt (6550) |
| Harmonic Distortion
1 Watt / 40 Hz |
0.39 % 0.38 % 0.75 % 0.79 % 0.45 % 1.70 % |
| Intermodulation
(60 Hz / 7000 Hz R=1/4) |
2.10 % |
| Frequency Response
1 Watt / -3dB |
5 Hz - 80 KHz |
| Rise Time | 4 μS (10 KHz) |
| Signal / Noise Ratio | 85 dB |
| Input Resistance | 100 ΚΩ |
| Output Resistance | 6 Ω |
| Input Voltage | 350 mV R.M.S. |
| Power Supply Energy | 200 Joule |
| Power Consumption | 400 Watt |
| Weight | 12 kg |
| Diamensions (W x D x H) | 28.5x48x20 cm |
