O Tsakiridis Devices Aeolos EL34 ειναι ολοκληρωμενος ενισχυτης 2x35wrms με λυχνιες EL 34.

Δυνατοτητα ακροασης, ανταλλαγης και δοσεων.

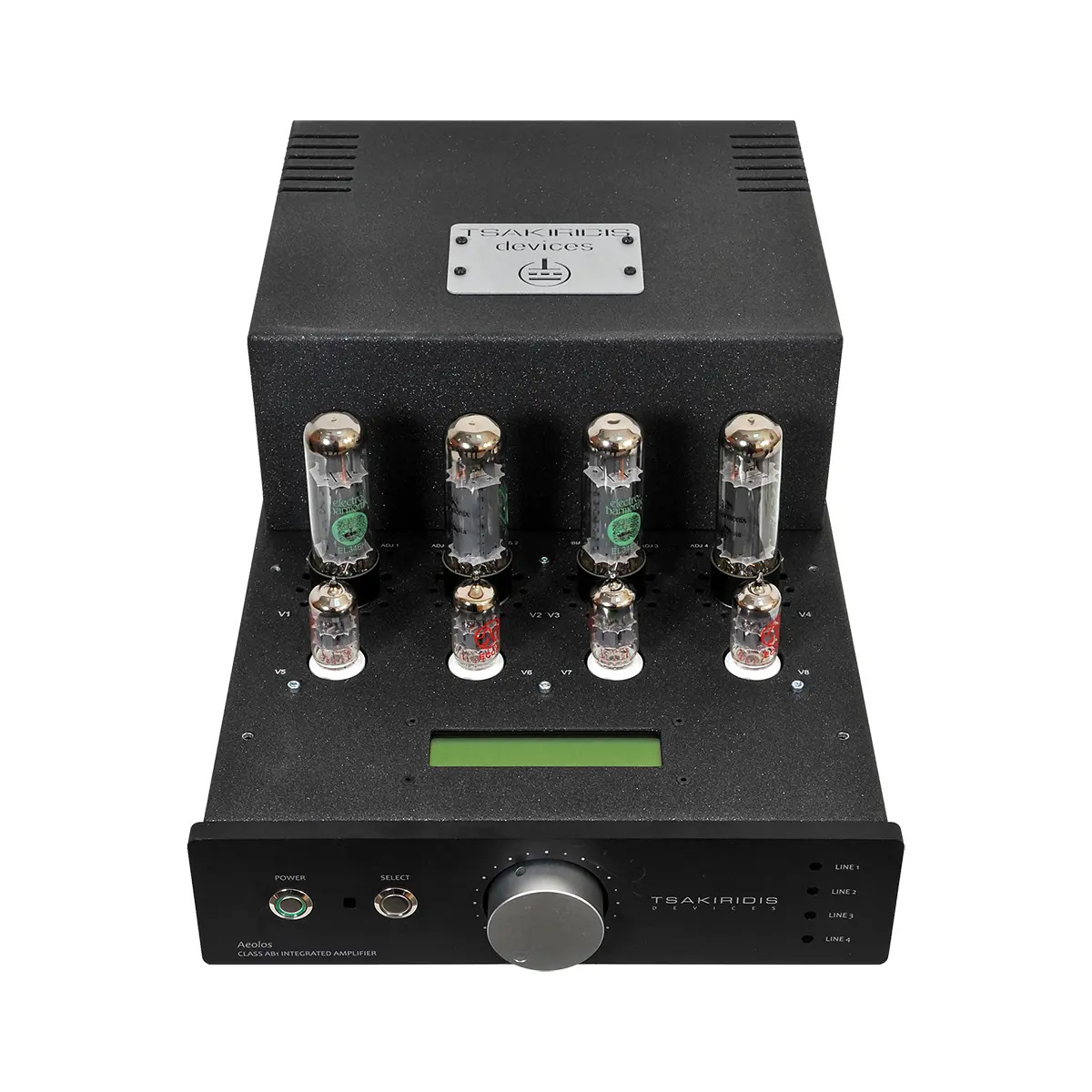

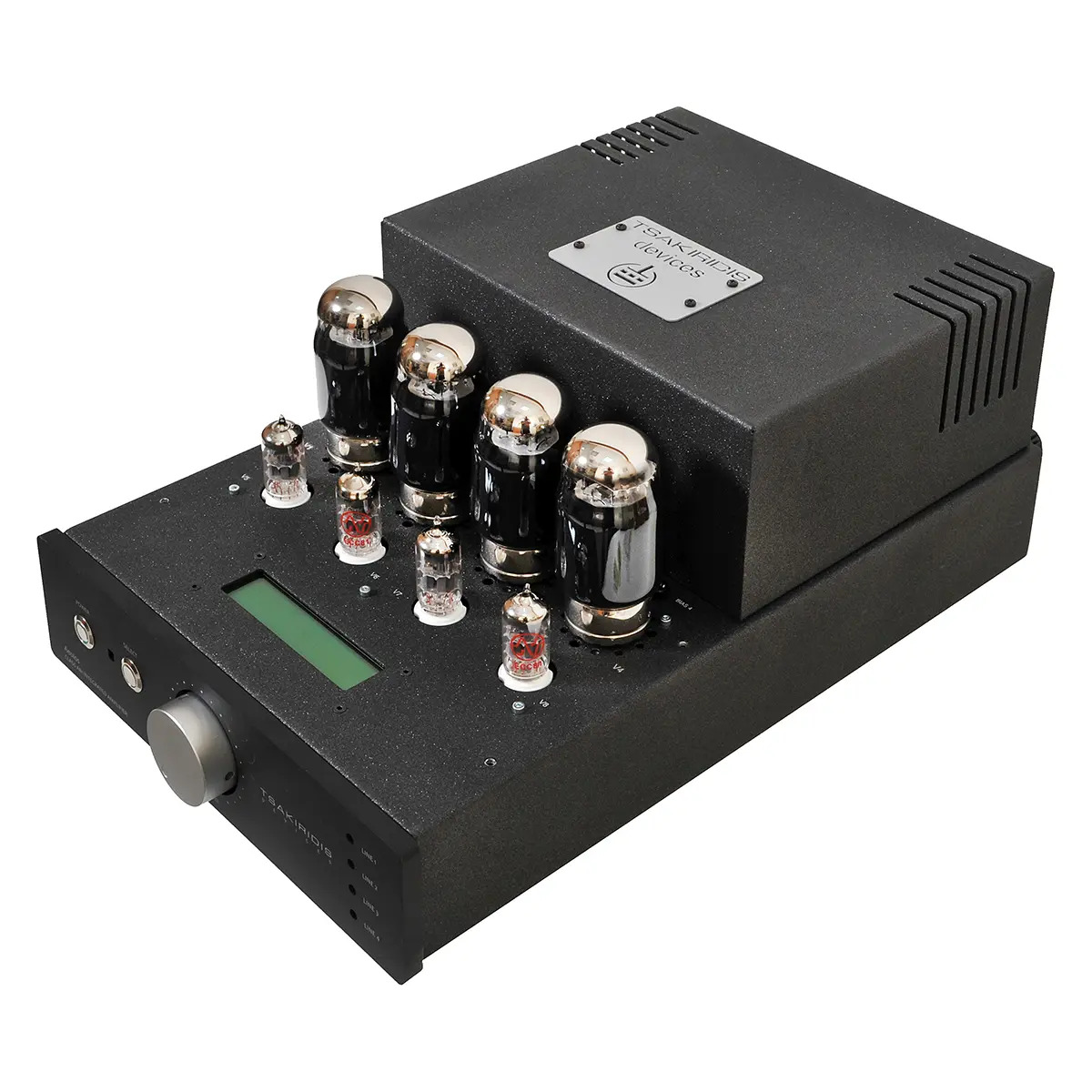

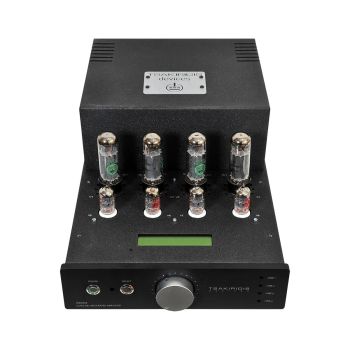

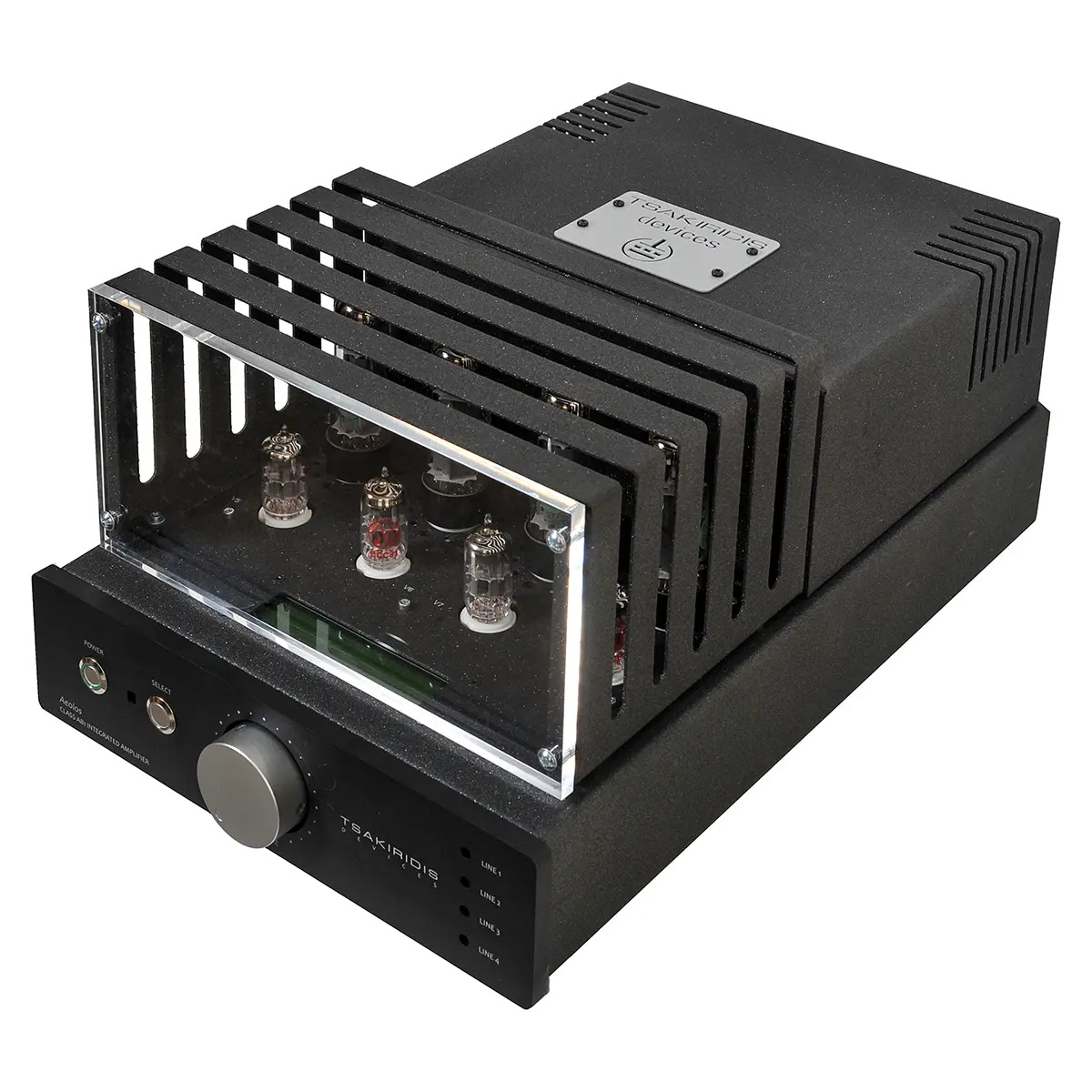

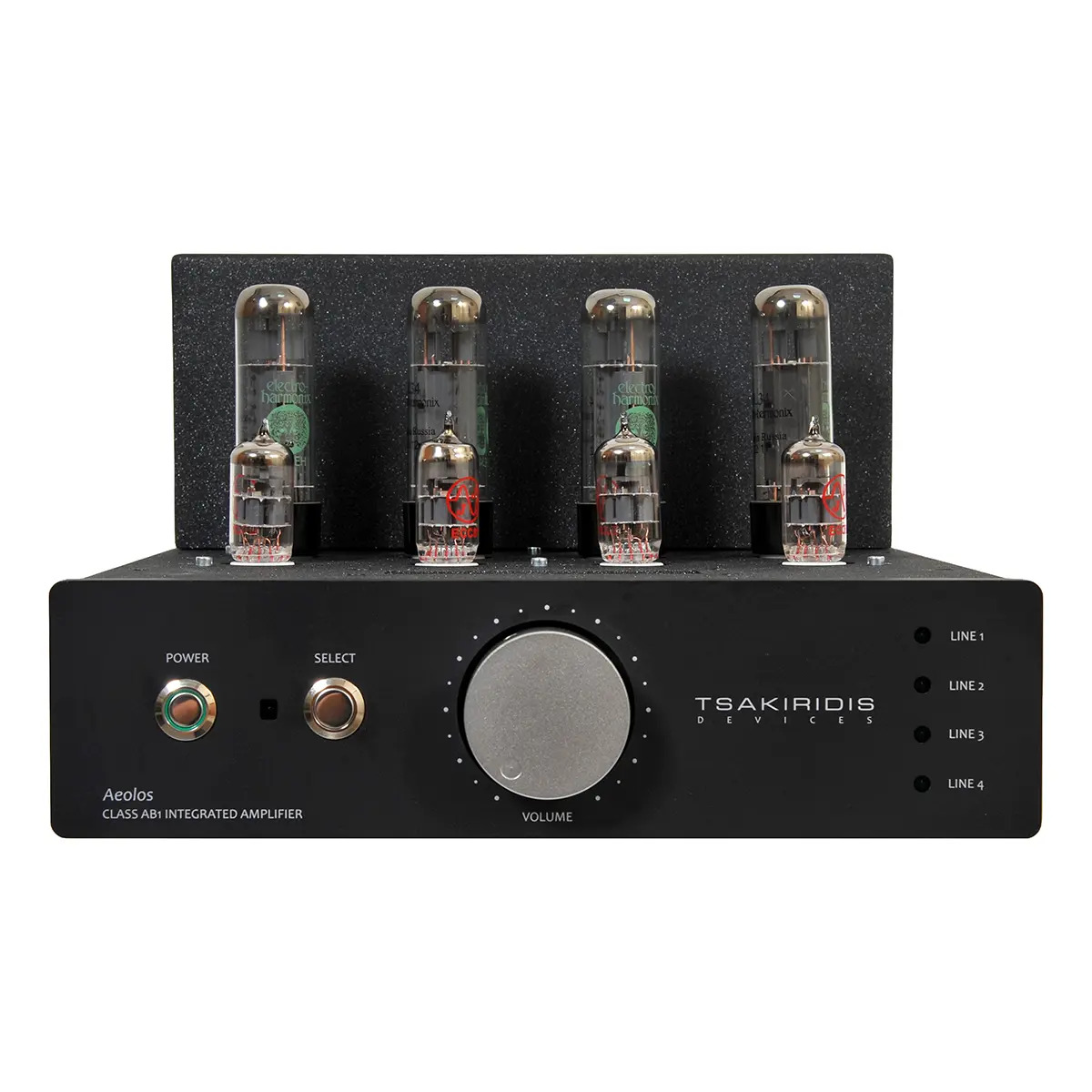

Aeolos is an Integrated amplifier with 4 inputs and one pre output.
It’s design is a push-pull configuration implementing 2 power tubes per channel in class AB1 operation and dual-mono power supply.
All electronic components are through hole type soldered by hand.
Aeolos utilizes our 8 layer handmade output transformers for superb sound quality.

Aeolos is our best selling integrated amplifier. It offers everything the user needs in a compact and classic design. The push – pull configuration draws enough power from the output tubes to drive a wide range of loudspeakers.

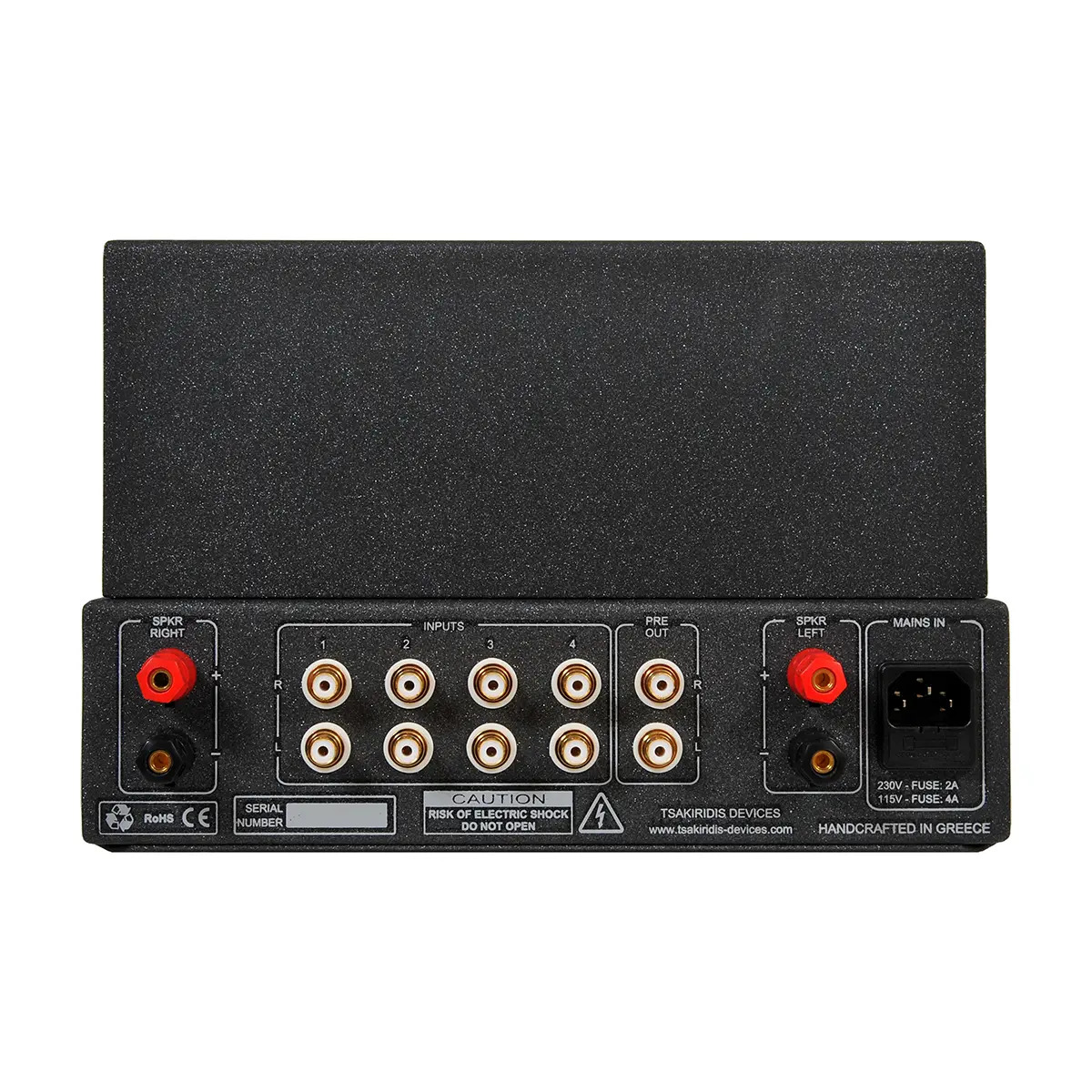

Gold plated RCA connectors are implemented for the signal inputs/output and high quality binding posts for the loudspeakers. For the volume control the classic blue Alps is used.
An elegant remote control in aluminum case offers you control over all the functions of Aeolos integrated amplifier. Volume control, input selection, mute and power tubes bias mode.

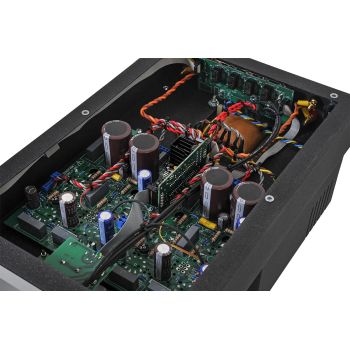

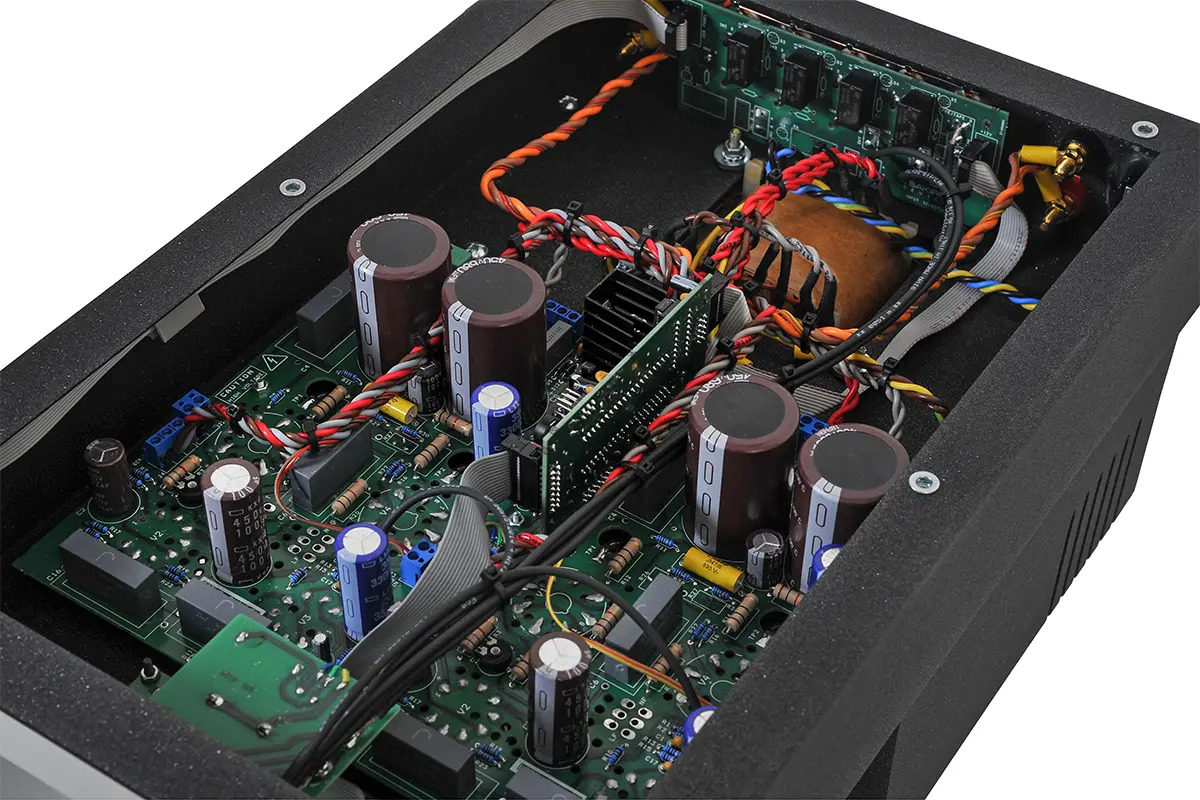

Carefully selected values and types of the electronic components contribute to the reliable circuits operation and the high sound quality of the amplifier. The meticulous PCB design ensures excellent behavior in SNR, distortion and channel separation.
Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.

The handmade multilayer output transformers allow the amplifier to reveal the sound stage and all the music details through the entire audio spectrum. Made by us and tested thoroughly for quality and reliability.
The same applies to the power transformer. The positioning of the transformers is such that minimizes the magnetic coupling between power and output transformers.

Features

• Inputs: 4 line inputs
• Outputs: 1 pre output
• Input selection: High grade signal relays
• Input/Output connectors: RCA gold plated
• Speaker connectors: Ultimax
• Remote control: Yes
• Volume control: Blue Alps
• Power supply capacitors: United Chemicon 105^oC
• Signal capacitors: Non inductive polypropelene film capacitors
• Power resistors: Carbon film 5% tolerance
• Low power resistors: Metal film 1% tolerance
• Power transformer: Handmade 300W
• Output transformer: Handmade 8 layer windings
• Driving stage tubes: 4x12AT7
• Power tubes: 4xEL34

Technical Specifications

• Output Power: 2x35W
• Input impedance: 100 kOhm
• Output impedance: 6 Ohm
• Input sensitivity: 350mV
• Signal to Noise Ratio (SNR): 85db
• Channel separation: 68db
• Rise time: 4us at 10kHz
• Harmonic distortion: 10W at 1kHz 0.40%
• Frequency response: -3db 15Hz-72000Hz
• Power supply energy: 150Joule
• Power consumption: 110W
• Weight: 20kgr
• Dimensions (WxDxH): (29x46x23)cm
