Το Marantz SA-10 ειναι CD-SACD player με ικανοτητα αναπαραγωγης δισκων CD, Super Audio CD , CD-R and CD-RW , MP3 και WMA files. Διαθετει USB εισοδο για αναπαρωγη DXD/DSD αρχειων.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

The new Marantz SA-10 is the latest model in a range of high-end players stretching all the way back to the dawn of CD: in the original CD-63, launched in 1983, it had the first high-end performance-tuned CD player, and that expertise has continued to be developed over more than 30 years. The SA-10 is designed to sets new standards, whether with music on disc or content streamed from a computer, and to become the New Reference in digital audio.

To achieve that, the SA-10 is a completely new design, drawing on all that experience in making great-sounding players but with virtually every part redesigned. That involved both innovation and some unique thinking, all in the cause of getting the best possible performance across a wide range of digital audio formats. The new model is an exceptional player of both CD and SACD discs, but can also play high-resolution music stored on computer-burned discs, as well as being a high-end digital to analogue converter for computer-stored music.

From the unique new disc transport designed for this player all the way through to a complete rethink of the way digital audio data is converted into analogue signals, the SA-10 is a ‘clean sheet’ design, the result of painstaking research and development and extensive listening in Marantz’s custom-built listening facilities. That’s symptomatic of the way Marantz has always done things: while it always aims for the most elegant engineering solution, the listening test is always the final arbiter. It’s all to do with that simple phrase running through the heart of everything the company does: ‘Because Music Matters’.

Key Features

• All-new SACD-M3 transport mechanism for CD, Super Audio CD and more
• Playback of high-resolution audio compilations on DVD-ROM
• USB input for hi-res audio up to PCM / DXD 384kHz/32bit and DSD11.2MHz
• Isolation of USB and digital inputs to remove noise from connected sources
• Innovative upsampling to DSD and filtering using unique Marantz Musical Mastering - Stream technology
• All-new custom-designed 1-bit direct Marantz Musical Mastering -Conversion from DSD to analogue
• High-quality analogue output stage with Marantz HDAMs
• Generous power supply using toroidal transformer
• Dedicated headphone amplifier with all-discrete construction

Specifications

CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC	/ / / / /
CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data	/ / / /
Data Disc Compatibility: DSD / WAV / ALAC	<=5.6 / 192 / 96
iPod / iPhone compatible USB input
DAC operation mode: USB / Coax / Optical	/ /
Asynchronous mode rear USB
Bit-perfect transmission
Signal isolator for DAC Mode operation
HDAM version	HDAM+HDAM SA2
Power Transformer: Toroidal / El	/
High Grade Audio Components
Customised Components
Symmetric circuit layout
Copper plated chassis
Extra metal plate for chassis strengthing
Digital out off / Audio EX Mode	/
Headphone: Standard / Buffer / Current feedback	/ (HDAM SA2+HDAM) /

Separated rectifier circuit for analogue and digital circuitry
Display: Dimmer / Off	/
Low noise LCD display
5mm Aluminum top cover
Selectable filter: CD / SA-CD / DAC-Mode	/ /
Marantz Musical Mastering	(HD)
Marantz Musical Mastering Stream
Marantz Musical Mastering Conversion

Program Play (CD / SA-CD)	/
Repeat
Random Play
Start Sound Mode for SA-CD

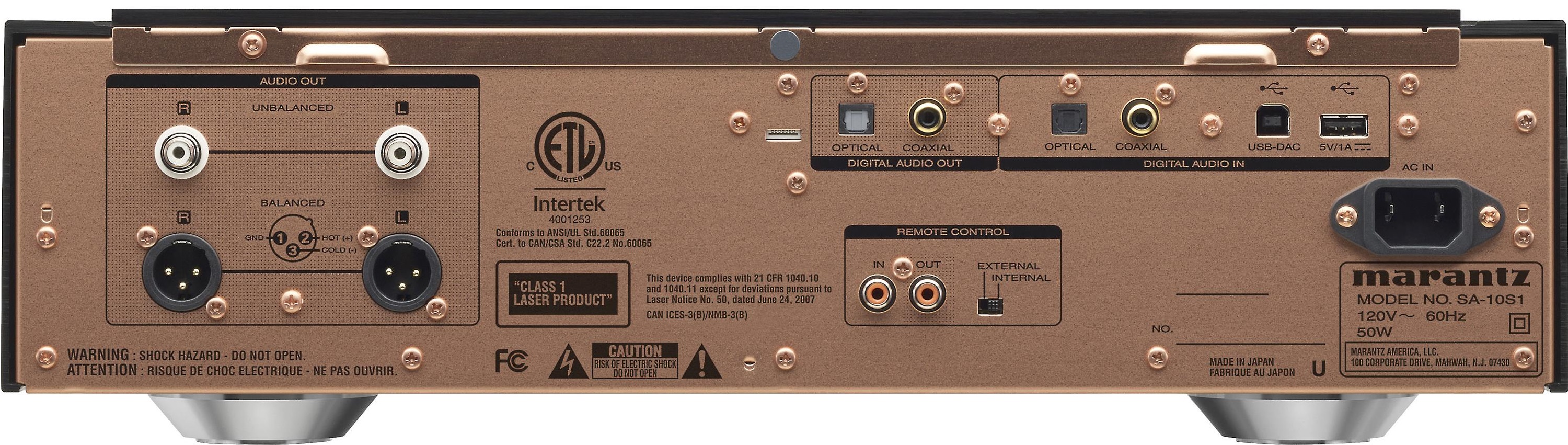

Analogue Out (Cinch)	2ch
Balanced Out
Digital Optical In / Out	/
Digital Coaxial In / Out	/
Sample Rate digital In	192 kHz / 24-bit
Gold Plated Cinch	silver / nickel
USB Audio (Front) / Made for iPod / Made for iPhone	rear / /
USB type B input for PC (rear) Sample Rate USB type B In
Asynchronous mode rear USB
USB type B input for PC (rear)	384 kHz / 32-bit
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6	-> DSD11.2
Headphone Out
Headphone Volume Control

Mechanism	SACD-M3 (METAL)
D/A Conversion	Marantz Musical Mastering Conversion
DAC IC	Marantz Musical Mastering Conversion
Digital Filter	DSP (Marantz)
Noise Shaper	DSP (Marantz)
Low Pass Filter stage	HDAM x 2
Output Buffer	HDAM SA2
Frequency Response (Cust.)	2 Hz 60 kHz
Dynamic Range (SA)	109dB
Signal to Noise Ratio (SA)	112dB
Channel Separation (SA)	105 dB
Frequency Response	2 Hz 20 kHz
Dynamic Range	98 dB
Signal to Noise Ratio	104 dB
Total Harmonic Distortion	0.00%
Channel Separation	100 dB
Total Harmonic Distortion (SA)	0.00%

Available colors: Gold / Silver / Black / Silver-Gold	/ / /
Metal Front Panel
Remote Control	RC004PMSA
Power Consumption in W	50
Standby Consumption in W	0.3
Auto power off
Detachable Power Cable
Maximum Dimensions (W x D x H) in mm	440 x 419 x 127
Weight in kg	18.4
