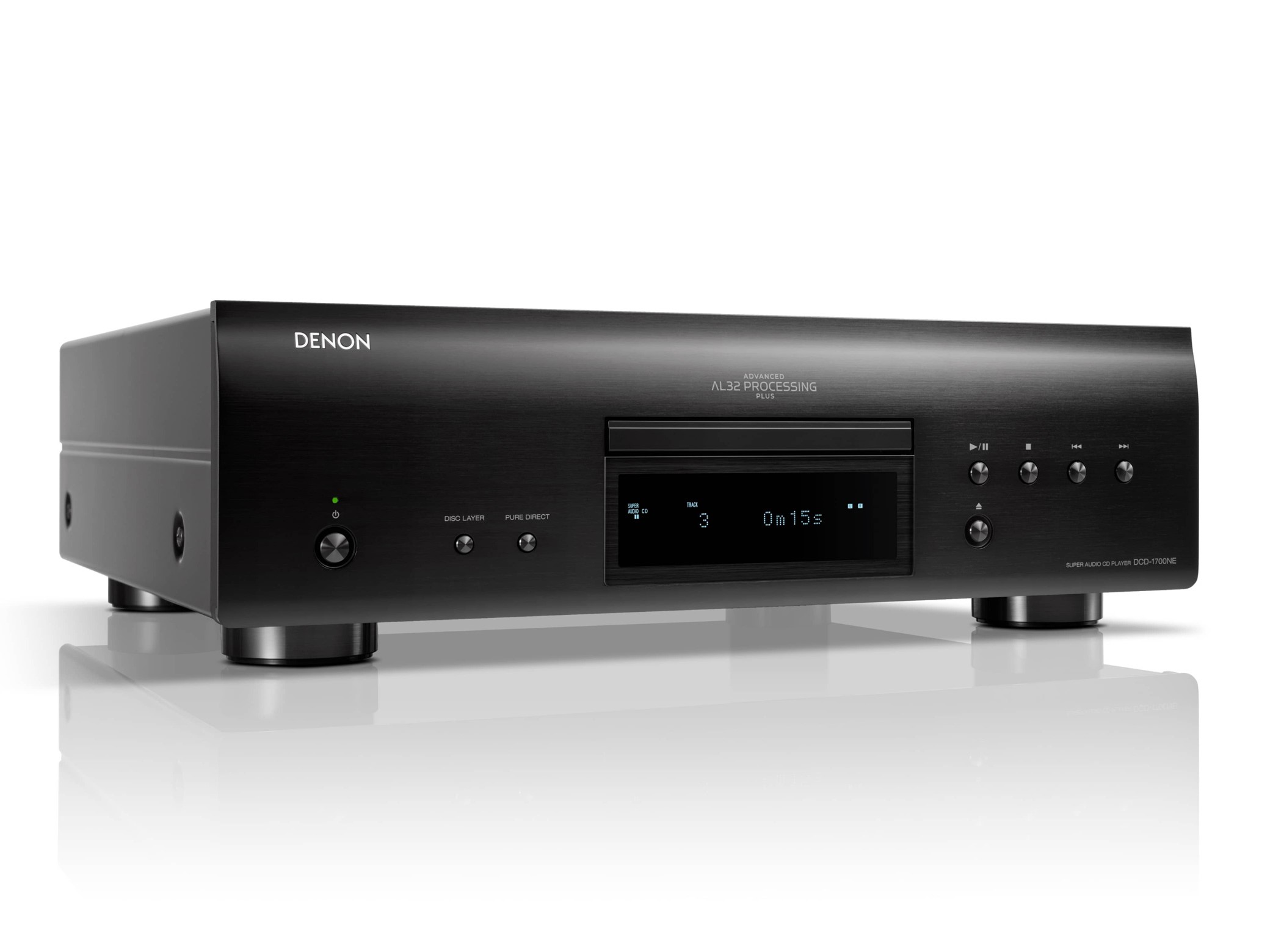

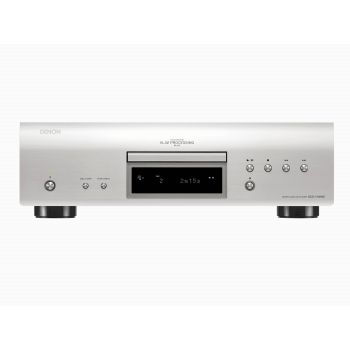

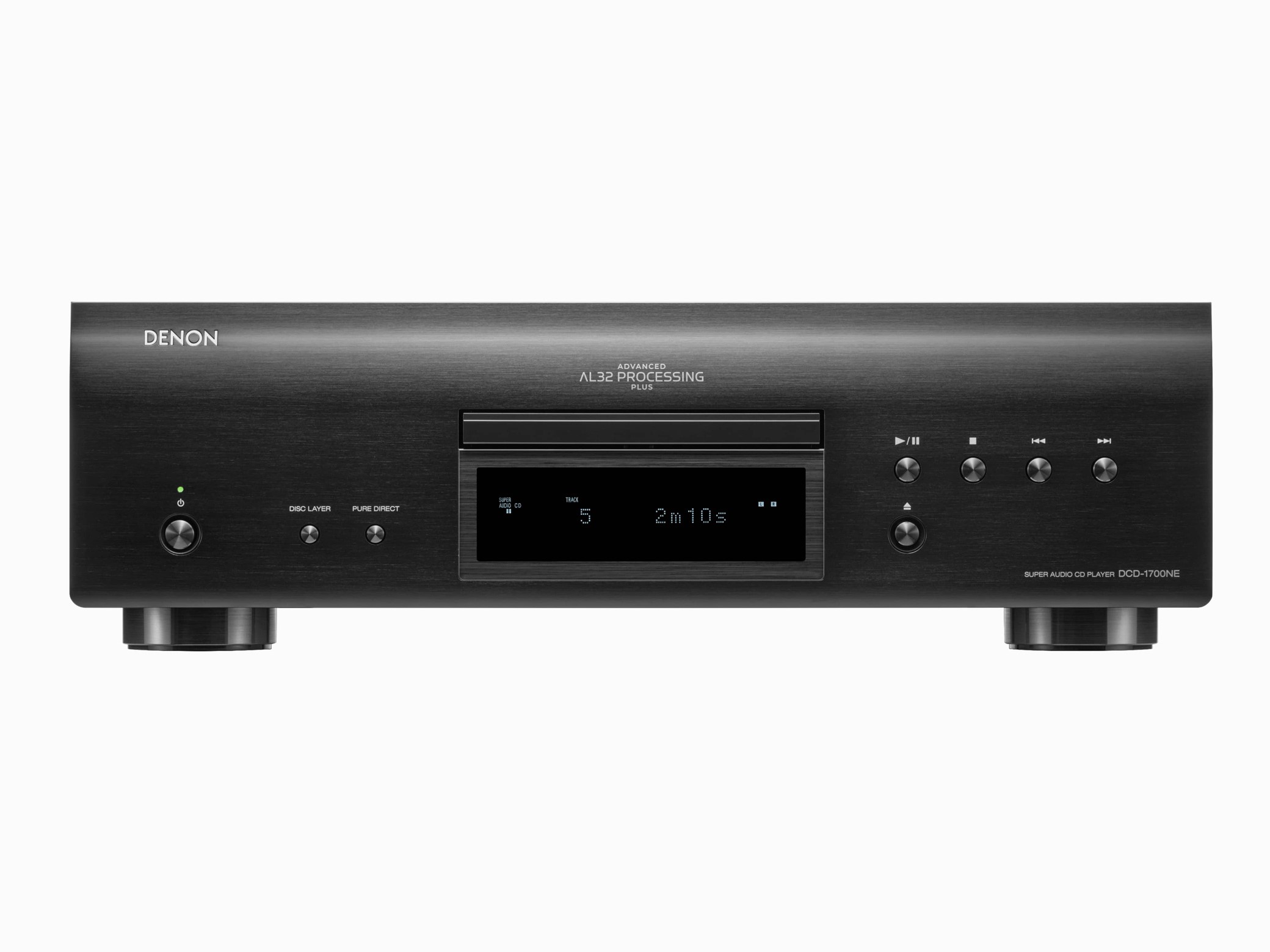

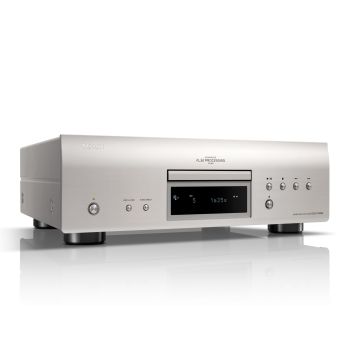

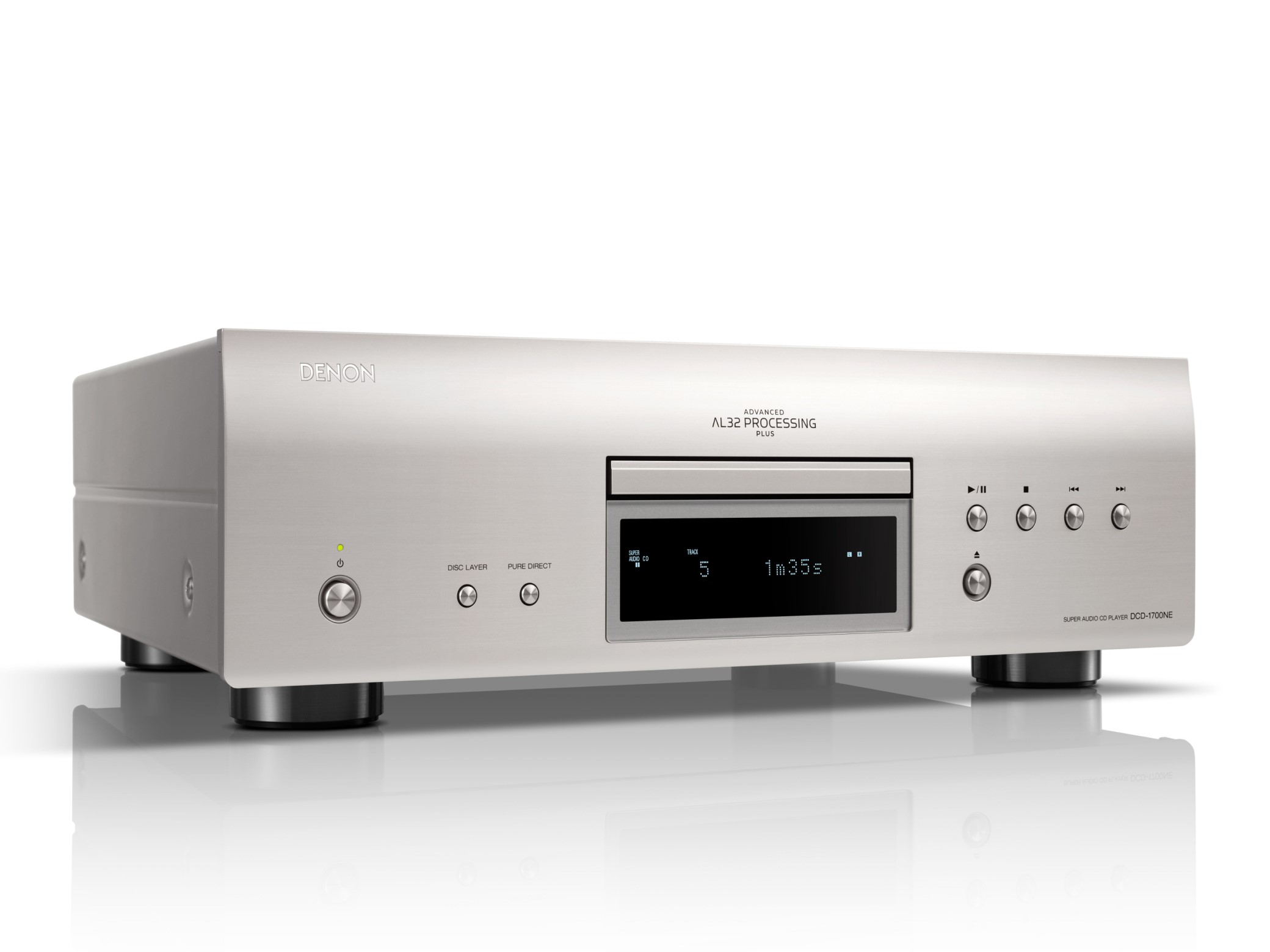

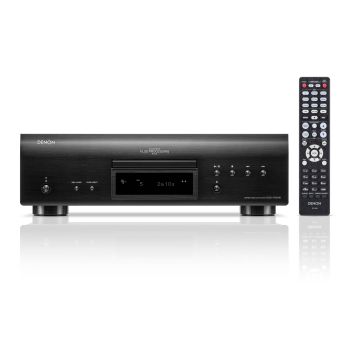

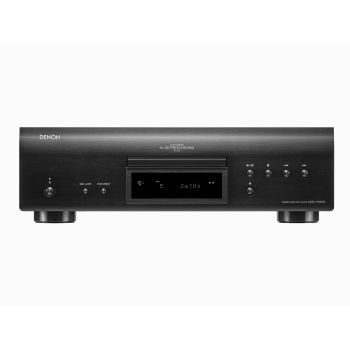

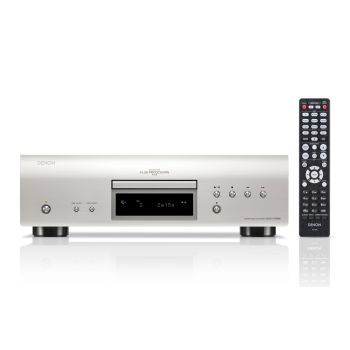

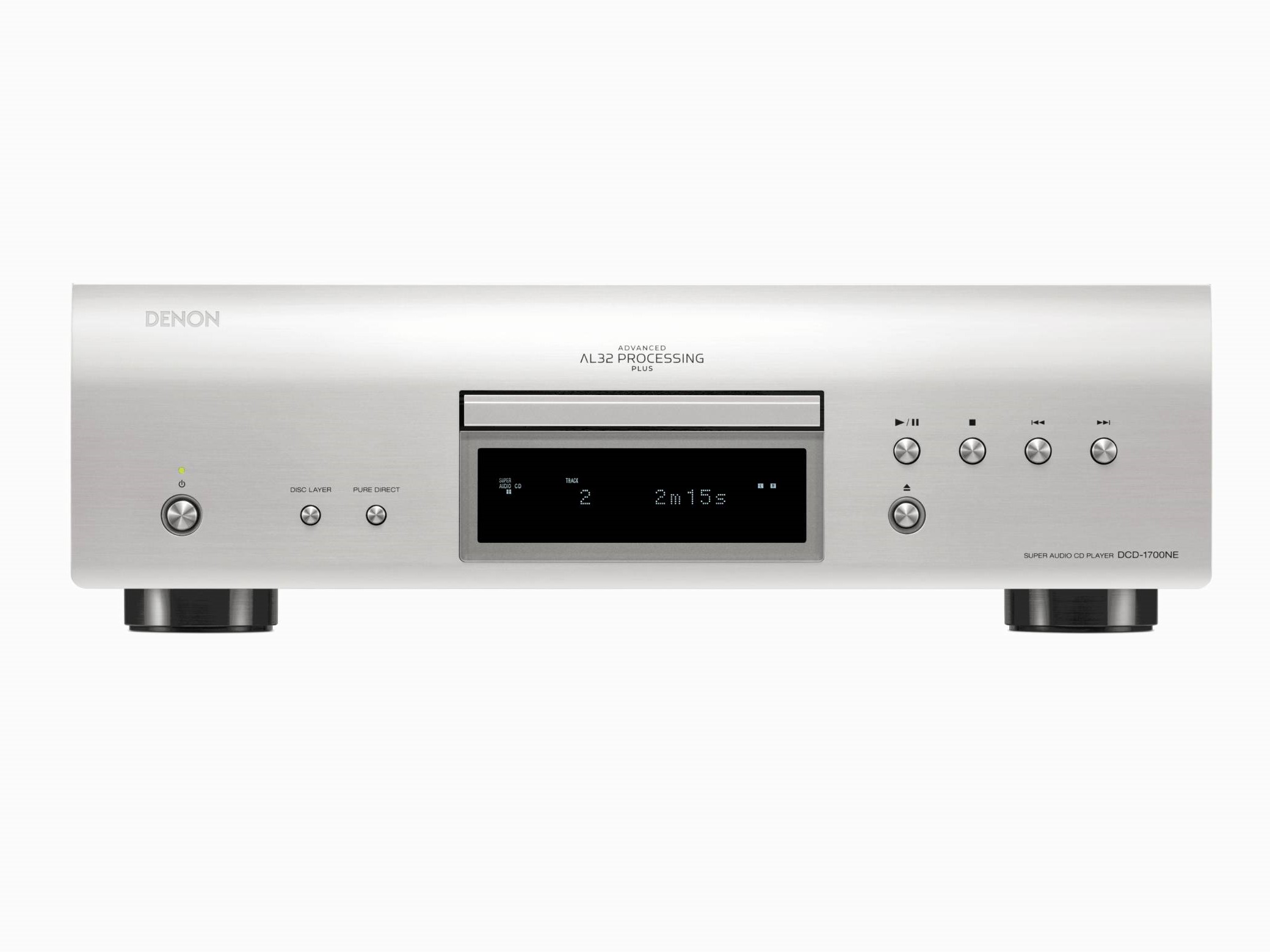

Το Denon DCD-1700 NE ειναι ενα CD-SACD player, με 32-bit 192kHz D/A converter, αναπαραγει CD, SACD, CD-R/CD-RW, MP3,WMA.
Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.
Enjoy accurate audio reproduction that’s faithful to the original recording.?Thanks to technologies like Advanced AL32 Processing Plus and an ultra-precision D/A Converter, you’ll hear your favorite songs like never before. The Denon original drive mechanism with S.V.H lets you play back CDs, SACDs, and your own compilations on DVD R/RW with signal purity.
Advanced AL32 Processing Plus
Experience audio beautifully faithful to the original sound. Advanced AL32 Processing Plus algorithms restore information that was lost during the digital recording.
Extended disc format support
Enjoy extended disc support for your high-resolution audio collection, including CD's, Super Audio CDs,????s well as DSD and high-res files up to 192 kHz/24 bits recorded on DVD-R/RW and DVD+R/RW discs.
Proprietary disc drive
The Denon original disc drive is built with a high-class S.V.H (Suppress Vibration Hybrid) mechanism. All elements of the design are focused on delivering optimal accuracy.
Sound Master tuned
Carefully tuned with selected audio components and evaluated by the Denon Sound Master to meet Denon’s high standards and distinctive sound for an amazing experience.
General Specifications
Unit (W x H x D mm) | 434 x 135 x 384 |
Cabinet Size | 434 x 135 x 374 |
Net weight | 9.0kg |
Packaging Dimensions (W x H x D mm) | 543 x 250 x 515 |
Packaging gross weight | 11.7kg |
Power Consumption | 24W |
at Standby | 0.1W |
Front (Center) Panel | Aluminum |
Function button | Aluminum |
Open / Close button | Aluminum |
Power button | Aluminum |
Specifications
Frequency Response | SACD:2Hz - 50kHz (-3dB) CD:2Hz - 20kHz (-0.5dB) |
Harmonic distortion | SACD: 0.0010% CD: 0.0016% |
S/N | SACD: 119dB CD: 117dB |
Dynamic Range | SACD: 112dB CD: 101dB |
Line Output Level | 2.0Vrms (10kohm) |
Digital Audio
DAC Circuit | TI?Advanced Current Segment PCM1795(192k/32bit) ×1 |
Digital Filter | Fixed |
Digital Processing | Advanced AL32 Processing Plus |
DAC Master Clock Design (Not Support Network Playback) | Yes |
Mechanism | TD-505 FOR DM |
Disc Type | SACD/CD/CD-R/CD-RW DVD-R/+R/-RW/+RW |
SACD | Yes (Stereo Layer/Multi-D/M) |
SUPER AUDIO CD TEXT | Yes |
Playability of files recorded on CD-R/RW : MP3 / WMA / AAC / WAV / FLAC / ALAC / AIFF | Yes / Yes / Yes / Yes (~48kHz/24bit) / Yes (~48kHz/24bit) / Yes (~48kHz/24bit) / Yes (~48kHz/24bit) |
Playability of files recorded on DVD R/RW : MP3 / WMA / AAC / WAV / FLAC / ALAC / AIFF / DSD (DIFF / DSF) | Yes / Yes / Yes / Yes (~192kHz/24bit) / Yes (~192kHz/24bit) / Yes (~96kHz/24bit) / Yes (~196kHz/24bit) / Yes(~5.6MHz) |
Firmware Update | Yes(FE/BE, MCU) |

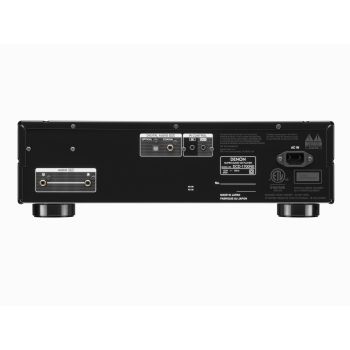

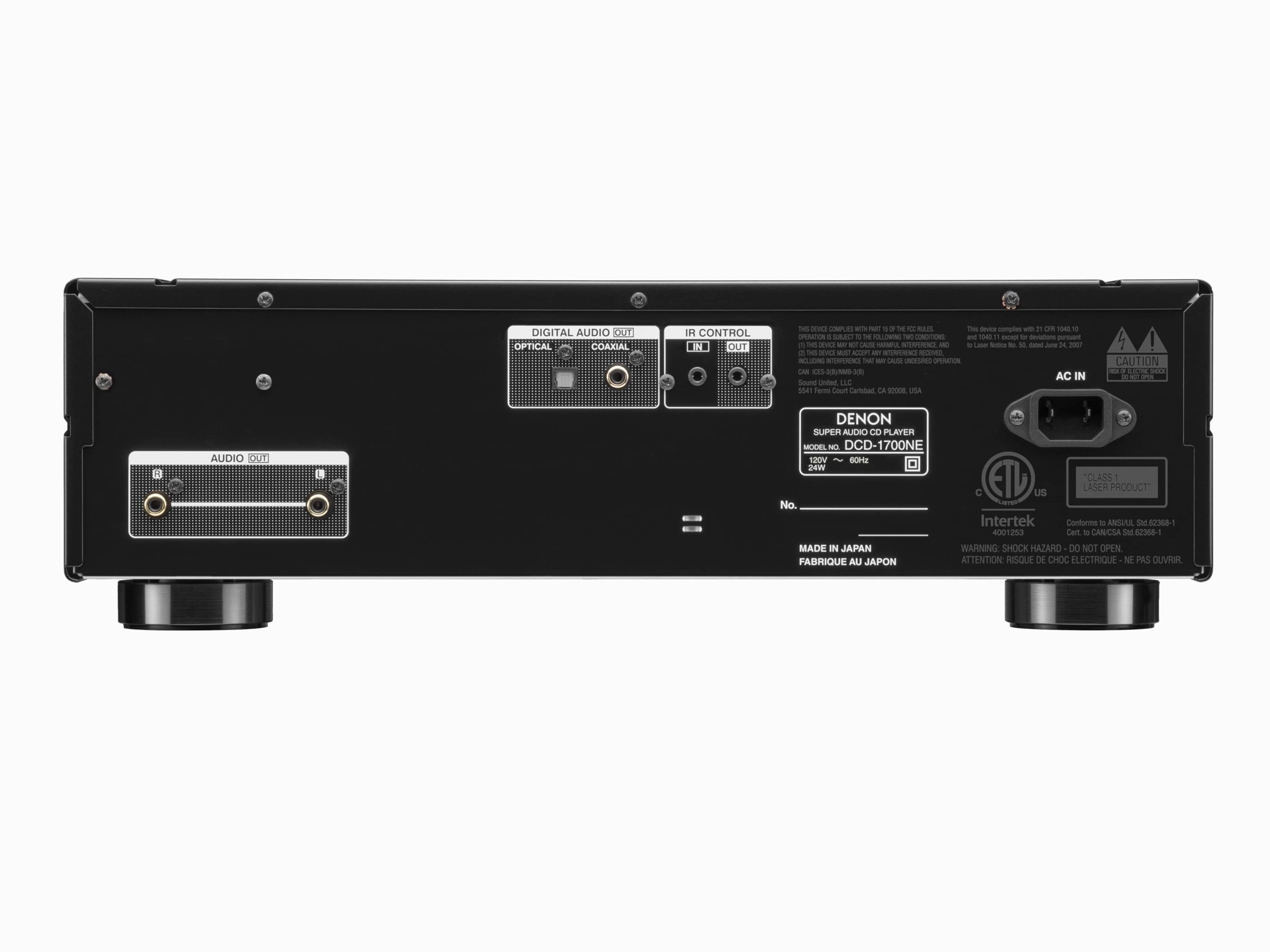

Fixed Analog Output (RCA) | Cinch x 1 (Gold Plated) |
Optical input / output (Maximum Support) | 0 / 1 |
Coaxial input / output (Maximum Support) | 0 / 1 |
Controls

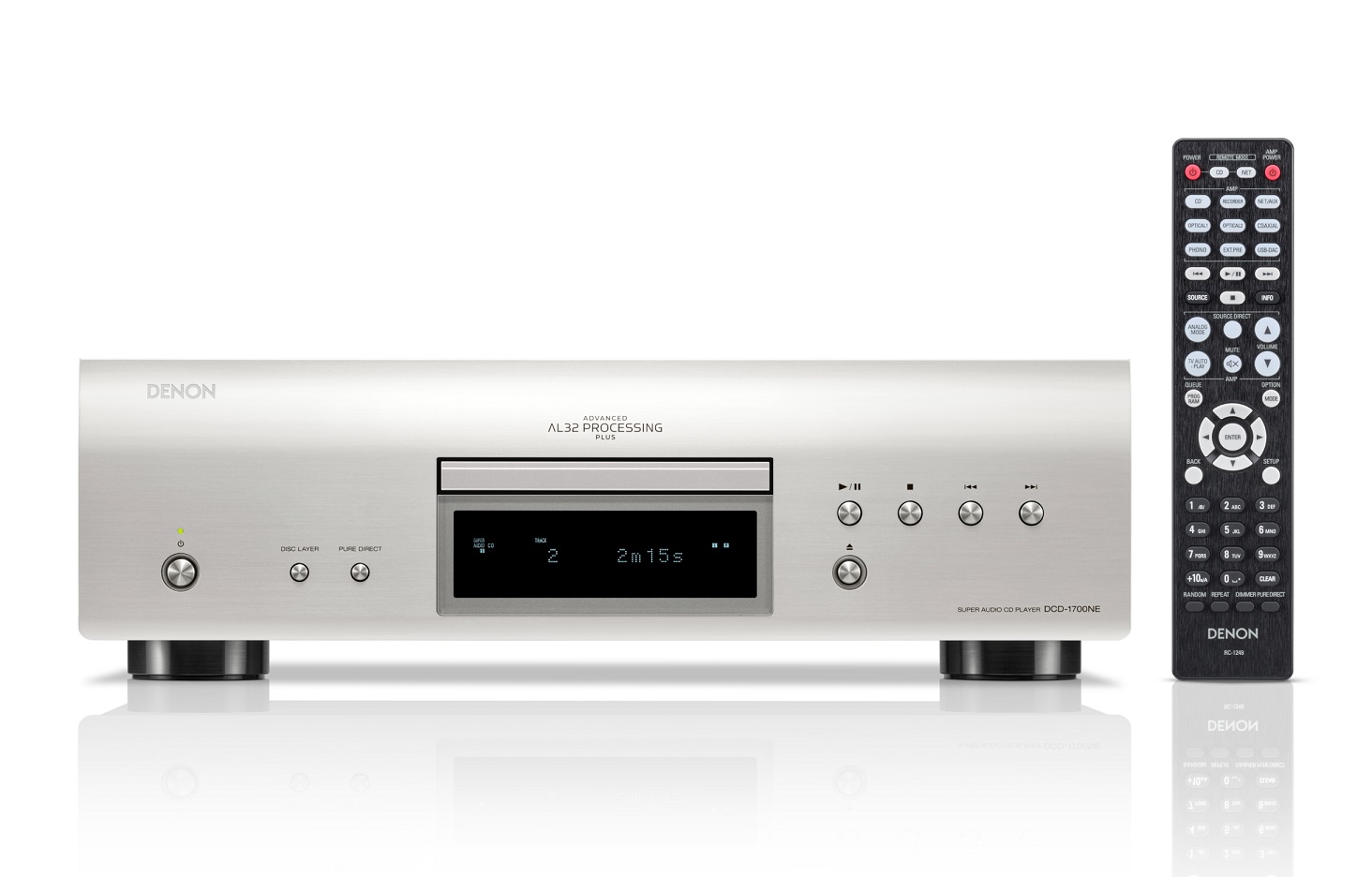

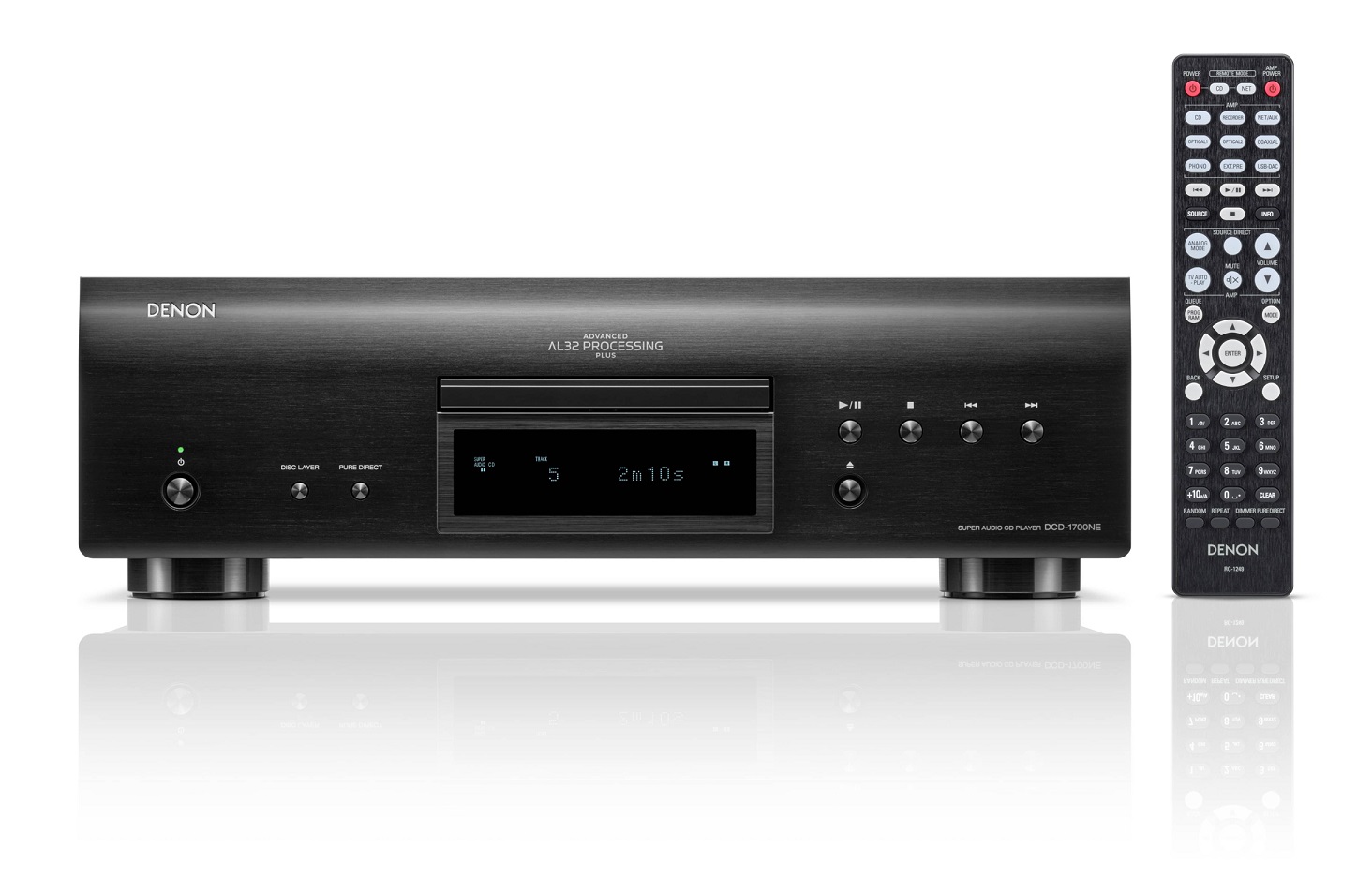

Remote Controller | System Remote (Amp and CD Player Control) |
On-Product Buttons | Power Disc Layer Pure Direct Play/Pause Stop Fwd/Rev Open/Close |
LED | POWER: 1 Green |
Front Panel Display | Single Line |
Dimmer for Front Display | Bright / Dim / Dark / Off |
Control with App via Network Player (Use Remote Control Bus) | Yes |
Other
Pure Direct Mode | Yes |
Last Function Memory | Yes |
Remote Control Bus Terminal | Yes |
Remote Control | Yes (controllable PMA-1700NE) |
Battery | Yes (AAA x2) |
Power Cord | Yes |
Other | Stereo RCA Cable x1 |
Timer Play (Need external audio timer) | Yes |
Auto Standby Mode | Yes |
