Ο Marantz Model 10 ειναι στερεοφωνικος, τηλεχειριζομενος δικαναλος ενισχυτης, ισχυος 2x250 wrms στα 8 ohm.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

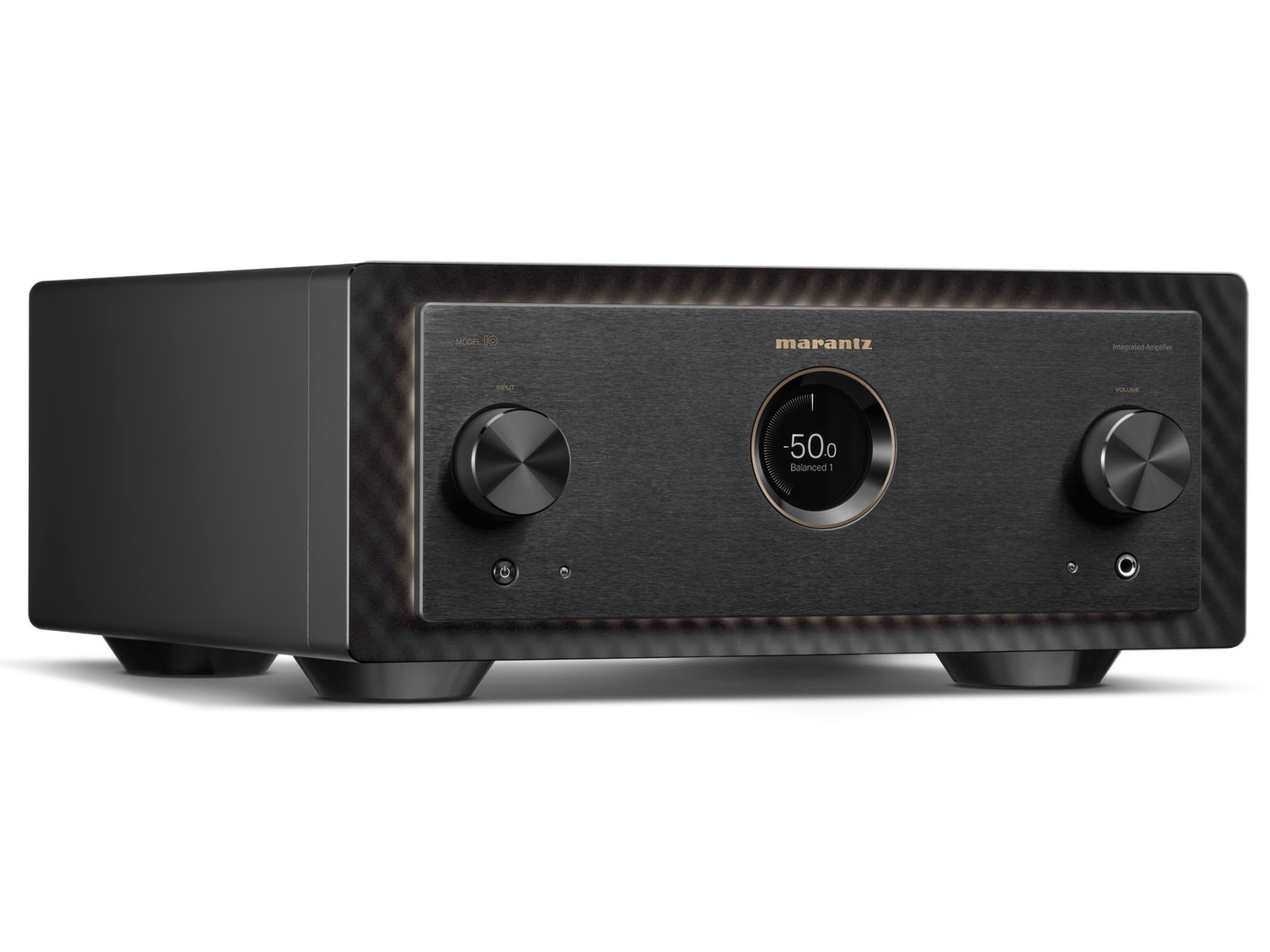

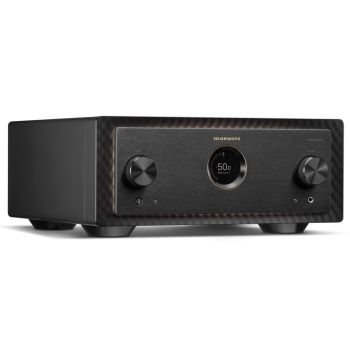

MODEL 10 is the new reference in amplifier design. Featuring a newly designed dual-mono symmetrical amplifier topology, it is the most powerful, highest performing Marantz amplifier ever.

Features

• New Marantz-engineered amplifier platform with Purifi technology
• Fully balanced dual mono amplifiers including all-new dual mono switch-mode power supplies
• Power Amplifier mode with preamplifier bypass

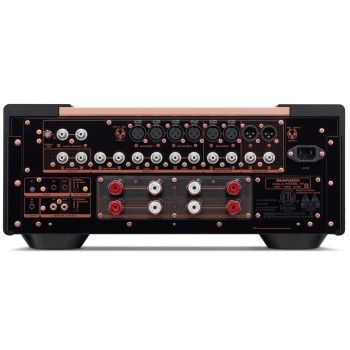

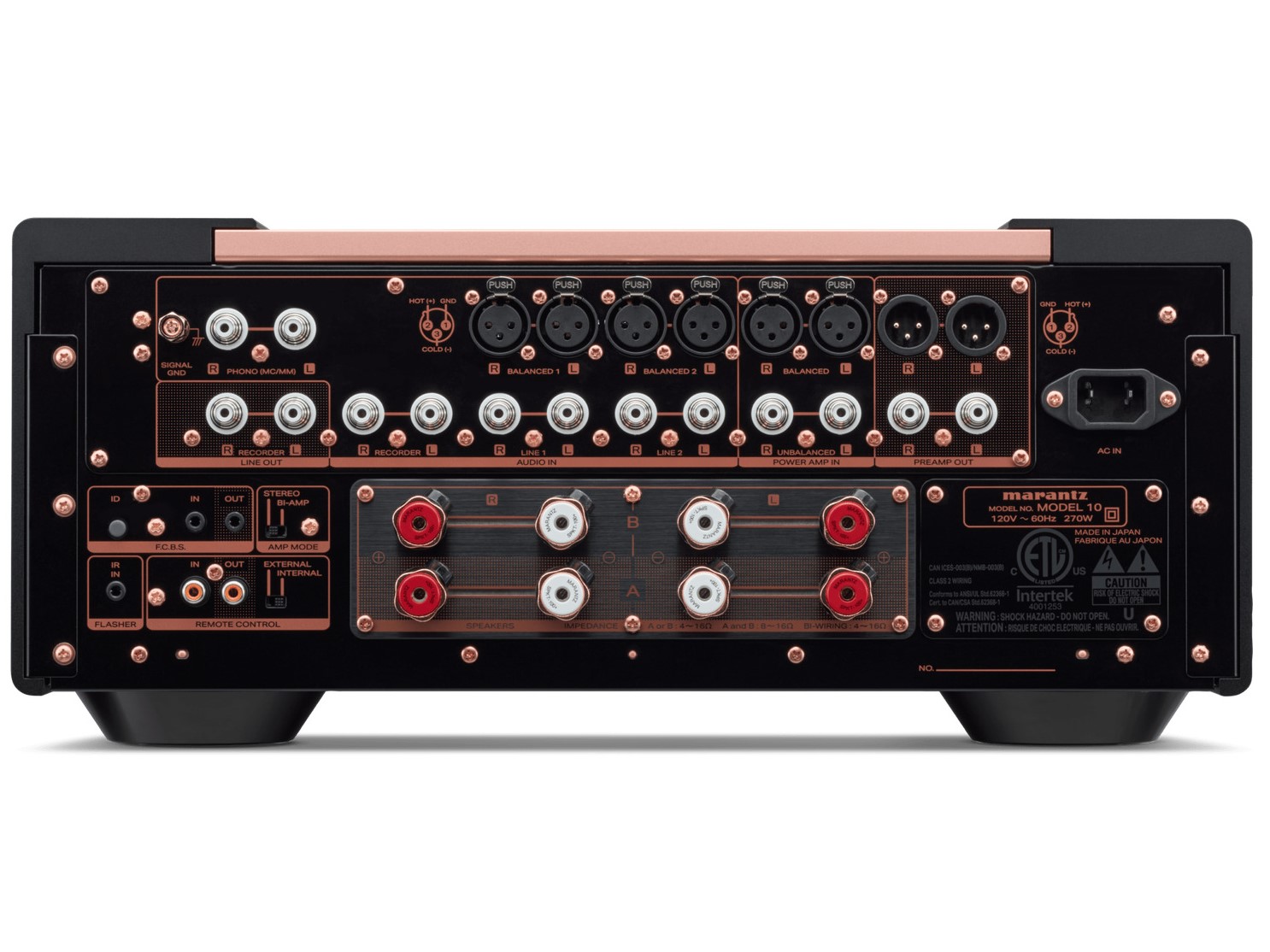

• Analog In (RCA), Phono (MM/MC), Line 1, Line 2, Recorder In/Out
• Balanced and single-ended inputs and outputs
• Phono MM/MC with settings for low, medium, and high output cartridges
• Headphone amplifier
• Copper-plated, triple-layered, symmetrical separation chassis isolates high power from low power circuits for superb noise immunity

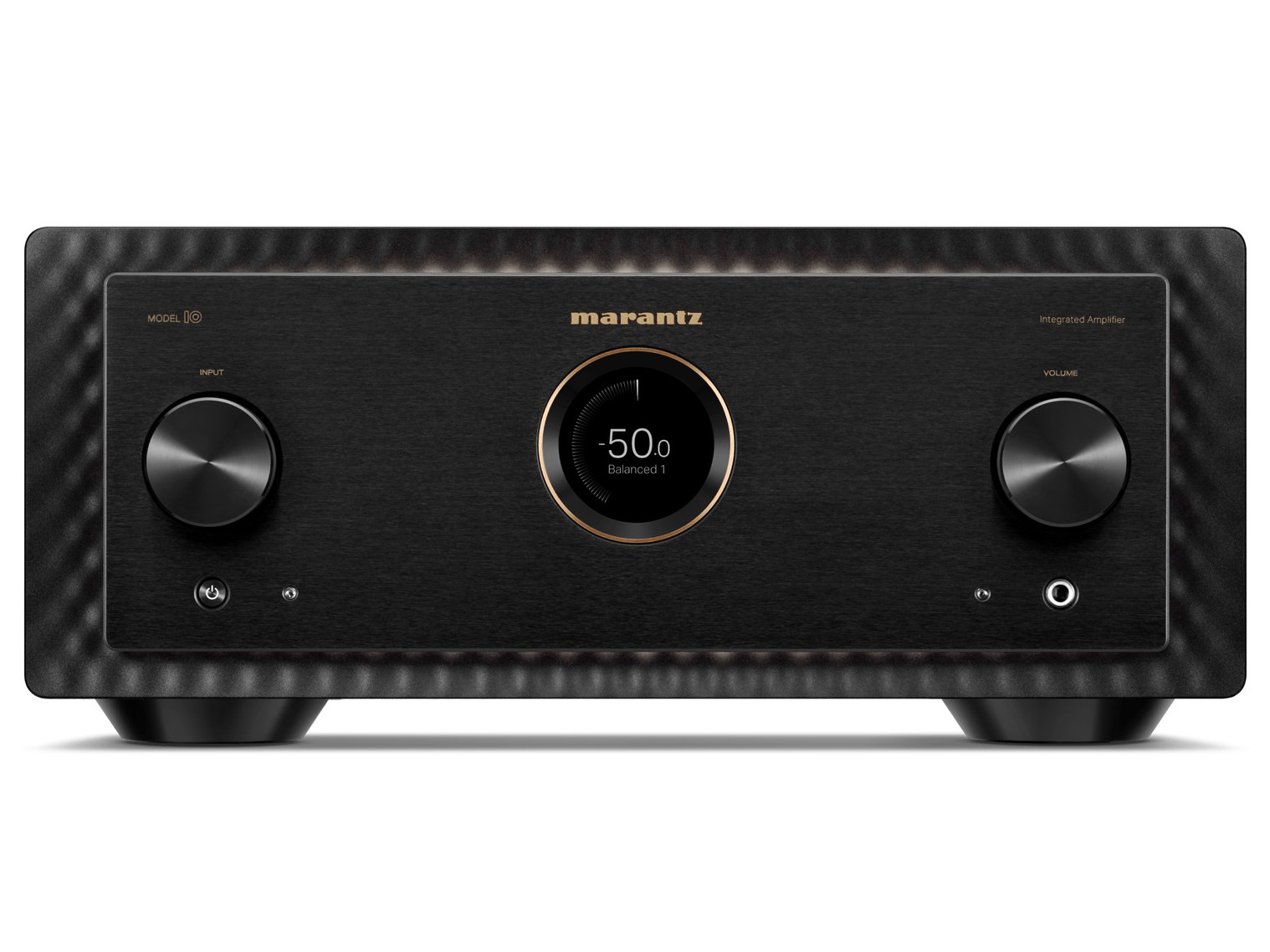

• Brushed aluminum front face, HD TFT Color Display, mesh top cover with internal illumination and branding

Specifications

• Rated Output Power 250W + 250W at 8ohm,20Hz-20kHz,THD 0.05 %, 500W + 500W at 4ohm,20Hz-20kHz,THD 0.05 %
• Frequency Response 5Hz~60kHz +0dB/-3dB 20Hz~20kHz +0dB/-0.3dB (125W, 8ohm, 20-20kHz) (CCIF IMD, DFD IMD)
• Damping Factor 500 (8ohm, 20Hz-20kHz)
• Input Sensitivity: Phono input MM: 3.6 mV / 36 kohm, MC (Low): 400 μV / 33 ohm, MC (Mid): 400 μV / 100 ohm, MC (High): 400 μV / 390 ohm
• RIAA Deviation 20 Hz - 20 kHz ±0.5 dB (MM/MC)
• Phono Maximum Input MM : 80mV, MC : 8mV
• Input Sensitivity: CD/LINE/RECORDER 350 mV/41kohm (Unbalanced) 700 mV/36kohm
• Input Sensitivity: Power Amp input Unbalanced: 1.58V / 41kohm (Gain : 29dB), Balanced: 3.16V / 15kohm (Gain : 24dB)
• SN Ratio PHONO (MM): 88dB, PHONO (MC): 76dB, CD: 122dB, Balanced: 122dB
• Headphone Output Level 130mW / 32 ohms
• Tone Control BASS : 50Hz ±10dB, TREBLE : 15kHz ±10dB
• Power Consumption 270W, 0.1W (at Standby)
• Unit (W × H × D mm) 440 × 192 × 473
• Net weight 33.7kg
