Ο Marantz PM-10 ειναι στερεοφωνικος, τηλεχειριζομενος δικαναλος ενισχυτης, ισχυος 2x200 wrms στα 8 ohm.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.

Amplifiers are at the core of Marantz history:
its very first product was a high-quality preamplifier designed to make the most of the then-new LP record format. And with a history stretching all the way to that ground-breaking Audio Consolette – which Saul B Marantz started manufacturing in 1952, and which soon became the first real Marantz product, the Model 1 preamplifier – , it’s no surprise that the company’s very latest Premium Series model, the PM-10, is an integrated amplifier built to set new standards with all of today’s music formats.

In fact, this massively powerful integrated amplifier is constructed more like a high-end separate preamplifier and a pair of monobloc power amps, but all in one beautifully finished case, designed both to maximise performance and create a strong visual statement.
PM-10 integrated amplifier     Making an integrated amplifier with dual monobloc design fitting in a normal size cabinet is made possible by the use of a stereo switching amplifier. Its aim? To reveal the maximum musical involvement from everything from LPs to the latest high-resolution audio files and beyond, and with all the power and control required to drive the most demanding loudspeakers, allowing them to perform at their best.

Key Features

• The new reference class Integrated amplifier
• Four switching power amplifier channels in bridged mode (two per channel) for maximum grip and drive
• True Balanced Concept from input to speaker to realise ground-free signal management
• Massive power: 200Wpc per channel into 8ohms, and 400Wpc into 4ohms
• Easy driving of a wide range of speakers
• Wide-ranging dynamic ability thanks to instant high-current power supply
• Fully balanced throughout: both preamplifier and power amplifiers
• Marantz Hyper Dynamic Amplifier Modules (HDAM) in preamp stage
• Dual mono power amplifier configuration
• Separate power supplies for preamplifier and control processor, and for each power amp channel
• Discrete phono stage for moving coil and moving magnet cartridges in its own shielded case.
• High-quality construction with double-layer chassis, 5mm thick aluminium top lid, solid aluminium front, copper plated chassis and high-purity copper speakers terminals
• Double thickness copper PCB for the output section and main power supplies

Specifications

Channels	2
Current Feedback Topology
Full balanced circuitry architecture
Double Mono Power Amp construction
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium	/ /
HDAM version	SA3
Power Transformer: Toroidal / El	SMPS
High Grade Audio Components
Customised Components
Symmetric PCB Layout
Aluminium extrusion heat sink	(Separate)
Copper plated chassis
Balance / Bass / Treble / Loudness	/ / /

Linear Drive Power Supply	(pre-amplifier stage)
Liniear volume control
BI-AMP and Multichannel option
Shottky diodes
Input buffer amp (all inputs / CD only)	/
System block shielding: copper / metal / none	/ /
Double Layer Bottom Plate
Low noise LCD display
Power Amp direct
5mm aluminium top plate

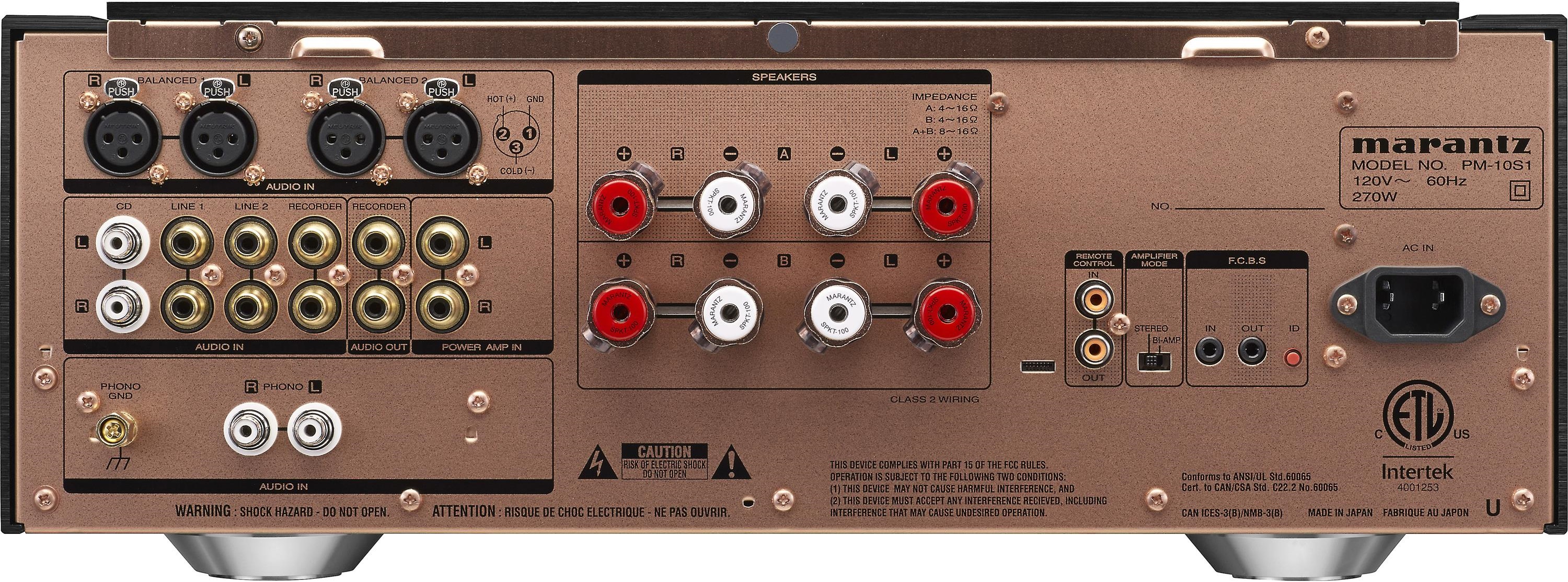

Audio Inputs	7
Phono Input: MM / MC	/
Audio Outputs	1
Balanced In / Out	2 /
Power Amp Direct IN
Gold Plated Cinch	/ CD & Phono nickel-plated
Speaker A / B
Speaker Terminals	Marantz SPKT-100+
Number of terminals	4
D-Bus
Floating Control Bus (3.5 mm mono jack x 2)
Headphone Out

Power Output (8 / 4 Ohm RMS)	200 W / 400 W
Frequency Response	5 Hz 50kHz
Total Harmonic Distortion	0.01%
Damping Factor	500
Input Sensitivity: MM	2.6 mV / 47 kohm
Input Sensitivity: MC	280
Input Sensitivity: High level	400 mV / 20 kohm
Input Sensitivity: Balanced High level	800 mV / 40 kohm
Signal to Noise Ratio: High level	111 dB(2V input/Rated output)
Input Sensitivity: Power Amp Direct IN	1,5 V / 20 kohm
Signal to Noise Ratio: Power Amp Direct IN	113 dB

Available colors: Gold / Silver / Black / Silver-Gold	/ / /
Metal Front Panel
Power Consumption in W	270
Standby Consumption in W	0.3
Auto power off
Detachable Power Cable
Remote Control	RC004PMSA
System Remote Function
Maximum Dimensions (W x D x H) in mm	440 x 168 x 453
Weight in kg	21.5
