PERFORMANCE AND PRICE

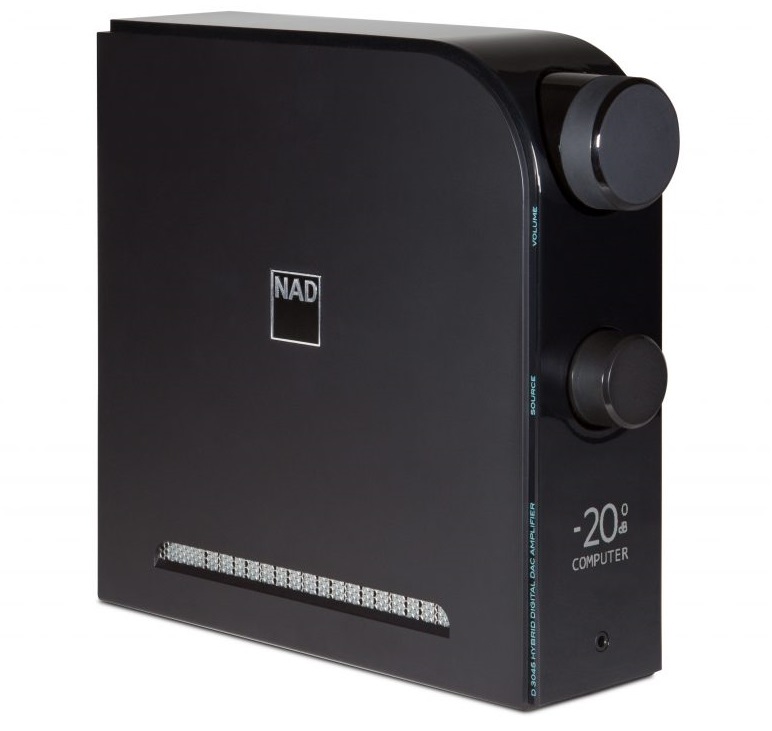

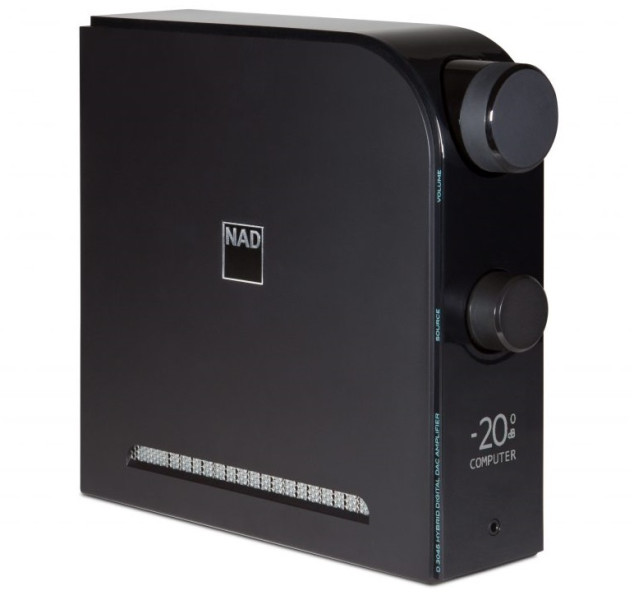

The NAD D 3045 includes advanced capabilities usually only found in far more expensive components. High Res USB DACs? They start at about 3X the price of the D 3045. High Current headphone amplifiers start at the price of the D 3045 and go up from there. Power Amps featuring 60wpc and with the low distortion and high current capability of the D 3045 are rare at this price. Yet all these products are wrapped into one compact, energy efficient, and convenient package engineered by one of audio’s most iconic brands. 45 years of audio excellence is on full display with this innovative and versatile component. Just add your favourite music source and a great set of speakers to enjoy many years of sonic bliss.
FEATURES & DETAILS

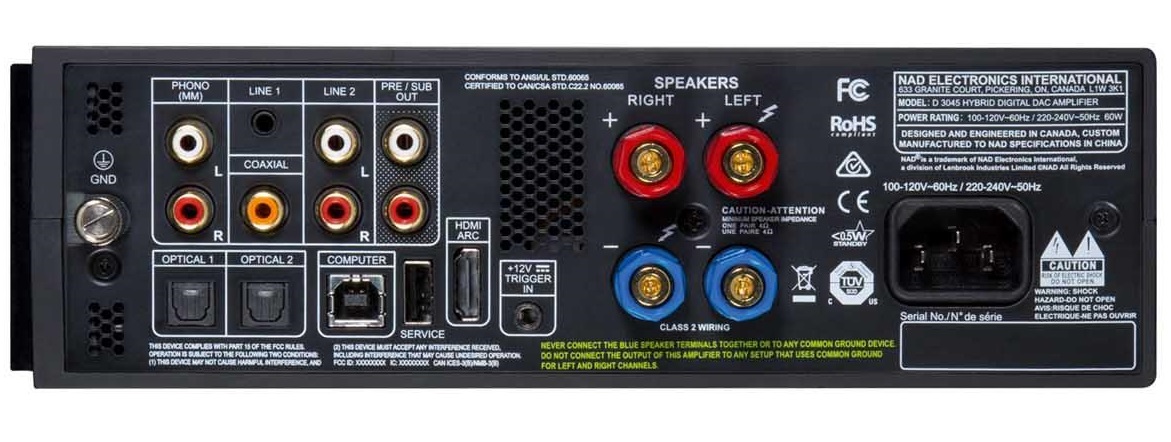

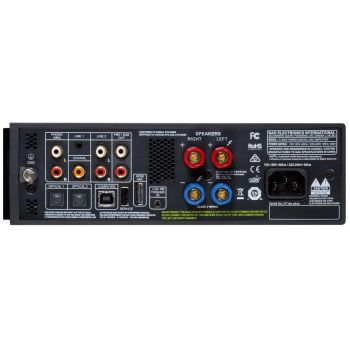

- 2 x 60W Hybrid Digital Amplifier
- Two-Way Bluetooth powered by Qualcomm aptX HD audio
- Asynchronous USB 24/192 Input supporting MQA and DSD
- HDMI Audio Return Channel
- Coax and Optical Input
- MM Phono and Line Input
- Preamp Out
- Sub Out
- Headphone Amp
- IR Remote
PREAMPLIFIER SECTION LINE INPUT/PRE OUT
- THD (20Hz – 20kHz)
- <0.003% at 2V out
- Signal-to-Noise Ratio
- >100dB (IHF, A-weighted, ref. 500mV out, unity gain)
- Channel separation
- >85dB (1kHz)
>80dB (10kHz) - Input impedance (R and C)
- 47kohms + 220pF
- Maximum input signal
- >5.5Vrms (ref. 0.1% THD)
- Output impedance
- 400 Ohms
- Input sensitivity
- 82mV (ref. 500mV out, Volume maximum)
- Frequency response
- ±0.2dB (20Hz – 20kHz)
- Maximum voltage output – IHF load
- >4V (ref. 0.1% THD)
PHONO INPUT / PRE OUT
- THD (20Hz – 20kHz)
- <0.015% at 2V out
- Signal-to-Noise Ratio
- >82dB (200 Ohm source, A-weighted, ref. 500mV out)
>76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out) - Input sensitivity
- 1.35mV (ref. 500mV out, Volume maximum)
- Maximum input signal at 1kHz
- >90mVrms (ref. 0.1% THD)
- Frequency response
- ±0.3dB (20Hz – 20kHz)
LINE INPUT / HEADPHONE OUT
- THD (20Hz – 20kHz)
- <0.003% at 120mW
- Signal-to-Noise Ratio
- >90dB (32 Ohm load; A-weighted, ref. 500mV out, unity gain)
- Frequency response
- ±0.3dB (20Hz – 20kHz)
- Output impedance 2 Ohms
- Maximum headphone output – 32 Ohm load <8V (ref. 0.1% THD)
GENERAL SPECIFICATIONS LINE INPUT/SPEAKER OUT
- Continuous output power into 4 and 8 Ohms
- 60W (ref. 20Hz-20kHz at 0.03% THD, both channels driven)
- THD (20Hz – 20kHz)
- <0.005% (at 1W, 4 and 8 ohms)
- Signal-to-Noise Ratio
- >98dB (A-weighted, 500mV input, ref. 2.828V out in 4 Ohms)
- Clipping power
- >80W (at 1kHz 4 Ohms 0.1% THD)
- IHF dynamic power
- 8 Ohms : 80W
4 Ohms : 150W
2 Ohms : 200W - Peak output current
- >18A (in 1 Ohm, 1ms)
- Damping factor
- >300 (ref. 8 Ohms, 20Hz to 6.5kHz)
- Frequency response
- ±0.3dB (20Hz – 20kHz)
- Channel separation
- >75dB (1kHz)
>70dB (10kHz) - Input sensitivity
- 260mV (for 30W in 4 Ohms)
- Supports bit rate/sample rate
- up to 24 bit/192kHz (digital source)
up to 24 bit/384kHz (computer source) - Standby power
- <0.5W
DIMENSION AND WEIGHT
- Gross dimensions (W x H x D)
- 70 x 235 x 265 mm
- Net weight
- 3.6kg
- Shipping weight
- 2.6kg
