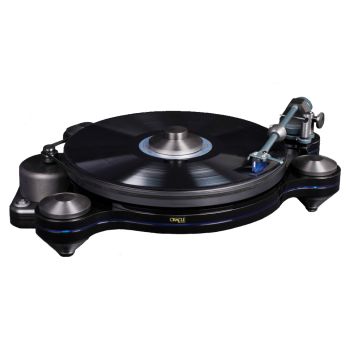

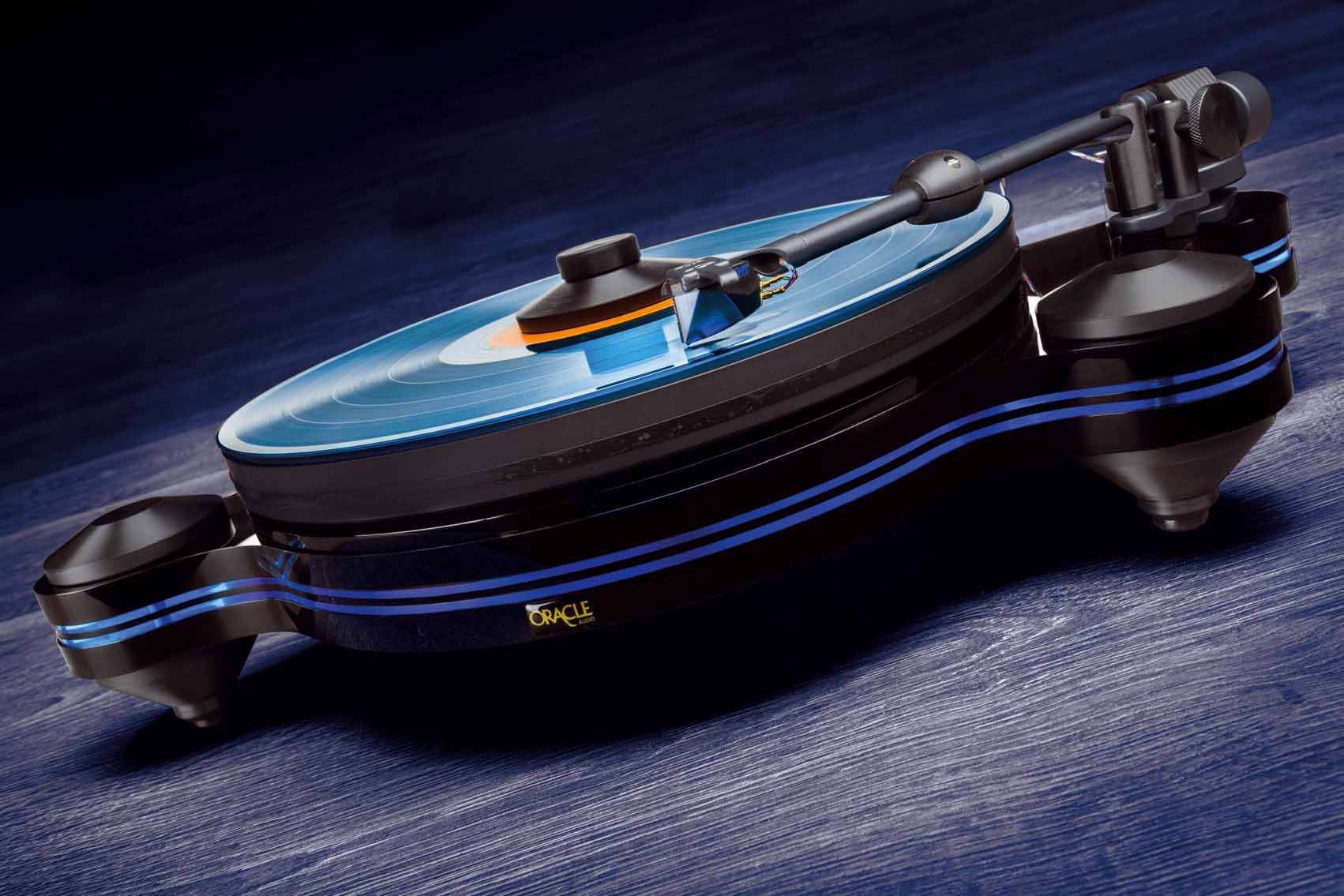

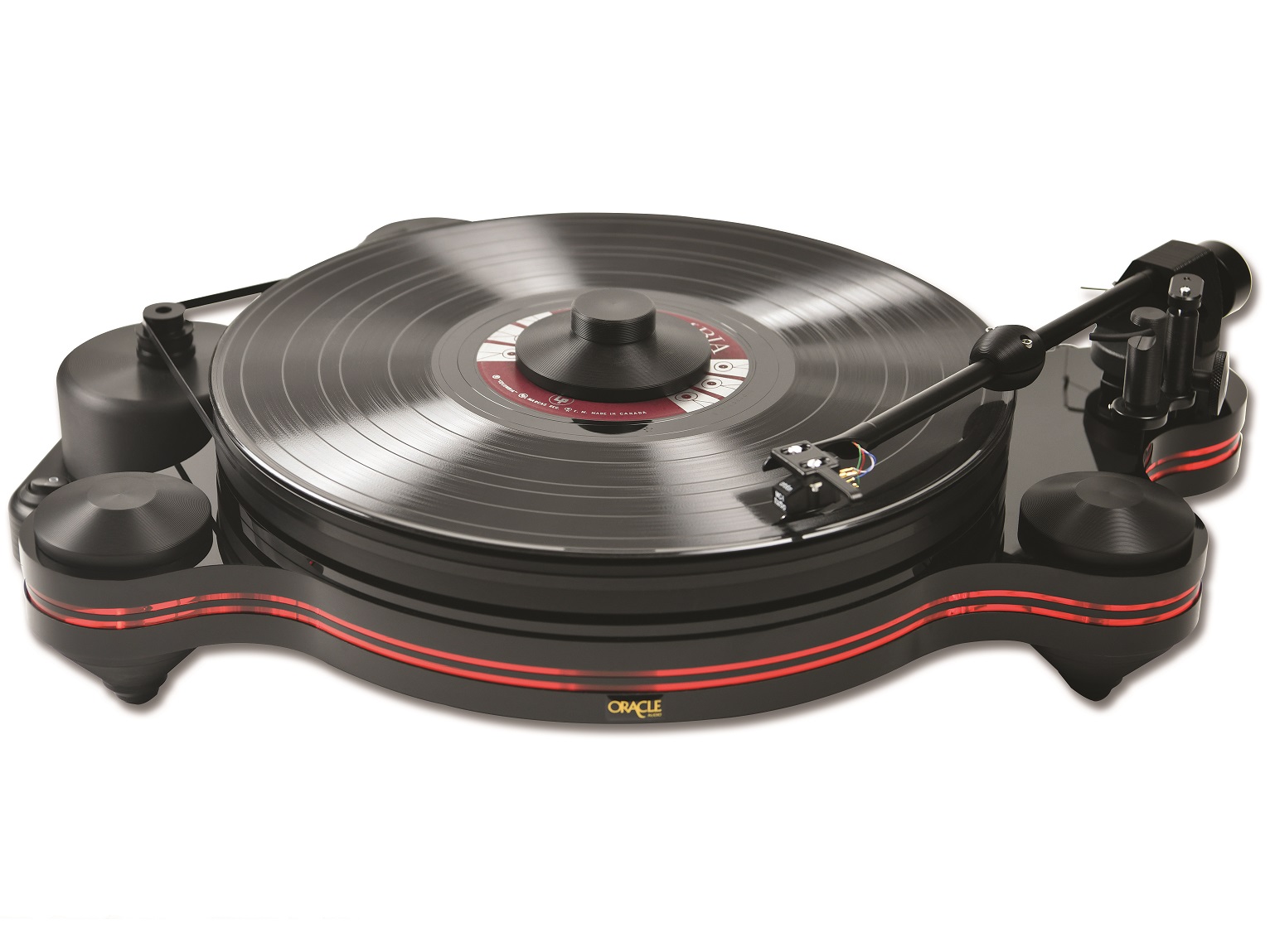

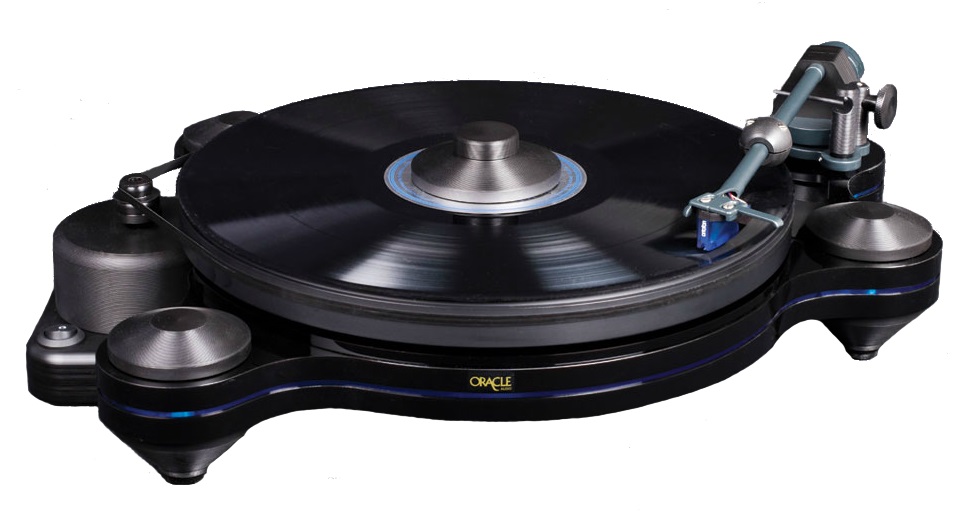

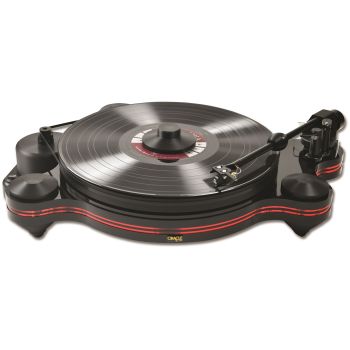

Το Oracle Origine mkII ειναι ενα πικαπ με βραχιονα (ειδικα κατασκευασμενο και μελετημενο απο την Oracle για το συγκεκριμενο μοντελο). Μπορει να παραγγελθει με ποικιλια χρωματισμων των ακρυλικων τμηματων. Το καπακι, κεφαλη και το led φτισμου δεν περιλαμβανονται στην τιμη.

Εγγυηση Αντιπροσωπειας. Δυνατοτητα ανταλλαγων, δοσεων.

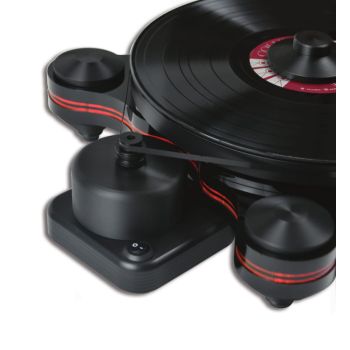

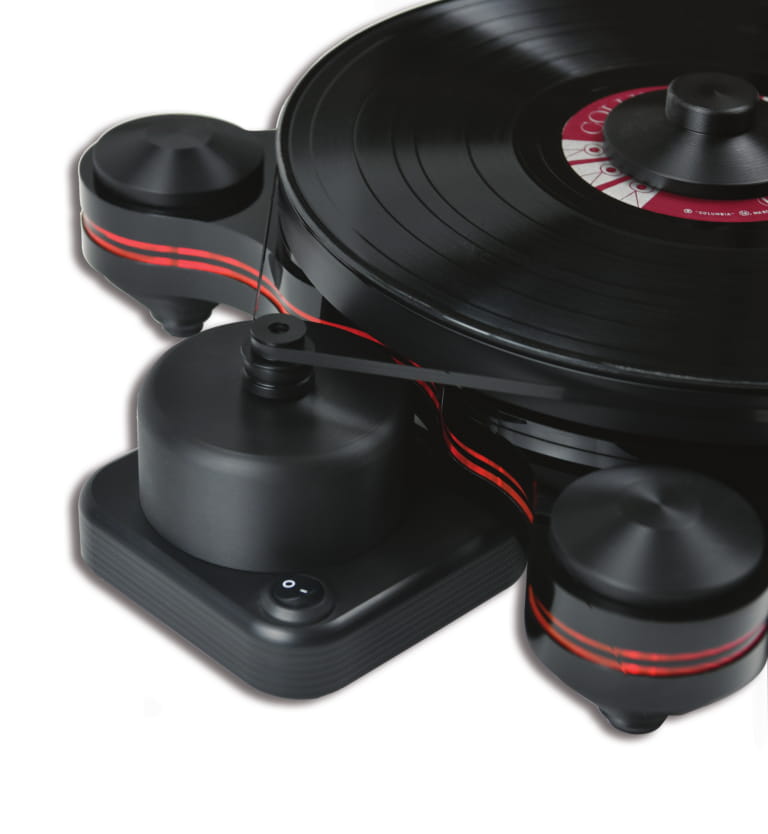

With its outline shaped like the footprint of our flagship Delphi turntable, with its feet system derived from our CD players and with the platter inherited from the Paris turntable, the Origine carries the signature of Oracle’s design. It harbors a two-bushing spindle holder which is a direct descendant of the vintage Delphi’s main bearing, who are still functioning well today after 30+ years!  The Origine is equipped with an outboard synchronous AC motor that drive the platter using a belt around its perimeter. The two-step pulley of the Origine allows playback at 331/3 and 45 rpm.

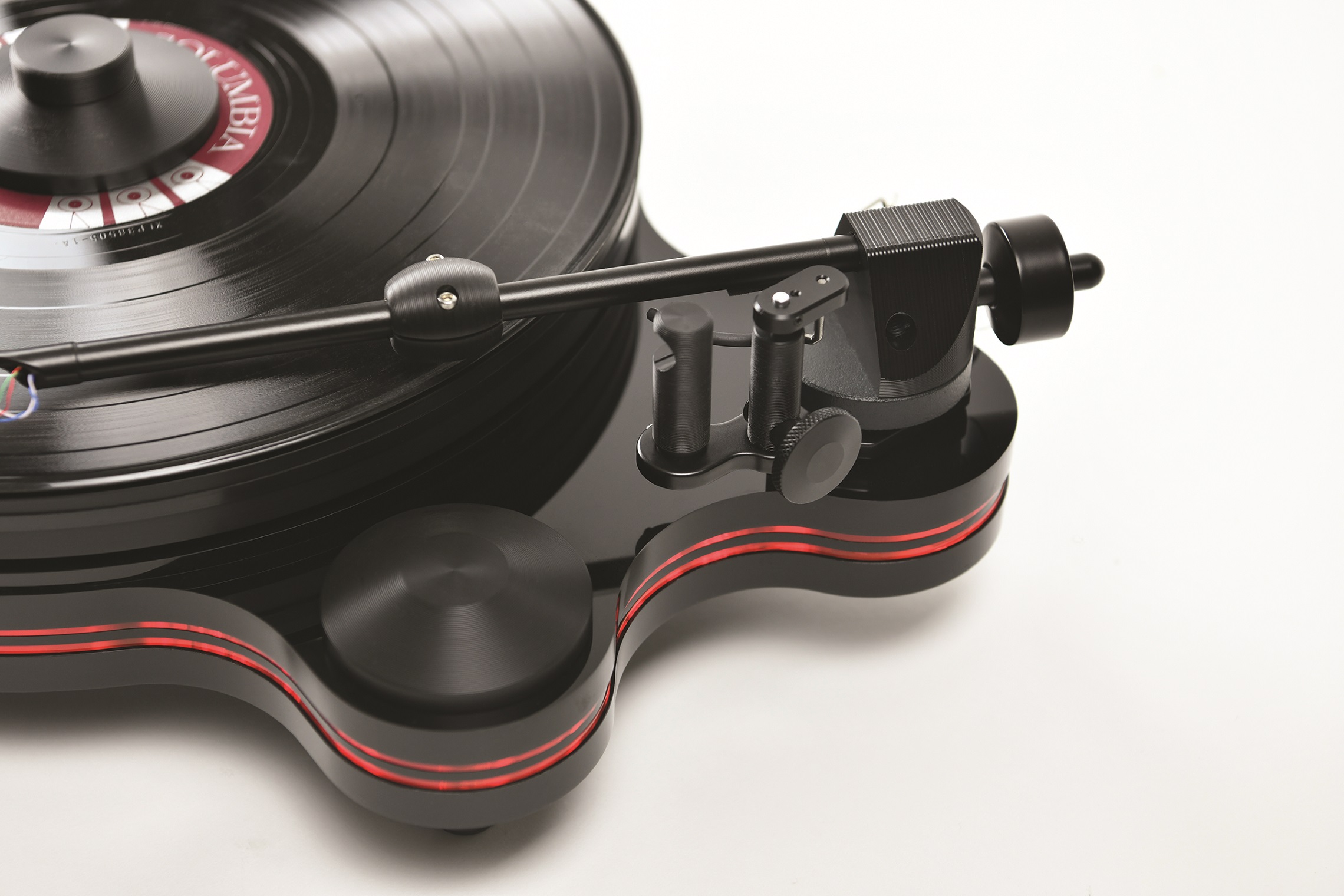

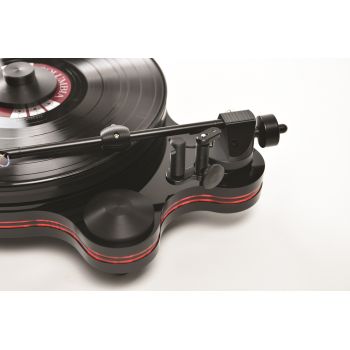

The turntable comes equipped with the new Origine tonearm and with or without a supplied Ortofon MC-1 Turbo; a high-output moving coil phono cartridge. This unipivot tonearm is cleverly designed with its pivot contact point set on the same plane as the record contact point with the stylus and with the tracking force counterweight for added stability while tracking the grooves. The compliance of a phono cartridge, or the “springiness” of the cantilever/motor suspension assembly,  plays an important role with unipivot tonearms.  We address this issue by using a movable arm tube weight that we nicknamed “the olive” which allows to vary the tonearm’s effective mass. This adjustability enables to make a better match of compliance and effective mass, thus allowing the use of a very wide range of phono cartridges with the Origine. The Origine tonearm has internal wiring from Cardas Audio!

Specifications

• Drive: AC synchronous outboard motor, belt driven, external power supply.
• Platter: One-piece acrylic platter derived from the Paris MkV.
• Tonearm: Unipivot with adjustable effective mass to accommodate various phono cartridge compliances.
• Phono cartridge: Ortofon Mc-1 Turbo (optional). Pre-installed and calibrated at the factory!
• Dustcover : A full dustcover for the Origine is available as an option.

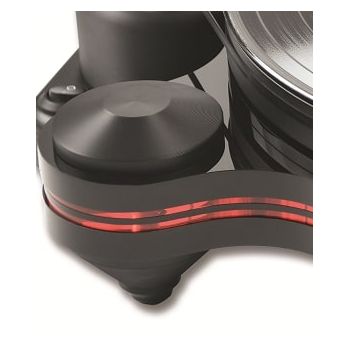

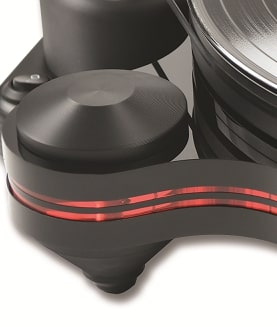

• Mounting: Adjustable delrin feet system.
• Tonearm effective length: 240 mm
• Platter spindle center to tonearm mounting hole center : 225 mm
• Power supply:  18V AC
• Weight: 7.7 kg (including the motor)
• Dimensions : without dustcover: 483 x 356 x 127 mm , with dustcover: 495 x 381 x 146 mm
