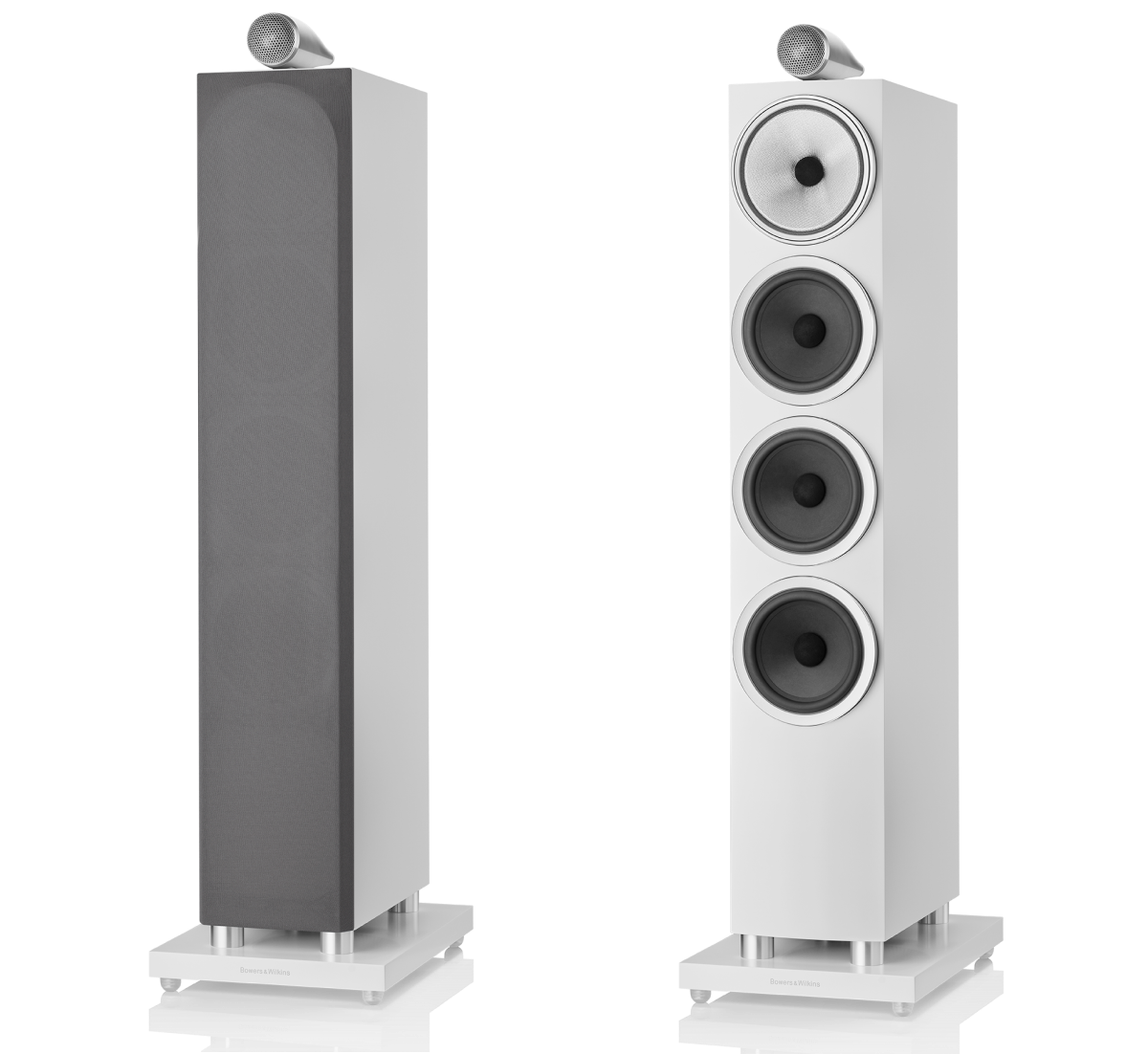

Το Bowers & Wilkins 702 S3 ειναι ηχεια δαπεδου, 3 δρομων. Μεγαφωνα: 3x 6.5" aerofoil woofers, 1x 6" continuum FST midrange και 1x 1" carbon dome tweeter.
Εγγυηση Αντιπροσωπειας. Δυνατοτητα δοσεων.
702 S3's Carbon Dome tweeter is housed in an all-new Solid Body Tweeter assembly, while with its new downward-firing port configuration and trio of Aerofoil Profile bass cones, it delivers bass that’s both profoundly deep and endlessly articulate.
Specifications
Size & weight
Dimensions | Height: 1010 mm cabinet only 1138 mm including tweeter and plinth Width: 192 mm cabinet only 290 mm including plinth Depth: 354 mm cabinet only 391 mm including grille and terminals 410 mm including plinth |
Net weight | 33.46kg |
Technical details
Technical features | Decoupled Carbon Dome tweeter Solid Body Tweeter-on-Top Continuum™ cone FST™ midrange Decoupled midrange Aerofoil™ Profile bass cones Flowport™ |
Description | 3-way vented-box system |
Drive units | 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency 1x ø150mm (6 in) Continuum cone FST midrange 3x ø165mm (6.5 in) Aerofoil Profile bass |
Frequency range | 28Hz - 33kHz |
Frequency response | 46Hz - 28kHz ±3dB |
Sensitivity | 90dB spl (2.83Vrms, 1m) |
Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis) <1% 86Hz - 28kHz <0.5% 110Hz - 20kHz |
Nominal impedance | 8Ω (minimum 3.1Ω) |
Recommended amplifier power | 30W - 300W into 8Ω on unclipped programme |
Max recommended cable impedance | 0.1? |
Finishes
Cabinet finishes | Gloss Black Satin White Mocha |
Grille finishes | Black Grey (Satin White only) |
