Το Bowers & Wilkins 702 Signature ειναι ηχεια δαπεδου, 3 δρομων. Δυνατοτητα δοσεων.
Δυνατοτητα δοσεων, ρωτηστε μας.

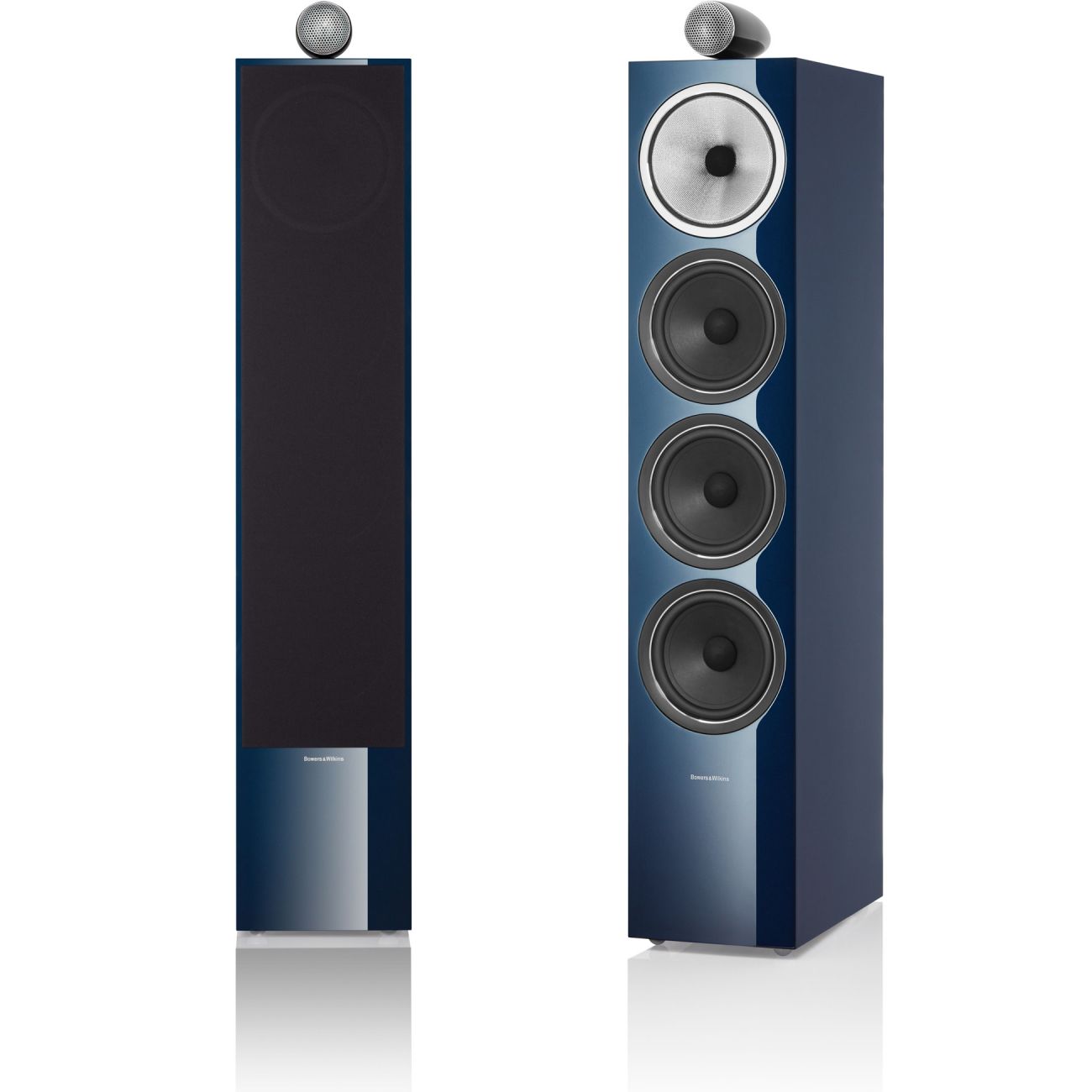

702 Signature is the pinnacle of 700 Series design and engineering.
Solid Body tweeter
Milled from a solid block of aluminium, the solid body tweeter housing design creates an acoustically optimised housing for the tweeter – one that’s exceptionally inert and resistant to resonances.
Carbon Dome™ tweeter
Carbon Dome tweeters are a brand new technology purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double-dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Continuum™ Cone
First introduced with the 800 Series Diamond, the Continuum cone represents the biggest step-change in midrange performance since Kevlar. Its woven, coated material provides highly controlled break-up, resulting in a more open, neutral midrange.
Decoupled midrange
The midrange driver in the floor-standers feature a decoupled design, adapted from a similar system in the 800 Series Diamond. Decoupling reduces cabinet colouration, and boosts midrange clarity.
Recommended amplifier power | 30W - 300W into 8Ω on unclipped programme |
Dimensions | Height: 994mm (39 in) cabinet only 1087mm (42.8 in) including tweeter and plinth Width: 200mm (7.9 in) cabinet only 366mm (14.4 in) including plinth Depth: 337mm (13.3 in) cabinet only 364mm (14.3 in) inc. grille and terminals |
Net weight | 29.5kg |
Grille: | Black Grey (Satin White only) Satin White |
Technical features | Decoupled Carbon Dome tweeter Solid Body Tweeter on top Continuum cone FST midrange Decoupled midrange Aerofoil profile bass cones Flowport™ |
Description | 3-way vented-box system |
Drive units | 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency1x ø150mm (6 in) Continuum cone FST midrange3x ø165mm (6.5 in) Aerofoil profile bass |
Frequency range | -6dB at 28Hz and 33kHz |
Frequency response | 45Hz - 28kHz ±3dB |
Sensitivity | 90dB spl (2.83Vrms, 1m) |
Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m) <1% 86Hz - 28kHz <0.5% 110Hz - 20kHz |
Nominal impedance | 8Ω (minimum 3.1Ω) |
