Το Van den Hul Revelation Hybrid ειναι υβριδικο ομοαξονικο καλωδιο ηχειων, παχους 5AWG, με αγωγους επαργυρου χαλκου και ινων ανθρακα.

Η τιμη αφορα 1 μετρο.

The main idea behind this concept is that a pure metal conductor is a wonderful collection and compilation of crystals where the inter-crystal relations are not perfectly arranged:

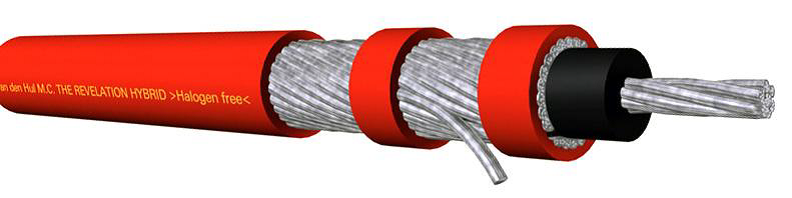

• In our The REVELATION HYBRID the bridging factor between these crystals is the thick conductive Linear Structured Carbon ® (LSC) saturated layer covering the centre conductor.
• Due to the special properties of this LSC saturated coating, the sonic improvements are remarkable. Especially the very fine details of a recording and the spatial information are transmitted without the slightest harshness.

All metal strands used in The REVELATION HYBRID are of a very high grade Matched Crystal (MC) OFC with a thick and very dense coating of pure silver.

• The centre conductor is made of 294 single strands each 0.15 mm. in diameter exhibiting a total cross-section area of 5.20 mm² and a low resistance of 0.332 Ohm/100 meter.
• The LSC saturated layer covering the centre group is extruded under very high pressure to ensure a good bridging contact.
• The total diameter of this combined group is 7.50 mm.
• Around this core 16 helically wound conductors are applied. These 16 outer conductors are individually insulated and are standardly wired in parallel with the centre conductor, giving a single lead cable. Their being individually insulated however also allows them to be wired together as a separate signal return. (Versions wired as such and fit with matching connectors are available either as twin-lead speaker cable or as single-ended interconnect on special customer demand).
• Each of these 16 conductors consists of 42 strands of 0.15 mm. diameter. These 16 conductors exhibit a combined cross-section area of 11.88 mm² and a combined resistance of just 0.145 Ohm/100 meter.
• The core combined with these 16 conductors in parallel give The REVELATION HYBRID its very low resistance of 1 Ohm/km.
• The outer insulation jacket is made of red HULLIFLEX ® 3, a mechanically superb insulation material.
• The external diameter is 12.5 mm.

In using this product, the advise is to de-insulate the various groups to solder them all together in one big connector; Our 10.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors are suited.

To obtain the best performance twist the two loudspeaker leads (the plus and the minus connecting cables) together with 4 – 5 twists/meter.

For those who do not fear some extra work: with our C – 11.3 RCA type connectors you can produce a superb single-ended interconnect from The REVELATION HYBRID by using the 16 outer conductors as the shielding.
